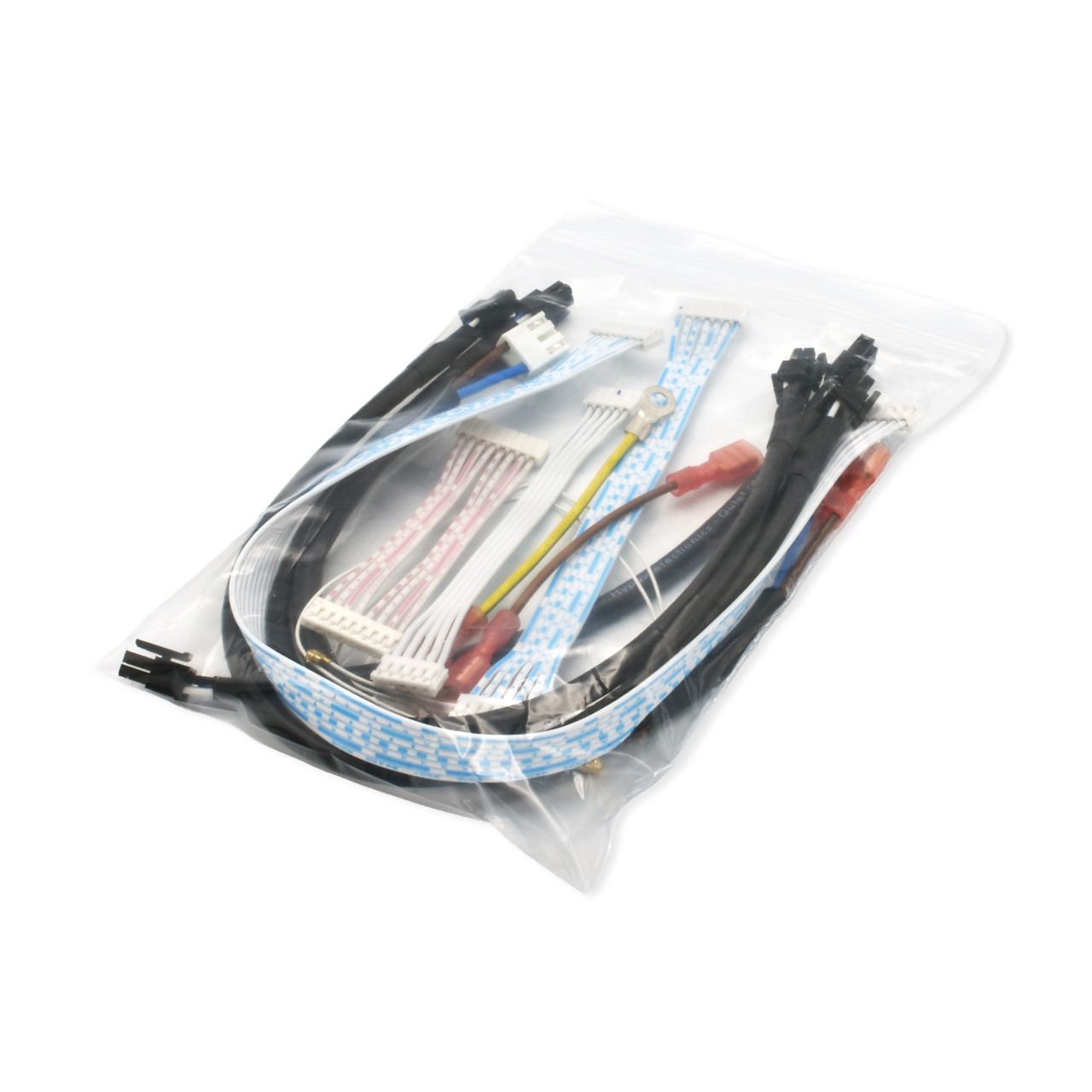

Cable set OEM PreAmplifier

The Hypex OEM PreAmplifier Module offers a fully analog, high-fidelity PreAmplification stage, engineered for easy integration into a wide range of audio products. Designed for maximum signal integrity and operational flexibility, it delivers an unparalleled user experience combined with best-in-class reliability. At its core, a 2.7” monochrome display with adjustable brightness and an energy-saving on-time standby mode optimises both functionality and aesthetics. Control is intuitive, using two precision-machined aluminium rotary encoders, complemented by remote-control functionality for added convenience. The module supports multiple analog and digital inputs, each with individually adjustable gain offset, ensuring perfect source matching. Internal digital control manages input selection, volume, and system standby. SIZE AND WEIGHT Al modules of the OEM PreAmplifier, including the FusionConnect Add-on, are designed to fit in a 435 mm wide Hi-Fi enclosure and are also compatible with a 19” rack space. DAC Performace data All audio measurements are done with AES17 20kHz filter and no weighting. Item Symbol Max Unit Notes Output level Vout 14 dBu (4.1 Vrms) Signal-to-Noise ratio SNR 128.5 dB Distortion THD+N -117.5 dB -1 dBFS Dynamic range DR 127 dB Channel crosstalk -147 dB DAC supported input formats Function PCM support DSD support Notes S/PDIF (input) Up to 192kHz/24bits No Optical (Toslink) Up to 192kHz/24bits No AES/EBU Up to 192kHz/24bits No USB type B Up to 384kHz/32bits DoP: Up to DSD 256 Native: Up to DSD256 Network Up to 384kHz/32bits DoP: Up to DSD 256 Native: Up to DSD256 1) Bluetooth 48kHz/16bits 127 Note 1: An additional internally installed streaming board is connected to an internal USB port of the digital input board. Supported formats depend on the chosen streaming board and software. HIGHLIGHTS Fully analog signal path 2.7” monochrome adjustable display Individually adjustable gain offsets per input Infrared remote control compatibility Energy-efficient on-time standby mode Integrated digital management of analog switching and volume Power status LED indicator Application Examples High-end stereo PreAmplifiers Integrated amplifier designs Professional monitoring controllers Home theatre PreAmplifier
