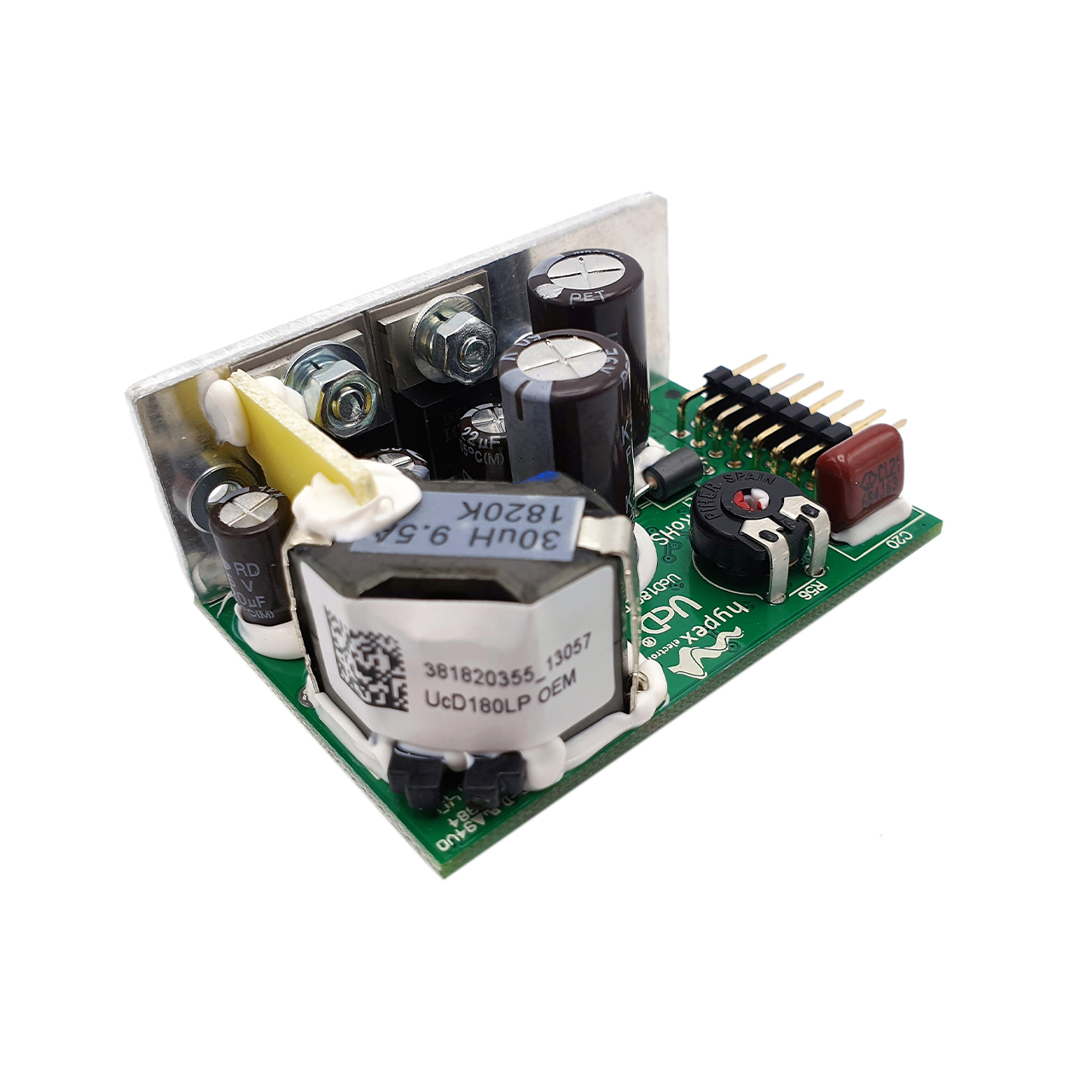

UcD180LP OEM

Product information "UcD180LP OEM"

The UcD180LP OEM amplifier module emerges as a paragon of high-performance Class-D amplification, meticulously engineered for versatility across an expansive array of audio applications. Tailored to excel in environments ranging from Active Studio Monitors to sophisticated Public Address systems, Line Arrays, and Immersive Audio setups, this amplifier module is a testament to innovation, reliability, and great audio quality.

With an unwavering commitment to versatility, the UcD180LP OEM amplifier module effortlessly caters to the diverse needs of professionals. From the intricate demands of Public Address systems to the discerning requirements of studio and home playback scenarios, this amplifier module is poised to deliver exemplary performance with finesse.

The Low Profile OEM design extends the boundaries of performance with its thoughtfully crafted compact design. This attribute is not merely an aesthetic consideration; it serves a practical purpose by addressing the constraints of space-limited applications. The amalgamation of its low-profile design and great audio capabilities positions the UcD180LP OEM as the epitome of sophistication in amplifier technology.

Recognizing the growing demand for audio solutions that seamlessly integrate into space-limited environments, the UcD180LP OEM shines as an ideal choice. Its low-profile design not only meets the spatial constraints of modern setups but also renders it perfect for multichannel applications, where a compact footprint and uncompromised audio quality are paramount.

The UcD180LP OEM amplifier module is not just a technical marvel; it has earned its place as a preferred choice through rigorous testing and trials. Professionals across the world who demand a compact design with great performance and proven reliability have chosen the UcD180LP OEM for many years as their go-to solution.

Highlights

  • • Flat, fully load-independent frequency response
  • • Low output impedance
  • • Very low, frequency-independent THD
  • • Very low noise
  • • Fully passive loop control

Features

  • • Unbuffered input
  • • Runs on unregulated +/- rails
  • • Pop-free start and stop control
  • • Differential audio input

Protections

  • • Overcurrent protection
  • • Overvoltage protection
  • • DC-fault detection
  • • Short circuit protection

Possible applications

  • • Active Loudspeakers, for home and professional use
  • • Power Amplifiers, for home and professional use
  • • Line Array and Immersive Systems
  • • Home Theatre Systems
  • • Multichannel Power Amplifiers
Bridgable: Yes
Output Power (2Ω): Not supported
Output Power (4Ω): 180W
Output Power (8Ω): 120W
Channels: 1
Distortion: 0.02% 20hZ < f < 20kHz. Pout = 1W
Output Noise: 17µV (Typ) - 25µV (Max)
Power bandwidth: 20Hz - 35kHz
Freuquency Response: DC 48kHz +0/-3dB. All loads
Power Supply Voltage: 20 (min), 45 (Typ), 50 (Max) HV+/-
Output impedance: 22mΩ (Max) - f < 1kHz, 90mΩ (Max) - f < 20kHz
Current limit @: 10A
HxR Ready: No
OpAmp: No
Compatible SMPS: SMPS400A180, SMPS1200A180
Technology: UcD™
Family: UcD™ family

Hypex icon Recommended additional parts

UcD180/400 Evaluation board
This board alows you to connect the UcD180 OEM or the UcD400 OEM with FASTON connectors and our signal cable. Also there is a boxheader placed for signals like buffered or non-buffered audio, clip detection and DC error to use all functions of the OEM module. By setting the jumpers you can choose for a buffered or unbuffered input signal. This board is an excelent product for all sample users to make a quick setup for testing.

SMPS1200A180
The SMPS1200 represents a high-efficiency Safety Class 2 switch mode power supply meticulously engineered for compatibility with our UcD™, NCORE® and NCOREx® amplifier modules. Highlighted features encompass superior efficiency across the entire load spectrum, an exceptionally compact form factor, lightweight construction, and minimal radiated and conducted electromagnetic interference (EMI). Additionally, the SMPS1200 boasts an advanced overcurrent protection mechanism that, during a temporary overload, restricts the output current. Only when the overload persists for an extended duration does the supply transition into hiccup mode, maintaining this state until the overload condition resolves. This attribute, in conjunction with substantial primary electrolytic buffer capacitors, enables the supply to deliver robust dynamic headroom power to the connected amplifier. Furthermore, the SMPS1200 includes a symmetrical auxiliary output and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or deactivation during a critical fault is managed through built-in actuators, ensuring a reliable safeguard. From the initial design phase to the final implementation, the SMPS1200 is optimized to achieve the lowest possible EMI signature, meeting the stringent demands of the most sophisticated audio applications. The SMPS1200 is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS1200 complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS1200A100, SMPS1200A180, SMPS1200A400 and SMPS1200A700 revision 1001 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS1200 is an ETL listed component for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Notes: The SMPS1200A100 is not available for DIY customers. NCORE® and NCOREx® amplifier modules are not available for DIY customers.

SMPS400A180
The SMPS400 stands out as a highly efficient Safety Class 2 switch mode power supply explicitly crafted for seamless integration with our UcD™, NCORE® and NCOREx® amplifier modules. Noteworthy attributes include exceptional efficiency across the entire load spectrum, an exceptionally compact form factor, minimal weight, and remarkably low levels of both radiated and conducted electromagnetic interference (EMI). Distinguishing itself further, the SMPS400 incorporates advanced overcurrent protection mechanisms. In the event of a temporary overload, it intelligently diminishes the output voltage. Only when the overload persists for an extended duration does the supply transition into hiccup mode, maintaining this state until the overload resolves. This unique feature, coupled with large electrolytic buffer capacitors, empowers the supply to deliver substantial dynamic headroom power to the connected amplifier. Moreover, the SMPS400 encompasses an auxiliary isolated supply and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or disconnection during a critical fault is executed through built-in actuators, providing a reliable safeguard. From the initial design phase to the final implementation, the SMPS400 undergoes optimization to achieve the low EMI signature essential for the most demanding audio applications. The SMPS400 is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS400 complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS400A100, SMPS400A180 and SMPS400A400 revision 1500 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS400 is an ETL listed component for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 3 variants available: A100 / A180 / A400 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Power Amplifiers, for home and professional use • Line Array and Immersive Systems • Home Theatre Systems • Multichannel Power Amplifiers Notes: The SMPS400A100 is not available for DIY customers. NCORE® and NCOREx® amplifier modules are not available for DIY customers.
