UcD250LP OEM
Product information "UcD250LP OEM"

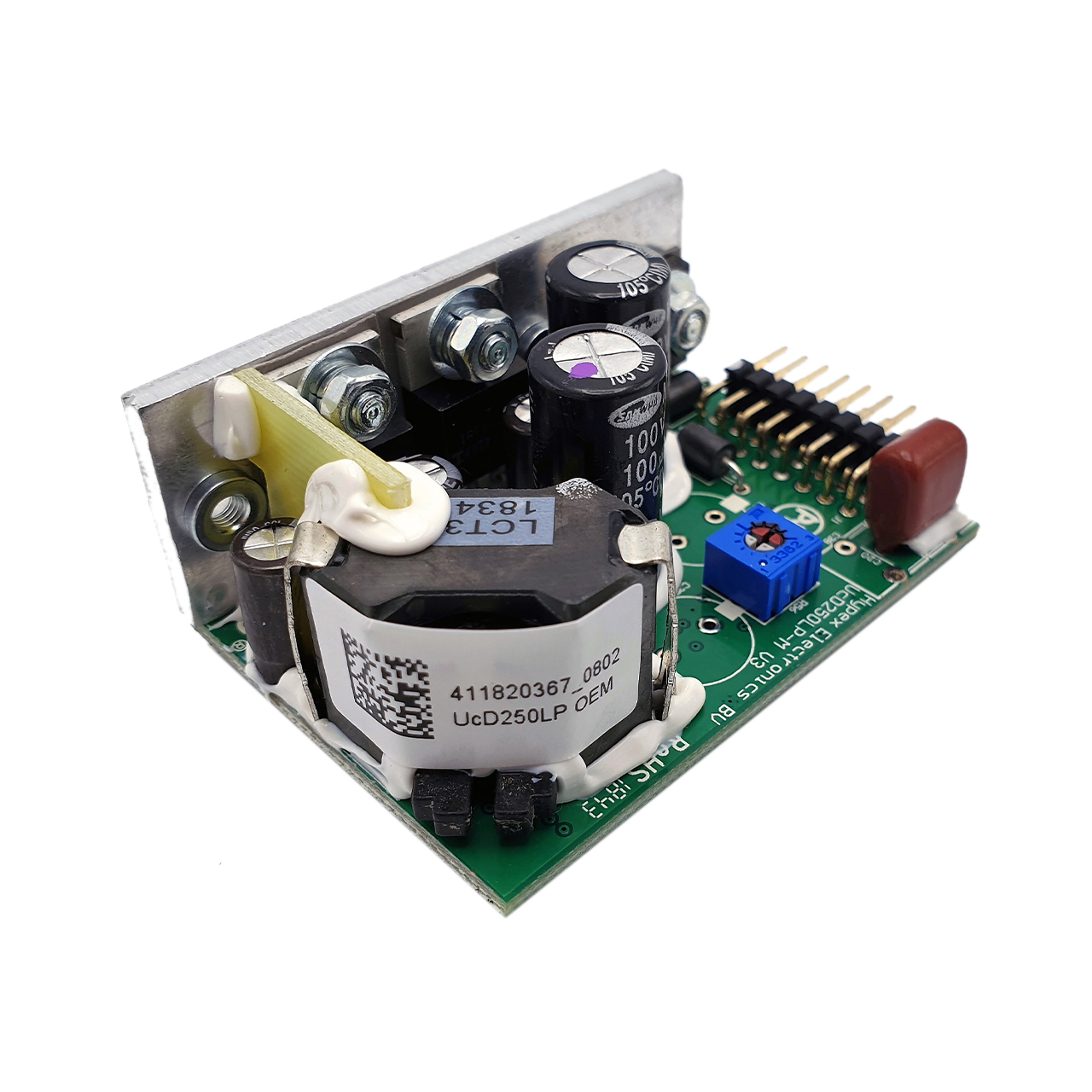

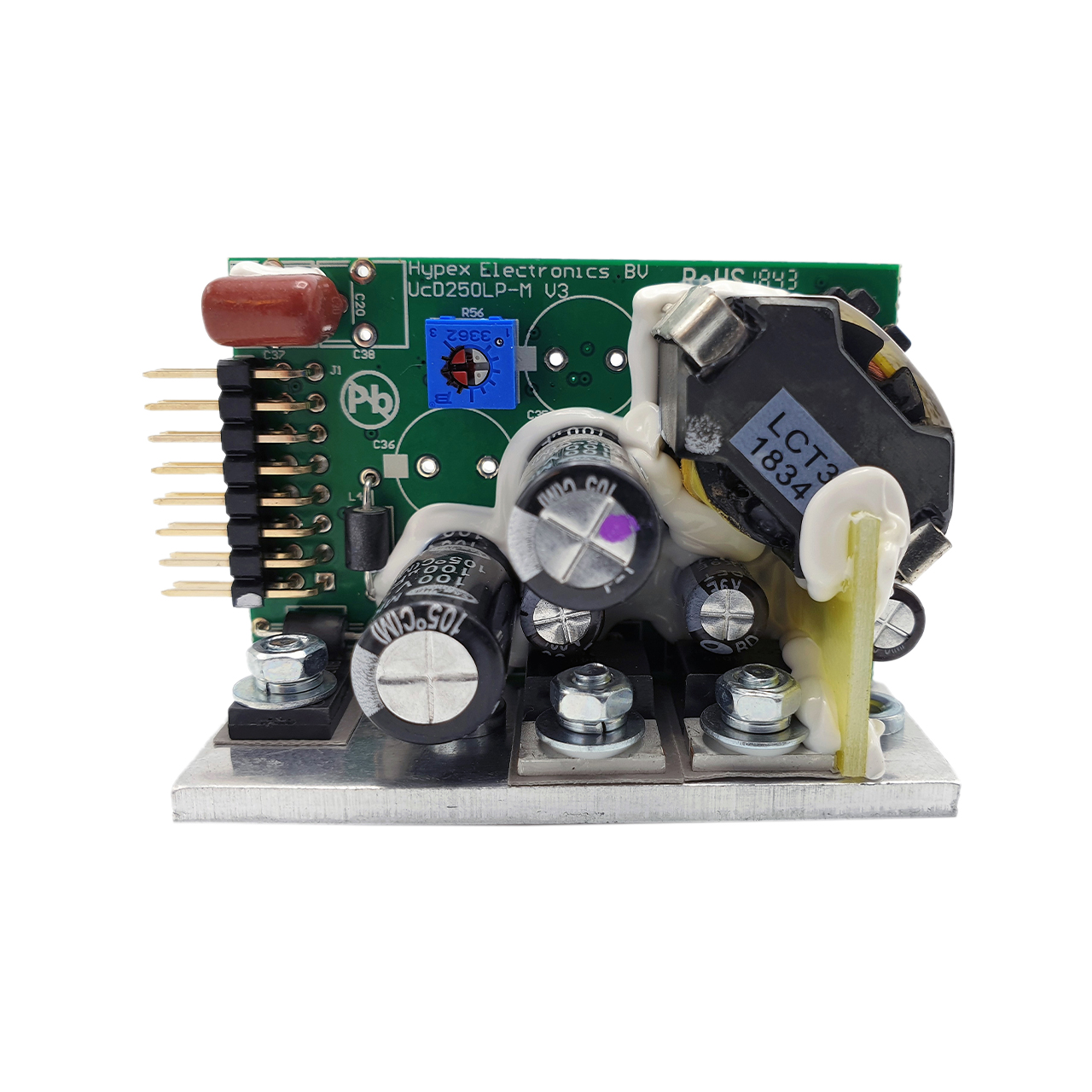

The UcD250LP OEM amplifier module is designed to support a wide range of professional audio applications where higher output power is required within a compact form factor.

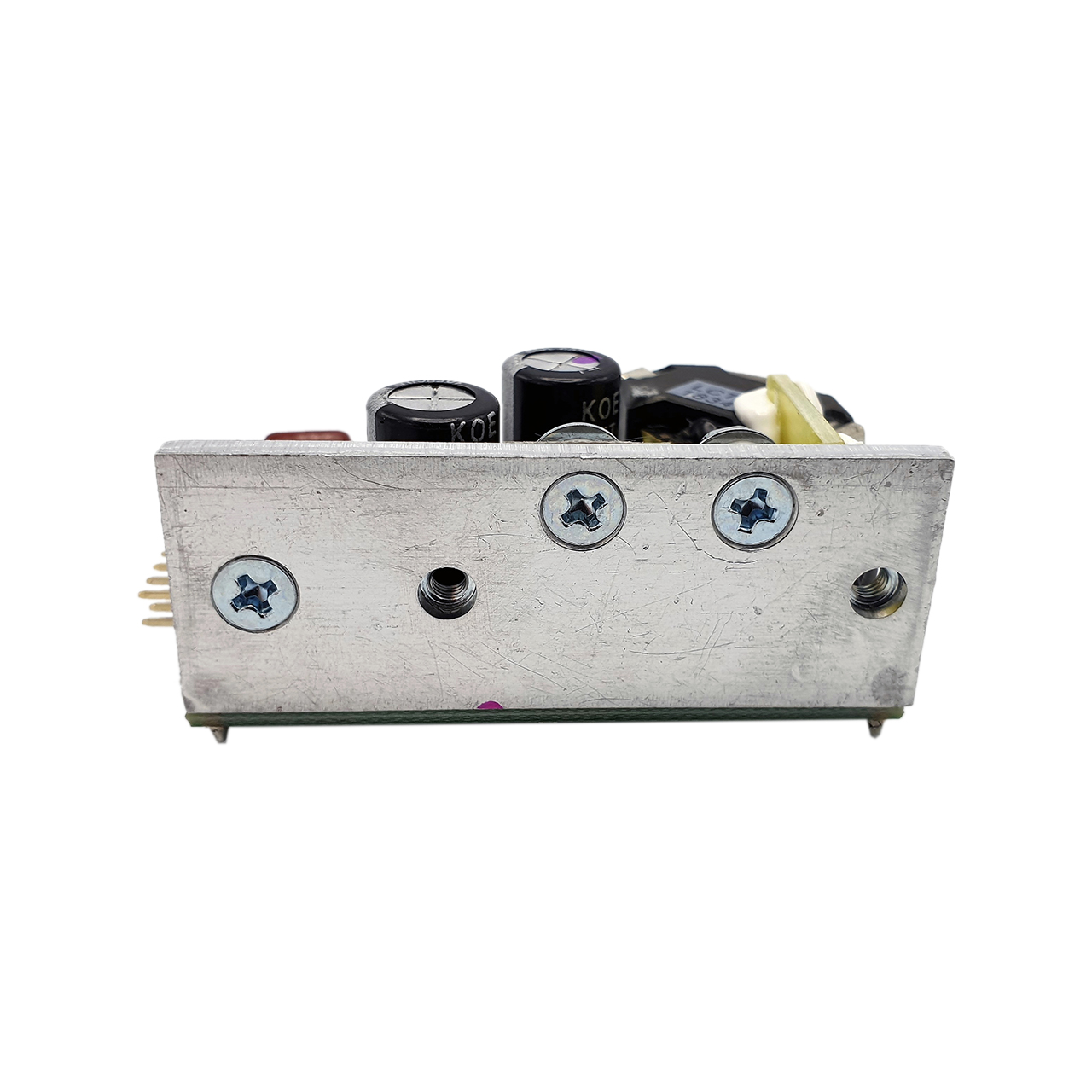

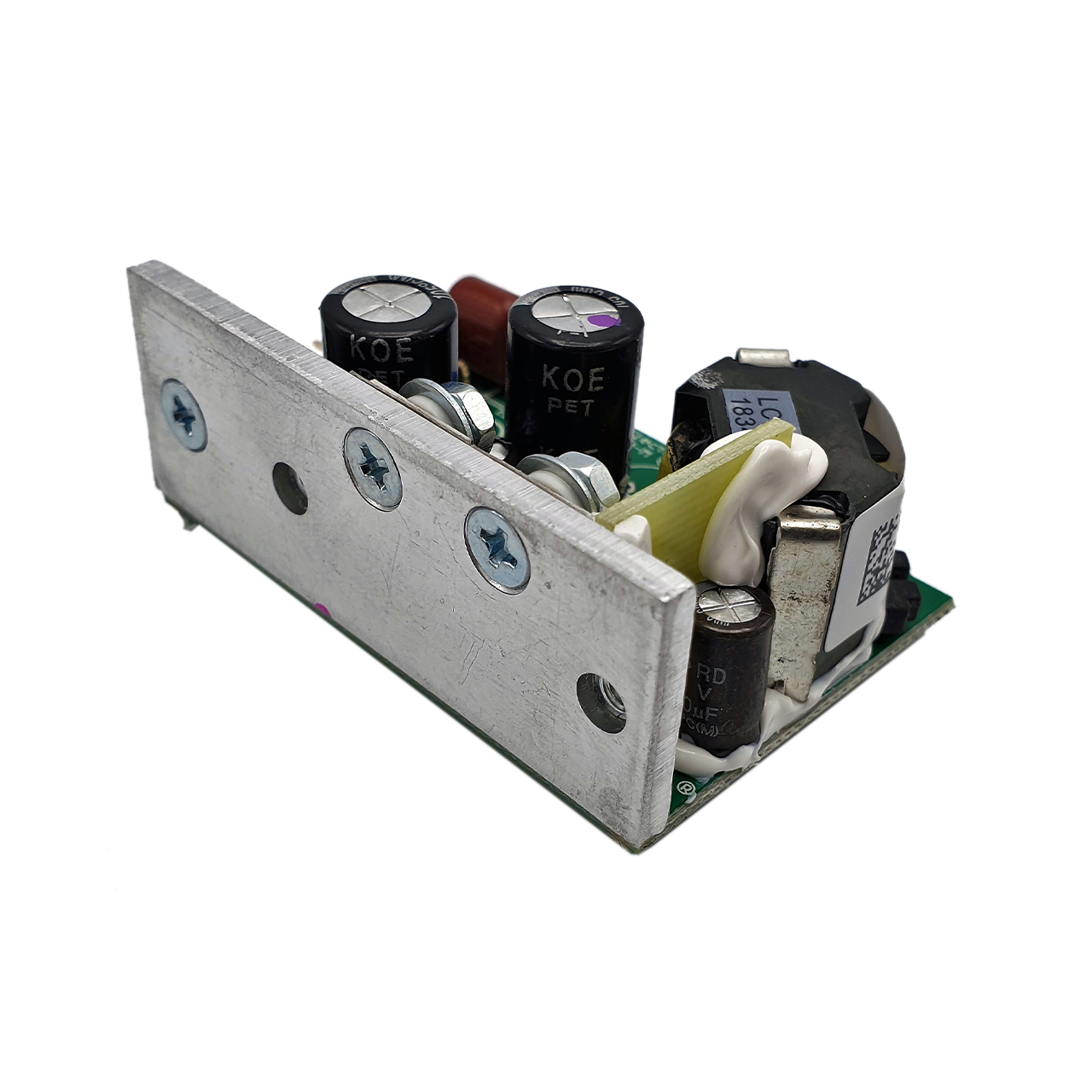

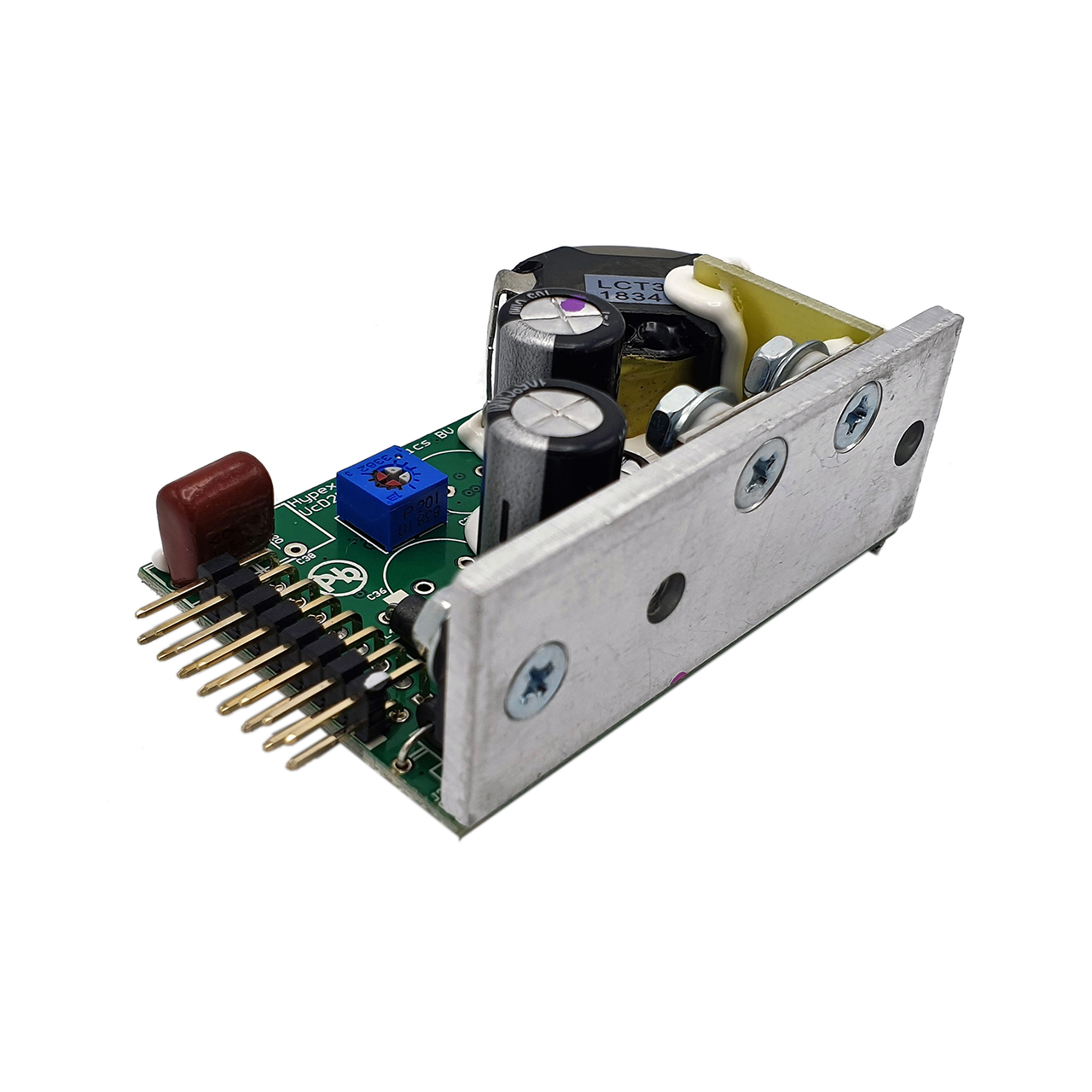

The low profile mechanical design allows integration in space constrained systems and makes the module suitable for multichannel configurations. The module provides increased output power compared with lower power variants, while maintaining efficient Class D operation and predictable performance characteristics.
The UcD250LP OEM amplifier module is intended for use in public address systems, studio equipment and controlled home audio applications. Its design supports reliable operation under typical operating conditions encountered in professional audio installations.
Crafted to be compact
One of the hallmarks of the LP family of modules is the carefully-crafted and compact design. This is not merely an aesthetic consideration – it fulfills a very real need for space-limited applications. The combination of its low-profile design and great audio capabilities positions the UcD™ family as the epitome of sophistication in amplifier technology.
With the growing demand for audio solutions that serve space-limited environments, the UcD™ family is the perfect choice for multichannel applications where a compact footprint and uncompromised audio quality are paramount.
Highlights
- • Flat, fully load-independent frequency response
- • Low output impedance
- • Very low, frequency-independent THD
- • Very low noise
- • Fully passive loop control
Features
- • Unbuffered input
- • Runs on unregulated +/- rails
- • Pop-free start and stop control
- • Differential audio input
Protections
- • Overcurrent protection
- • Overvoltage protection
- • DC-fault detection
- • Short circuit protection
Possible applications
- • Active Loudspeakers, for home and professional use
- • Power Amplifiers, for home and professional use
- • Line Array and Immersive Systems
- • Home Theatre Systems
- • Multichannel Power Amplifiers
| Bridgable: | Yes |
|---|---|
| Output Power (2Ω): | 1 x 220W |
| Output Power (4Ω): | 1 x 250W |
| Output Power (8Ω): | 1 x 180W |
| Channels: | 1 |
| Distortion: | 0.02%, 20hZ < f < 20kHz. Pout = 1W |
| Output Noise: | 20µV (Typ) - 25µV (Max) |
| Power Bandwidth: | 20Hz - 35kHz |
| Frequency Response: | DC 56kHz +0/-3dB. All loads |
| Output impedance: | 22mΩ (Max) - f < 1kHz |
| Output Impedance: | 90mΩ (Max) - f < 20kHz |
| Current limit @: | 17A |
| HxR Ready: | No |
| OpAmp: | No |
| Over voltage protection @: | 72V |
| SMPS Voltage +/-: | 60V |
| Compatible SMPS: | SMPS3kA400, SMPS400A400, SMPS1200A400 |
| Family: | UcD™ family |
| Technology: | UcD™ |
