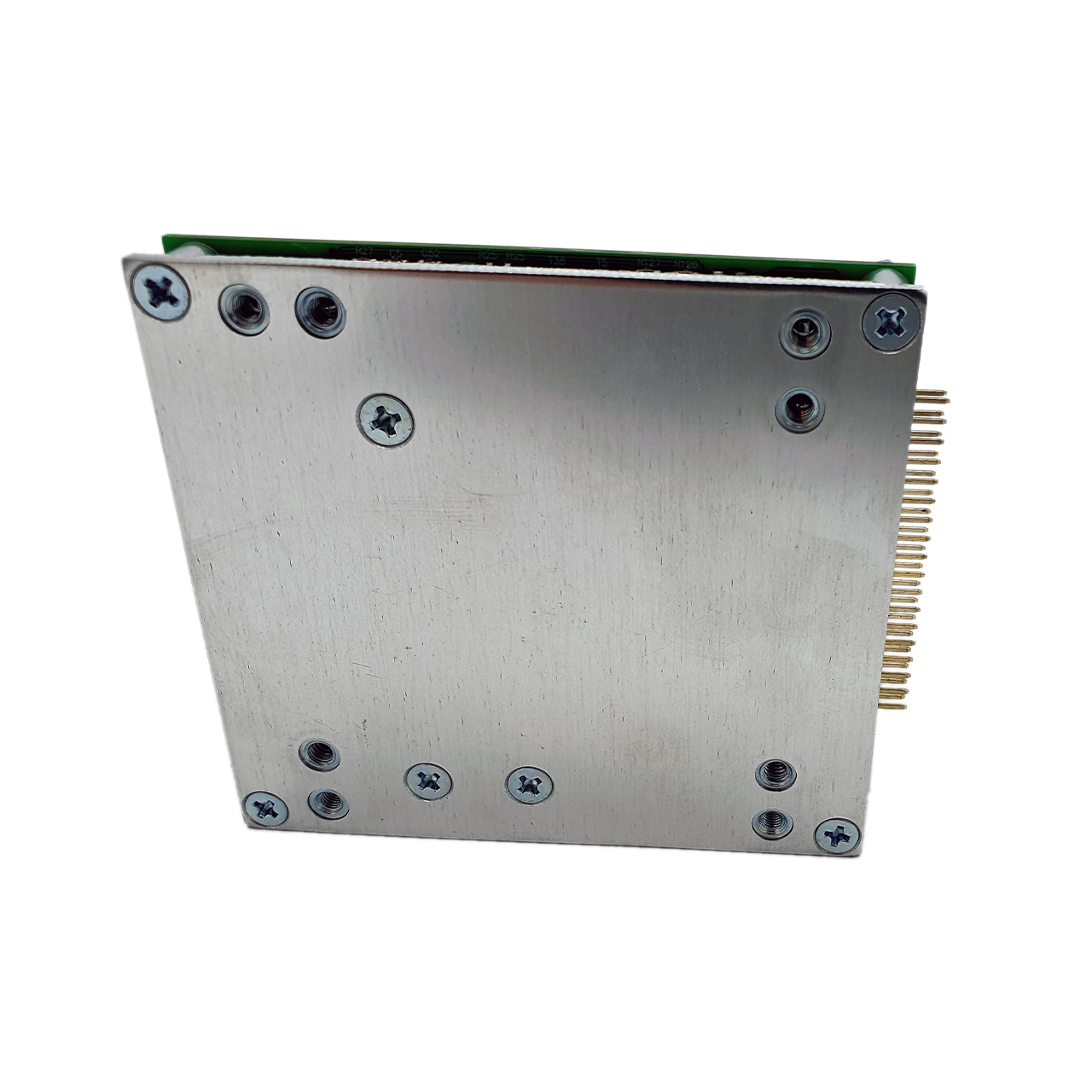

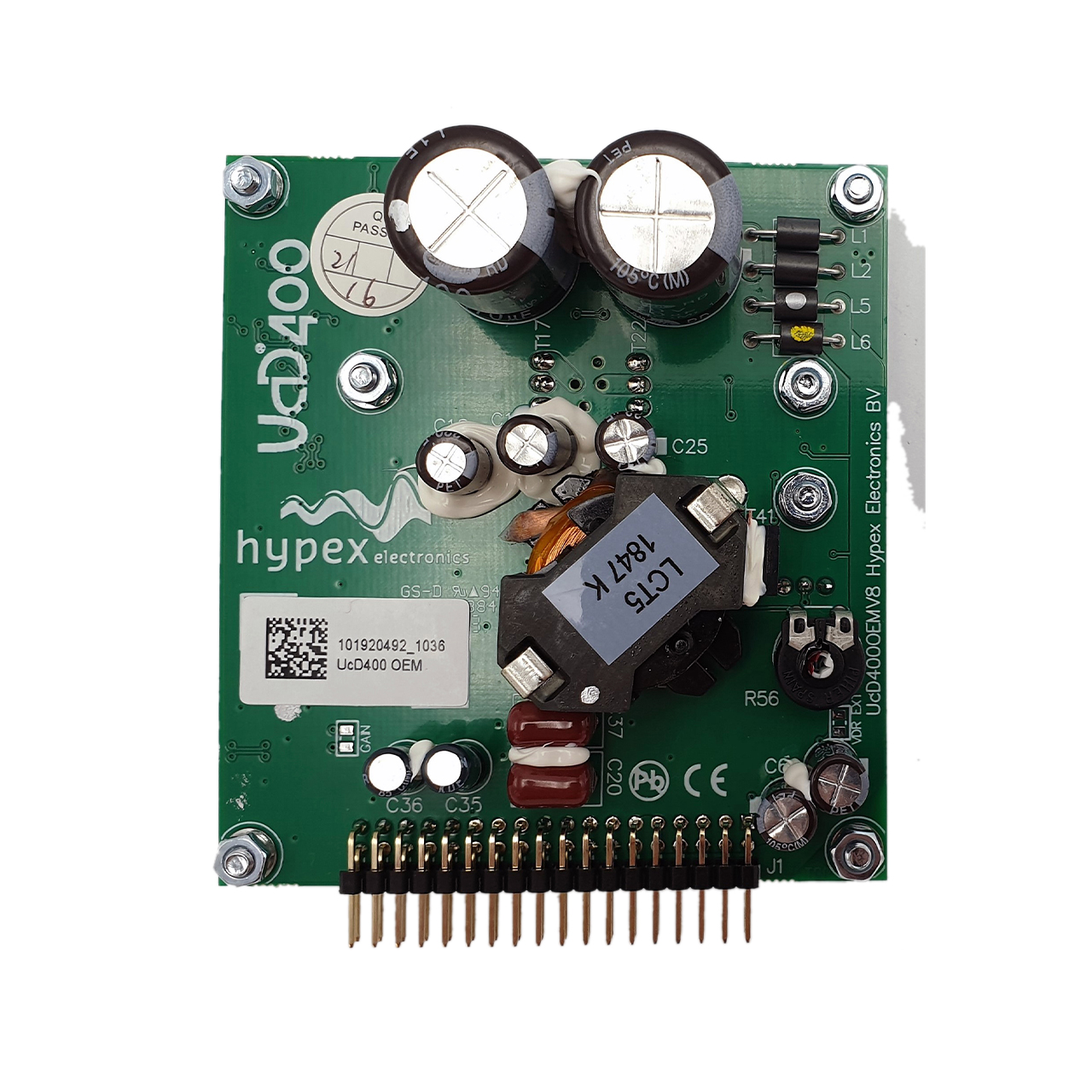

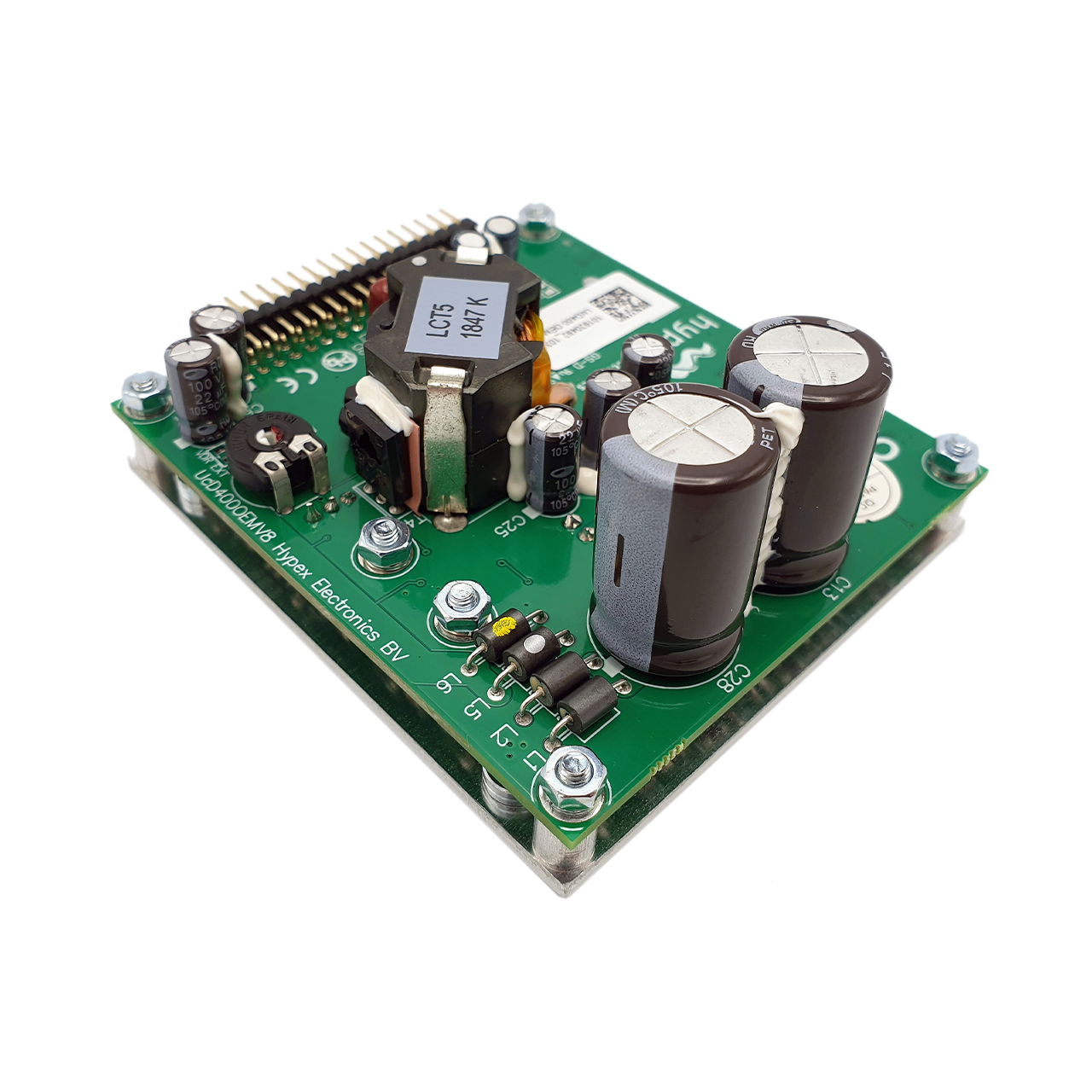

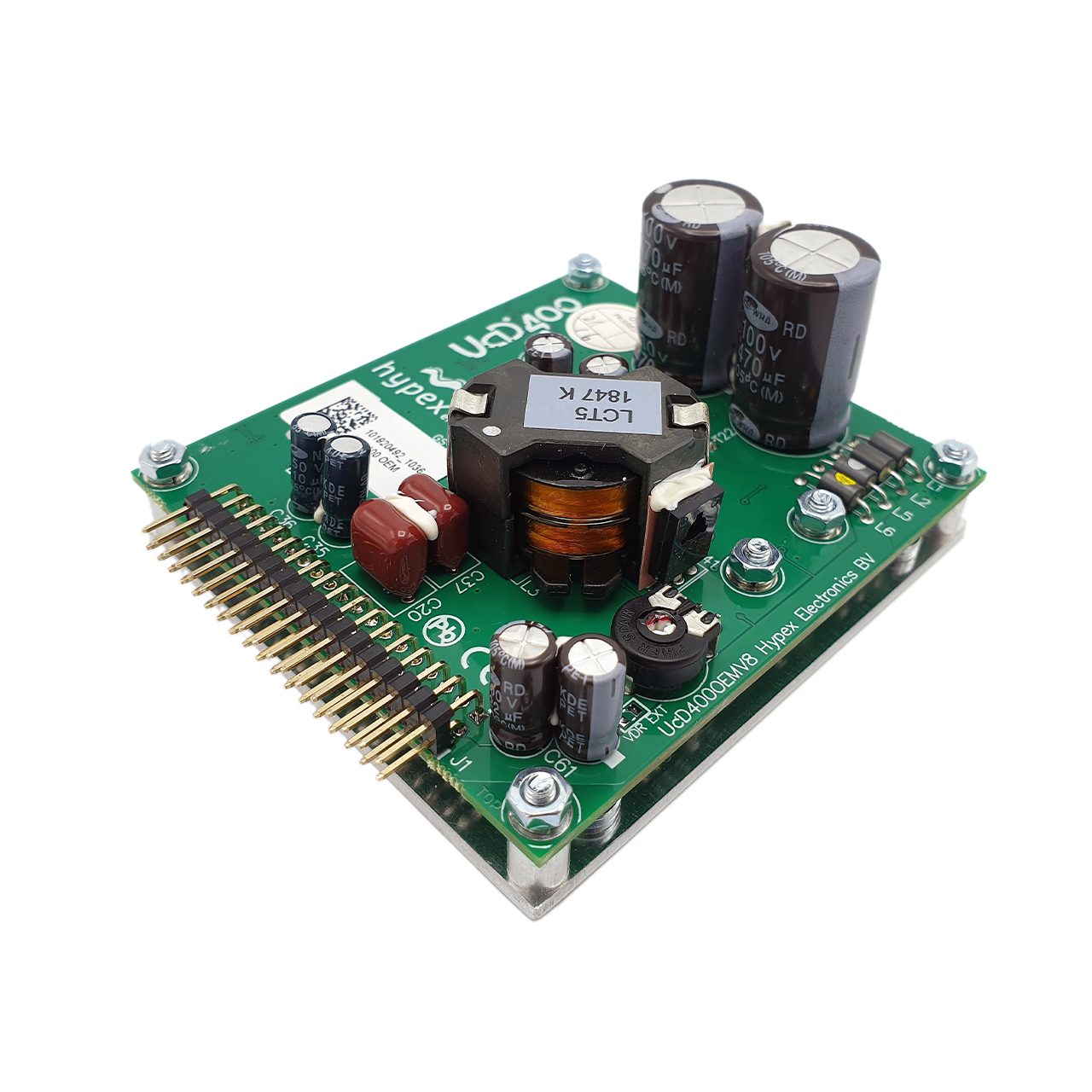

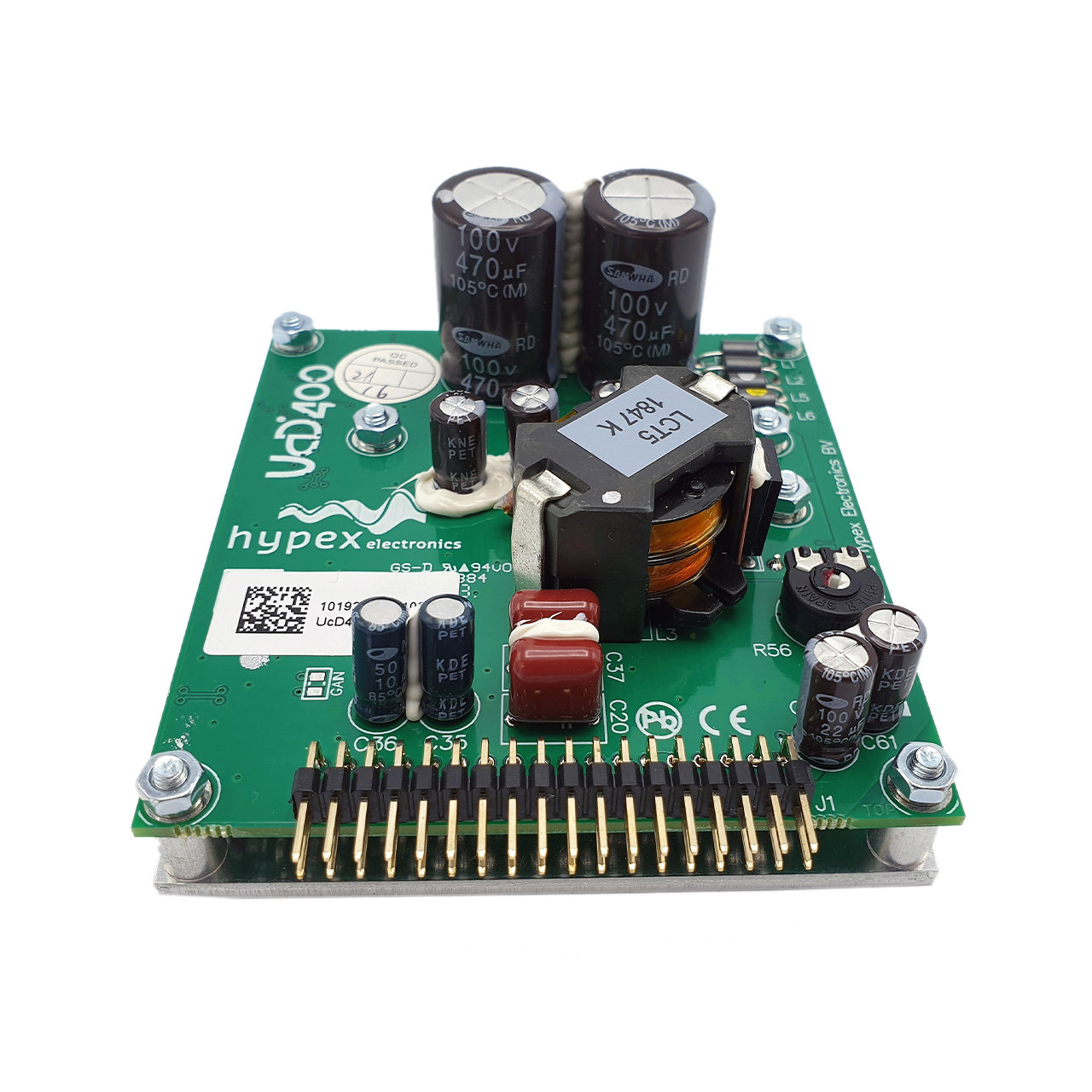

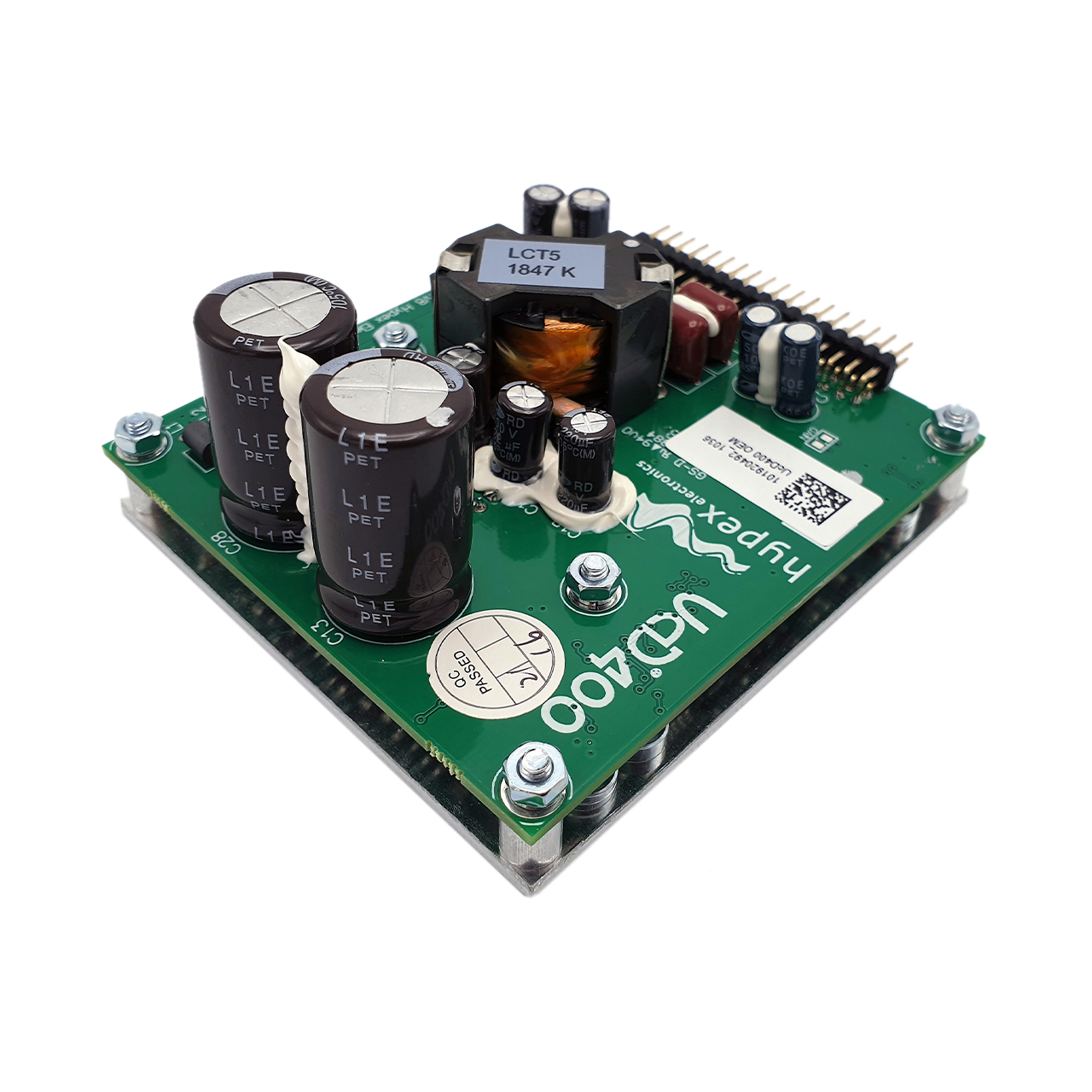

UcD400 OEM

Product information "UcD400 OEM"

The UcD400 OEM amplifier module is the extended version of the Low-profile UcD amplifier module, a Class-D amplifier module meticulously crafted for a multitude of applications. This versatile module seamlessly integrates cutting-edge technology with a more complete set of detection and protection features, making it an ideal choice for applications ranging from studio setups to high-fidelity home audio systems.

The module is engineered to deliver great audio performance across diverse applications, setting a high standard for clarity, fidelity, and versatility. With a Class-D architecture at its core, it ensures efficiency without compromising on sonic excellence, making it a reliable choice for professionals.

This OEM module goes beyond amplification by incorporating advanced detection and protection features compared with the Low-profile version. The safeguards included, such as clipping detection and DC-fault protection guarantee the longevity of your investment, ensuring a robust and reliable performance even in challenging conditions.

The UcD400 OEM amplifier module features a built-in buffer stage, contributing to enhanced signal integrity and stability. This additional stage ensures that your audio signal remains pure and unaltered, resulting in a faithful reproduction of your music or sound.

Whether you’re setting up a professional recording studio, crafting a high-performance home audio system, or integrating audio amplification into other applications, the UcD400 OEM amplifier module offers unparalleled versatility. Its adaptability and broad range of applications make it an invaluable component for professionals.

Highlights

  • • Flat, fully load-independent frequency response
  • • Low output impedance
  • • Very low, frequency-independent THD
  • • Very low noise
  • • Fully passive loop control

Features

  • • Buffered input
  • • Runs on unregulated +/- rails
  • • Pop-free start and stop control
  • • Differential audio input

Protections

  • • Overcurrent protection
  • • Overvoltage protection
  • • DC-fault detection
  • • Short circuit protection

Possible applications

  • • Active Loudspeakers, for home and professional use
  • • Power Amplifiers, for home and professional use
  • • Line Array and Immersive Systems
  • • Home Theatre Systems
  • • Multichannel Power Amplifiers
Output Power (4Ω): 400W
Output Power (8Ω): 250W
Distortion: 0.005% 20hZ < f < 20kHz. Pout = 1W
Output noise: 80 µV (Max)
Power bandwidth: 20Hz - 35kHz
Freuquency Response: 10Hz - 50kHz +0/-3dB. All loads
Channels: 1
Bridgable: Yes
Technology: UcD™
Family: UcD™ family
Current limit @: 20A
HxR Ready: No
OpAmp: Yes
Compatible SMPS: SMPS3kA400, SMPS400A400, SMPS1200A400
SMPS Voltage +/-: 64V
