UcD400LP OEM
H01U002305
Product information "UcD400LP OEM"

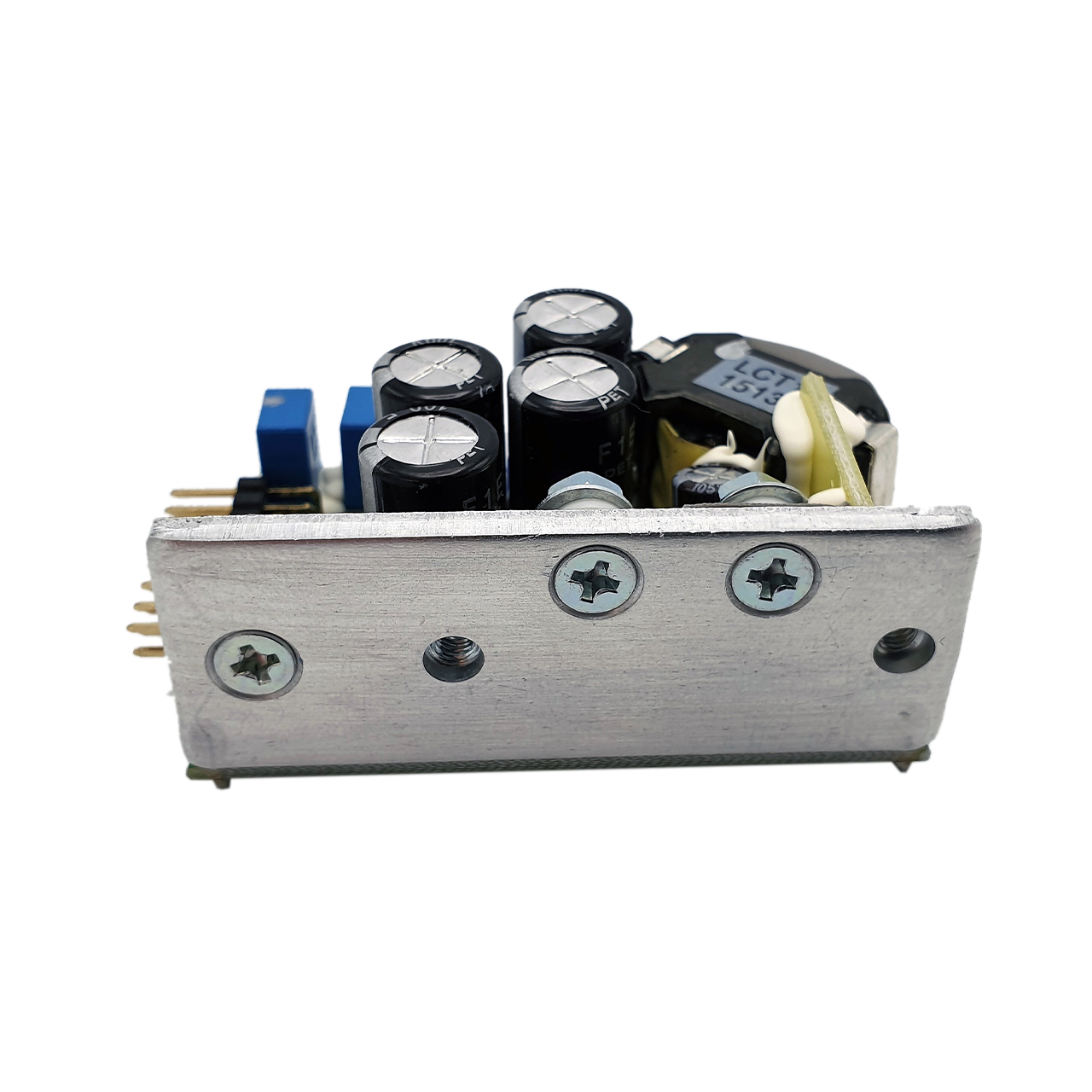

The UcD400LP (Low Profile Low Profile OEM version) amplifier module is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.
APPLICATIONS
- Monitor loudspeakers for recording and mastering studios
- Multichannel systems
- Public Address systems
- Home theatre systems
- Active loudspeakers
GENERAL FEATURES
- Runs on unregulated +/- rails
- Pop-free start and stop control
- Differential audio input
- Overcurrent and overvoltage protection
HIGHLIGHTS
- Flat, fully load-independent frequency responce
- Low output inpedance
- Very low, frequency-independent THD
- Very low noice
- Fully passive loop control
- Consistent top performer in listening trails
CONTENTS OF PACKAGING
- UcD400LP OEM amplifier module
- Manual
| Power (4Ω): | 400W |
|---|---|
| Power (8Ω): | 250W |
| Channels: | 1 |
| Technology: | UcD™ |
| Family: | UcD™ family |
| Current limit @: | 18A |
| HxR Ready : | No |
| OpAmp: | No |
| Over voltage protection @: | 77V |
| Recommended SMPS: | SMPS1200A400 / SMPS3kA400 |
| SMPS Voltage +/-: | 64V |
Recommended additional parts
SMPS400A400
The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.APPLICATIONS:Supply for single or multiple amplifiers of the UcD rangeActive loudspeakersHIGHLIGHTS:High efficiencySelectable input voltage rangeExtremely small form factorLow EMIGENERAL FEATURES:Advanced over current protectionRemote controlled operationLow weightCompactFits in 1HE (additional insulation required)Fixed output voltage (3 versions available)ELECTRICAL FEATURES:High Line Input Voltage: 200-240Vac +/-10%Low Line Input Voltage: 100-120Vac +/-10%Output Voltage: 2x62VdcMax. Output power: 400W @20HzSwitching Frequency: 100kHzCONTENTS OF PACKAGING:SMPS400A400Manual
SMPS1200A400
The SMPS1200 power supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD and NCORE® amplifier modules.APPLICATIONS:Supply for single or multiple amplifiers of the UcD and NCORE® FamilyHIGHLIGHTS:High efficiencySelectable input voltage rangeExtremely small form factorLow EMIComply with IEC62368-1GENERAL FEATURES:Advanced over current protectionRemote controlled operationLow weightCompactFixed output voltage (4 versions available)ELECTRICAL FEATURES:High Line Input Voltage: 200-240Vac +10%Low Line Input Voltage: 100-120Vac +10%Output Voltage: 2x63VdcMax. Output power: 1500WMax. Output power: 1200W @20HzSwitching Frequency: 100kHzCONTENTS OF PACKAGING:SMPS1200A400Manual
SMPS3kA400
The SMPS3k Power Supply is a 3000W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD and Ncore amplifier modules.APPLICATIONS:Supply for single or multiple amplifiers of the UcD™ and Ncore rangeActive loudspeakersHIGHLIGHTS:High efficiencySelectablel input voltage rangeLow EMIGENERAL FEATURES:Advanced over current protectionRemote controlled operationLow weightCompactFixed output voltage (2 models available)ELECTRICAL FEATURES:High Line Input Voltage: 180-264VacLow Line Input Voltage: 90-132VacOutput Voltage: 2x65VdcMax. Output power: 3600WMax. Output power: 3000W @20HzSwitching Frequency: 100kHz CONTENTS OF PACKAGING:SMPS3kA700Manual
UcDxxxLP OEM Evaluation Board

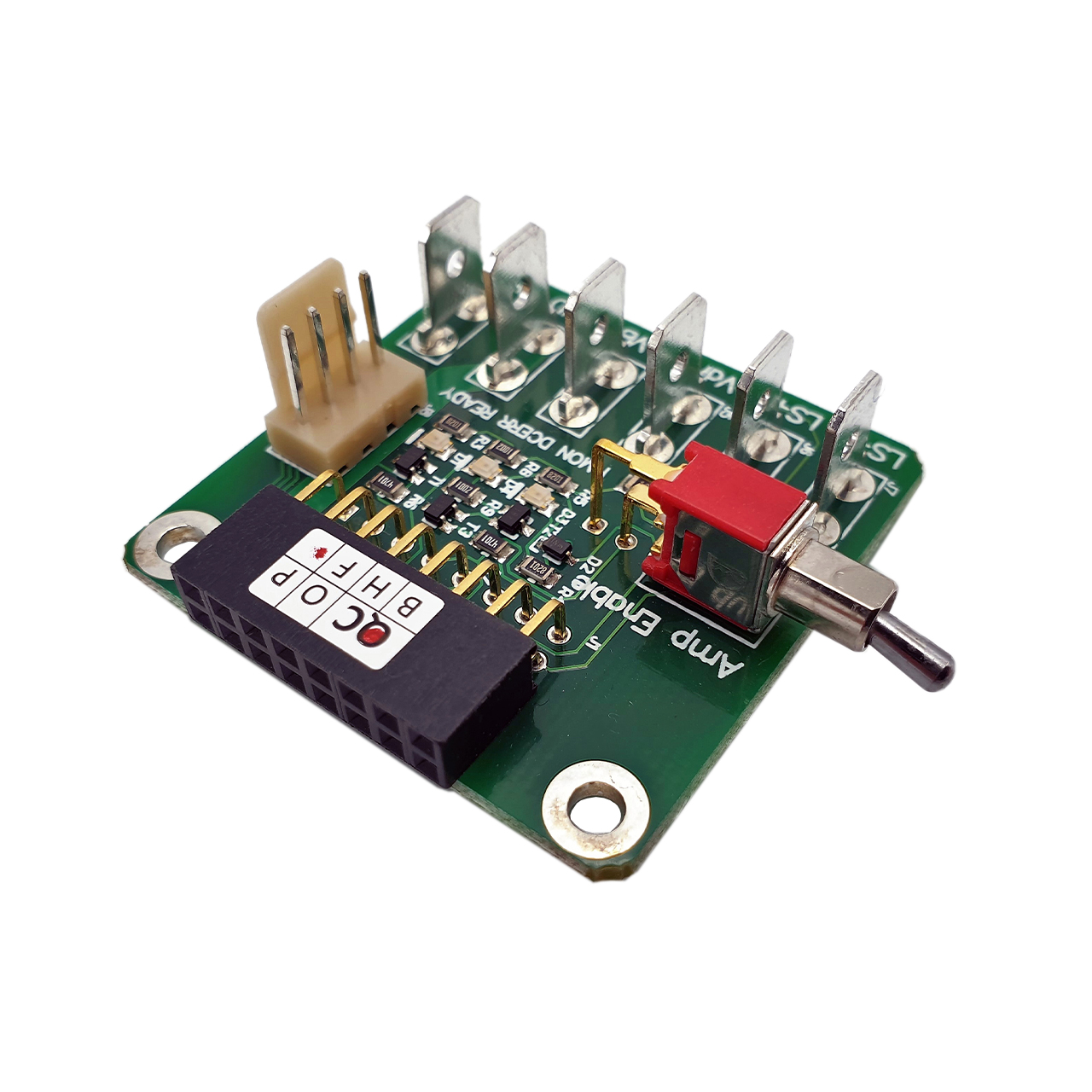

This board alows you to connect the UcD180LP OEM, UcD250LP OEM or the UcD400LP OEM with FASTON connectors and our signal cable. This board is an excelent product for all sample users to make a quick setup for testing.Features Amp ON switch Amp ready LED MON LED DC error LED
