SUBin3-110
Product information "SUBin3-110"

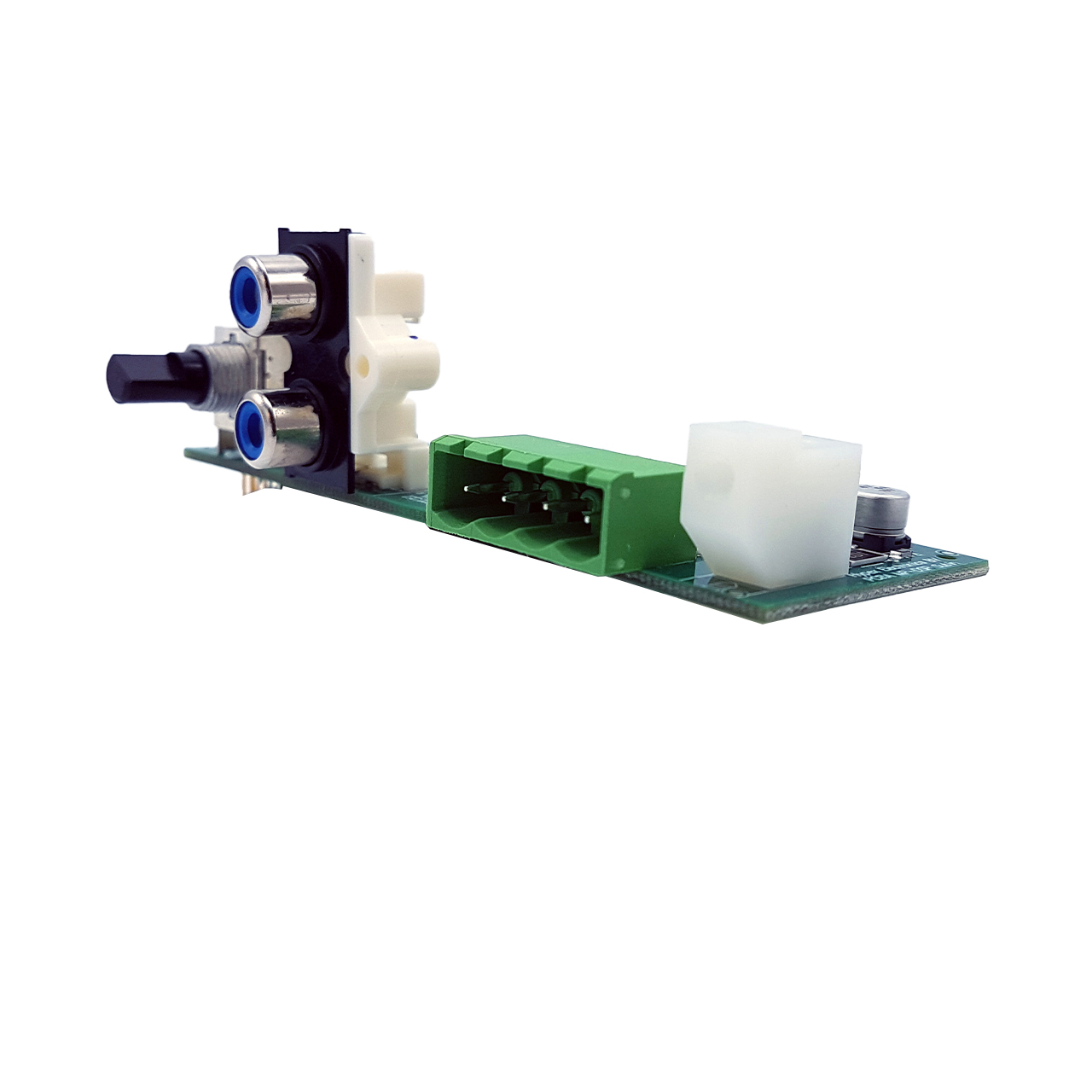

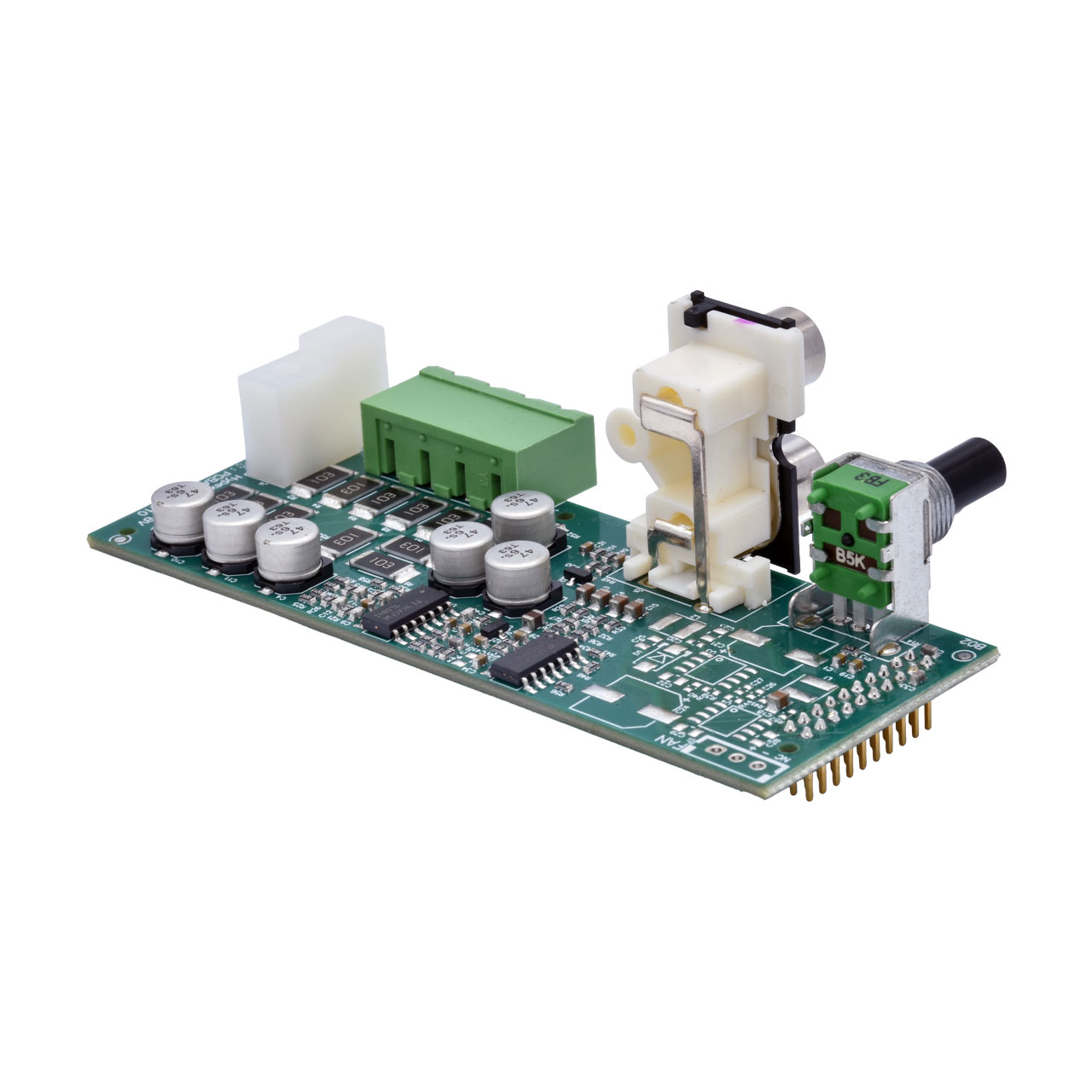

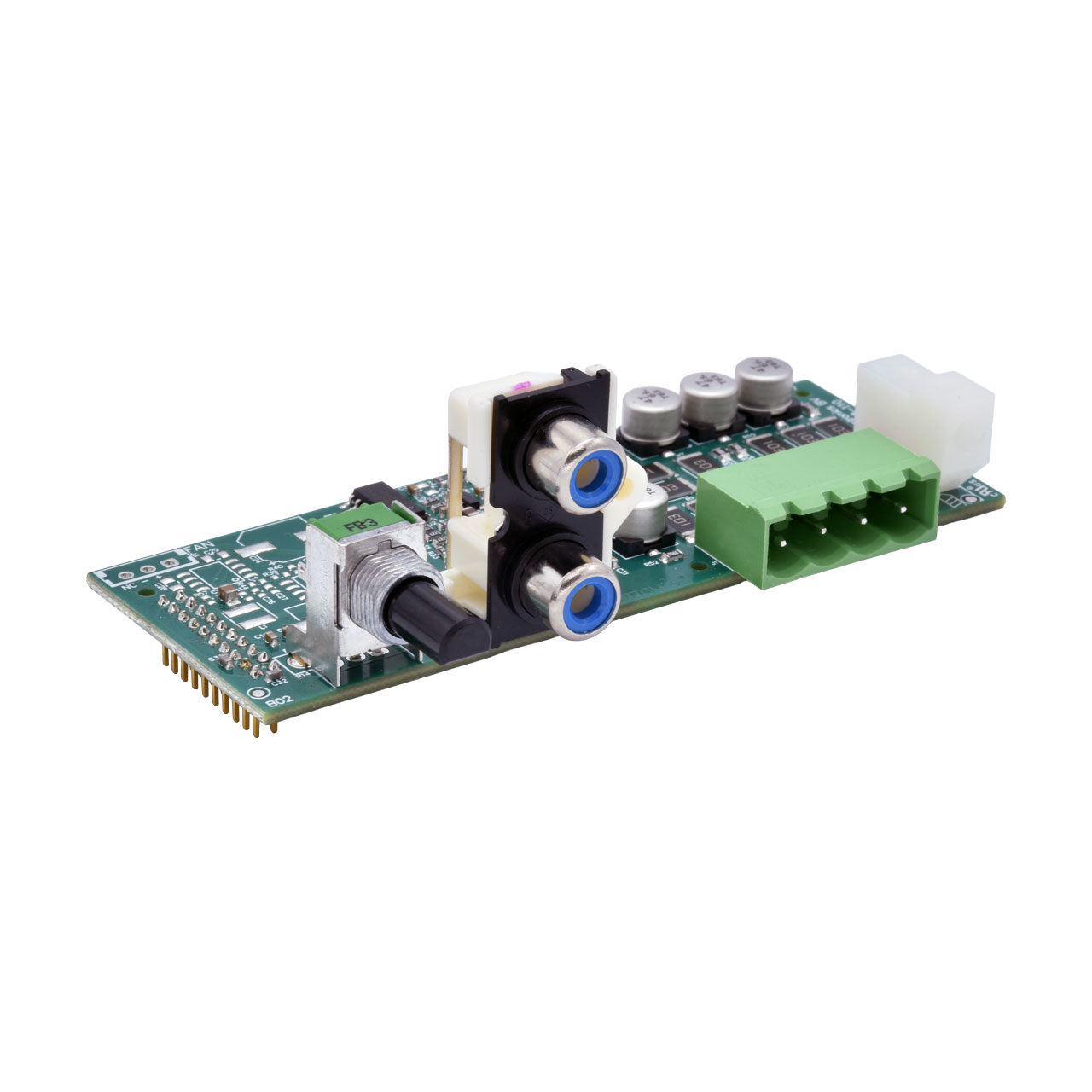

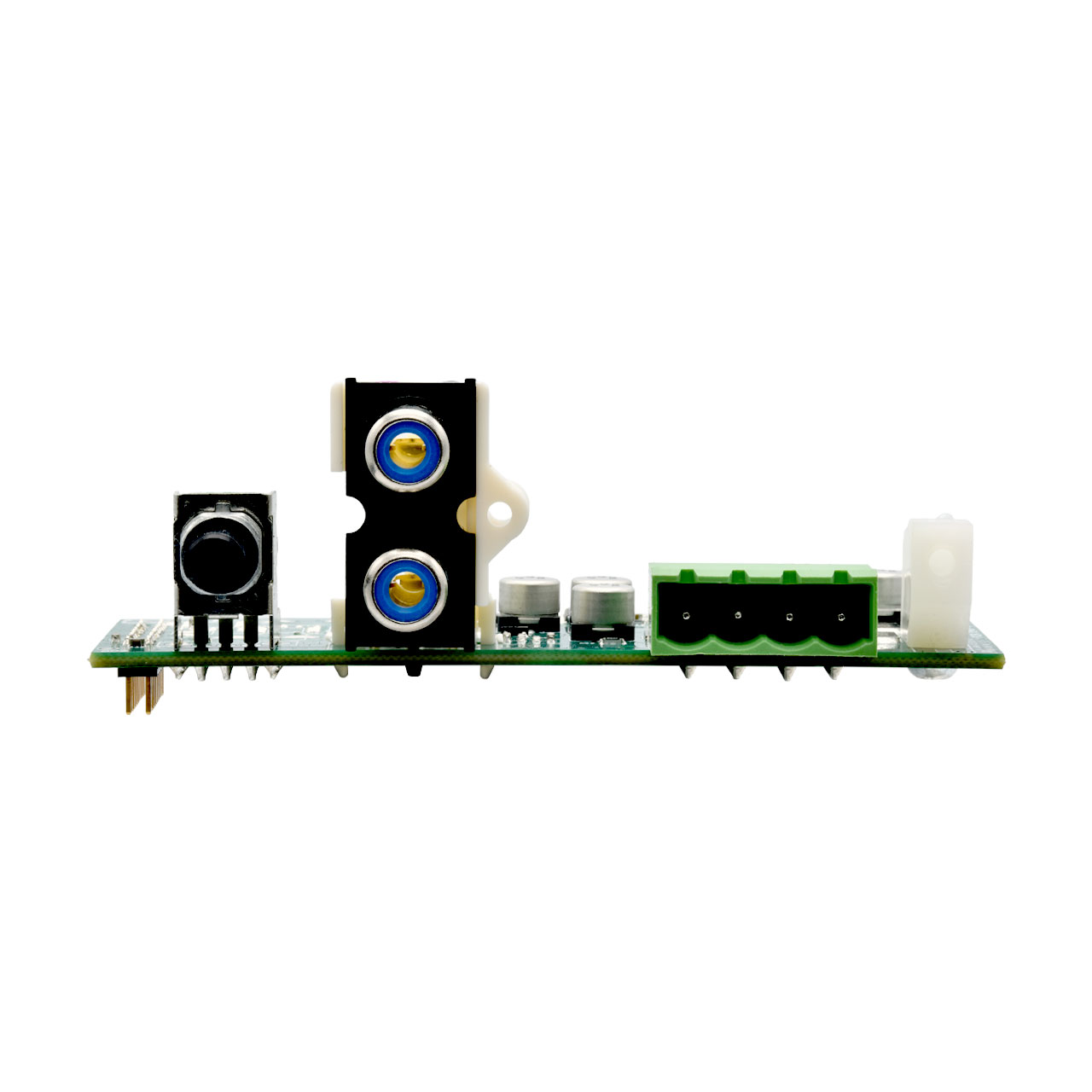

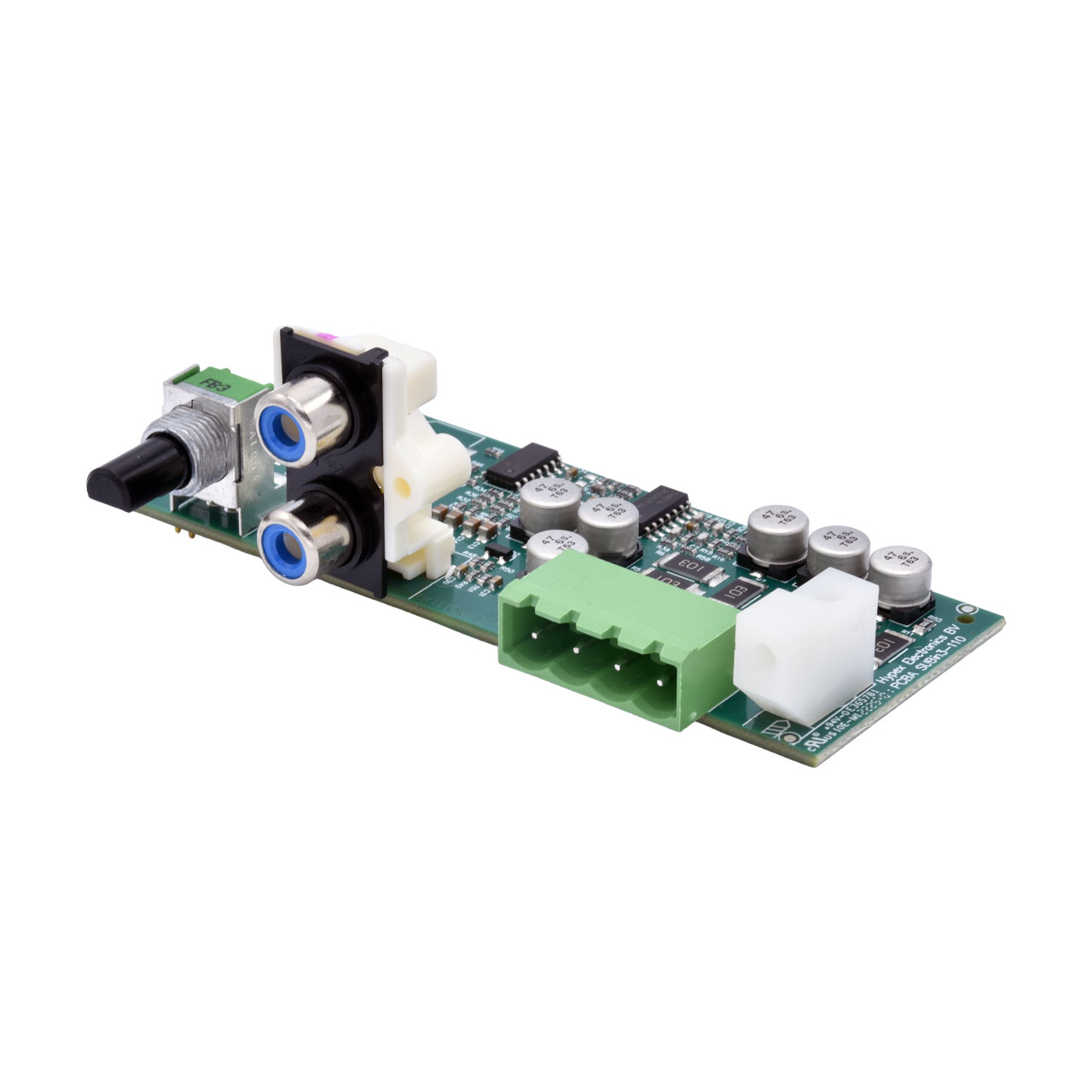

The SUBin3-110 is an analogue input expansion module designed for use with the DSP3 series. It provides high level and low level subwoofer input functionality.
The module allows integration of external subwoofer signals into DSP controlled systems without additional analogue processing stages. Configuration is handled within the DSP environment using Hypex Filter Design software.
The SUBin3-110 is intended for use in active loudspeaker systems and subwoofer integrated designs.
Highlights
- • High-level inputs
Features
- • Volume control
Possible applications
- • High-end consumer audio
- • Active loudspeakers
- • Subwoofers
- • PA systems
- • Studio monitors
| Knob Gain Adjust: | -12dB (Min) to +12dB (Max) - Relative to master volume |
|---|---|
| Input Level High Level: | 34 (Typ) dB - Default attenuation setting |
| Compatible with: | DSP3-213 |
| Family: | DSP Family |
Downloads
CAD drawings
documentation
Recommended additional parts
The DSP3-213 is a mono DSP module based on the Analog Devices ADAU1452. It is intended for use with mains powered NCORE® amplifier power modules and Fusion amplifier platforms. The module supports mono and 3-way active loudspeaker configurations. Signal processing is configured using Hypex Filter Design software and supports both IIR and FIR filters. Multiple presets can be stored for different filter sets, input selections and gain settings. The DSP3-213 supports features such as auto signal detect and configurable standby behaviour. The module can be expanded with optional input boards, such as digital input or subwoofer input modules. Multiple DSP3-213 units can be configured in a master-slave setup for stereo or 2.1 systems. Typical applications include active loudspeakers, studio monitors and integrated amplifier systems where a compact mono DSP solution is required. Highlights • Three channel active filtering • One FIR (4500 taps) or three (1500 taps per channel) per preset • Compatible with NCMP and NCAS series • Three programmable presets Features • Configurable Soft clip limiter • IIR & FIR capable • Programmable with Hypex Filter Design (HFD) • Automatic source selection • Automatic signal detection • Optional IR remote control Possible applications • High-end consumer audio • Active loudspeakers • Subwoofers • PA systems • Studio monitors
