SMPS3kA700

H02U004346

Please login to see our prices

Downloads

CAD drawings

SMPS3KAxx0_08xx.zip

documentation

Product information "SMPS3kA700"

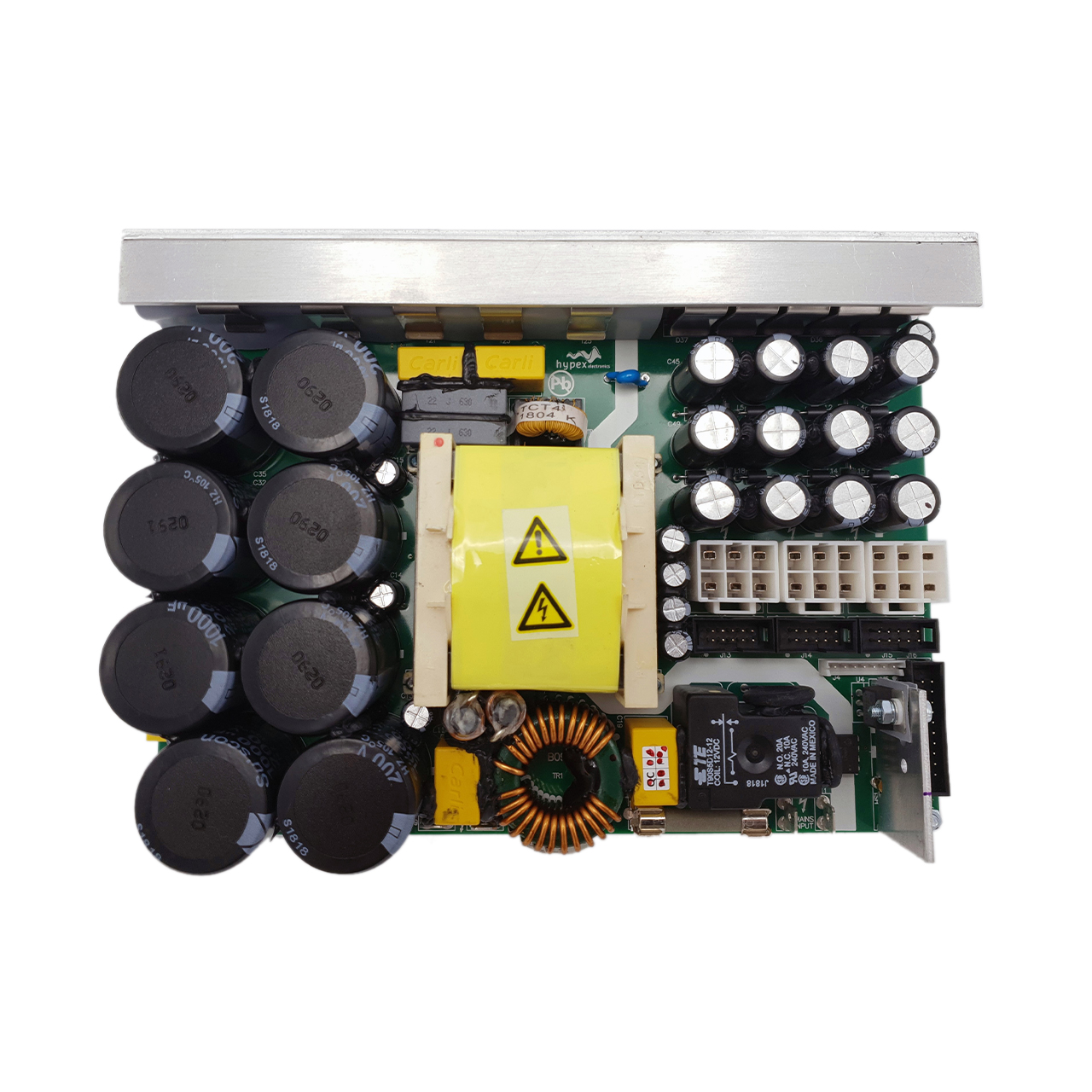

The SMPS3k Power Supply is a 3000W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD and Ncore amplifier modules.

APPLICATIONS:

Supply for single or multiple amplifiers of the UcD™ and Ncore range
Active loudspeakers

HIGHLIGHTS:

High efficiency
Selectablel input voltage range
Low EMI

GENERAL FEATURES:

Advanced over current protection
Remote controlled operation
Low weight
Compact
Fixed output voltage (2 models available)

ELECTRICAL FEATURES:

High Line Input Voltage: 180-264Vac
Low Line Input Voltage: 90-132Vac
Output Voltage: 2x85Vdc
Max. Output power: 3600W
Max. Output power: 3000W @20Hz
Switching Frequency: 100kHz

CONTENTS OF PACKAGING:

SMPS3kA700
Manual

Family:	SMPS Family
Automatic input voltage selection:	No, Selectable with jumper
Mains voltage input:	230V / 115V
Max Output Power:	3600W
Max Output Power @20Hz:	3000W
SMPS Voltage +/-:	2 x 85Vdc

Recommended additional parts

UcD2k

The UcD2k amplifier module is a self-contained high-performance class D amplifier intended for audio applications requiring reliable, high power amplification and high audio quality. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.APPLICATIONSActive loudspeakersPowerful subwoofersHigh power applicationsFEATURESRuns on unregulated +/- railsPop-free start and stop controlDifferential audio inputOn-board clipping detectionDC-fault detectionOvercurrent and overvoltage protectionCONTENTS OF PACKAGINGUcD2k amplifier moduleManualRECOMMENDED ADDITIONAL PARTSUcD signal cablePower Supply SMPS3kA700Cable set SMPS3k
