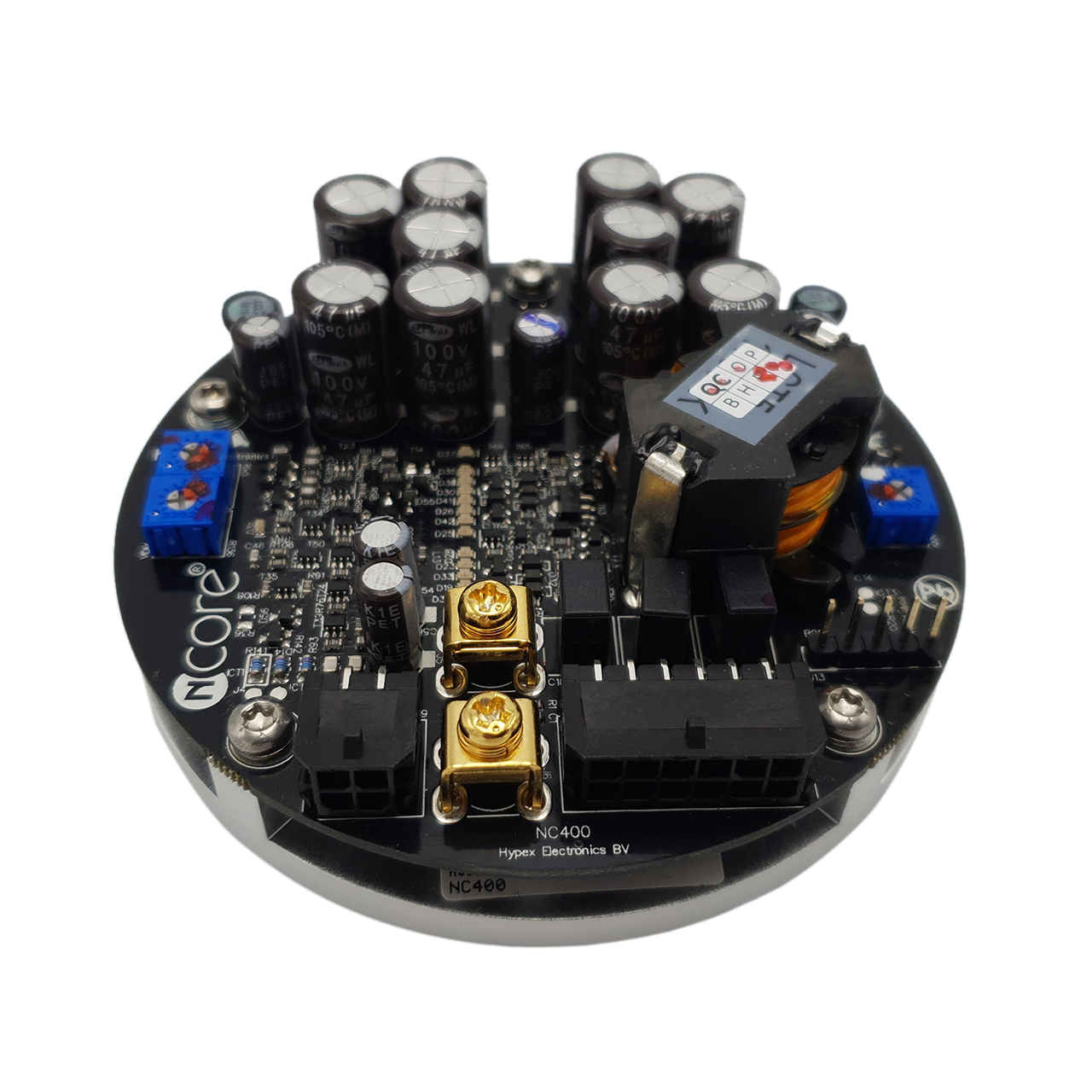

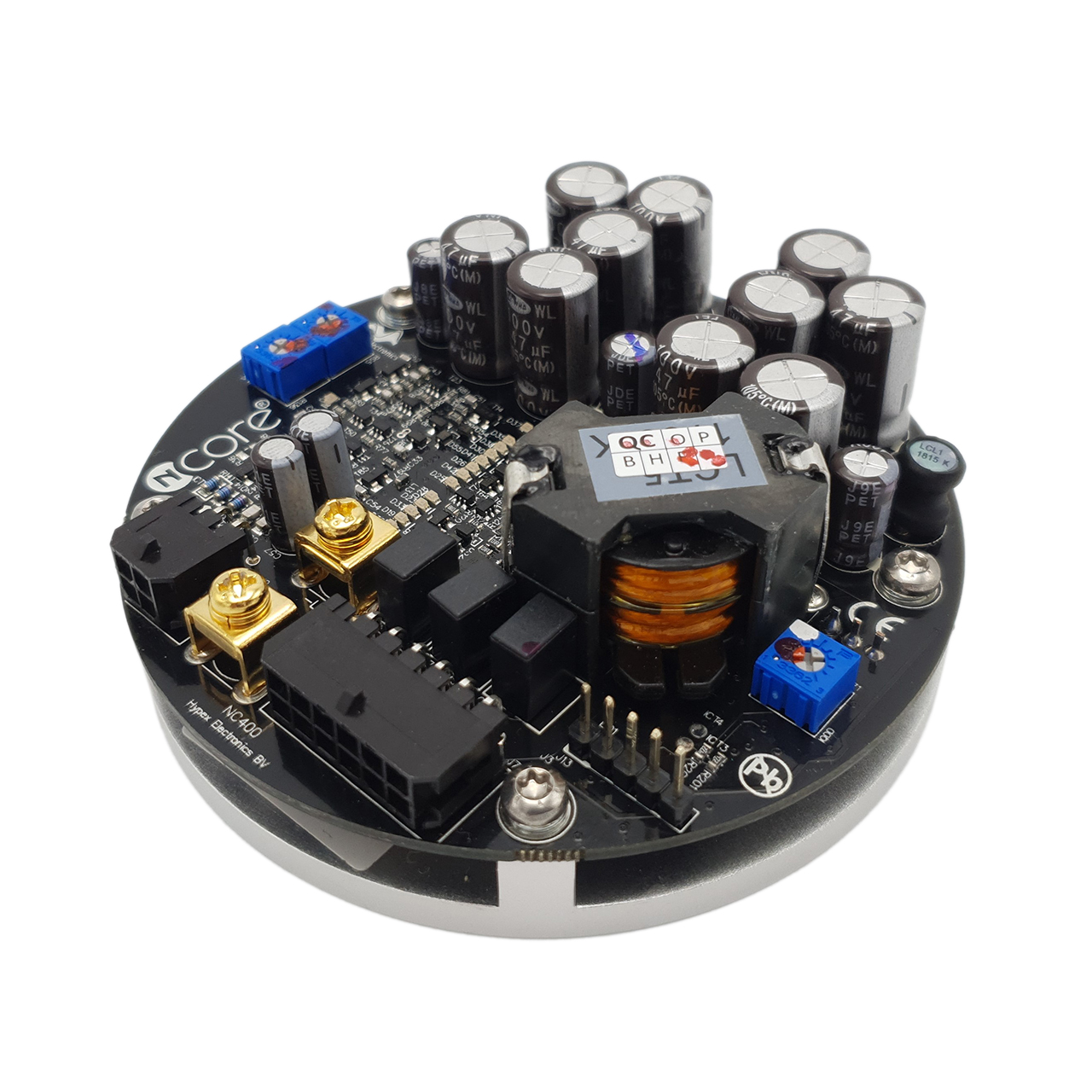

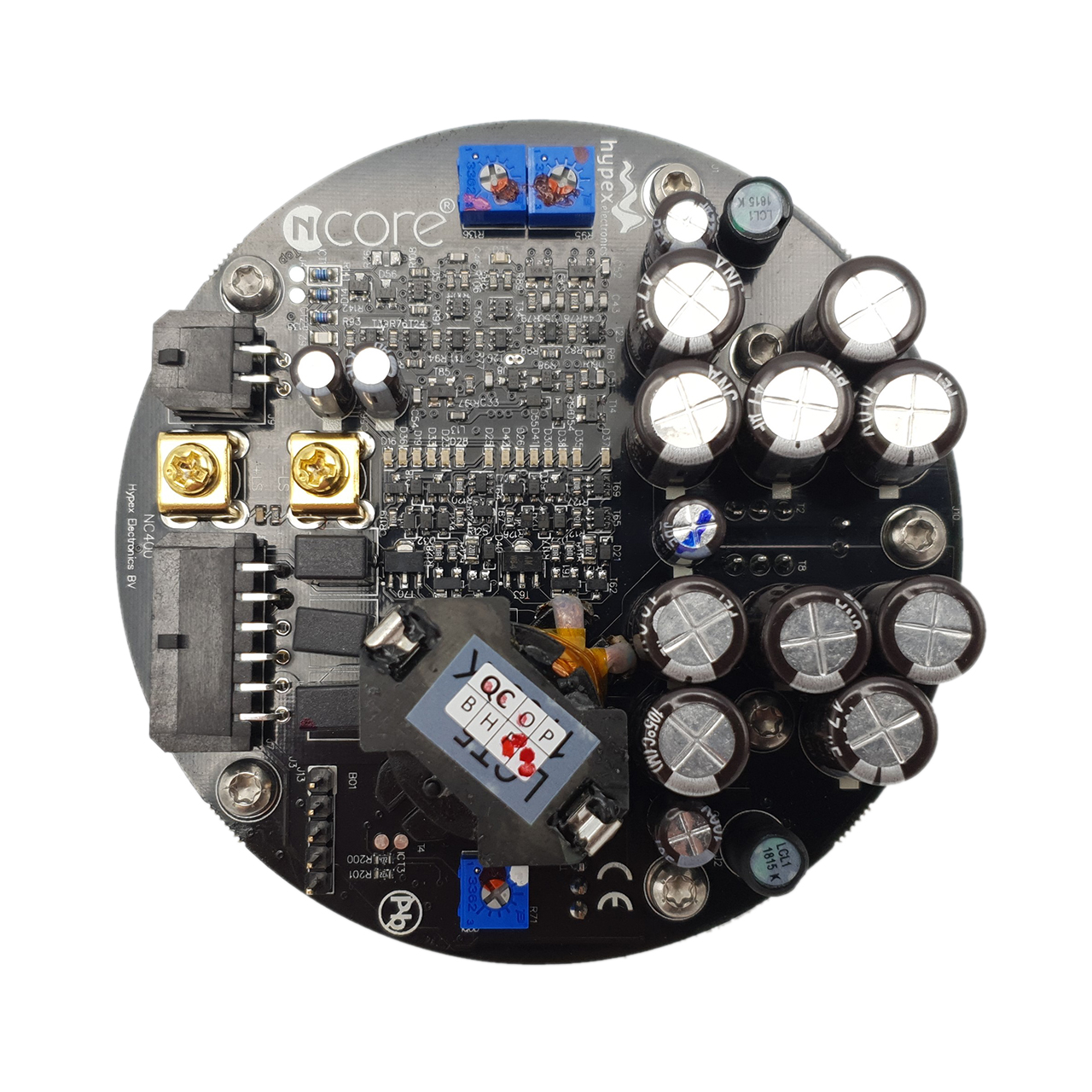

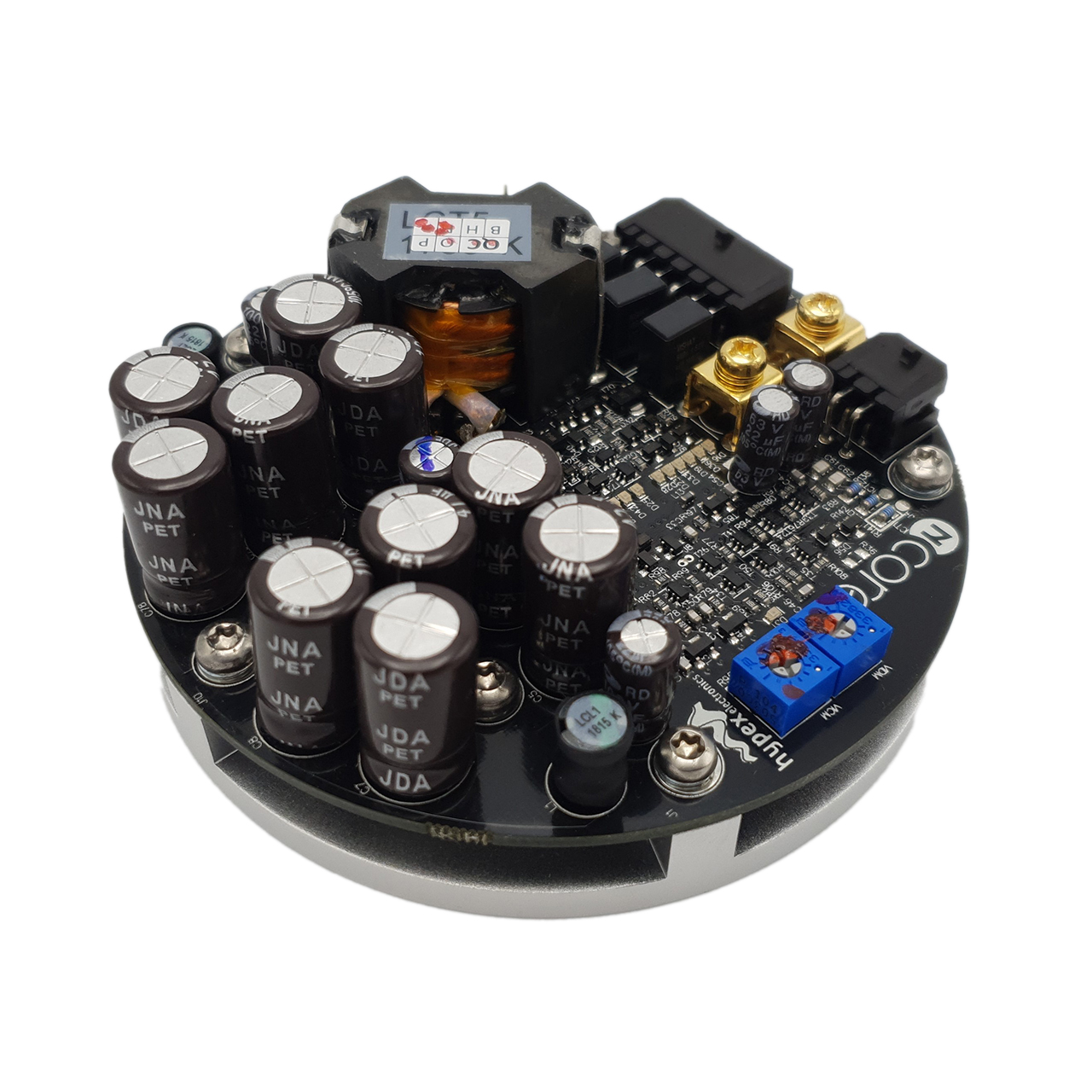

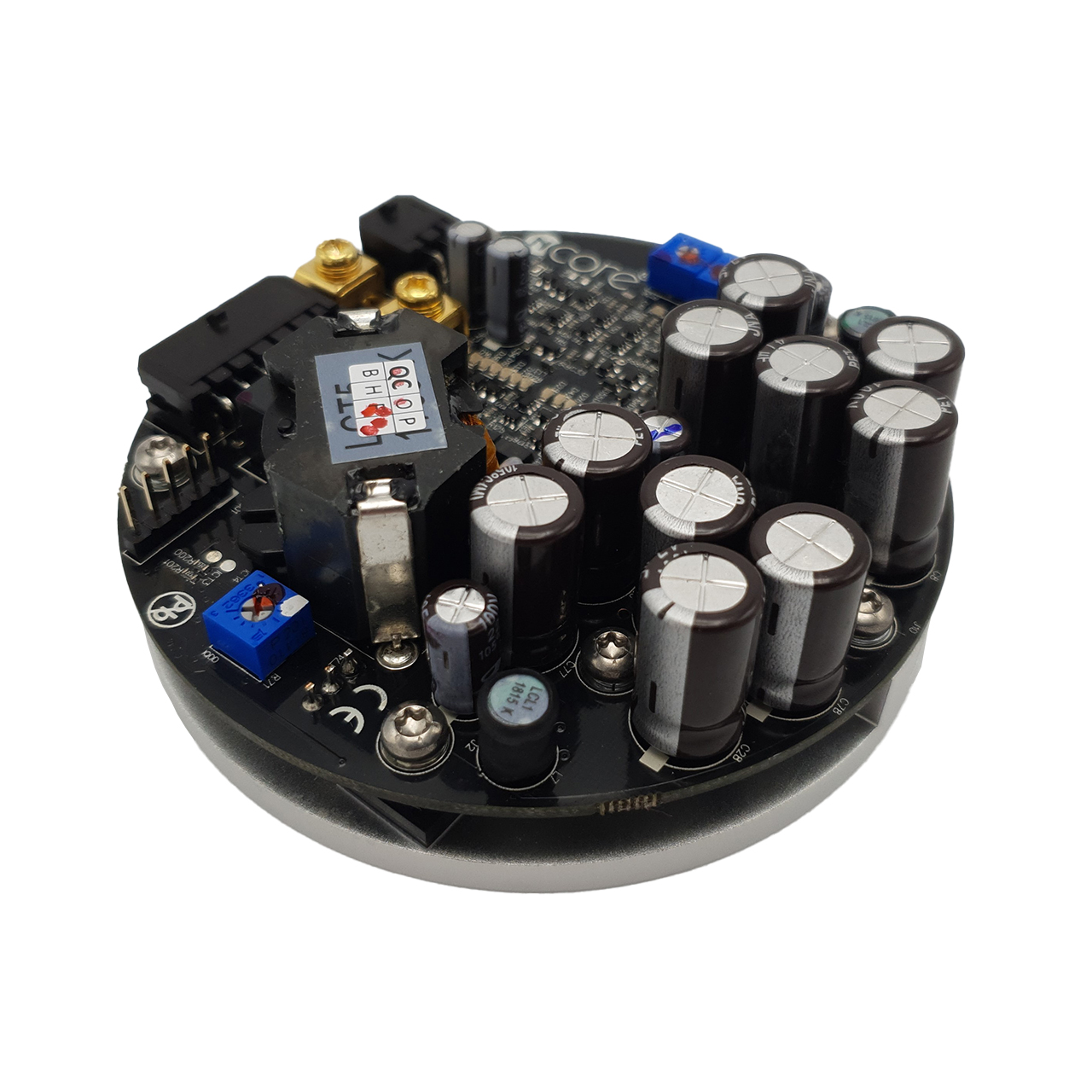

NC400
H01U001376
Product information "NC400"
The NC400 packs a feature set never seen before in a modular amplifier product. The NC400 module's audio performance sets new standards,regardlessof operating class or circuit technology. Distortion (THDand IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust.
APPLICATIONS
- High-end active loudspeakers High-end stand-alone power amplifiers
FEATURES:
- Transparent, fully discrete input circuitry
- HxR style regulators on board
- Differential inputs with high common-mode impedance
- Overcurrent protection
- Supply overvoltage/undervoltage protection on all rails
CONTENTS OF PACKAGING:
- NC400 amplifier module
- Mount set NC400
- Cable set NC400 (incl. Ncore signal cable)
- Manual
RECOMMENDED ADDITIONAL PARTS:
- Power Supply SMPS600N400 (1x NC400)
- Power Supply SMPS1200A400 (2x NC400)
| Power (2Ω): | 580W |
|---|---|
| Power (4Ω): | 400W |
| Power (8Ω): | 200W |
| Channels: | 1 |
| Technology: | NCORE® |
| HxR Ready : | On board |
| OpAmp: | Discrete |
| Over voltage protection @: | 72V |
| Recommended SMPS: | SMPS600 |
| SMPS Voltage +/-: | 64V |
| Under voltage protection: | 35V |
Related products

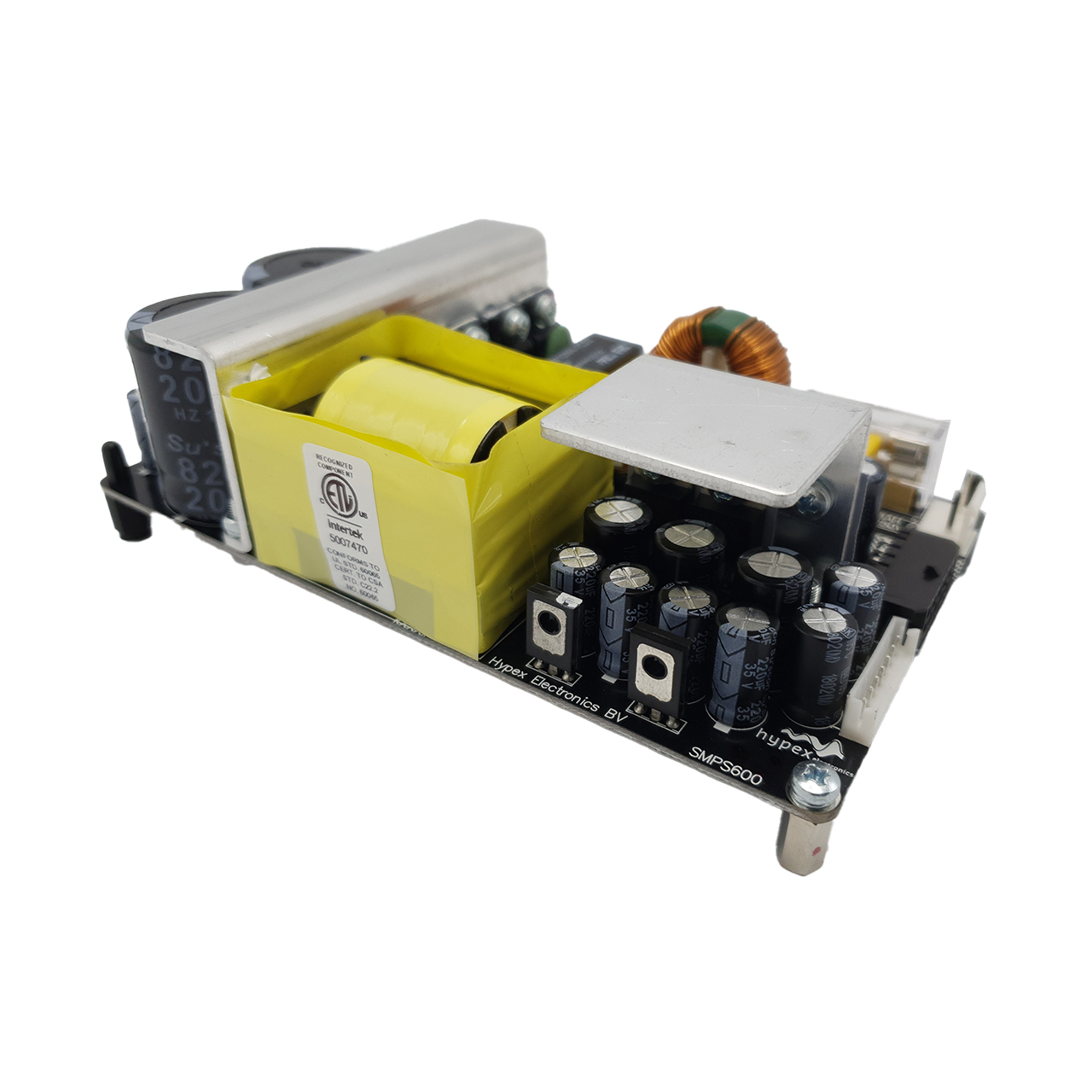

SMPS600N400
