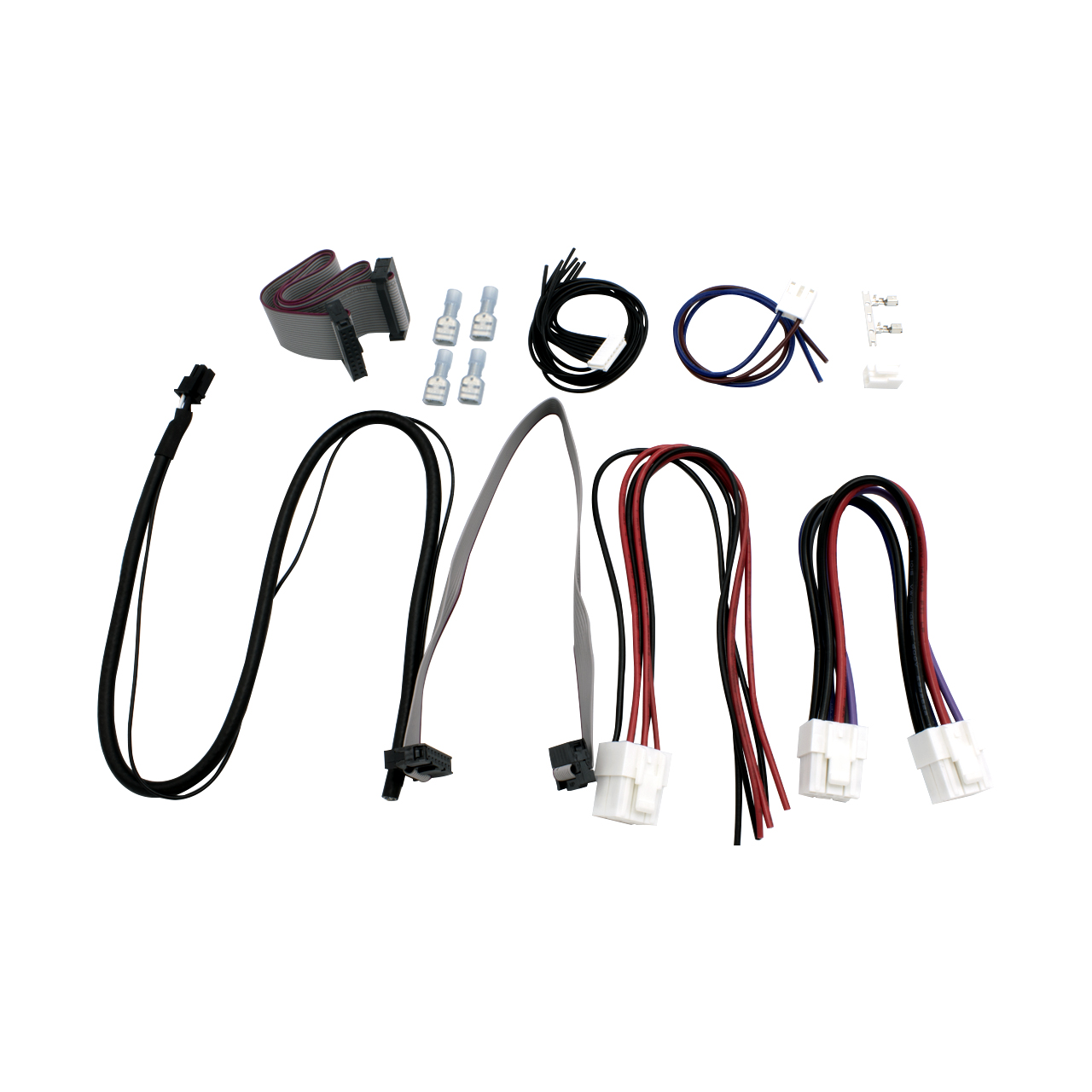

Cable set NC1200 / NC2k

The NC1200 OEM amplifier module is a high power NCORE® based Class D amplifier module designed for applications that require high output current and operation with low impedance loads. The module is capable of delivering high output power into 2Ω, making it suitable for use with the most demanding low impedance loudspeakers and high performance audio systems. Its electrical design supports stable operation under low impedance conditions. The NC1200 OEM operates in Class D and is based on a non hysteresis fifth order self oscillating control loop that applies feedback at the loudspeaker output. This control approach is intended to minimise load dependency and maintain consistent electrical performance across the operating range. The amplifier module is intended for integration in high end home audio systems, professional studio equipment and other audio applications where high output power, efficiency and predictable behaviour are required. Highlights • Extremely low distortion across the frequency and power range • Exceptionally low output impedance for precise speaker control • Minimal noise for a pure audio experience • Remarkably neutral and transparent sound reproduction Features • Differential audio input for enhanced signal integrity • 2-Ohm powerhouse for current hungry applications • Extensive, Microprocessor-controlled error protection Protections • Overcurrent protection • Under- and overvoltage protection • Clip indicator • Excessive DC protection Possible applications • Audiophile Home Theatre systems • Audiophile Power Amplifiers; for home and professional use • Audiophile Immersive Audio systems • Audiophile Multichannel Power Amplifiers

The NC2k OEM amplifier module is a high power NCORE® based Class D amplifier module designed for applications that require very high output power and operation under demanding load conditions. The module delivers up to 2500 W output power and is intended for use in professional audio systems such as touring amplifiers, large scale PA systems and high power subwoofer applications. Its electrical design supports sustained high power operation while maintaining efficient Class D behaviour. The NC2k OEM operates using a non hysteresis fifth order self oscillating control loop with feedback taken at the loudspeaker output. This control topology is intended to minimise load dependency and maintain consistent electrical performance across frequency and power ranges. The amplifier supports a voltage peak of up to 160 V, allowing it to drive professional loudspeakers that require high voltage swing. This characteristic supports the reproduction of high dynamic signals and transient peaks commonly encountered in live sound reinforcement and large venue applications. The NC2k OEM amplifier module can be used as a standalone power amplifier, in active loudspeaker systems, in professional studio installations and in high end home theatre systems. It is also suitable for integration in touring amplifiers and stadium scale subwoofer systems. The module includes protection functions such as overcurrent and overvoltage protection to support safe operation and reduce the risk of damage under fault or overload conditions. The design approach focuses on predictable behaviour and long term reliability in demanding professional environments. Highlights • Extremely low distortion across the frequency and power range • Exceptionally low output impedance for precise speaker control • Minimal noise for a pure audio experience • Remarkably neutral and transparent sound reproduction Features • Differential audio input for enhanced signal integrity • 48A current capability • 2-Ohm powerhouse for current hungry applications • Extensive, Microprocessor-controlled error protection Protections • Overcurrent protection • Under- and overvoltage protection • Clip indicator • Excessive DC protection Possible applications • Audiophile Home Theatre systems • Audiophile Power Amplifiers; for home and professional use • Audiophile Immersive Audio systems • Audiophile Multichannel Power Amplifiers

The SMPS1200 is a high efficiency Safety Class 2 switch mode power supply designed for use with UcD™, NCORE® and NCOREx® amplifier modules. The unit is intended for audio systems that require stable power delivery across a wide load range in a compact and lightweight format. The power supply includes an overcurrent protection mechanism that limits output current during temporary overload conditions. It also provides symmetrical auxiliary outputs and a control interface for operation with UcD™, NCORE® and NCOREx® amplifier modules. The SMPS1200 is designed to achieve low levels of radiated and conducted electromagnetic interference. The topology and layout are optimised to meet EMI requirements commonly associated with professional and high end audio applications. The power supply supports a selectable input voltage range, allowing operation with different mains supply specifications. This supports use in international applications with varying power grid standards. SMPS1200 is a 2-quadrant full bridge rectifier, making it possible to supply single ended class d amplifiers. The SMPS1200 complies with applicable safety and performance standards and is certified for use in professional audio equipmen HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • 2-quadrant full bridge rectifier • Selectable input voltage range • External controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.

The SMPS3k is a high power, high efficiency Safety Class 1 switch mode power supply designed for integration with UcD™, NCORE® and NCOREx® amplifier modules. The power supply includes an overcurrent protection mechanism that limits the output current during temporary overload conditions. If an overload persists, the unit enters hiccup mode and remains in this state until the overload condition is removed. Large primary electrolytic buffer capacitors support short term peak power delivery to the connected amplifier modules. The SMPS3k follows the same design principles for safety, quality and electrical performance as other power supplies in the SMPS family, including the SMPS400 and SMPS1200. HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 2 variants available: A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Power Amplifiers, for home and professional use • Line Array and Immersive Systems • Home Theatre Systems • Multichannel Power Amplifiers Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.
