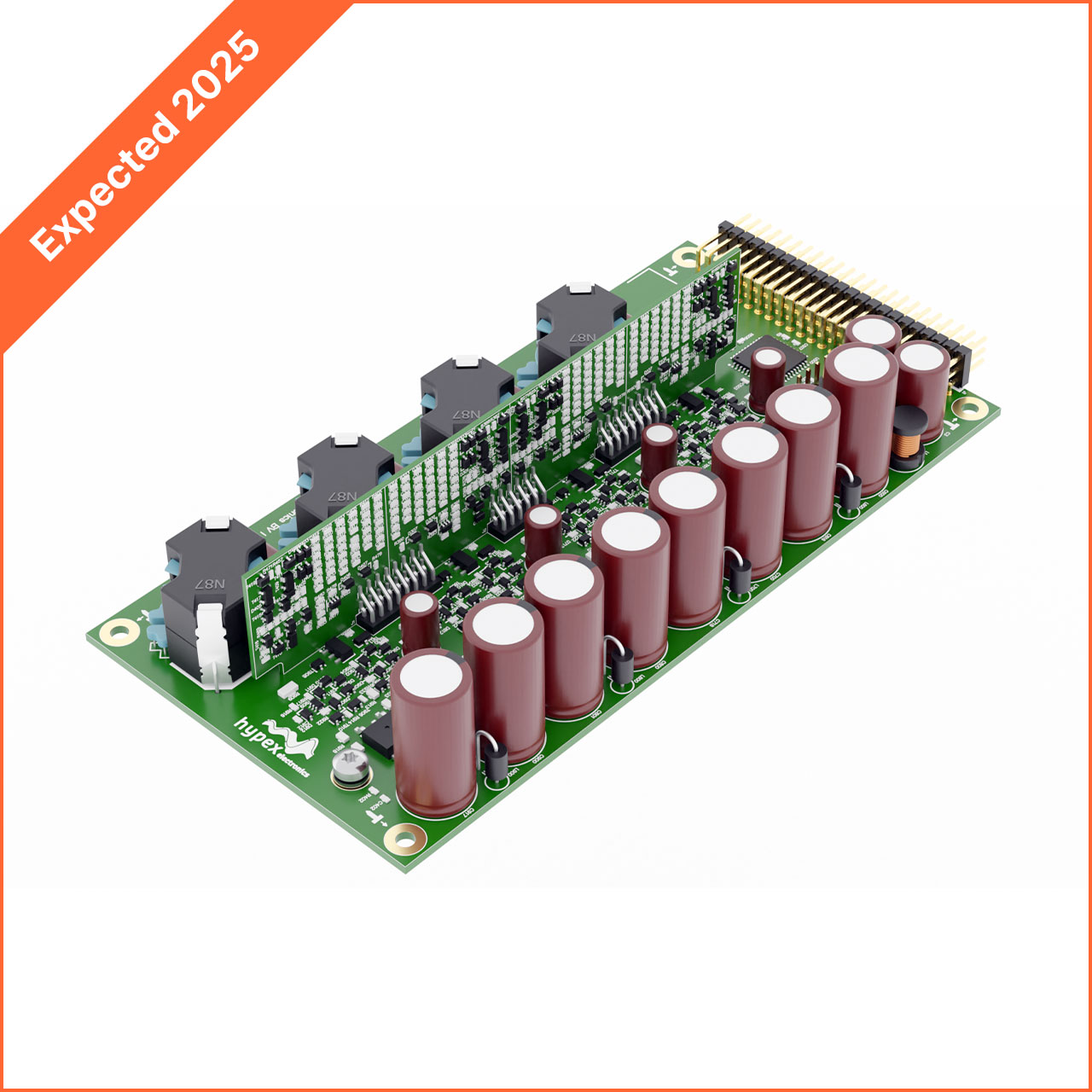

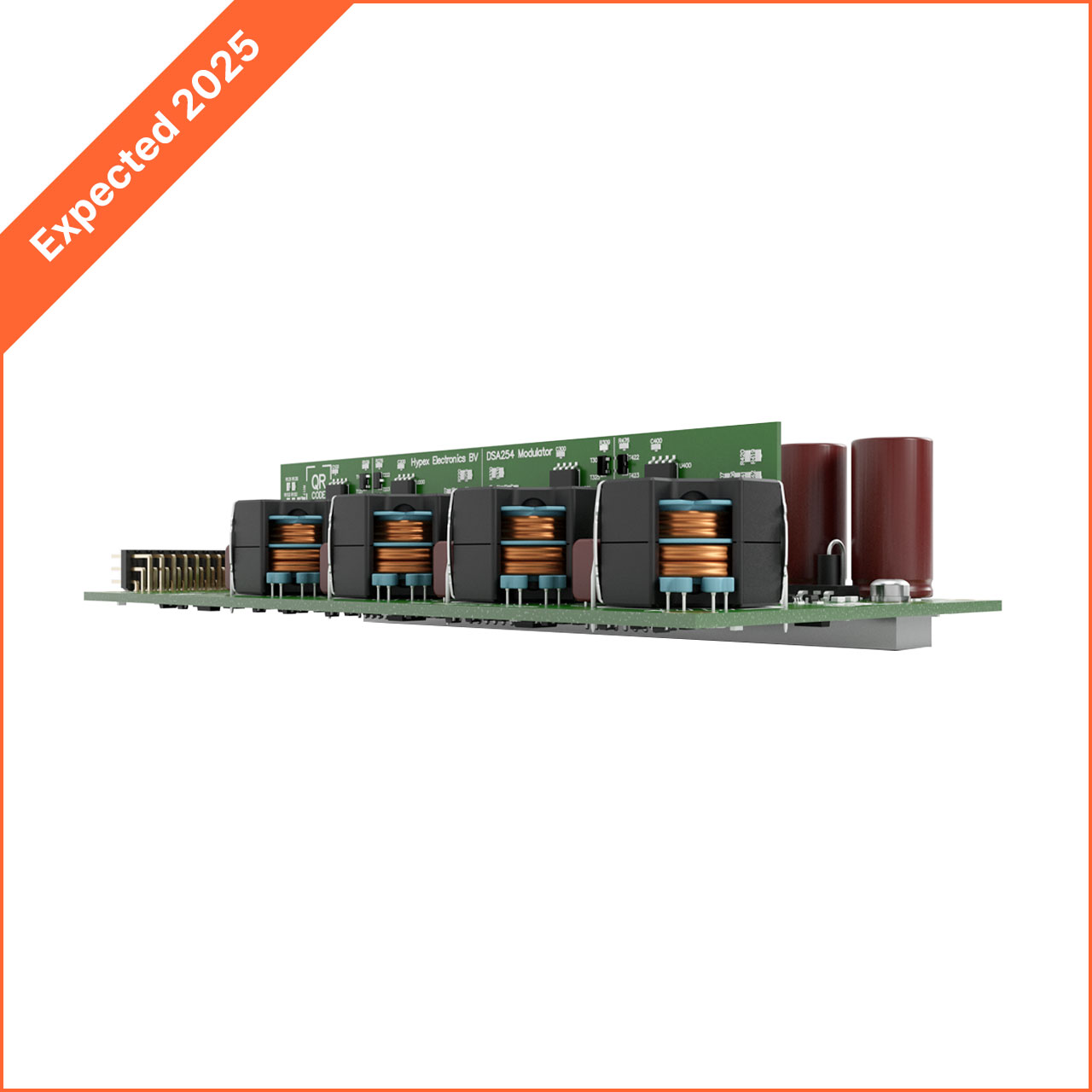

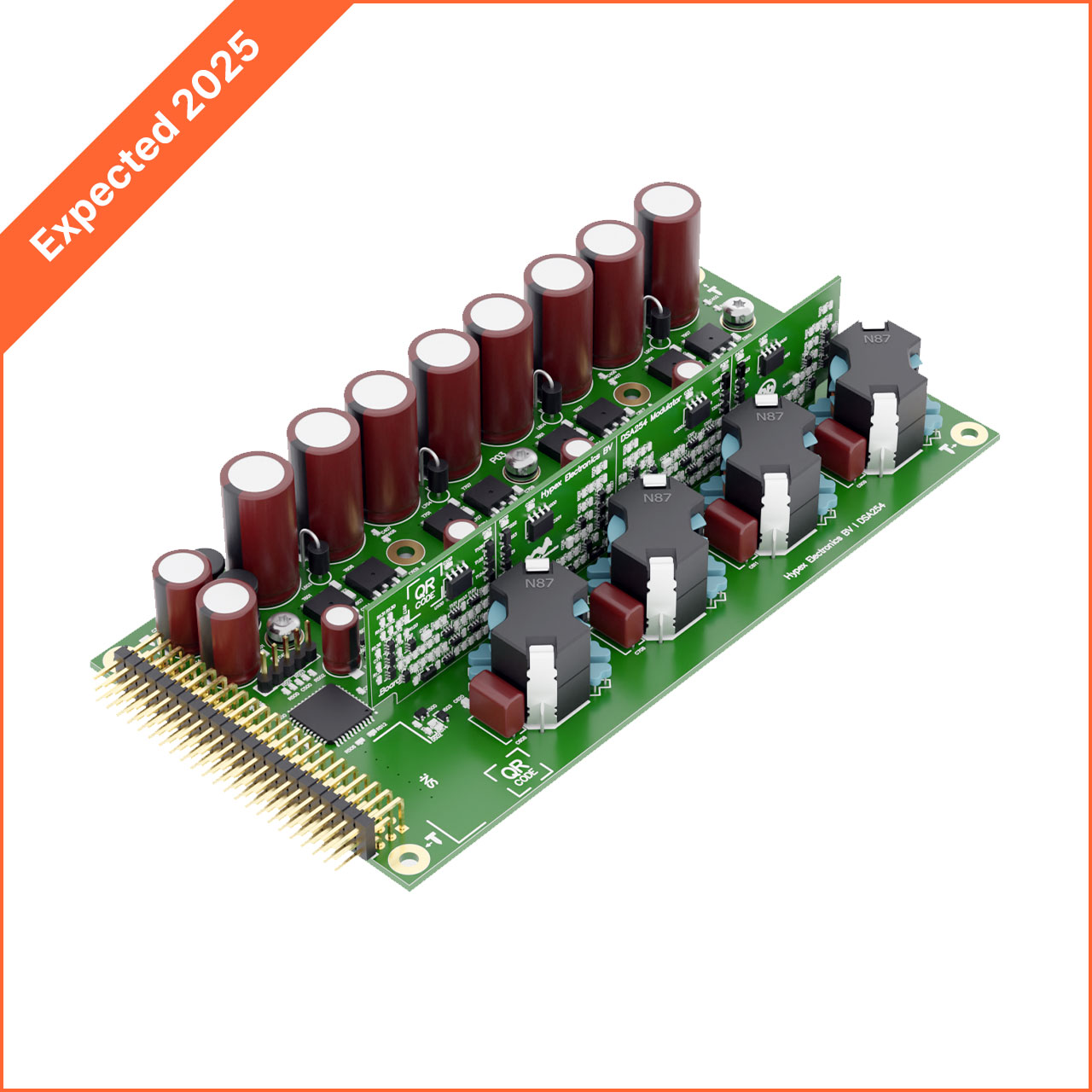

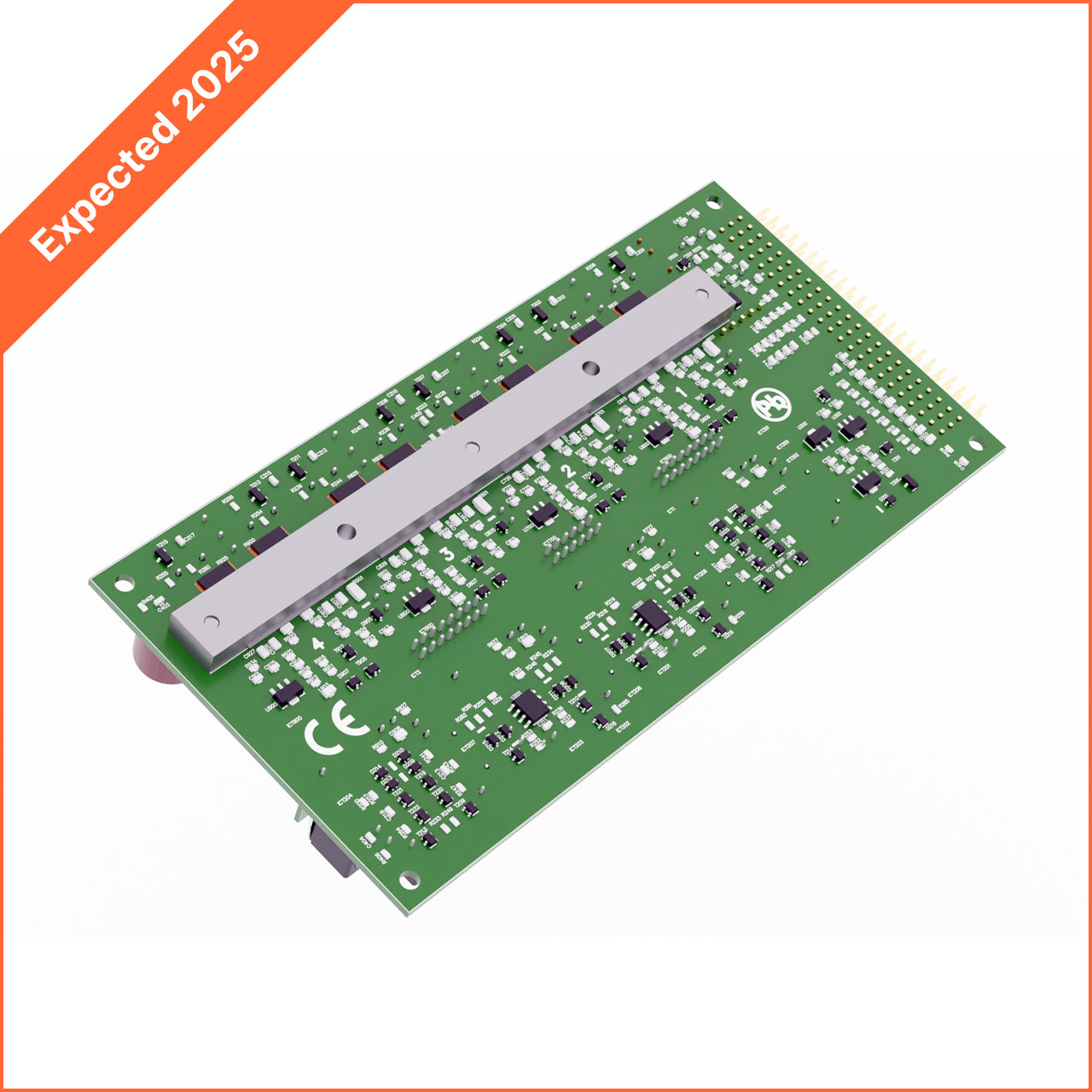

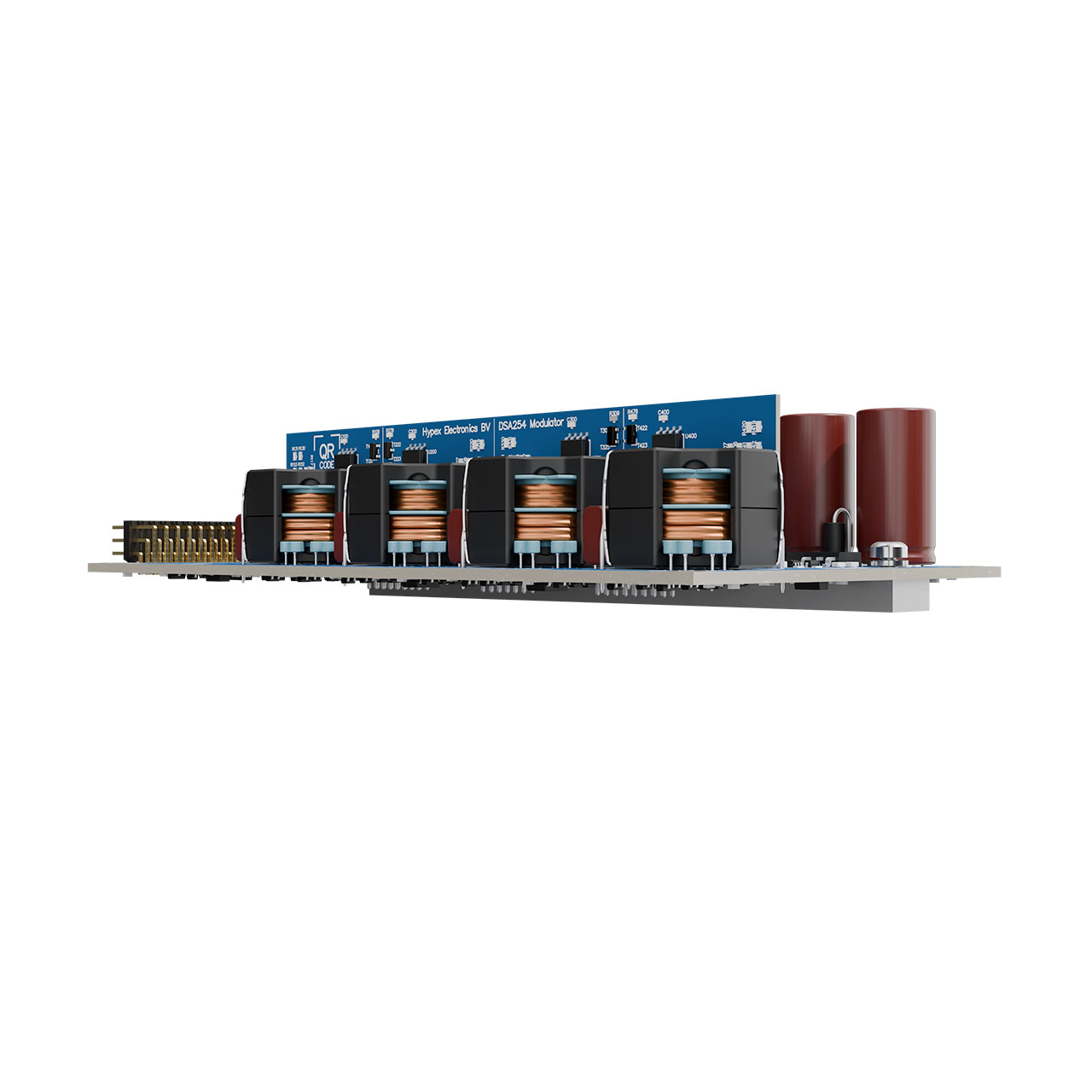

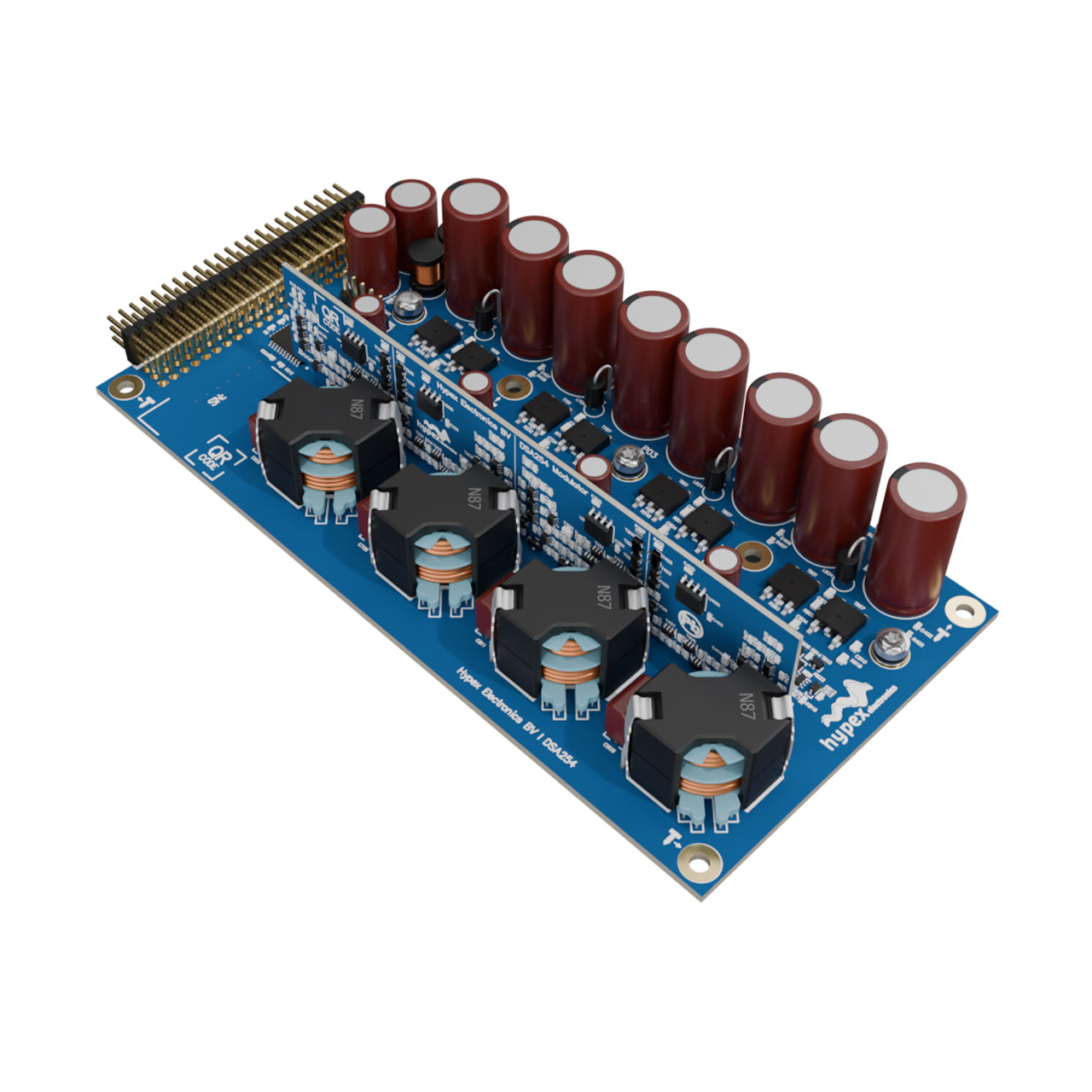

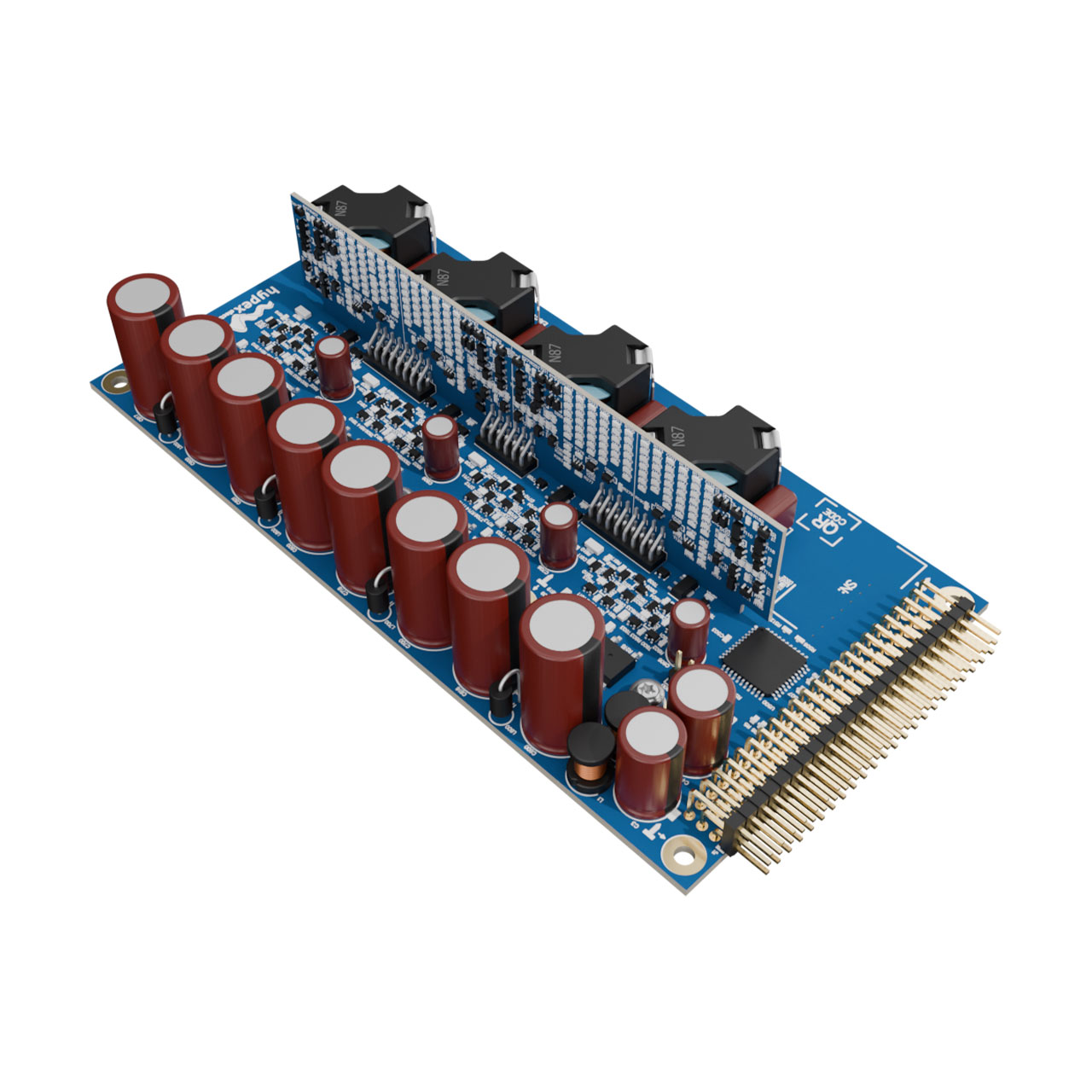

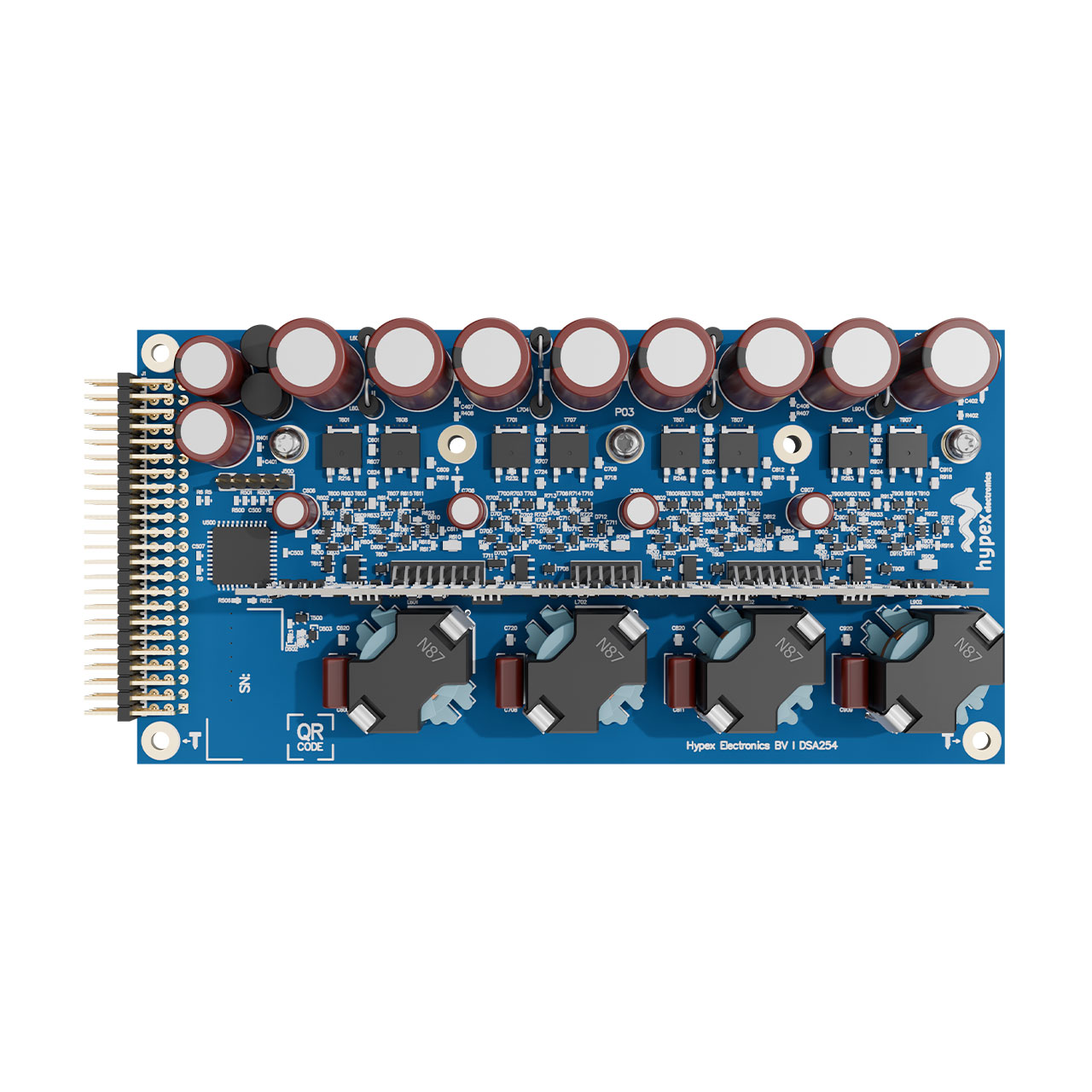

DSA254 OEM

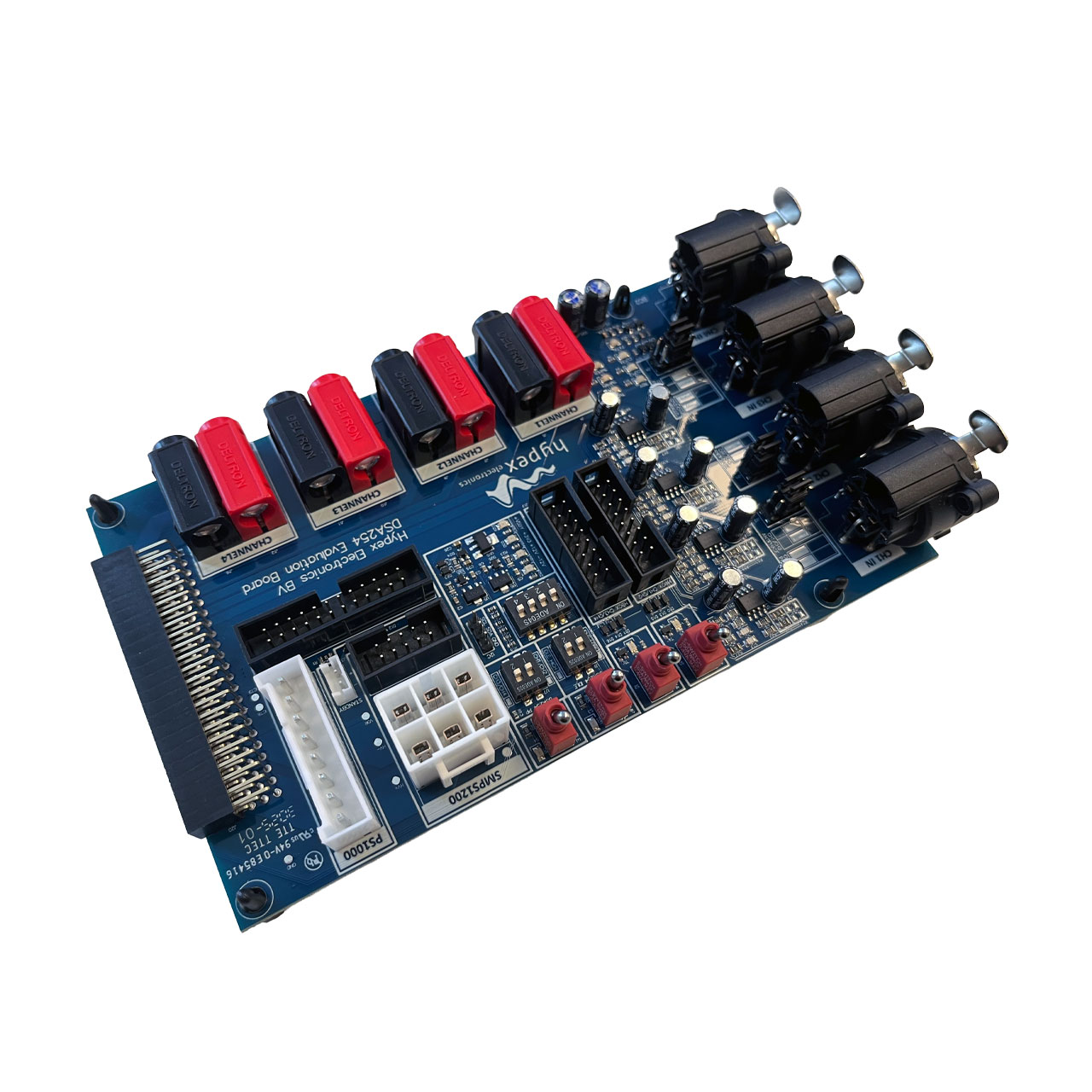

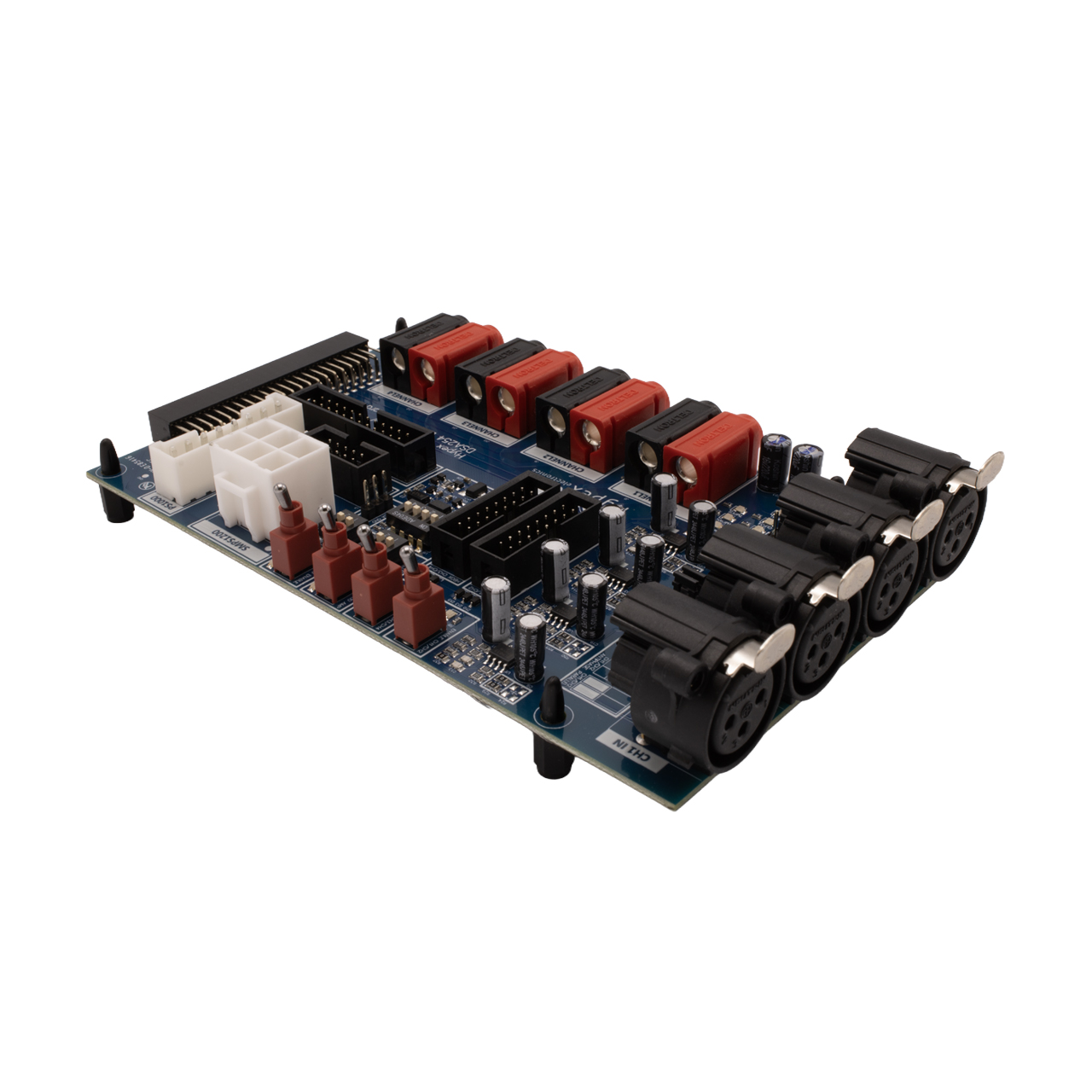

The evaluation board for the DSA254 is a tool to simplify the testing and development process for users of the DSA254. This comprehensive evaluation platform allows engineers and developers to quickly assess the performance, features, and capabilities of the DSA254 in real-world applications. With a user-friendly design, the evaluation board provides easy access to key inputs and outputs, enabling seamless integration and fast validation of measurement tasks. The DSA254 evaluation board provides a seamless connection to the DSA254. It includes all the necessary connectors to effortlessly test all functions. It is compatible with both the SMPS1200 and the PS1000. Using the DSA254 evaluation board, you can easily test all the functionality of the DSA254, allowing you to seamlessly integrate the DSA254 into your application. Key features: • Provides effortless connection to DSA254 • Easy access to all DSA254 functionality • Supports both SMPS1200 & PS1000 • Supports Hypex HBOX • Makes use of industry standard connectors

The NCx Evaluation board is designed to make evaluation of the NCx500 OEM amplifier or NCx1000 OEM amplifier easy. The Hypex SMPS1200 or SMPS3K can be easily connected to the evaluation board and used as power supply for an evaluation setup. An H-box connector also allows for easy connection with a Hypex DSP3-213 board.

The SMPS1200 is a high efficiency Safety Class 2 switch mode power supply designed for use with UcD™, NCORE® and NCOREx® amplifier modules. The unit is intended for audio systems that require stable power delivery across a wide load range in a compact and lightweight format. The power supply includes an overcurrent protection mechanism that limits output current during temporary overload conditions. It also provides symmetrical auxiliary outputs and a control interface for operation with UcD™, NCORE® and NCOREx® amplifier modules. The SMPS1200 is designed to achieve low levels of radiated and conducted electromagnetic interference. The topology and layout are optimised to meet EMI requirements commonly associated with professional and high end audio applications. The power supply supports a selectable input voltage range, allowing operation with different mains supply specifications. This supports use in international applications with varying power grid standards. SMPS1200 is a 2-quadrant full bridge rectifier, making it possible to supply single ended class d amplifiers. The SMPS1200 complies with applicable safety and performance standards and is certified for use in professional audio equipmen HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • 2-quadrant full bridge rectifier • Selectable input voltage range • External controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.

The SMPS1200 is a high efficiency Safety Class 2 switch mode power supply designed for use with UcD™, NCORE® and NCOREx® amplifier modules. The unit is intended for audio systems that require stable power delivery across a wide load range in a compact and lightweight format. The power supply includes an overcurrent protection mechanism that limits output current during temporary overload conditions. It also provides symmetrical auxiliary outputs and a control interface for operation with UcD™, NCORE® and NCOREx® amplifier modules. The SMPS1200 is designed to achieve low levels of radiated and conducted electromagnetic interference. The topology and layout are optimised to meet EMI requirements commonly associated with professional and high end audio applications. The power supply supports a selectable input voltage range, allowing operation with different mains supply specifications. This supports use in international applications with varying power grid standards. SMPS1200 is a 2-quadrant full bridge rectifier, making it possible to supply single ended class d amplifiers. The SMPS1200 complies with applicable safety and performance standards and is certified for use in professional audio equipmen HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • 2-quadrant full bridge rectifier • Selectable input voltage range • External controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.

The SMPS3K stands out as a high power, high-efficiency Safety Class 1 switch mode power supply meticulously crafted for seamless integration with our UcD™, NCORE® and NCOREx® amplifier modules. Its key attributes include superior efficiency across the entire load spectrum, an exceptionally compact form factor, lightweight design, and minimal radiated and conducted electromagnetic interference (EMI). Adding to its capabilities, the SMPS3K incorporates advanced overcurrent protection. In the event of a temporary overload, it restricts the output current. Only if the overload condition persists for an extended period does the supply transition into hiccup mode, maintaining this state until the overload condition dissipates. This feature, coupled with large primary electrolytic buffer capacitors, enables the supply to deliver high dynamic headroom power to the connected amplifier. Moreover, the SMPS3K includes a symmetrical auxiliary output and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or deactivation during a critical fault is managed through built-in actuators, providing a reliable safeguard. From the initial design phase to the final implementation, the SMPS3K undergoes optimization to achieve the lowest possible EMI signature, meeting the stringent requirements of the most demanding audio applications. The SMPS3K is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS3K complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS3A400 and SMPS3KA700 revision 1000 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS3KA400 and SMPS3KA700 are ETL listed components for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 2 variants available: A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Power Amplifiers, for home and professional use • Line Array and Immersive Systems • Home Theatre Systems • Multichannel Power Amplifiers Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.

The SMPS3k is a high power, high efficiency Safety Class 1 switch mode power supply designed for integration with UcD™, NCORE® and NCOREx® amplifier modules. The power supply includes an overcurrent protection mechanism that limits the output current during temporary overload conditions. If an overload persists, the unit enters hiccup mode and remains in this state until the overload condition is removed. Large primary electrolytic buffer capacitors support short term peak power delivery to the connected amplifier modules. The SMPS3k follows the same design principles for safety, quality and electrical performance as other power supplies in the SMPS family, including the SMPS400 and SMPS1200. HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 2 variants available: A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Power Amplifiers, for home and professional use • Line Array and Immersive Systems • Home Theatre Systems • Multichannel Power Amplifiers Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.
