DIGin3-322
Product information "DIGin3-322"

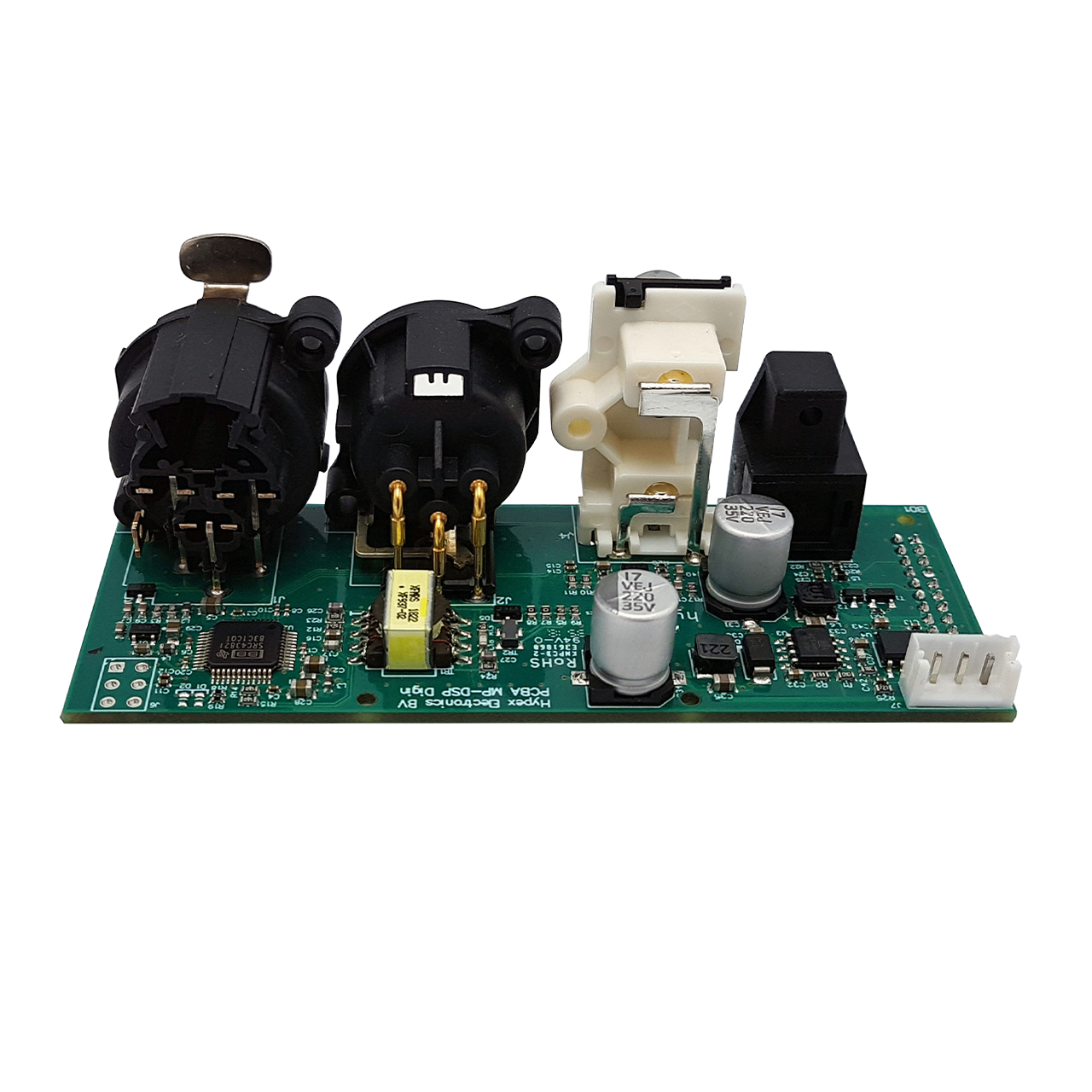

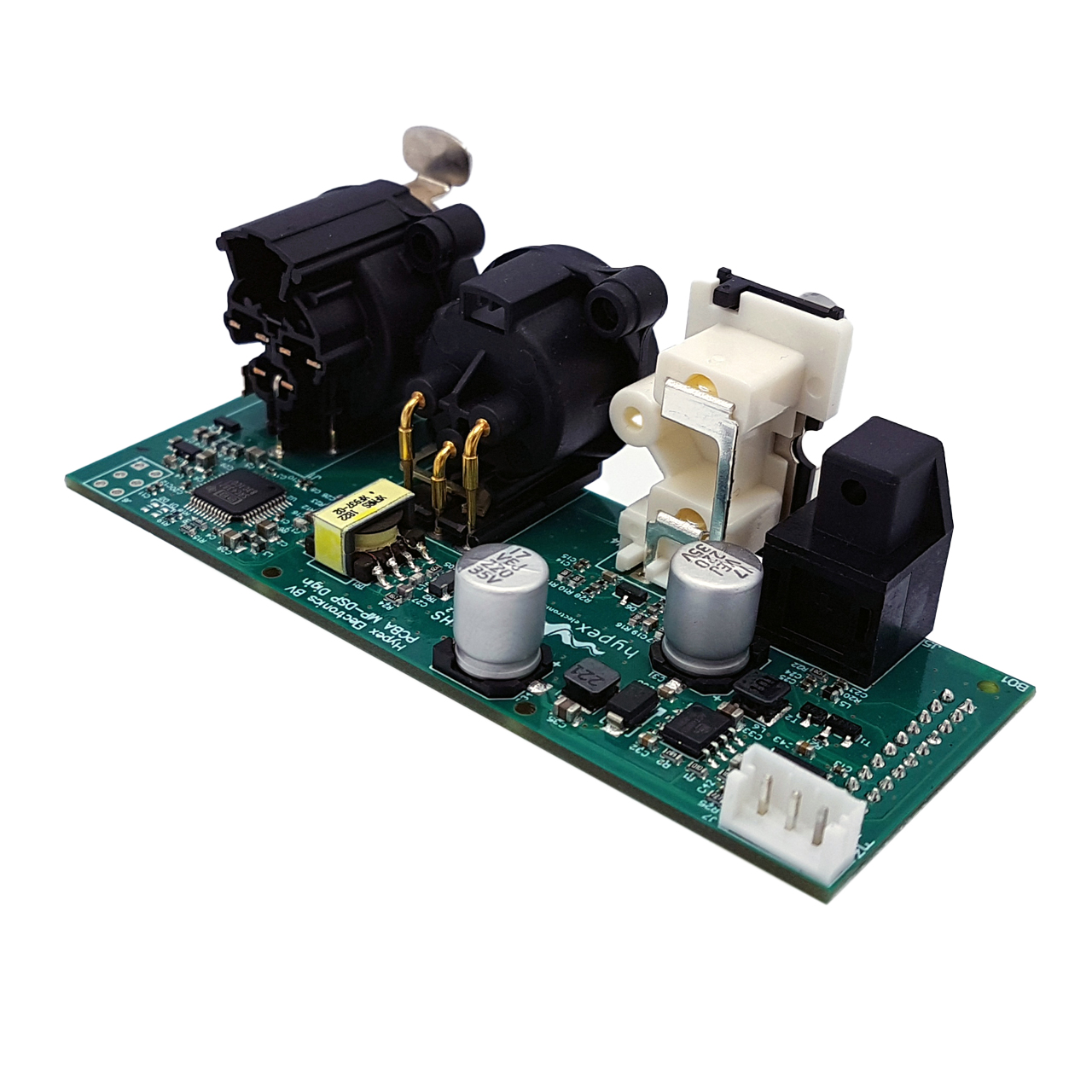

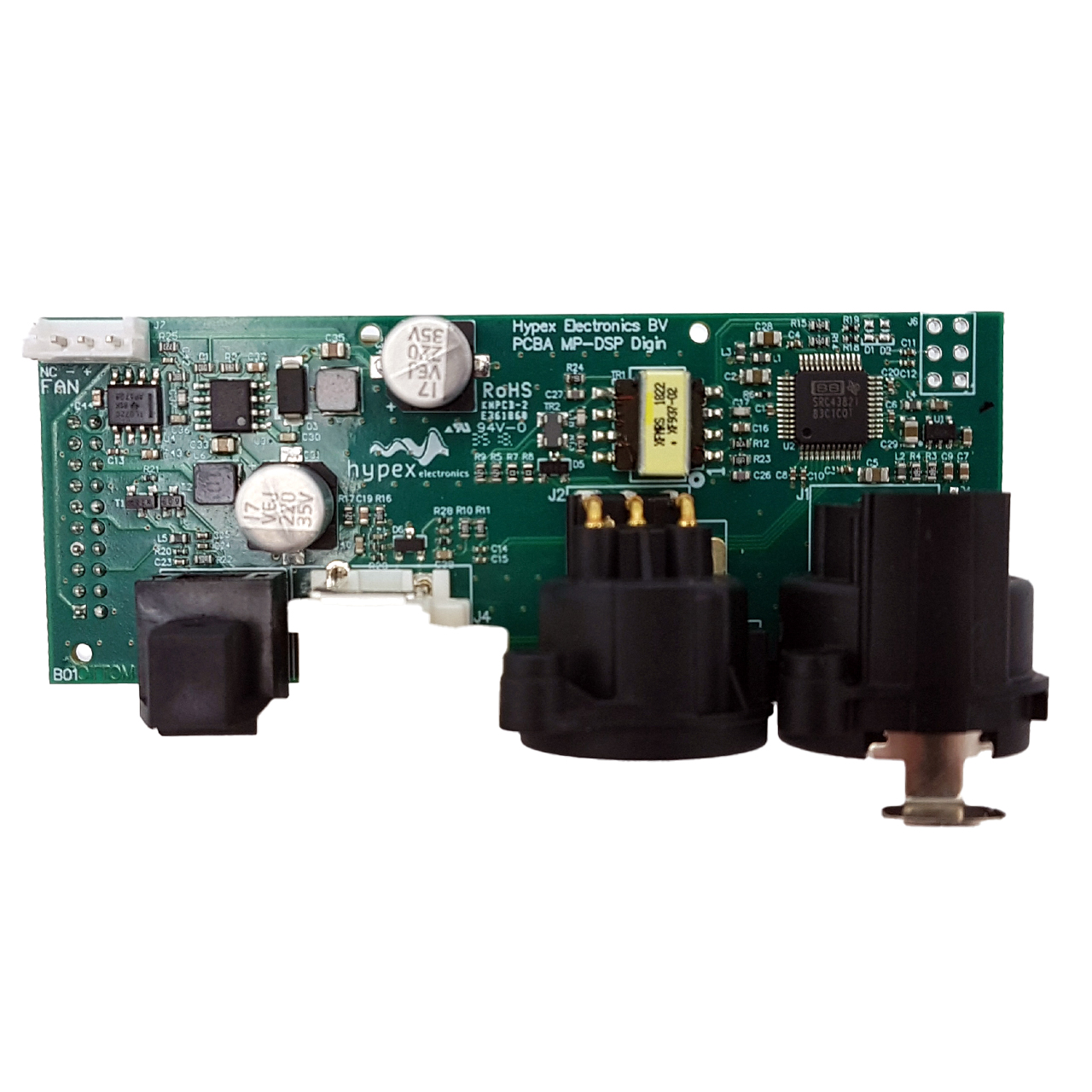

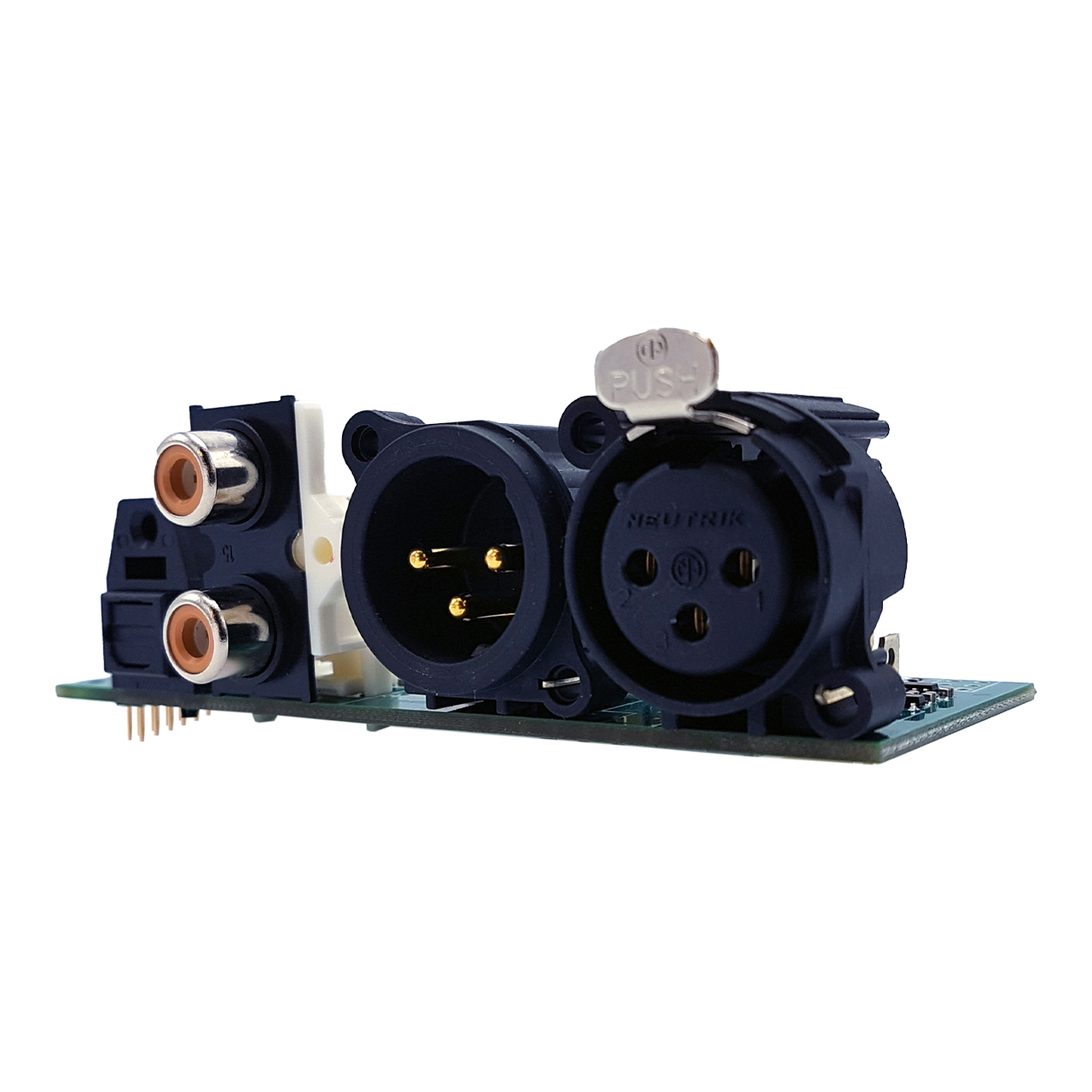

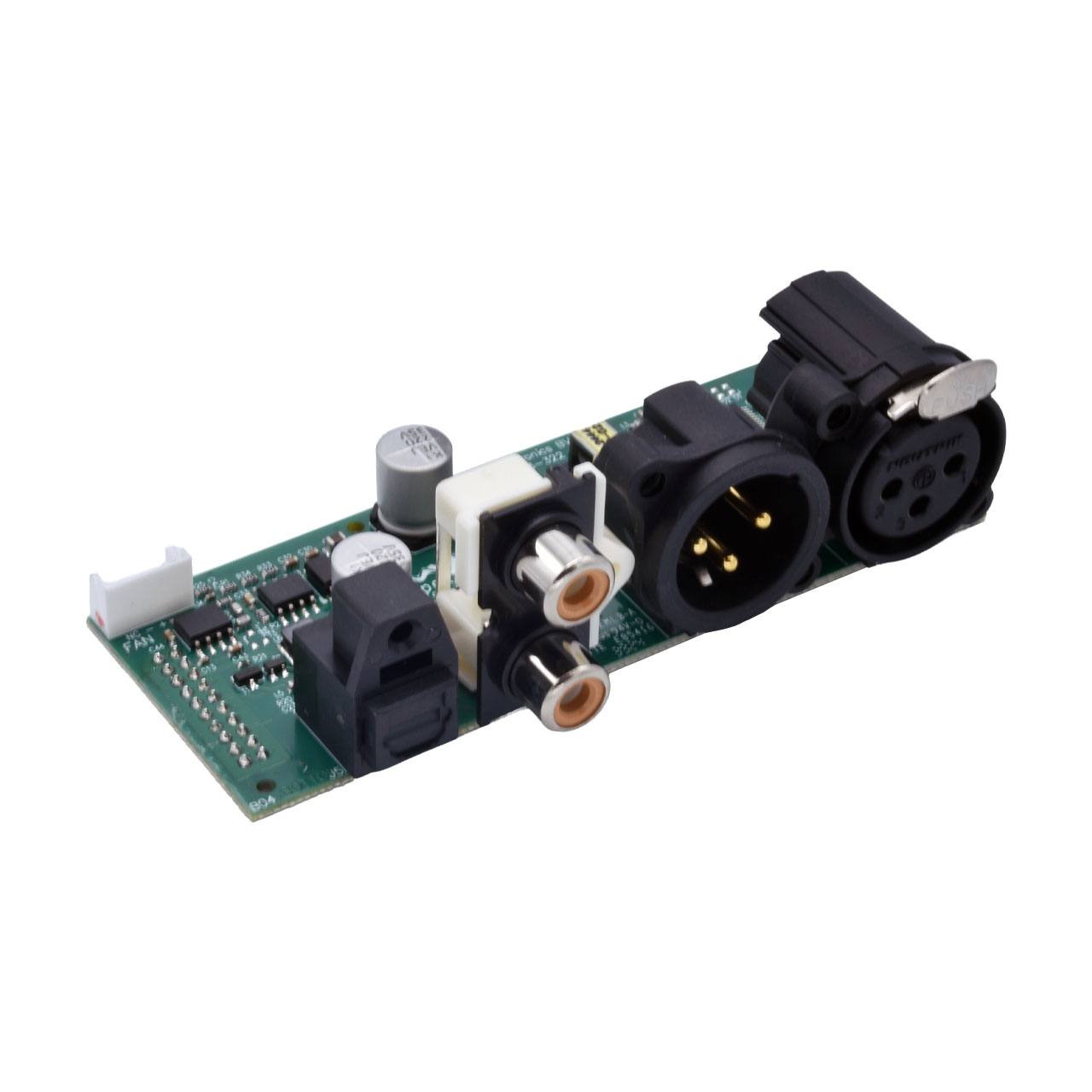

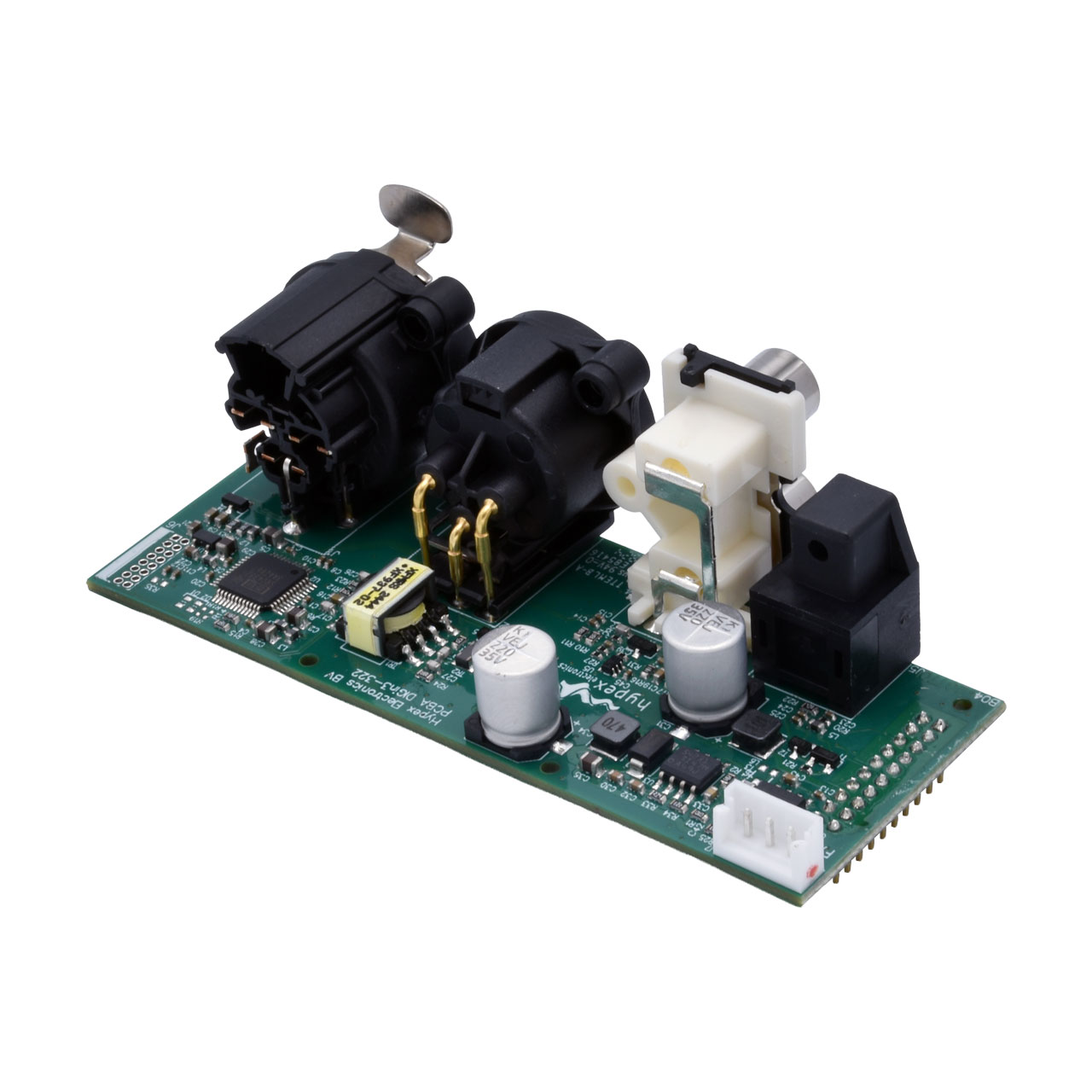

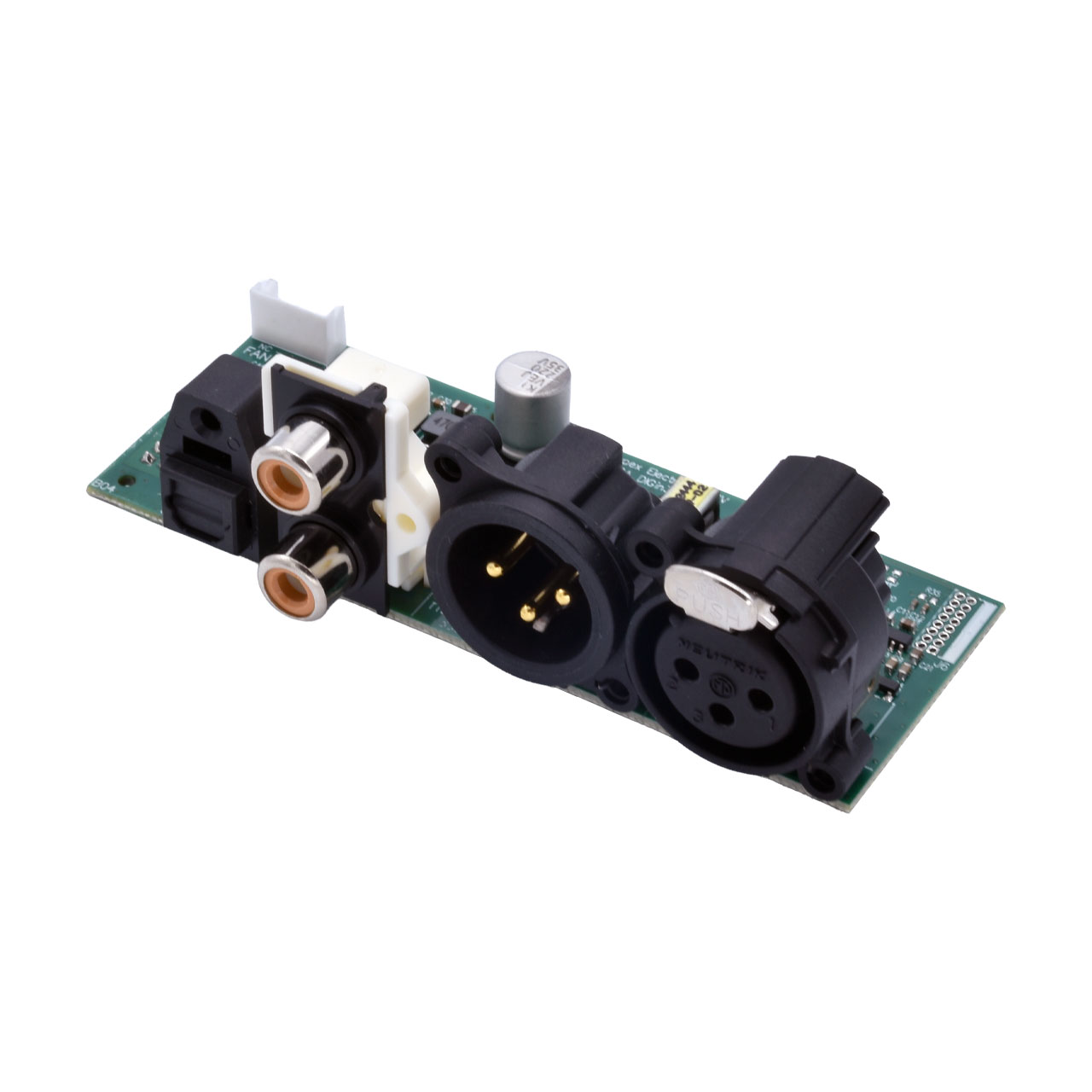

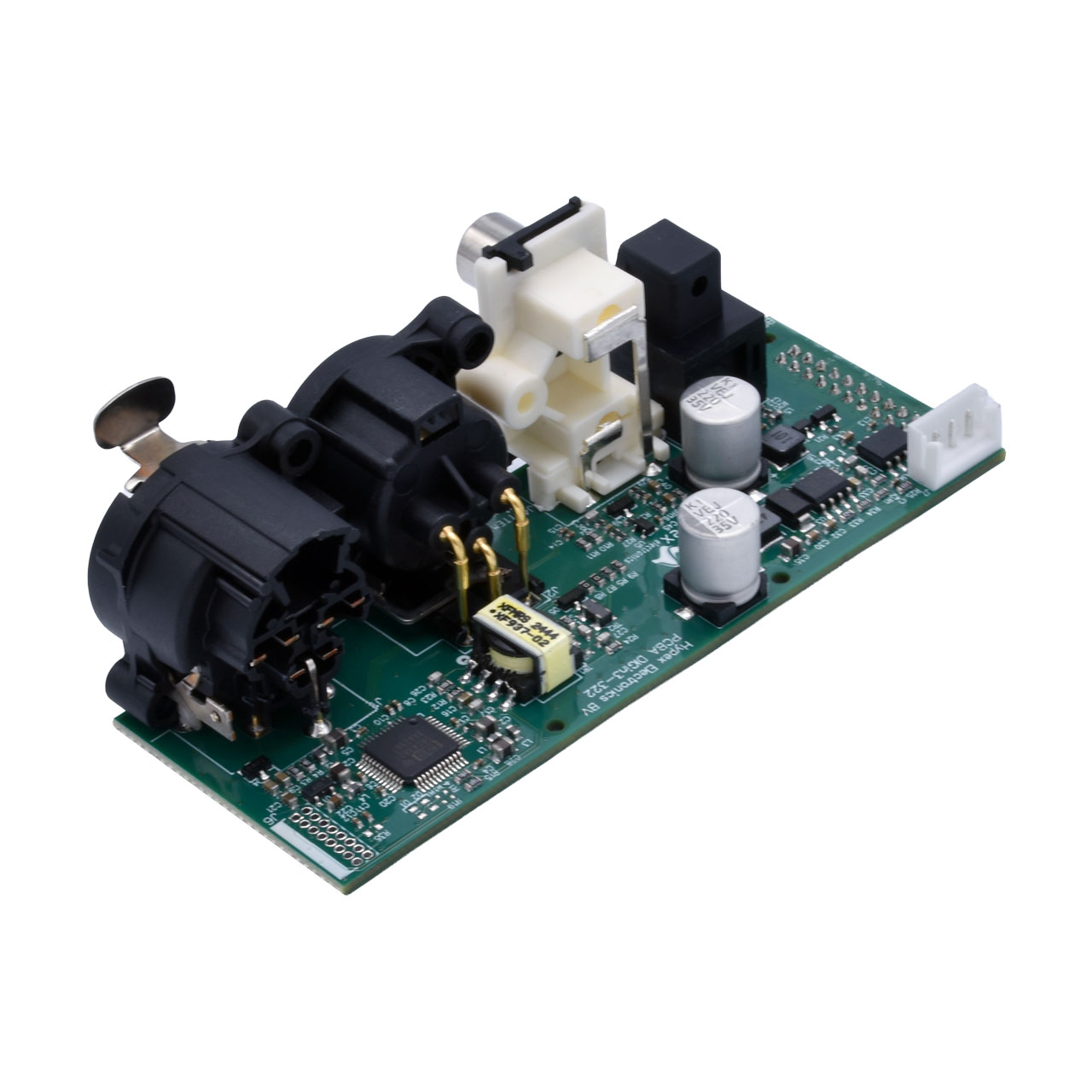

The DIGin3-322 is a digital input expansion module for the DSP3 series. It provides digital audio input functionality for systems requiring direct digital signal routing into the DSP.
The DIGin3-322 transforms the DSP3-series solutions by adding a digital powerhouse. With its advanced digital input capabilities, this board ensures that every digital signal is handled with precision, delivering uncompromised audio quality to your system.
The module supports integration with DSP3-213 and DSP3-224 units and is configured through Hypex Filter Design software. It is intended for systems where digital sources are used directly, reducing the need for external digital to analogue conversion.
Typical applications include active speakers, integrated amplifiers and DSP based audio systems with digital sources.

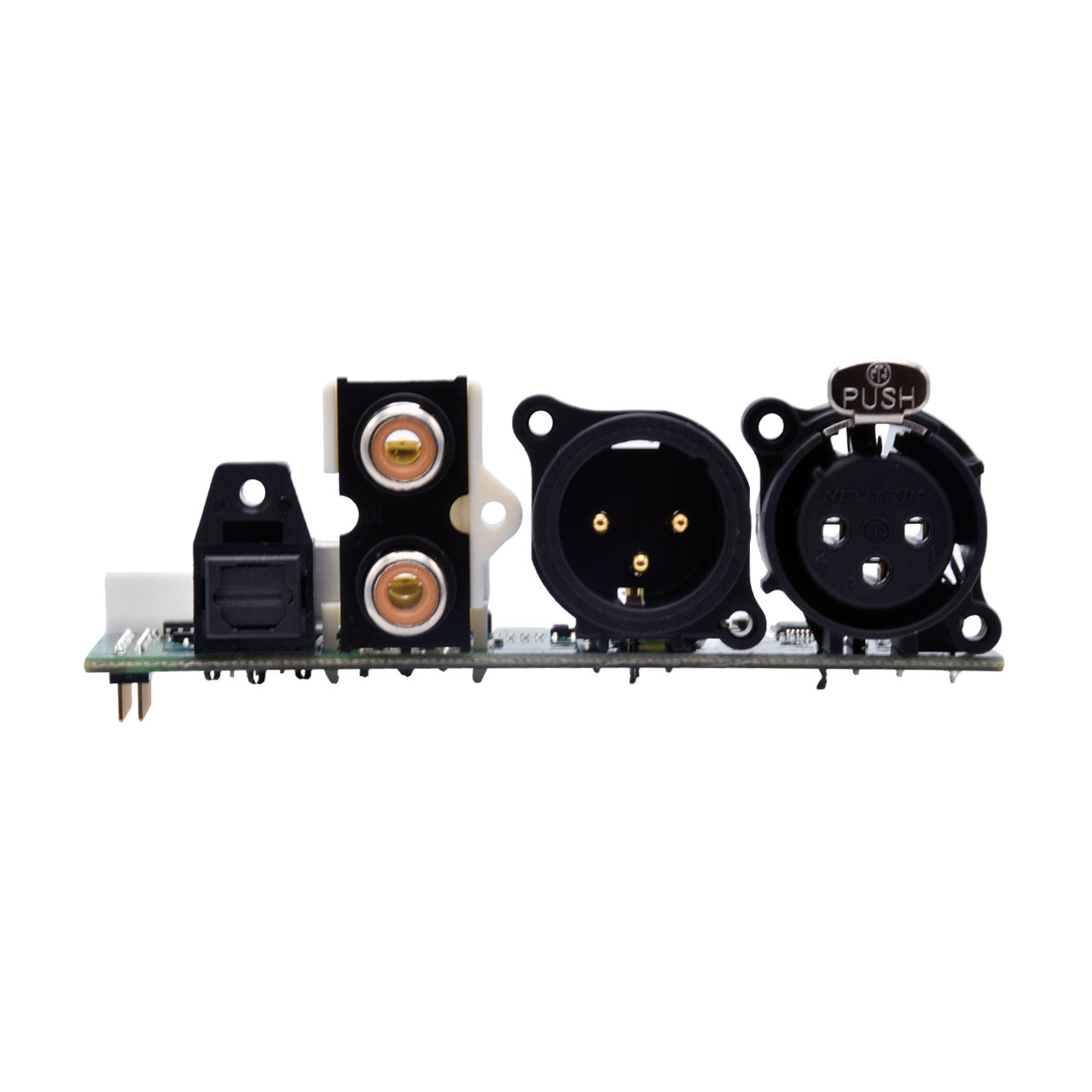

Highlights
- • AES input and output
- • SPDIF input and output
- • Optical input
- • Low jitter
Features
- • Maximum optical sample rate: 96kHz
- • Maximum SPDIF & AES sample rate: 192kHz
Possible applications
- • High-end consumer audio
- • Active loudspeakers
- • Subwoofers
- • PA systems
- • Studio monitors
| Signal / Noise Ratio: | -111 dB - Digital in |
|---|---|
| Distortion: | -100 dB - Digital in |
| Supported sample rates: | 32 / 44.1 / 48 / 88.2 / 96 / 192 kHz |
| Digital latency: | 1.8 ms - 96kHz |
| SRC: | SRC4382 |
| Compatible with: | DSP3-213, DSP3-224 |
| Family: | DSP Family |
Downloads
CAD drawings
documentation
Recommended additional parts
The DSP3-213 is a mono DSP module based on the Analog Devices ADAU1452. It is intended for use with mains powered NCORE® amplifier power modules and Fusion amplifier platforms. The module supports mono and 3-way active loudspeaker configurations. Signal processing is configured using Hypex Filter Design software and supports both IIR and FIR filters. Multiple presets can be stored for different filter sets, input selections and gain settings. The DSP3-213 supports features such as auto signal detect and configurable standby behaviour. The module can be expanded with optional input boards, such as digital input or subwoofer input modules. Multiple DSP3-213 units can be configured in a master-slave setup for stereo or 2.1 systems. Typical applications include active loudspeakers, studio monitors and integrated amplifier systems where a compact mono DSP solution is required. Highlights • Three channel active filtering • One FIR (4500 taps) or three (1500 taps per channel) per preset • Compatible with NCMP and NCAS series • Three programmable presets Features • Configurable Soft clip limiter • IIR & FIR capable • Programmable with Hypex Filter Design (HFD) • Automatic source selection • Automatic signal detection • Optional IR remote control Possible applications • High-end consumer audio • Active loudspeakers • Subwoofers • PA systems • Studio monitors

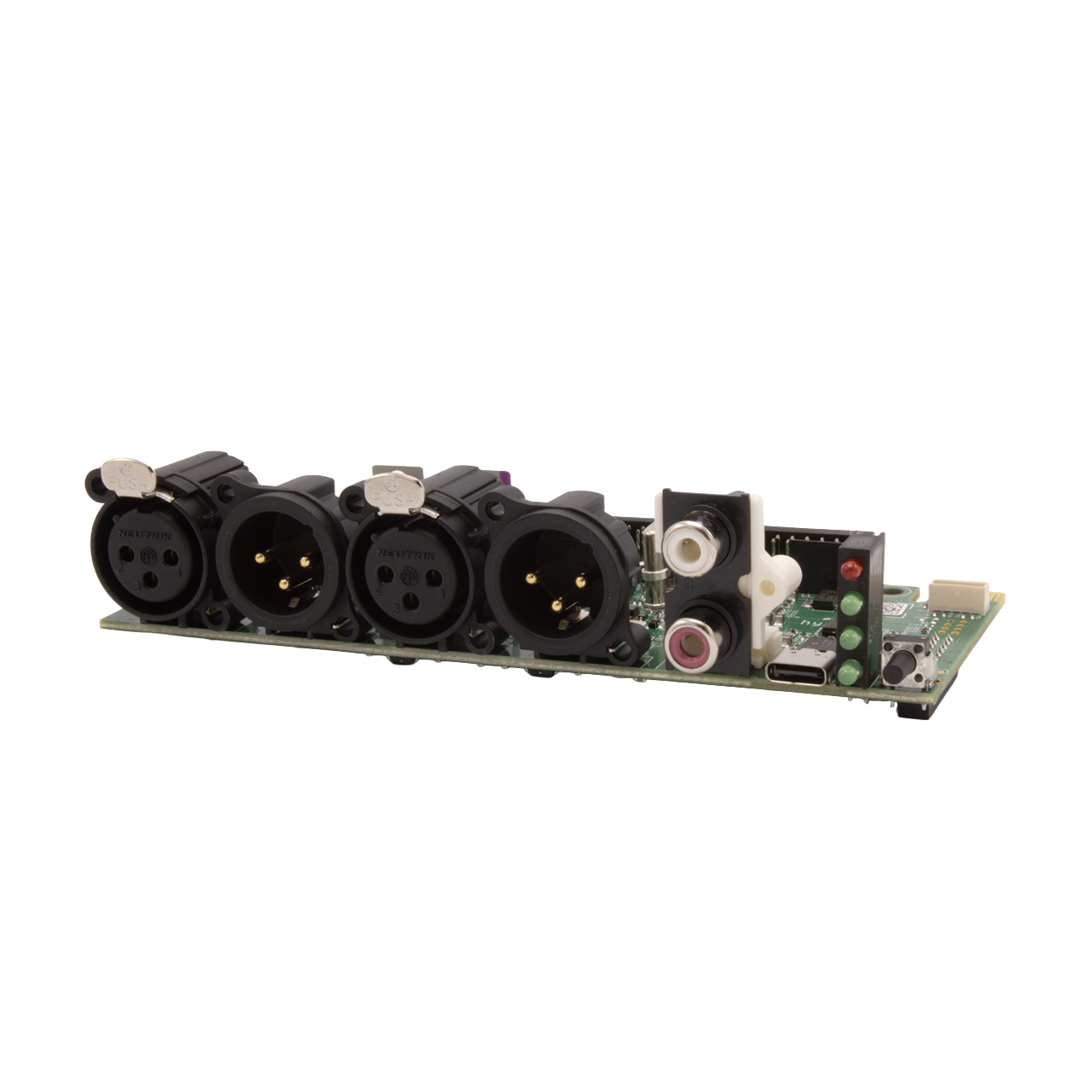

The DSP3-224 is a stereo DSP module based on the Analog Devices ADAU1452. It is designed for use with mains powered NCORE® amplifier power modules and supports stereo processing or 4-way active loudspeaker configurations. Filter design and system configuration are handled via Hypex Filter Design software, with support for IIR and FIR filters. Output routing allows flexible assignment, including BTL operation when connected to compatible two channel amplifiers. The DSP3-224 supports optional digital input expansion and includes auto signal detect and adjustable standby functionality. Multiple presets can be stored for different system configurations. The module is suitable for stereo active loudspeakers, multi way active systems and compact DSP controlled power amplifier designs. Highlights • Four channel active filtering • Stereo input XLR & RCA • Stereo input FIR (2048 taps) or four mono output FIR (1024 tabs per channel) • Compatible with NC-MP, NCx-MP and NCAS series • Three programmable presets Features • Configurable Soft clip limiter • IIR & FIR capable • Programmable with Hypex Filter Design (HFD) • Automatic source selection • Automatic signal detection • Optional IR remote control Possible applications • High-end consumer audio • Stereo power and integrated amplifiers • Active loudspeakers • PA systems • Studio monitors
