DSP3-224
Product information "DSP3-224"

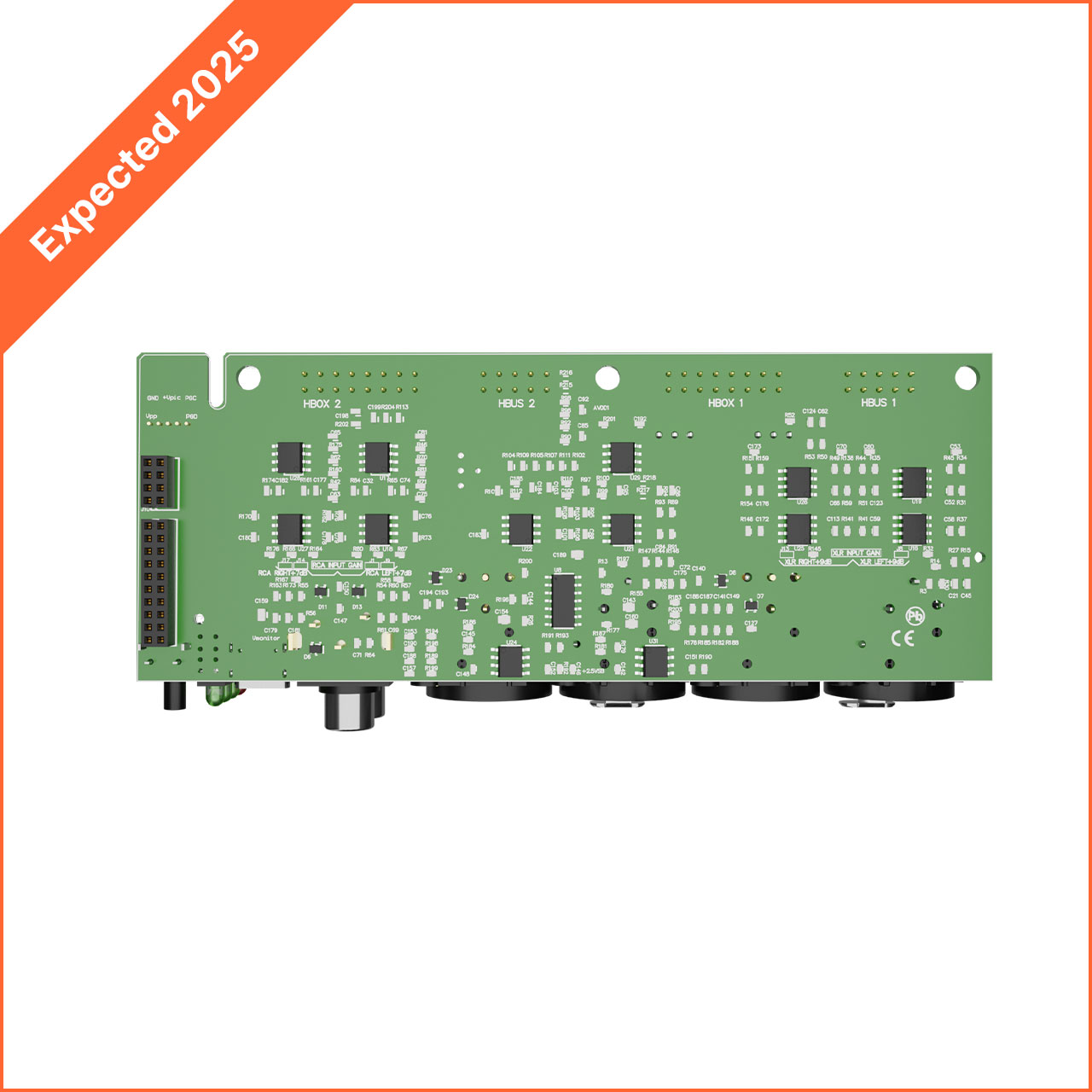

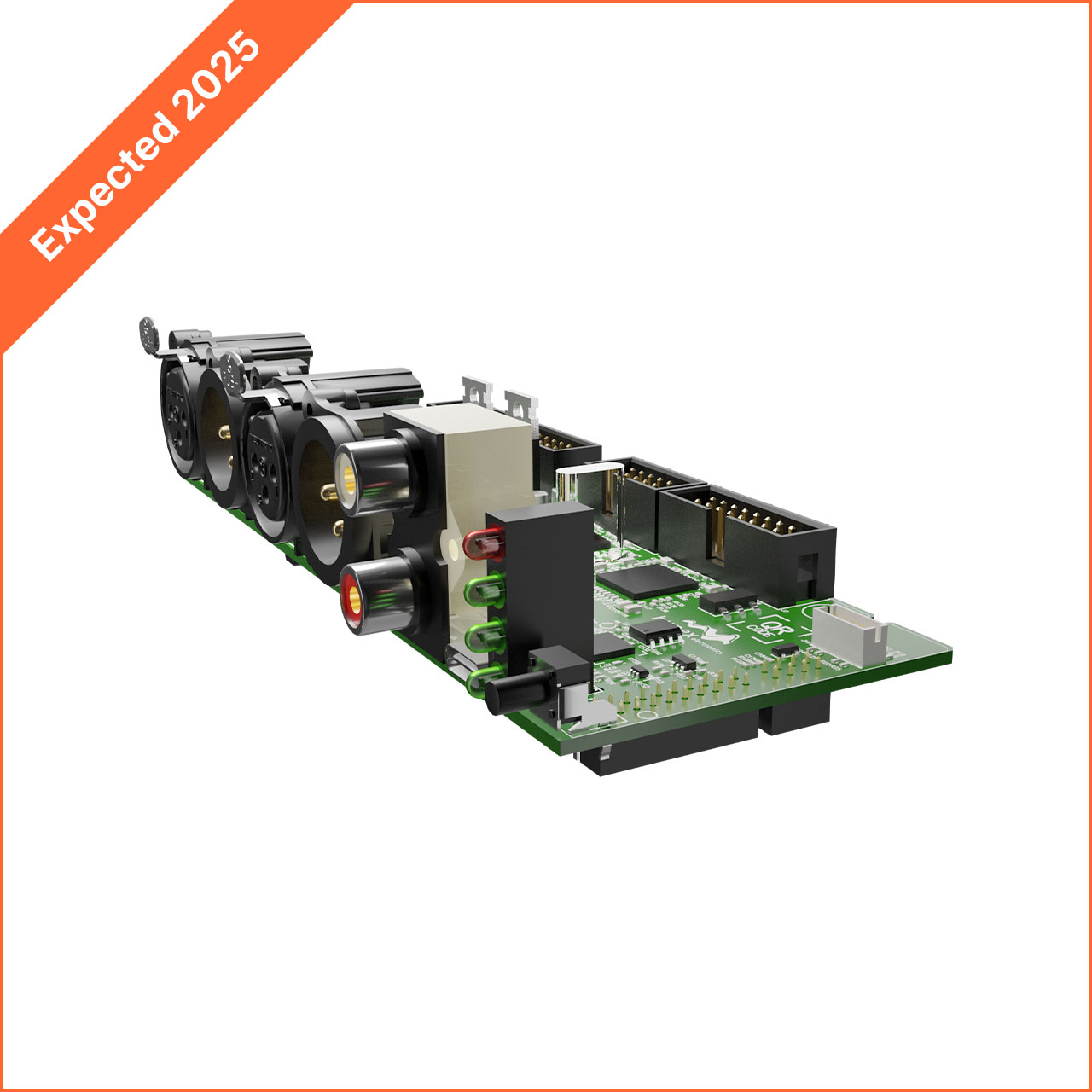

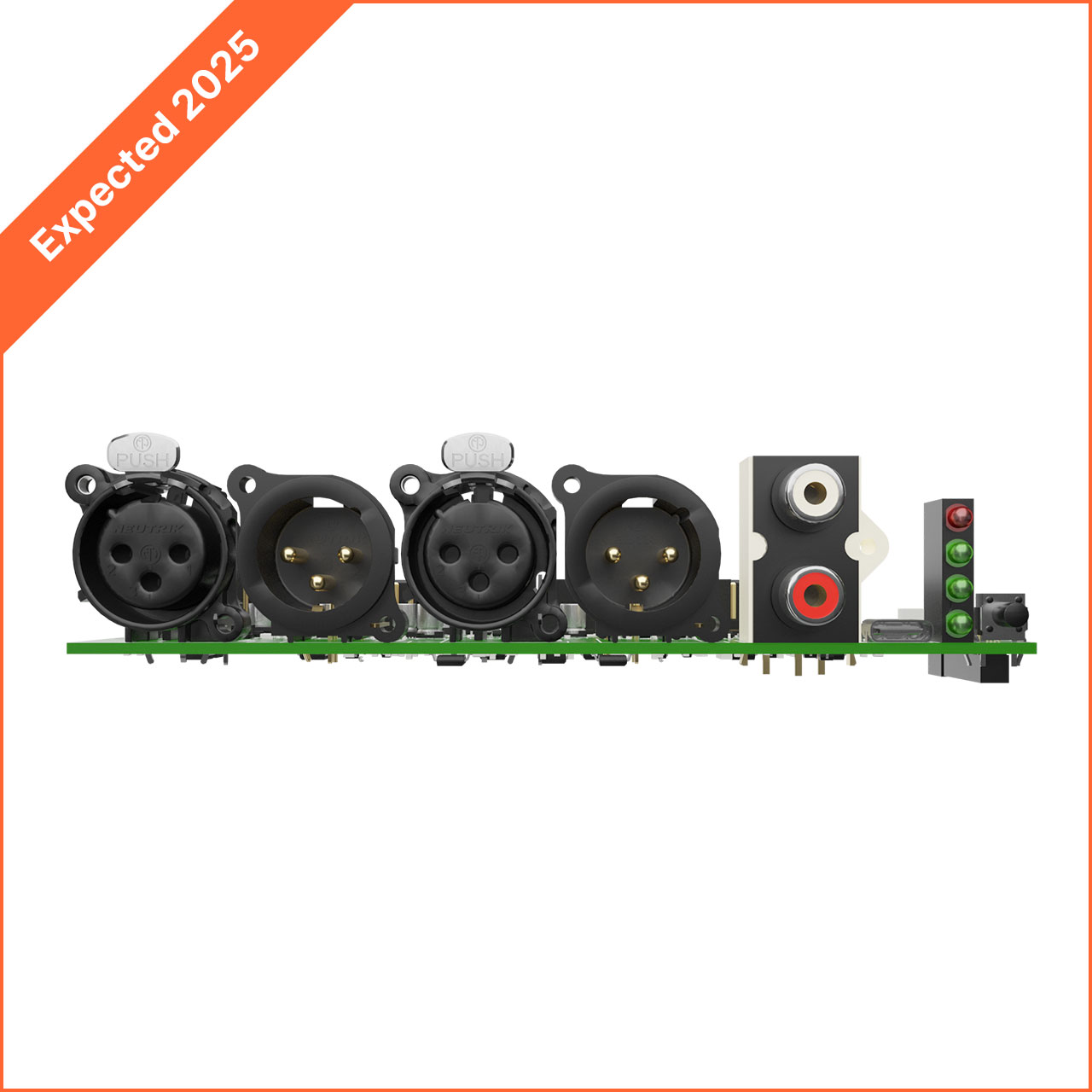

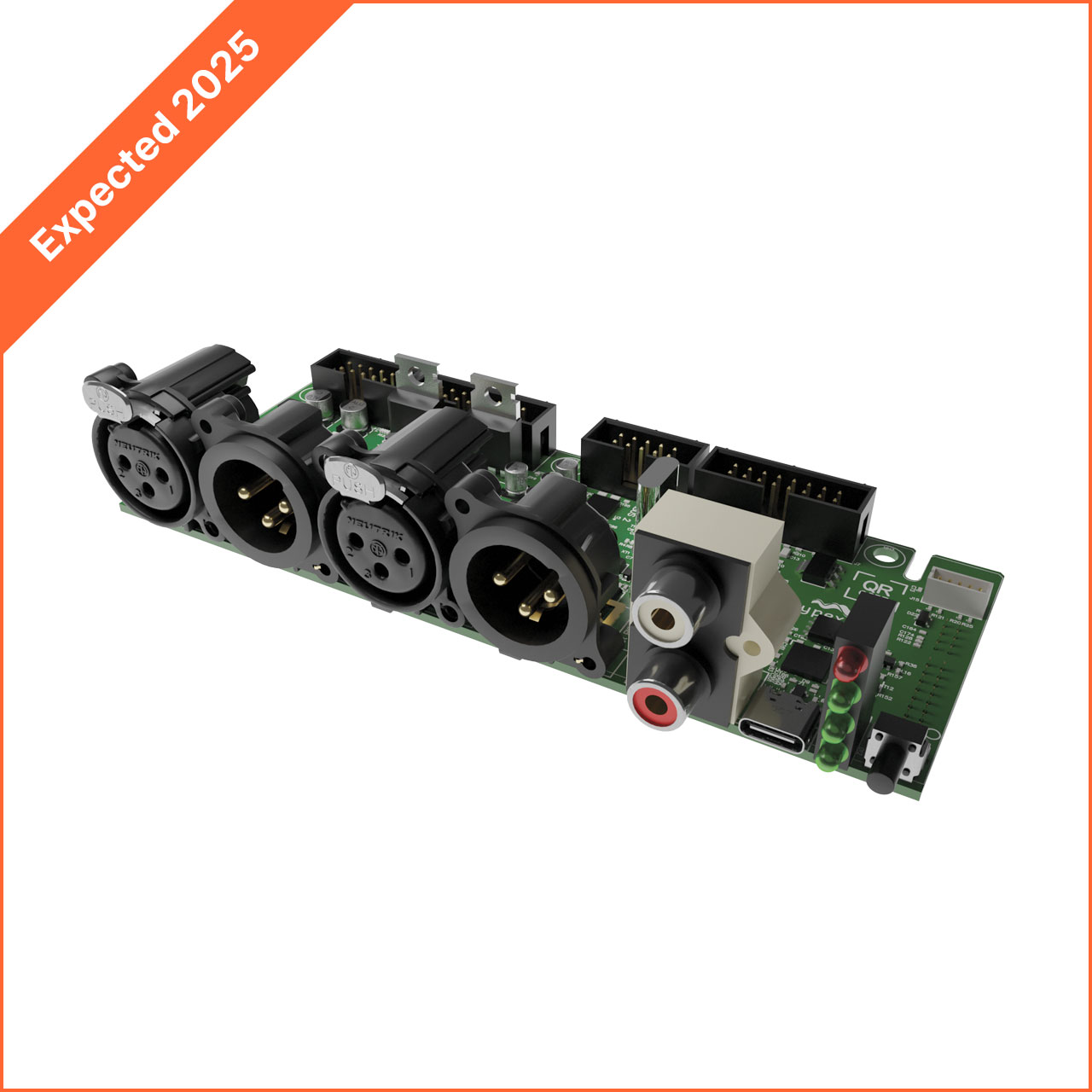

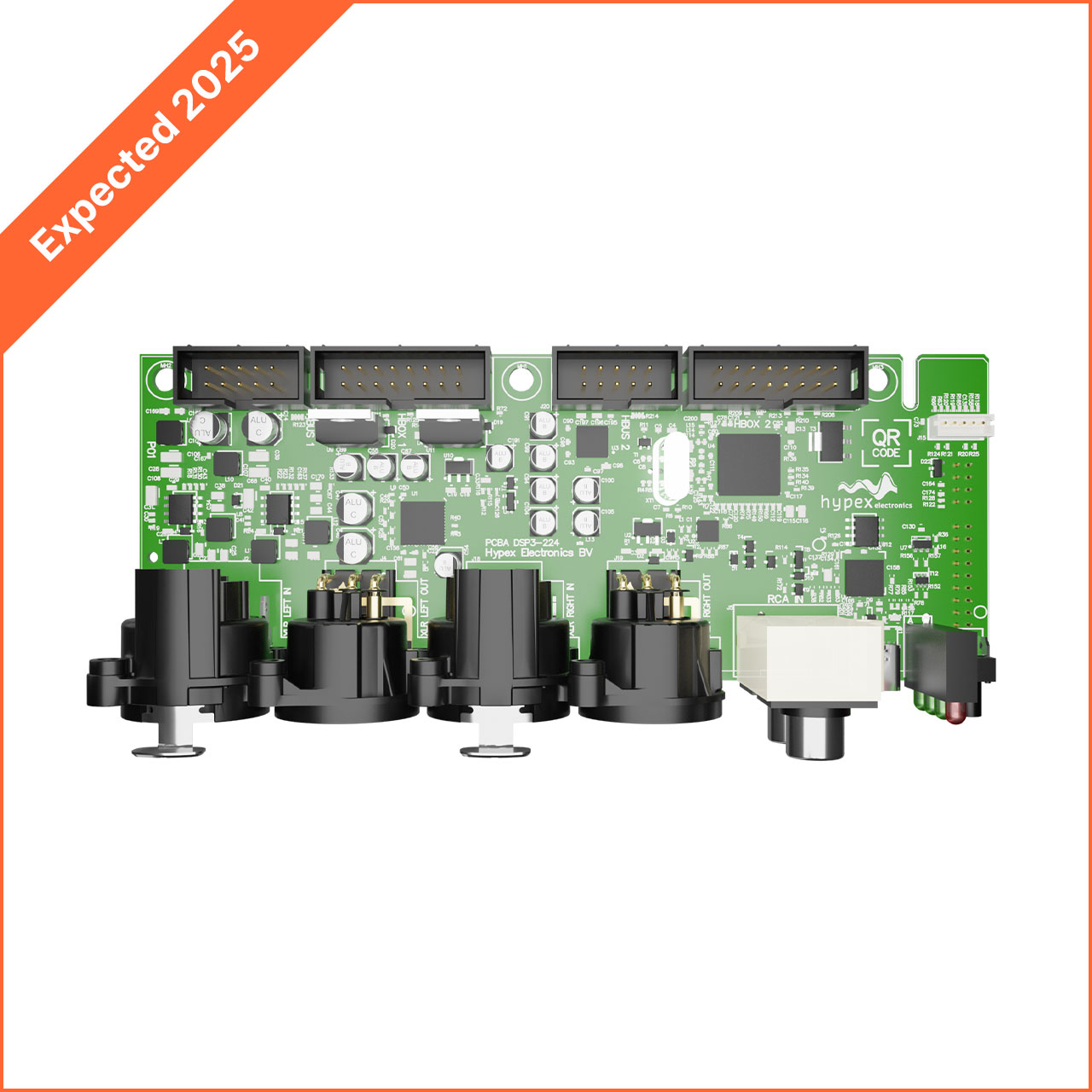

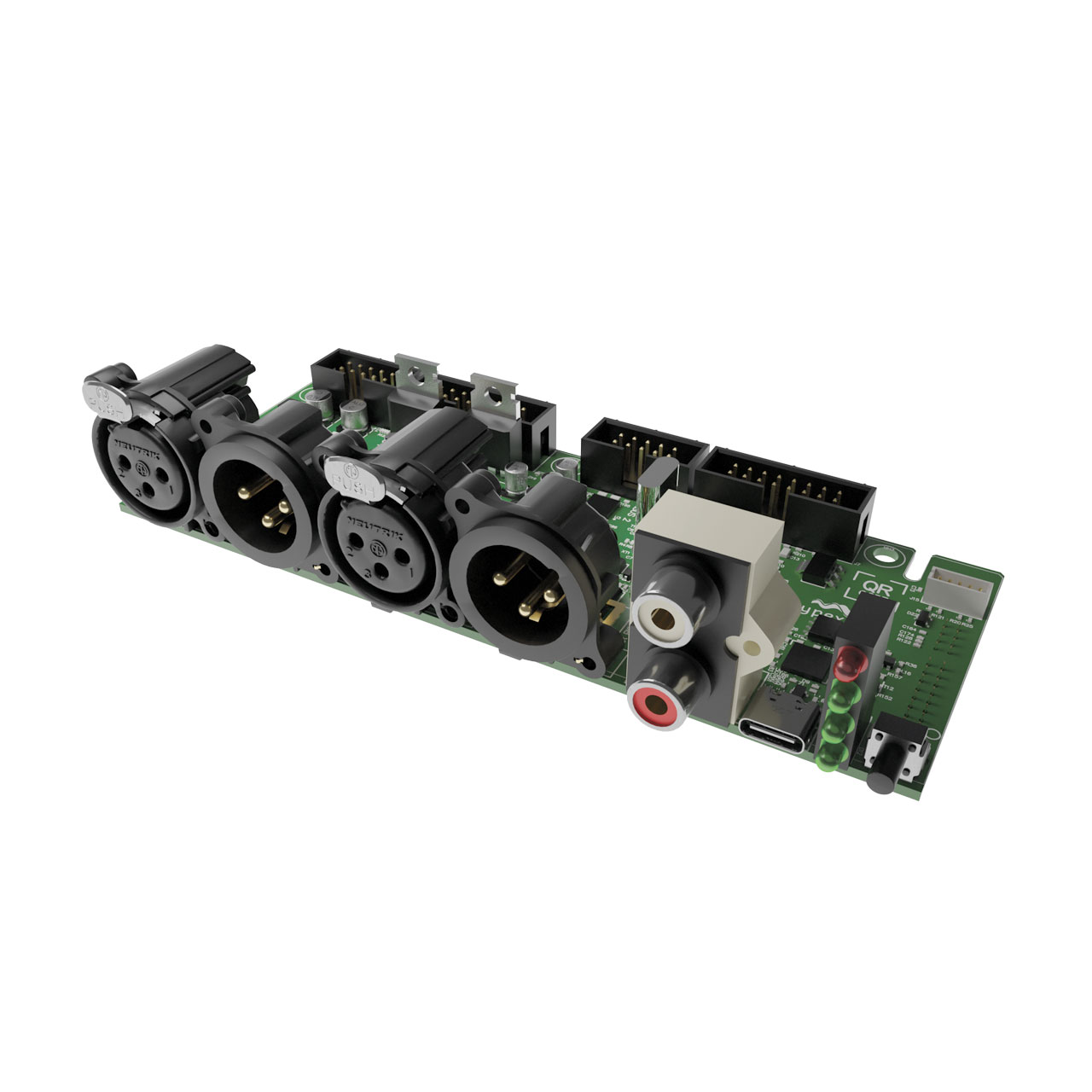

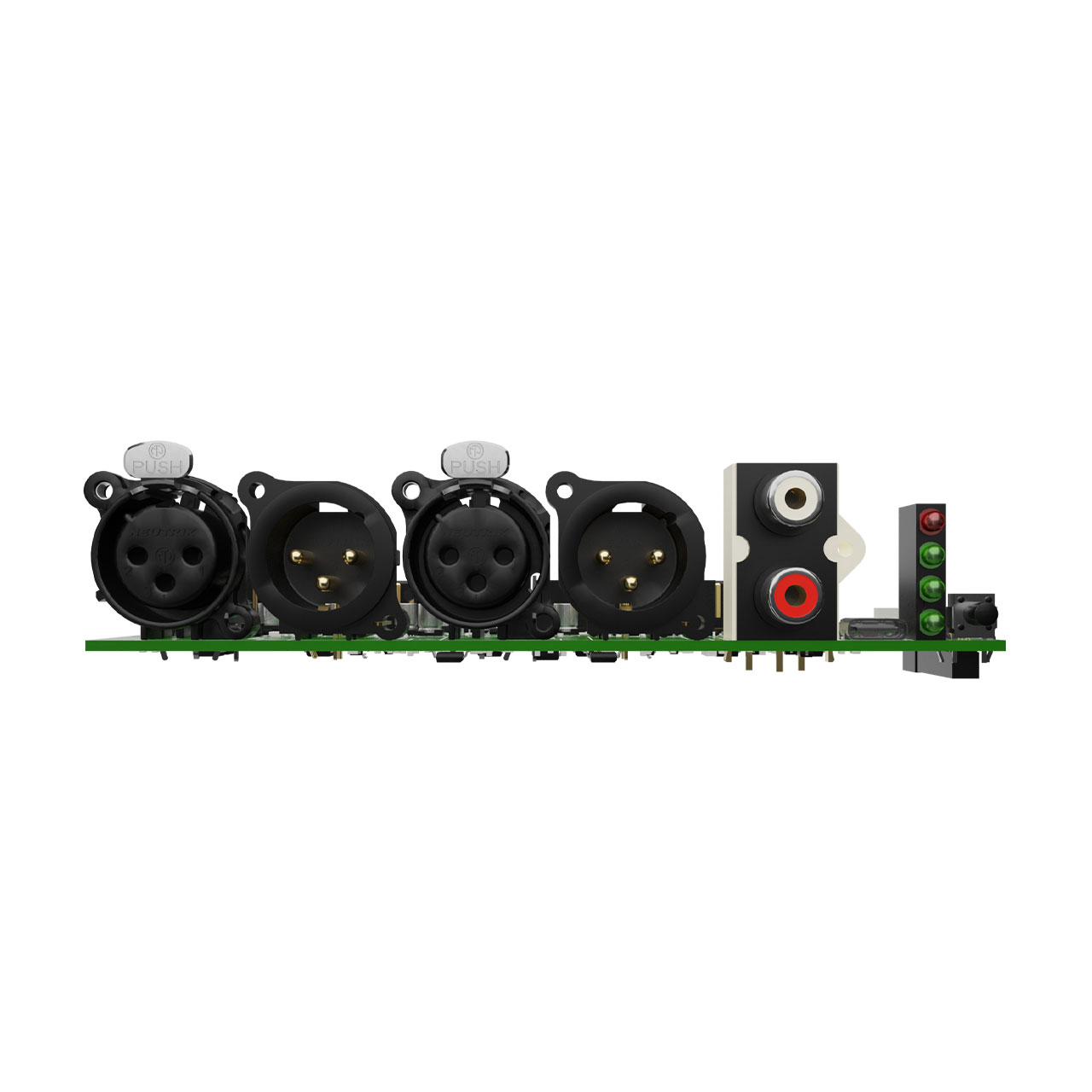

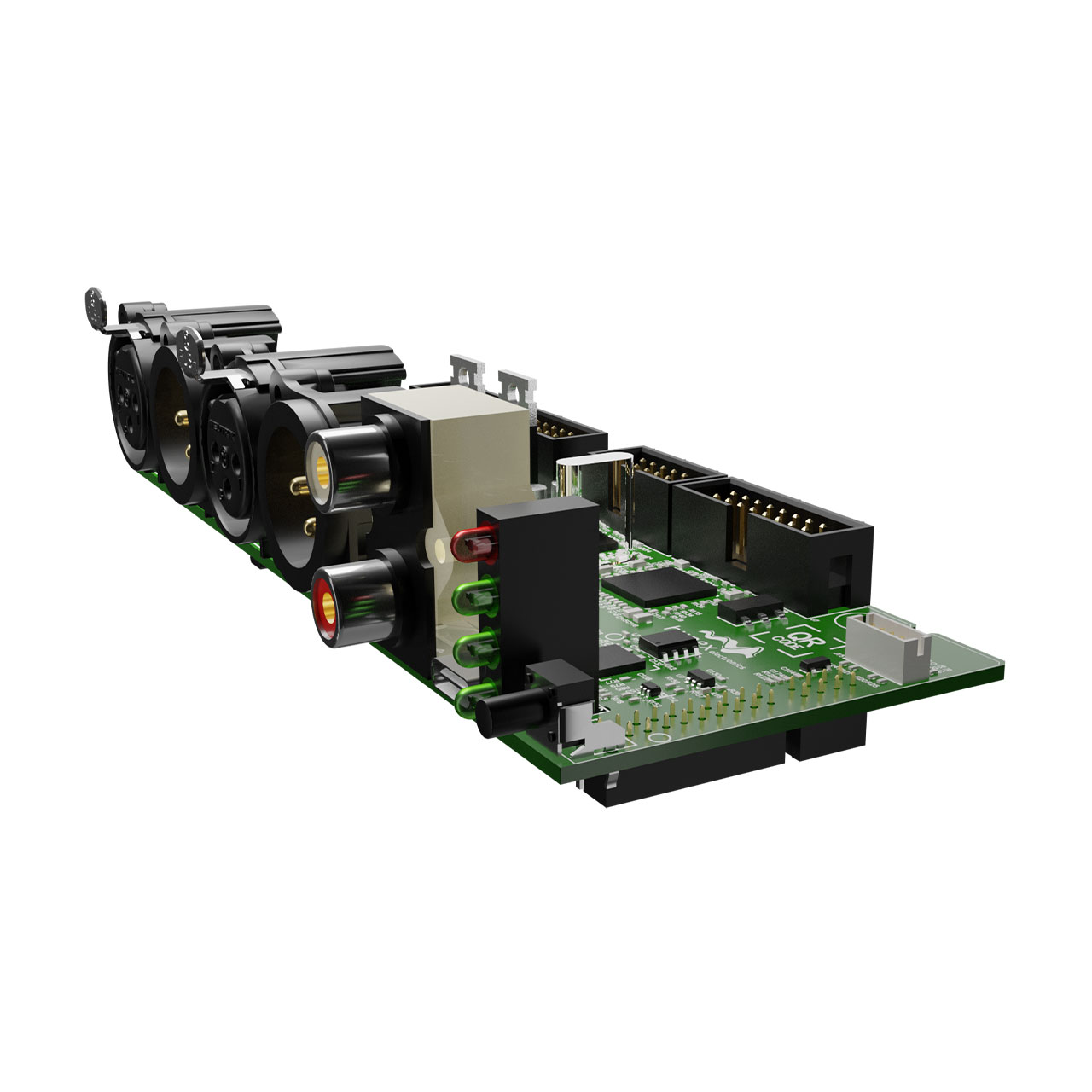

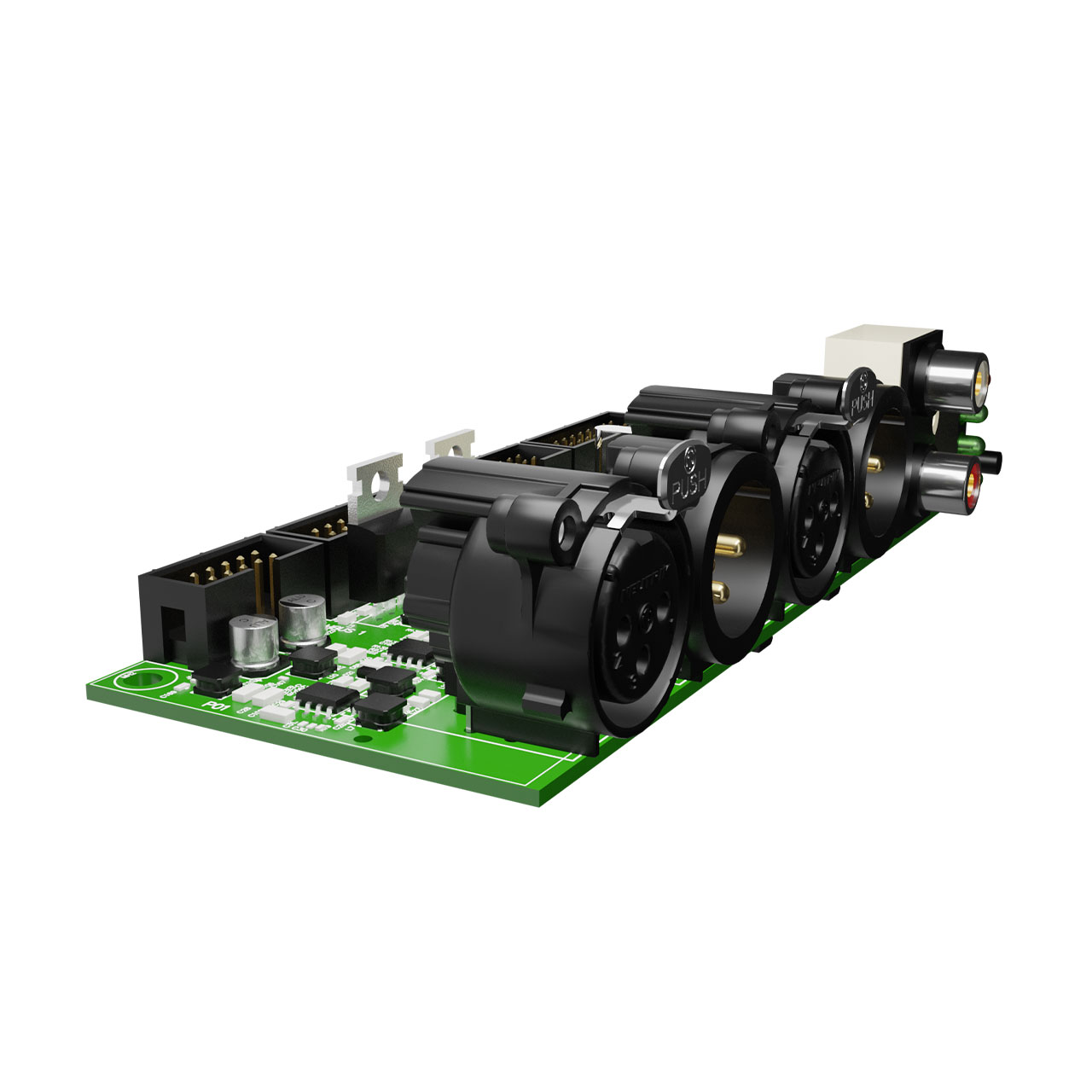

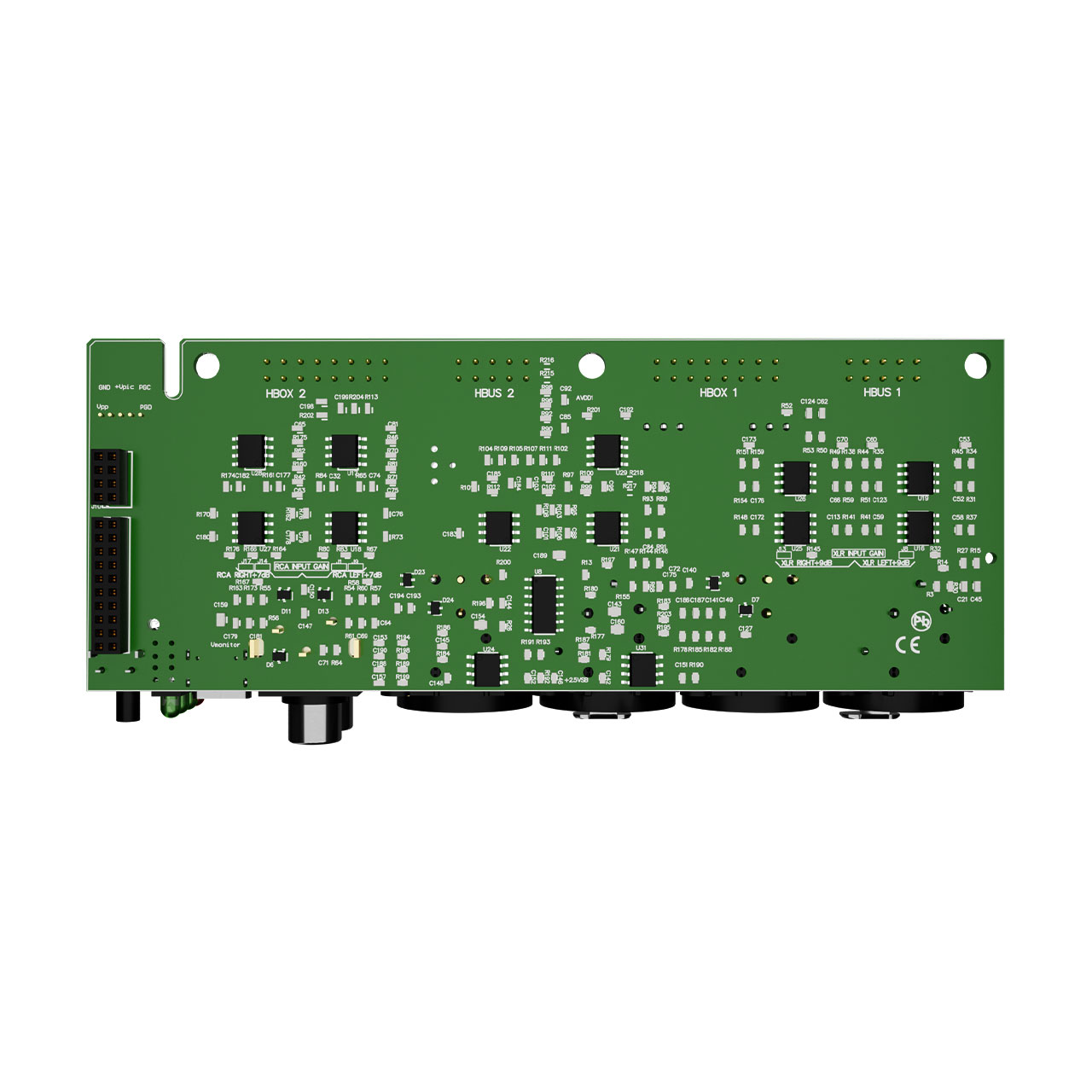

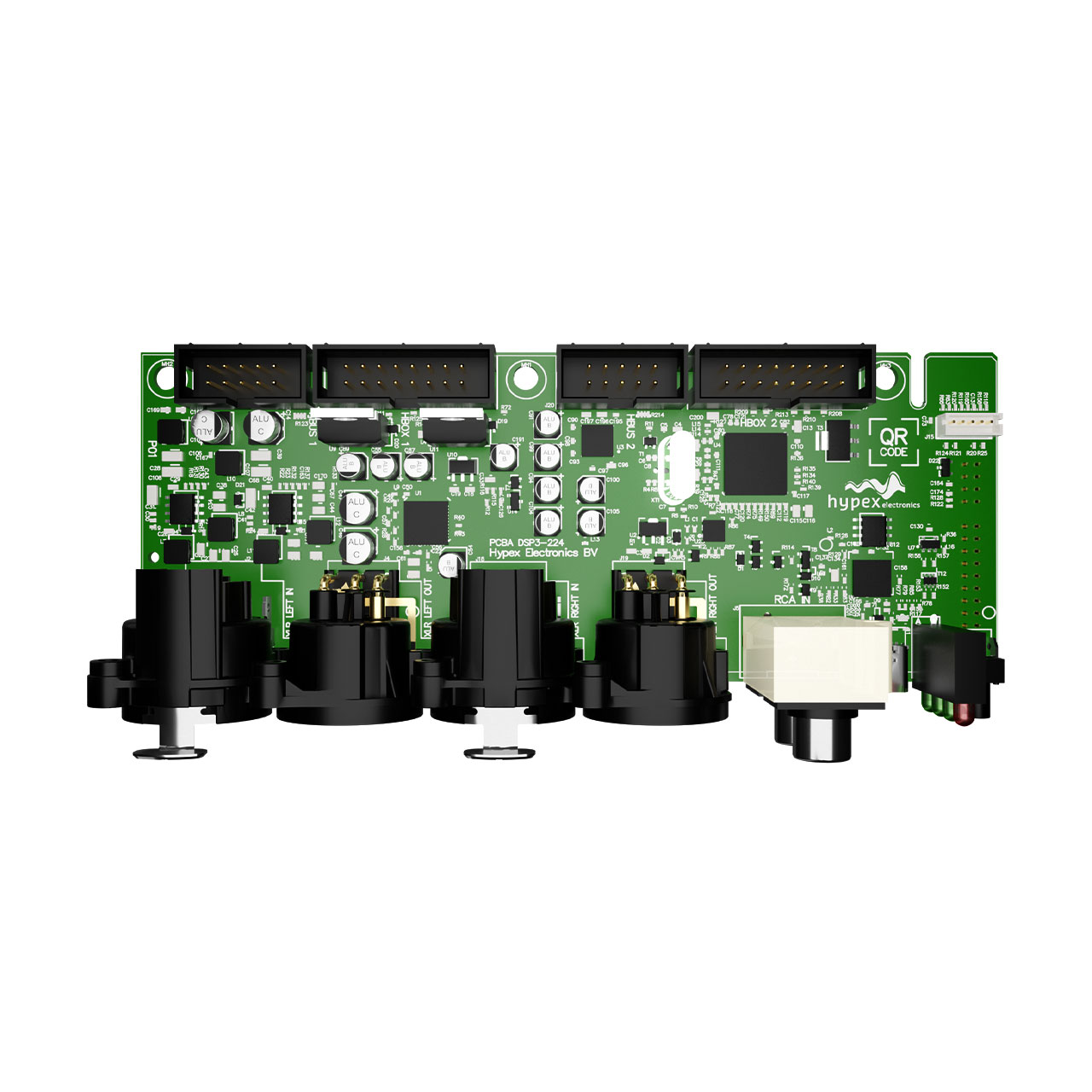

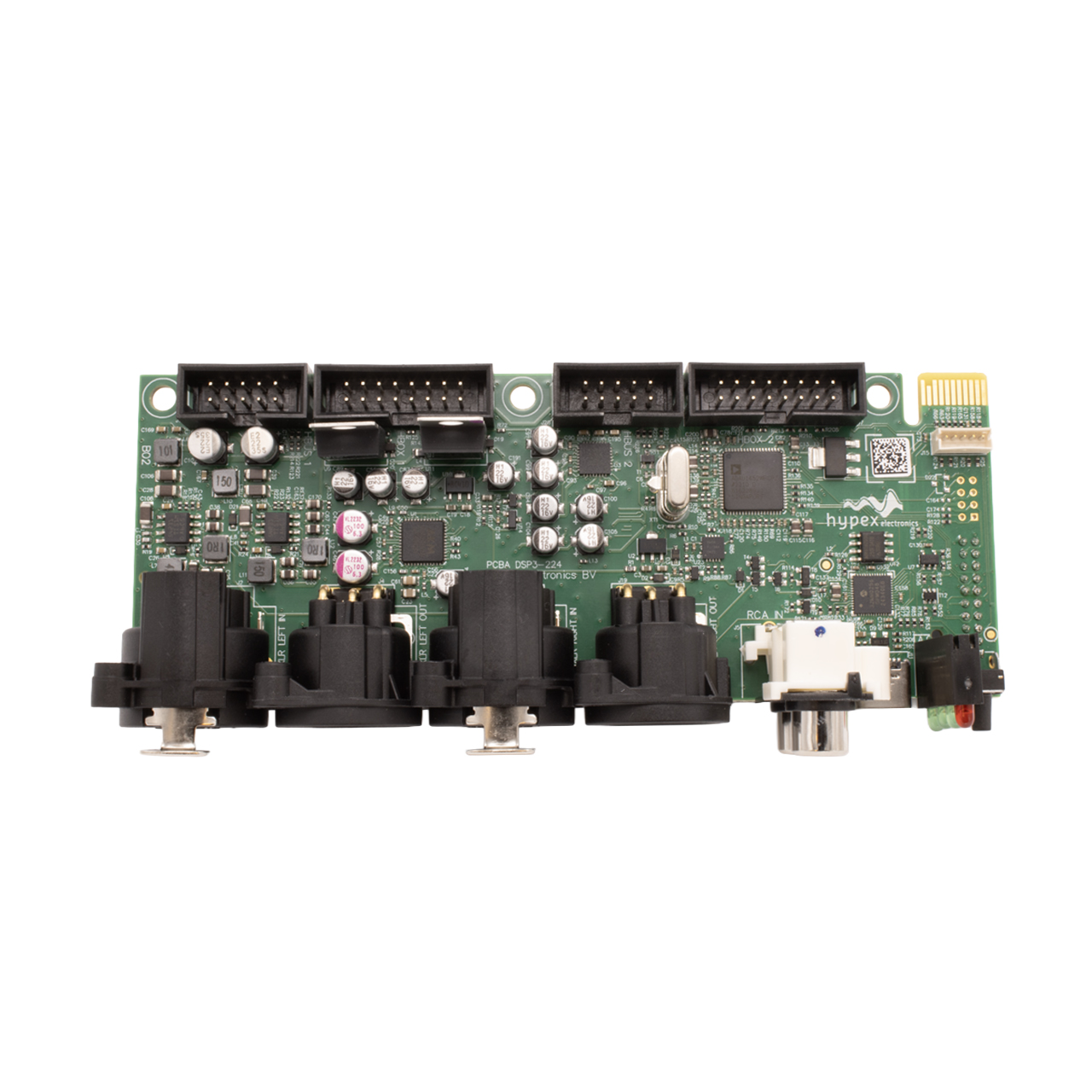

The DSP3-224 is a stereo DSP module based on the Analog Devices ADAU1452. It is designed for use with mains powered NCORE® amplifier power modules and supports stereo processing or 4-way active loudspeaker configurations.
Filter design and system configuration are handled via Hypex Filter Design software, with support for IIR and FIR filters. Output routing allows flexible assignment, including BTL operation when connected to compatible two channel amplifiers.
The DSP3-224 supports optional digital input expansion and includes auto signal detect and adjustable standby functionality. Multiple presets can be stored for different system configurations.
The module is suitable for stereo active loudspeakers, multi way active systems and compact DSP controlled power amplifier designs.
Highlights
- • Four channel active filtering
- • Stereo input XLR & RCA
- • Stereo input FIR (2048 taps) or four mono output FIR (1024 tabs per channel)
- • Compatible with NC-MP, NCx-MP and NCAS series
- • Three programmable presets
Features
- • Configurable Soft clip limiter
- • IIR & FIR capable
- • Programmable with Hypex Filter Design (HFD)
- • Automatic source selection
- • Automatic signal detection
- • Optional IR remote control
Possible applications
- • High-end consumer audio
- • Stereo power and integrated amplifiers
- • Active loudspeakers
- • PA systems
- • Studio monitors
| Input Level XLR: | 18 (6.15) dBu (Vrms) - Default gain setting, both jumpers not set |
|---|---|
| Input Level XLR: | 9 (2.18) dBu (Vrms) - Both jumpers set |
| Input Level RCA: | 9 (2.18) dBu (Vrms) - Default gain setting, both jumpers not set |
| Input Level RCA: | 2 (0.98) dBu (Vrms) - Both jumpers set |
| Signal / Noise Ratio: | -109 dB - Analog in |
| Distortion: | -100 dB - Analog in |
| Analog Latency: | 350 µs |
| Digital latency: | 1.8 ms - 96kHz input sample rate |
| DSP & ADC Sampling Rate: | 93.75 kHz |
| Delay per channel: | 0ms (Min) to 10ms (Max) - 75ms for all channels |
| Input Channels: | 2 |
| Output Channels: | 4 |
| DSP: | ADAU1452 |
| ADC: | AK5554 |
| ADC Bit Depth: | 24bit |
| SRC: | SRC4382 |
| Filter Options: | IIR / FIR - Hypex Filter Designer (HFD) |
| Compatible with: | DIGin3-322, Mains powered NCORE® Family, Mains Powered NCOREx® Family, NCORE® Active speaker Family |
| Family: | DSP Family |
Downloads
CAD drawings
datasheets
documentation
firmware
software
