SMPS1200A400 onto 2x NC400 Connection kit
H08U002750
Product information "SMPS1200A400 onto 2x NC400 Connection kit"

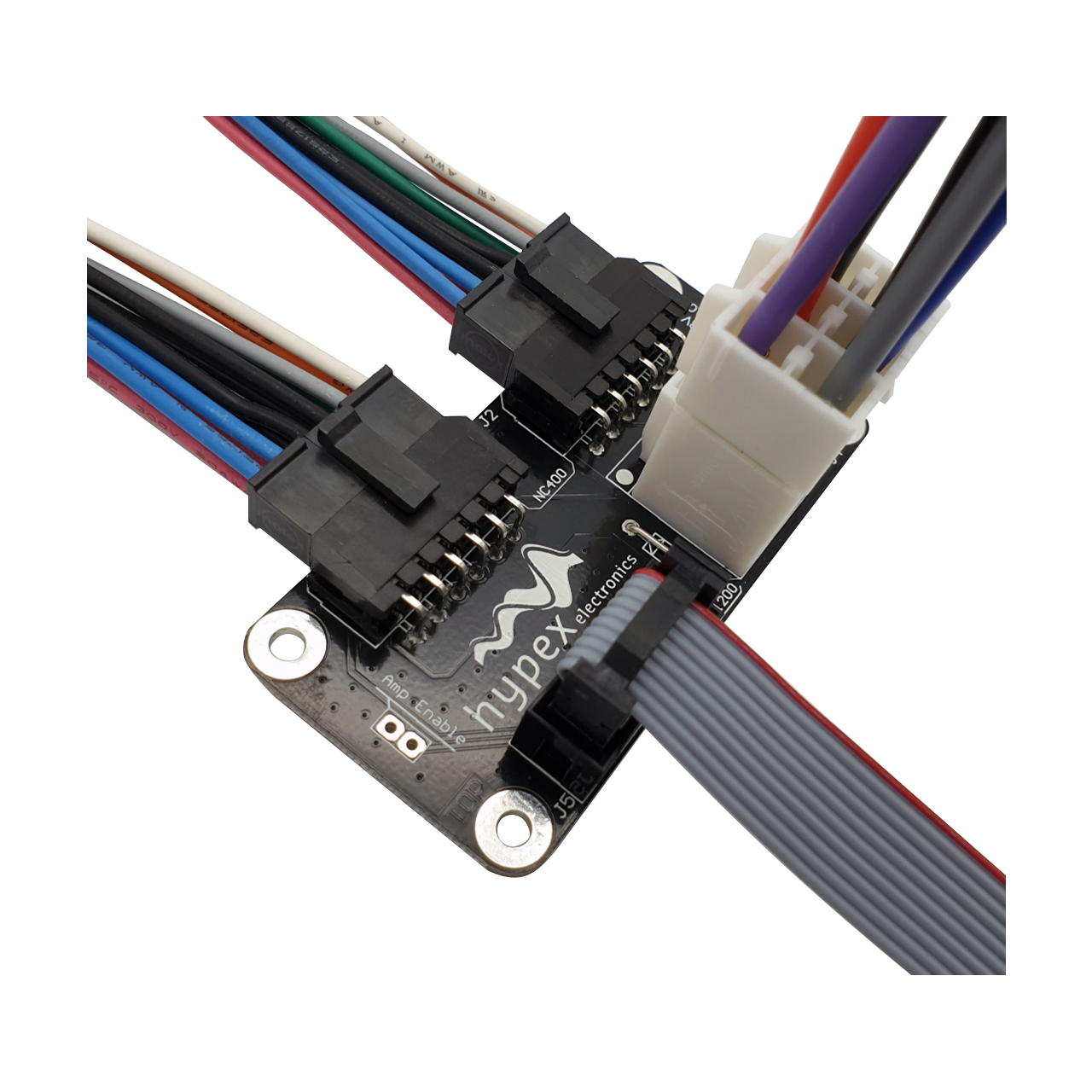

With this set one can easily connect two NC400's to one SMPS1200A400. The connection PCB schematic and layout optimized to ensure a stable power supply for your NC400's.
This set includes:
This set does not include NC400 signal cables.

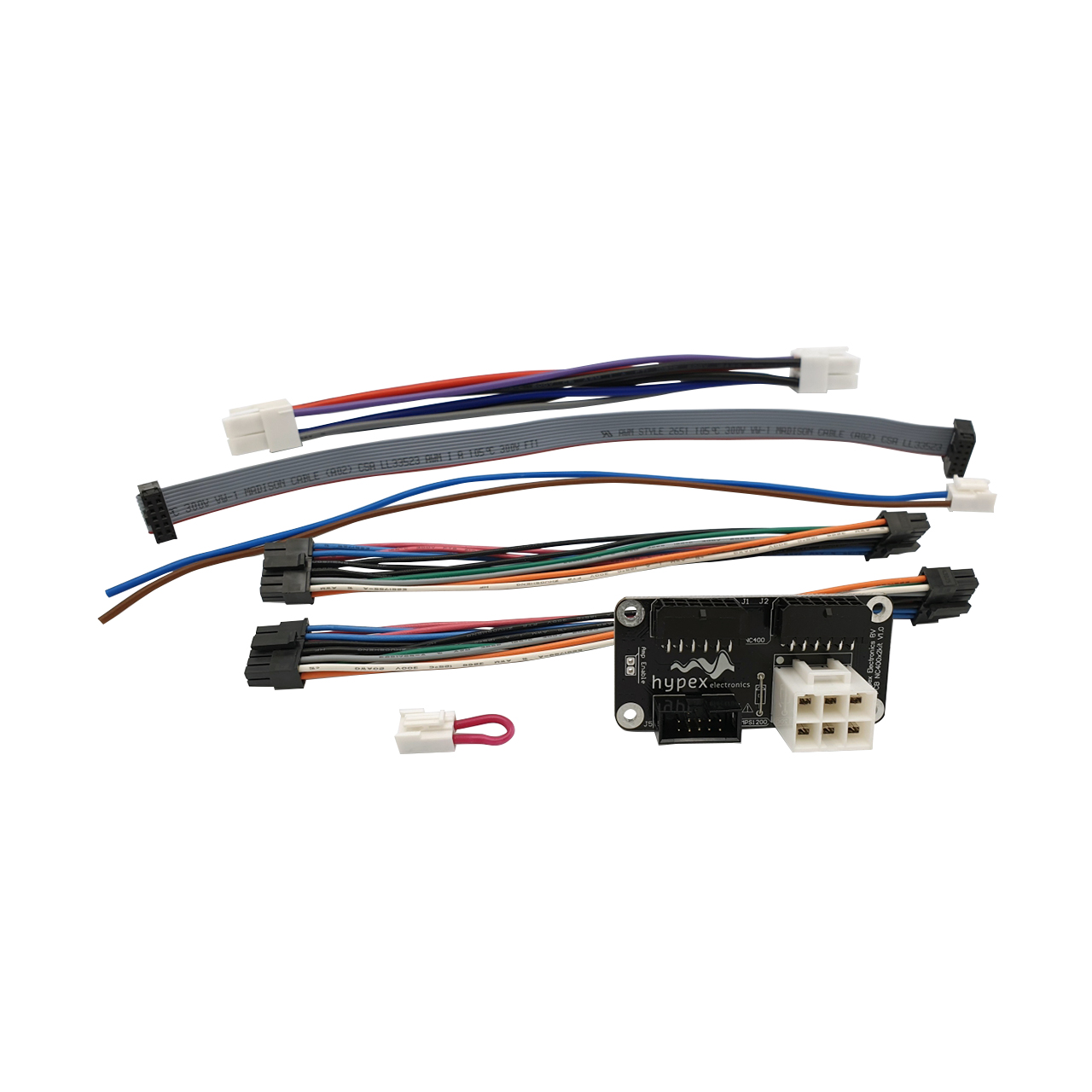

This set includes:

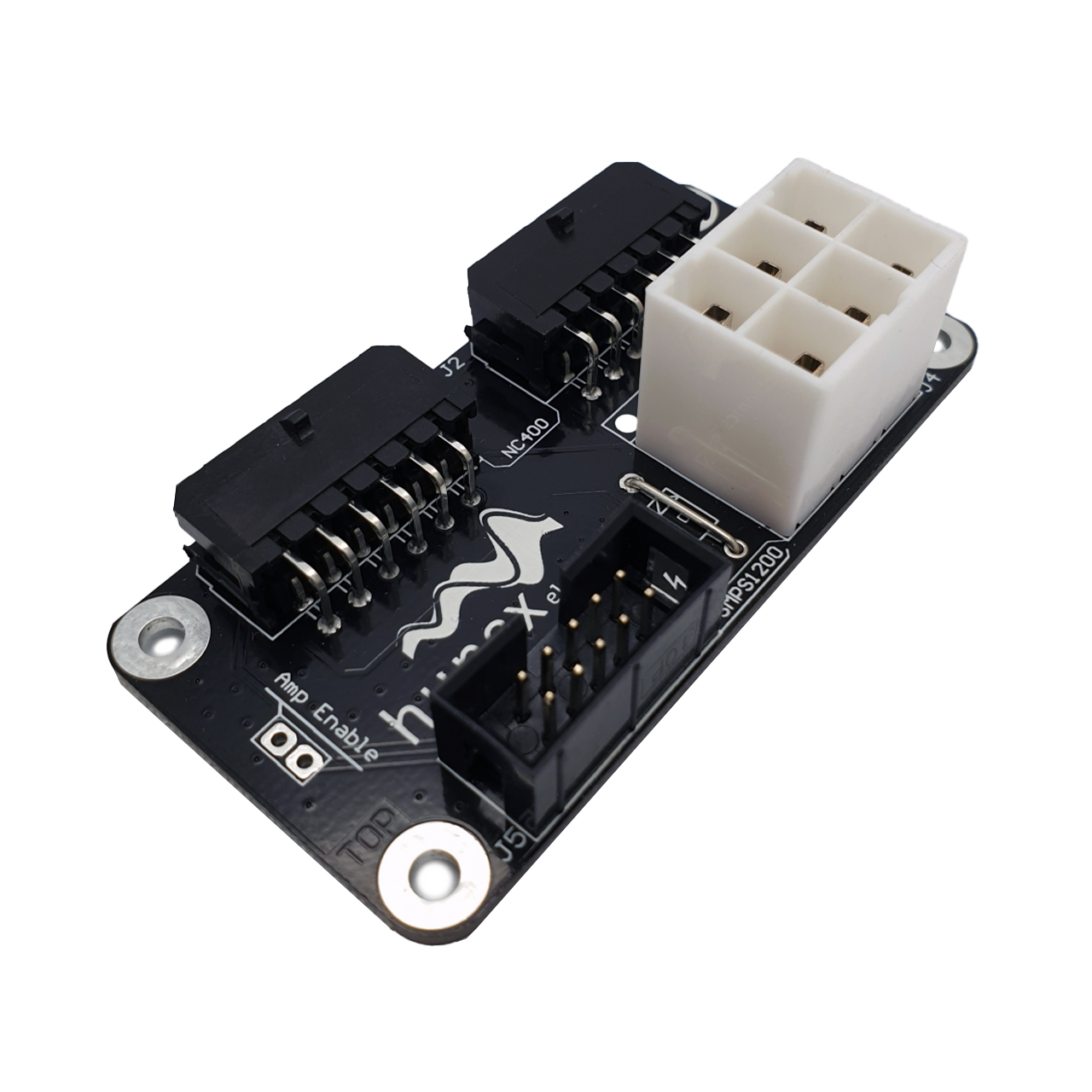

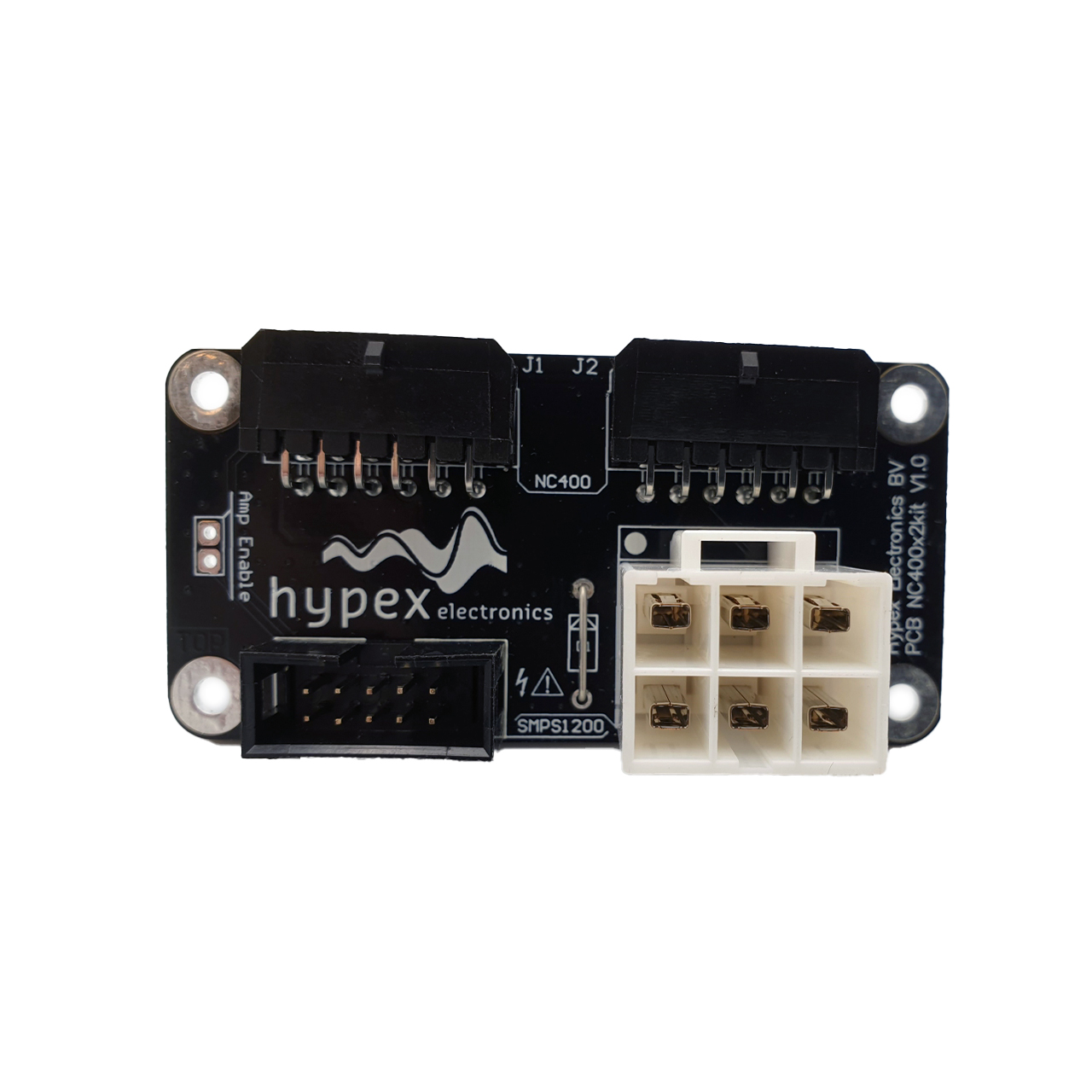

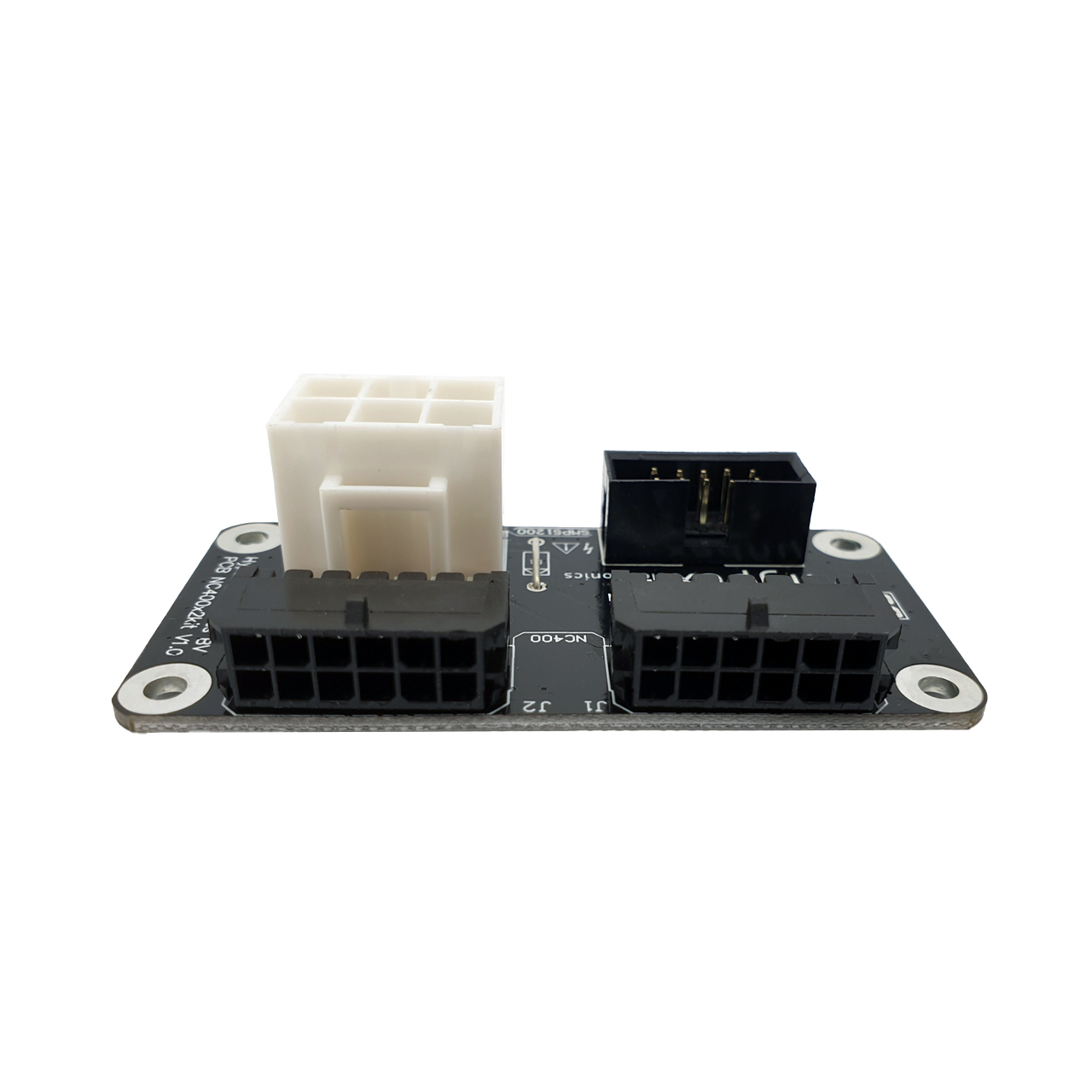

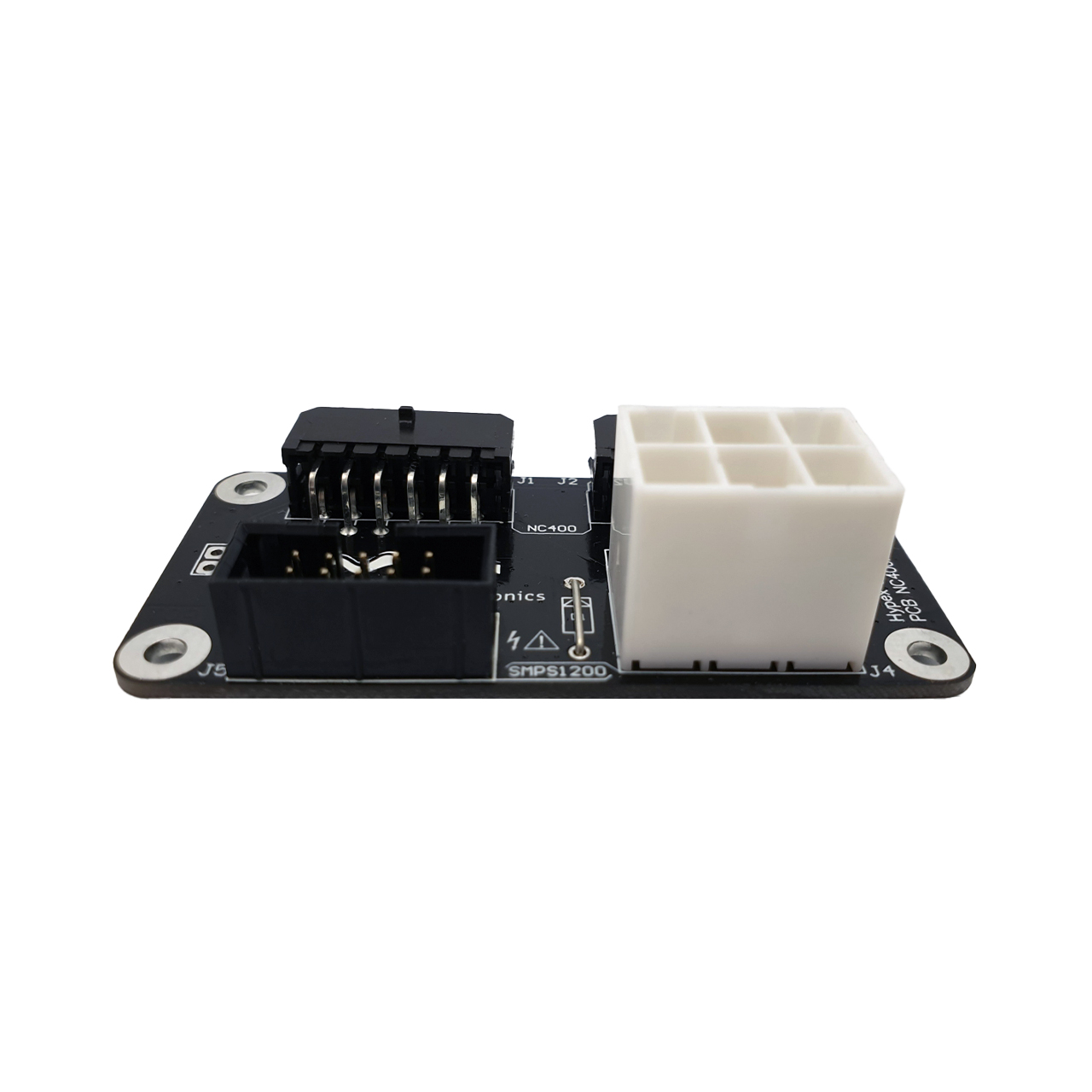

- 1 Connection PCB
- 2 20cm Molex 43025-1200 to Molex 43025-1200 cable assembly
- 1 24cm JST VLP-06V to JST VLP-06V cable assembly
- 1 30cm 10-pole flatcable
- 1 30cm 2-pole cable to mains input
- 1 115V jumper
Optionally you can buy the 10mm spacer set to easily mount the PCBA.
This set does not include NC400 signal cables.
Recommended additional parts
NC400
The NC400 packs a feature set never seen before in a modular amplifier product. The NC400 module's audio performance sets new standards,regardlessof operating class or circuit technology. Distortion (THDand IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust. APPLICATIONSHigh-end active loudspeakers High-end stand-alone power amplifiers FEATURES: Transparent, fully discrete input circuitry HxR style regulators on board Differential inputs with high common-mode impedance Overcurrent protection Supply overvoltage/undervoltage protection on all rails CONTENTS OF PACKAGING: NC400 amplifier module Mount set NC400 Cable set NC400 (incl. Ncore signal cable) Manual RECOMMENDED ADDITIONAL PARTS: Power Supply SMPS600N400 (1x NC400) Power Supply SMPS1200A400 (2x NC400)
SMPS1200A400
The SMPS1200 power supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD and NCORE® amplifier modules.APPLICATIONS:Supply for single or multiple amplifiers of the UcD and NCORE® FamilyHIGHLIGHTS:High efficiencySelectable input voltage rangeExtremely small form factorLow EMIComply with IEC62368-1GENERAL FEATURES:Advanced over current protectionRemote controlled operationLow weightCompactFixed output voltage (4 versions available)ELECTRICAL FEATURES:High Line Input Voltage: 200-240Vac +10%Low Line Input Voltage: 100-120Vac +10%Output Voltage: 2x63VdcMax. Output power: 1500WMax. Output power: 1200W @20HzSwitching Frequency: 100kHzCONTENTS OF PACKAGING:SMPS1200A400Manual
