Now with FIR!
FusionAmp FA122
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor. The FA122 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier.ConnectionsAnalogue balanced XLR in and throughAnalogue unbalanced RCA input
Digital AES in and through
Digital S/PDIF in and through
Digital Optical TosLink input
USB 2.0 configuration interface
Features15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection
What is included in the boxThe FA122
A printed copy of the user guide
Speaker connection cables
- Power (4Ω): 2 x 125W
- Power (8Ω): 2 x 75W
- Channels: 1 channel / 2 way
Now with FIR!
FusionAmp FA123
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor. The FA123 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier. Additionaly, a 100 WrmsNcore® tweeter channel is added. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features15 biquads per amplifierThree selectable presets for filtersSource selection Signal detect Auto shutdown BTL capable Clip protect Thermal protect Filter protection What is included in the box The FA123 A printed copy of the user guide Speaker connection cables
- Power (4Ω): 2 x 125W + 1 x 100W
- Power (8Ω): 2 x 75W + 1 x 100W
- Channels: 1 channel / 3 way
Now with FIR!
FusionAmp FA251
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a one-way monitor. The FA251 has one powerful 250 Wrms Ncore® amplifier. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input High level input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown Clip protect Thermal protect Filter protection What is included in the box The FA251 A printed copy of the user guide Speaker connection cables High-level input connector
- Power (4Ω): 1 x 250W
- Power (8Ω): 1 x 130W
- Channels: 1 channel / 1 way
Now with FIR!
FusionAmp FA252
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor. The FA252 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdownBTL capable Clip protect Thermal protect Filter protection What is included in the boxThe FA252 A printed copy of the user guide Speaker connection cables
- Power (4Ω): 2 x 250W
- Power (8Ω): 2 x 150W
- Channels: 1 channel / 2 way
Now with FIR!
FusionAmp FA253
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor. The FA253 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier. Additionaly, a 100 WrmsNcore® tweeter channel is added. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown BTL capable Clip protect Thermal protect Filter protectionWhat is included in the box The FA253 A printed copy of the user guide Speaker connection cables
- Power (4Ω): 2 x 250W + 1 x 100W
- Power (8Ω): 2 x 150W + 1 x 100W
- Channels: 1 channel / 3 way
Now with FIR!
FusionAmp FA501
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a one-way monitor. The FA501 has one powerful 500 Wrms Ncore® amplifier.ConnectionsAnalogue balanced XLR in and throughAnalogue unbalanced RCA input High level input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown Clip protect Thermal protect Filter protection What is included in the boxThe FA501 A printed copy of the user guide Speaker connection cables High-level input connector
- Power (4Ω): 1 x 500W
- Power (8Ω): 1 x 270W
- Channels: 1 channel / 1 way
Now with FIR!
FusionAmp FA502
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor. The FA502 has two 500 Wrms Ncore® amplifiers which can also be bridged to form one powerful 1000 Wrms amplifier. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown BTL capable Clip protect Thermal protect Filter protection What is included in the box The FA502 A printed copy of the user guide Speaker connection cables
- Power (4Ω): 2 x 500W
- Power (8Ω): 2 x 350W
- Channels: 1 channel / 2 way
Now with FIR!

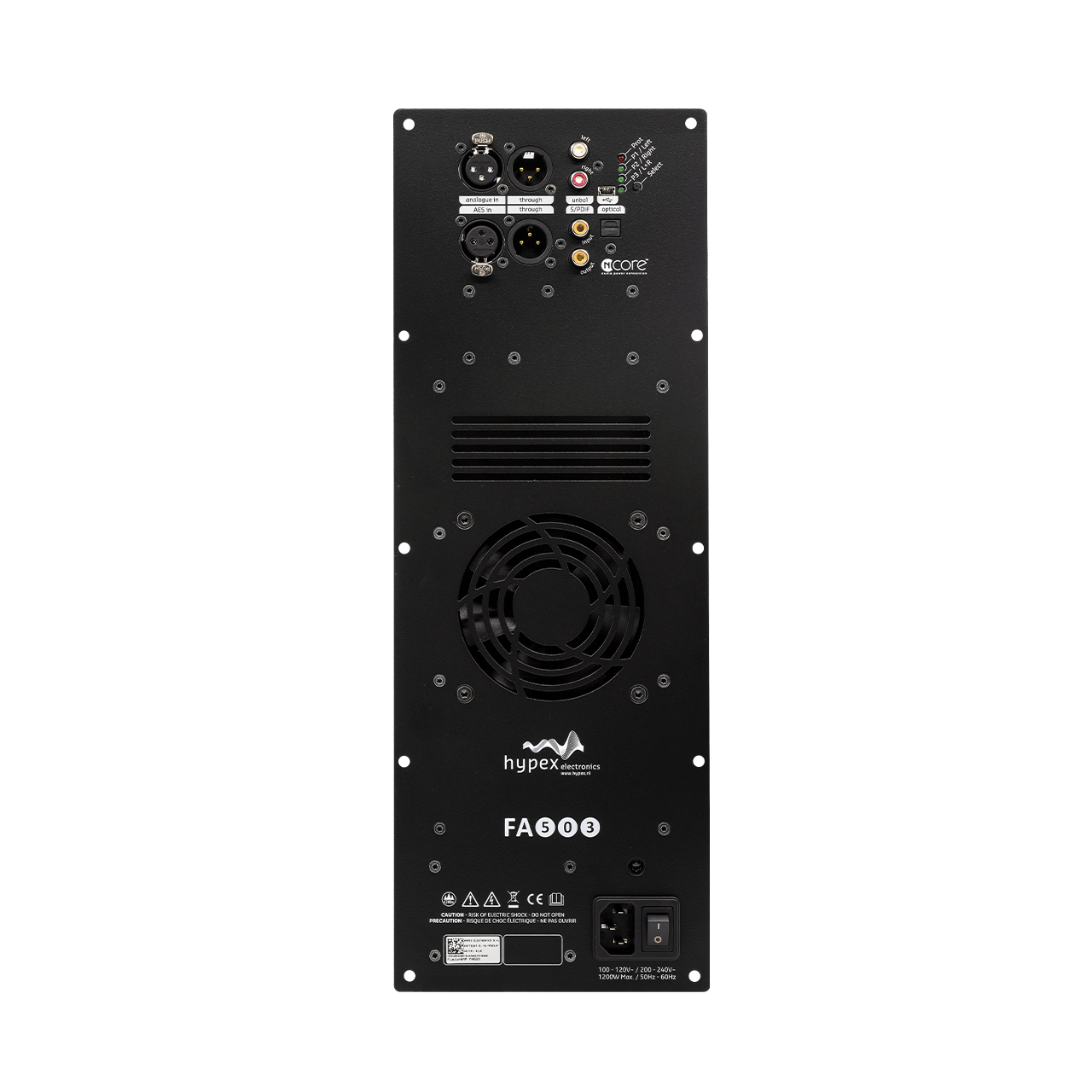

FusionAmp FA503
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor. The FA503 has two 500 Wrms Ncore® amplifiers which can also be bridged to form one powerful 1000 Wrms amplifier. Additionaly, a 100 WrmsNcore® tweeter channel is added. Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown BTL capable Clip protect Thermal protect Filter protection What is included in the box The FA503 A printed copy of the user guide Speaker connection cables
- Power (4Ω): 2 x 500W + 1 x 100W
- Power (8Ω): 2 x 350W + 1 x 100W
- Channels: 1 channel / 3 way
