NC100HF OEM

Product information "NC100HF OEM"

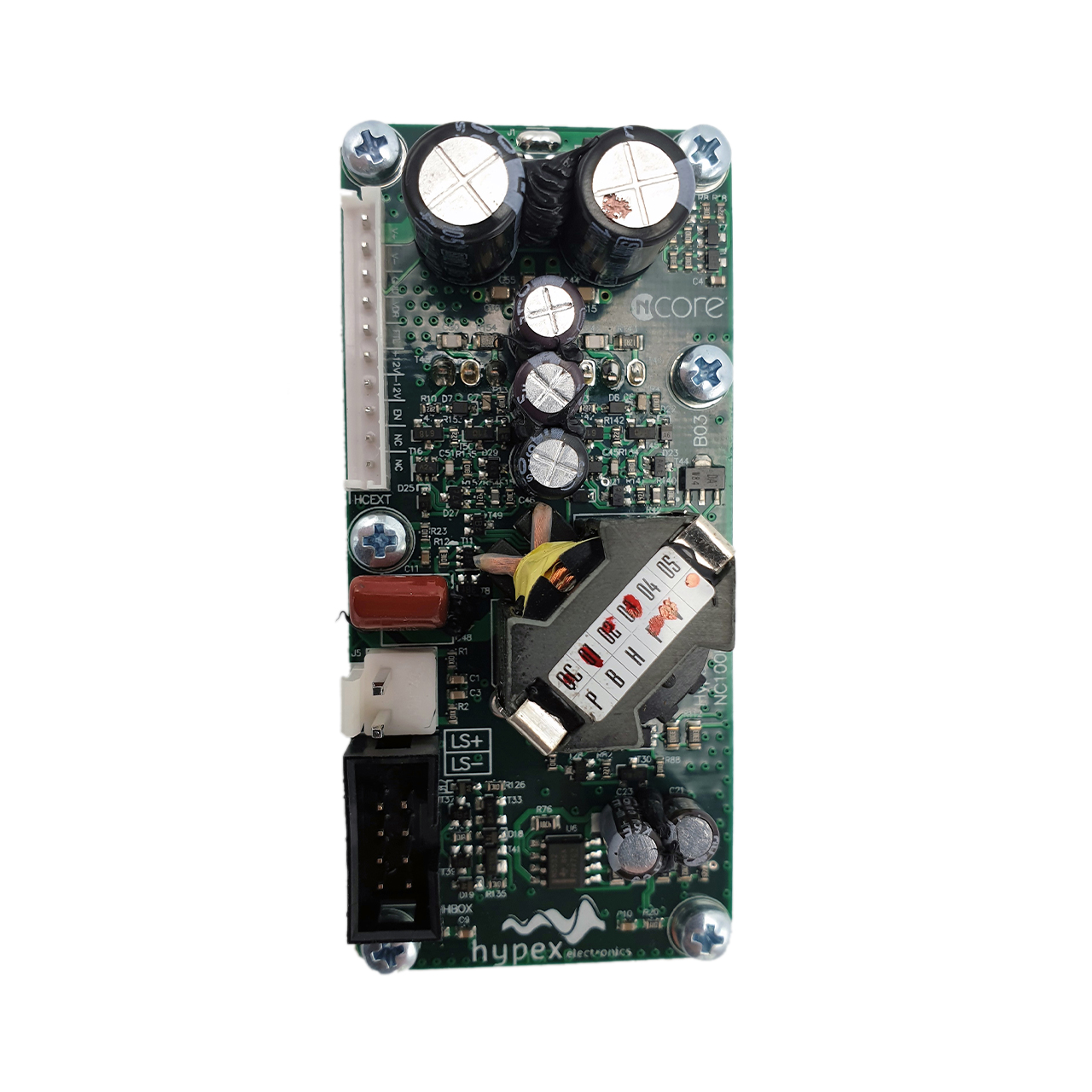

The NC100HF is a dedicated tweeter-amplifier which fits the NCxxxMP series. It is a NCore amplifier that works with the NCxxxMP modules to create a second or third channel for the amplifier. It operates from the on-board SMPS of the NCxxxMP module and is compatible with the whole range. This makes it possible to build a complete NCore based system in a heartbeat.

By design, NCore has a full range frequency response and power bandwidth. However this module is designed to be used for mid- and high frequencies only, i.e. starting at approximately 500Hz.

APPLICATIONS:

Monitor loudspeakers for
recording and mastering
studios
Public address systems
Active loudspeakers

FEATURES:

  • One channel amplifier
  • Advanced over current
  • protection
  • Remote controlled operation
  • Low weight: 75g.
  • Compact: 85 x 39 x 27mm

HIGHLIGHTS:

  • High efficiency
  • Flat, fully load-independent
  • frequency response
  • Low output impedance
  • Very low, frequencyindependent
  • THD
  • Very low noise

CONTENTS OF PACKAGING:

  • NC100HF amplifier module
  • Manual

Power (2Ω): 100W
Power (4Ω): 100W
Power (8Ω): 100W
Channels: 1
Technology: NCORE®
Family: Mains Powered NCORE® Family
Automatic input voltage selection: Works with NCxxxMP SMPS
Mains voltage input: Works with NCxxxMP SMPS

Hypex icon Recommended additional parts

Cable set NC100HF
The Cable set NC100HF is a complete cable set to connect the NC100HF hanger module to your NCxxxMP amplifier module or with the MP-DSP Main.Note: For the connection of the NCxxxMP amplifier module please refer to the "Cable set NCxxxMP".NCore signal cable not included and not needed with the NCxxxMP amplifier range.

NC250MP OEM
The NC250MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC250MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseFEATURES:One channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 360g.CompactCONTENTS OF PACKAGING:NC250MP OEMManual

NC122MP OEM
The NC122MP, a compact power dual-amplifier brick, is a cutting-edge, easy to integrate, amplifier that seamlessly combines advanced technology with an integration-friendly design. This versatile module is equipped with a host of features to elevate your implementation experience, making it an ideal choice for a wide range of audio applications, from high-quality power amplifiers to high-quality active loudspeakers. The NC122MP stands out with its innovative power supply architecture. Incorporating a low-power standby supply that complies with 2013 ERP Lot 6 0.5W requirements, a highly efficient switch mode power supply (SMPS), and dual high-performance 125W NCORE® Class-D amplifiers, this module redefines compact power delivery. The result is a compact yet powerful brick that is highly compatible with various audio applications. At the heart of the NC122MP you’ll find a dual self-contained high-performance NCORE® Class-D amplifier. Boasting a flat frequency response regardless of load impedance, nearly frequency-independent distortion behavior, and minimal radiated and conducted electromagnetic interference (EMI), this amplifier ensures a superior audio experience. The control mechanism, based on a phase shift-controlled self-oscillating loop with feedback only at the speaker output, enhances precision and clarity in audio reproduction. The main SMPS that powers the amplifier is a compact, high-power, highly efficient, regulated half-bridge converter with synchronous rectification on the main output rails. This advanced technology is specifically tailored for Class-D audio amplifiers, delivering unparalleled performance and efficiency. The automatic input voltage doubler enhances universal mains input compatibility, making it convenient for use in various environments. For applications requiring standby mode, the NC122MP integrates a low-power standby SMPS. Designed with energy efficiency in mind, this feature ensures minimal power consumption during periods of inactivity. Taking versatility to the next level, the NC122MP features the Hypex Extension connector. This innovative addition allows for an extra low-power tweeter amplifier channel, expanding your audio setup possibilities and making it suitable for building three-way loudspeakers. HIGHLIGHTS • High efficiency & Universal mains operation • Flat, fully load-independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise FEATURES: • 5W standby SMPS • Advanced protections • Clip indicator • Universal mains (100/240Vac) • Light weight and compact size PROTECTIONS: • Overcurrent protection • Excessive DC protection • Over temperature protection • Short circuit protection POSSIBLE APPLICATIONS: • Monitor loudspeakers for studios • Active loudspeakers and subwoofers • Public Address systems • Home Theatre systems • Power Amplifiers; for home and professional use

NC252MP OEM
The NC252MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC252MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI.  Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology  ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 575g.Compact: 170x105x42mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC252MP OEM moduleManual

NC500MP OEM
The NC500MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC500MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI.  Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology  ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doublerThe Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer usePublic address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 500g.Compact: 146x105x42mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC500MP OEM moduleManual

NC502MP OEM
The NC502MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC502MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI.  Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology  ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 1055g.Compact: 230x115x47mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC502MP OEM moduleManual

NCxxxMP Evaluation board
This board is specifically designed to make it easy to evaluate the new NCxxxMP series mains powered NCORE modules. Furthermore, the NC100HF can be easily connected. All necessary control IO's and supplies are easily accessible via test pads for evaluation. The evaluation board comes with 10mm nylon spacers which can be used to mount the board using M3 screws. All necessary interface cables are included. The signal, speaker and mains cables are open ended, meaning that you are free to connect it in with your own connectors in your own way.Note: the XLR connectors in the picture are for example only and not included.Features:Makes it easy to evaluate the NCxxxMP series with the optional NC100HFPS Enable switchCh 1-2 mute switch (also mutes ch3 by design)H-Box connectorH-Bus connectorNC100HF half H-Box connectorIncluded:A breakout PCB to quickly evaluate the NCMP seriesZ10A25L1 - 25cm 10 pole JST to interface between NC100HF and NCMPZ10C12L1 - 12cm 10 pole Hypex Bus ribbon cableZ16C14L1 - 14cm 16 pole Hypex Box ribbon cableZ8C10L1 - 10cm 8 pole Hypex Half-Box NC100HF ribbon cableZ2A20L7 - 20cm JST VHR-2N open ended NC100HF speaker cableZ4A20L7 - 20cm JST VHR-4N open ended NCxxxMP speaker cableZ4B50L2 - 3x 50cm NCORE Molex Microfit to open end signal cableZ2A30L1 - 30cm JST VHR-3N open ended mains connection cable
