NC502MP OEM
H04U004338
Product information "NC502MP OEM"
The NC502MP is a compact dual channel amplifier module designed for integration in power amplifiers and active loudspeaker systems.
The module integrates a low power standby supply compliant with 2013 ERP Lot 6 requirements for a maximum standby consumption of 0.5 W, a high efficiency switch mode power supply and two 500 W NCORE® Class D amplifier channels on a single PCB assembly.
The NC502MP is intended for applications that require higher output power within an integrated amplifier and power supply solution. The design supports stable operation across varying load impedances and predictable electrical behaviour.
For applications requiring standby functionality, the NC502MP includes a dedicated low power standby switch mode power supply to minimise energy consumption during idle periods.
The module includes a Hypex Extension connector, allowing the addition of an auxiliary low power amplifier channel. This supports system designs such as three way active loudspeakers where an additional tweeter amplifier channel is required.
HIGHLIGHTS
- • High efficiency & Universal mains operation
- • Flat, fully load-independent frequency response
- • Low output impedance
- • Very low, frequency independent THD
- • Very low noise
FEATURES
- • Extension connector for additional channel(s)
- • 5W standby SMPS
- • Advanced protections
- • Clip indicator
- • Auto-switching (115/230V)
- • Light weight and compact size
PROTECTIONS
- • Overcurrent protection
- • Excessive DC protection
- • Over temperature protection
- • Short circuit protection
POSSIBLE APPLICATIONS
- • Monitor loudspeakers for studios
- • Active loudspeakers and subwoofers
- • Public Address systems
- • Home Theatre systems
- • Power Amplifiers; for home and professional use
| Output Power (2Ω): | 2 x 450W, (BTL 2Ω is not supported) |
|---|---|
| Output Power (4Ω): | 2 x 500W, (1 x 1000W in BTL) |
| Output Power (8Ω): | 2 x 350W, (1 x 1200W in BTL) |
| Channels: | 2 |
| Distortion: | 0.0024%, 20hZ < f < 20kHz. Pout = 1W |
| Output Noise: | 47µV |
| Power Bandwidth: | 20Hz - 35kHz |
| Frequency Response: | 10Hz (Min) - 48kHz (Max), +0/-3dB. All loads |
| Idle Power: | 26.6W - SMPS + amplifiers |
| Output impedance: | 1.5mΩ (Max) - f < 1kHz, 3mΩ (Max) - f < 20kHz |
| Standby Output Voltage: | 4.9 (Min), 5 (Typ), 5.1 (Max) Vdc |
| Standby Output Current: | 1 A |
| Output Voltage Vaux: | 2 x 17 (Min), 2 x 18 (Typ), 2 x 19 (Max) Vdc |
| Output Current Vaux: | 1 A |
| Automatic input voltage selection: | Yes |
| Mains voltage input: | 230V / 115V |
| Family: | Mains Powered NCORE® Family |
| Technology: | NCORE® |
Recommended additional parts
NC100HF OEM
Unleash precision in high-frequency amplification and elevate your audio experience with the NC100HF, a dedicated tweeter-amplifier meticulously crafted to seamlessly integrate with the Mains Powered NCORE® family modules. As an added benefit, NC100HF also seamlessly integrates with the NCAS1000MP module.
As a vital component of the revolutionary Mains Powered NCORE® amplifier family, the NC100HF extends your system's capabilities, creating an additional channel that caters specifically to the nuances of high and mid-frequency ranges.
Tailored for high- and mid-frequencies and designed with a singular focus on high- and mid-frequency reproduction, the NC100HF takes your audio to new heights, starting at approximately 500Hz. Immerse yourself in the crispness and detail that these frequencies demand.
The NC100HF effortlessly interfaces with the on-board Switched Mode Power Supply (SMPS) of the Mains Powered NCORE® amplifier family modules. This synergy ensures a harmonious collaboration, enabling you to expand your NCORE® based system effortlessly.
Active speaker amplification: unlock the full potential for a complete NCORE® based system in an instant. The NC100HF empowers you to build a sophisticated audio setup with ease, whether you’re creating a two-, three- or four-way active speaker configuration.
HIGHLIGHTS
• High efficiency
• Flat, fully load-independent frequency response
• Low output impedance
• Very low, frequency independent THD
• Very low noise
FEATURES
• Advanced over current protection
• External controlled operation
• Light weight and compact size
PROTECTIONS
• Overcurrent protection
• Excessive DC protection
• Short circuit protection
POSSIBLE APPLICATIONS
• Monitor loudspeakers for studios
• Active loudspeakers and subwoofers
• Public Address systems
• Home Theatre systems
• Power Amplifiers; for home and professional use

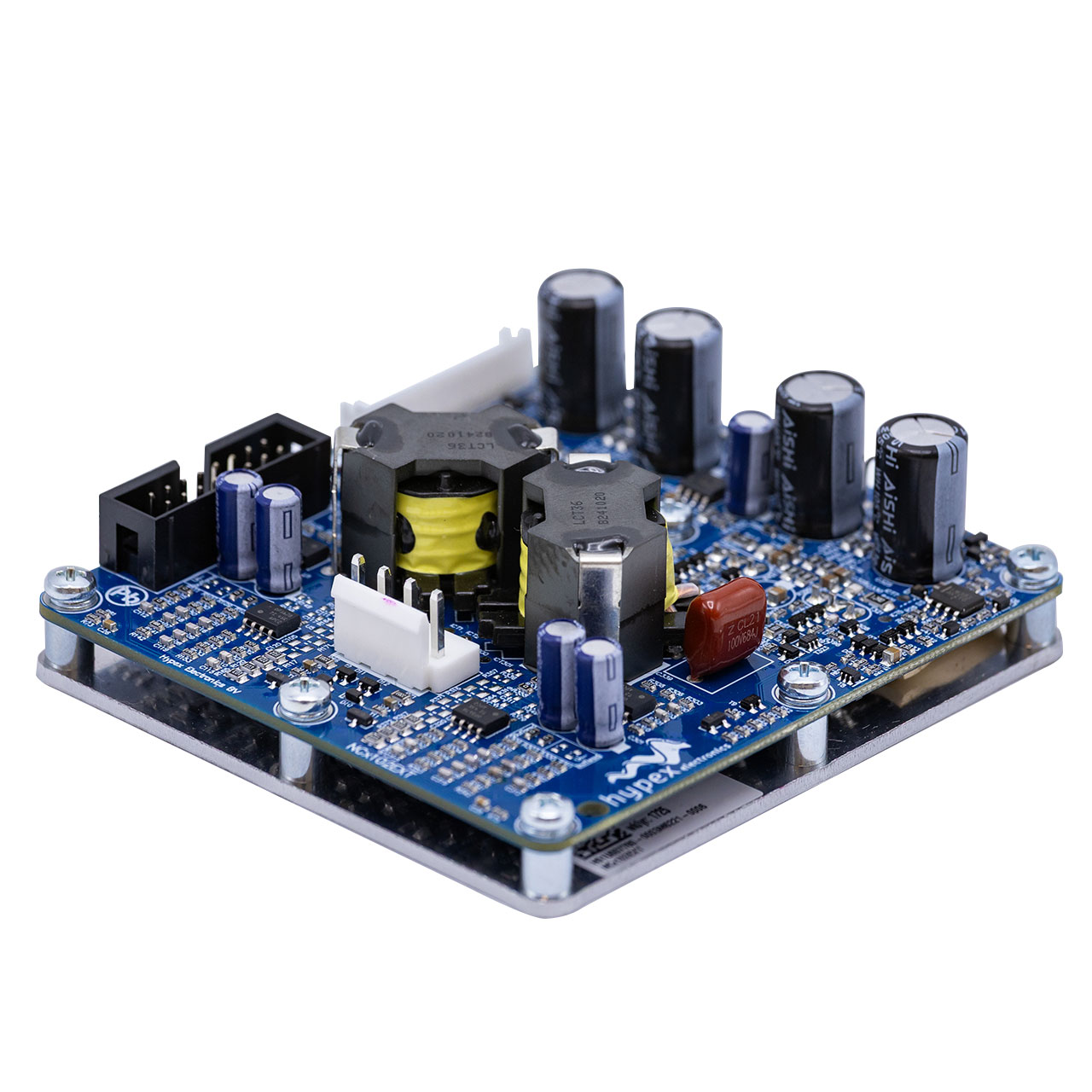

NCx102EXT
