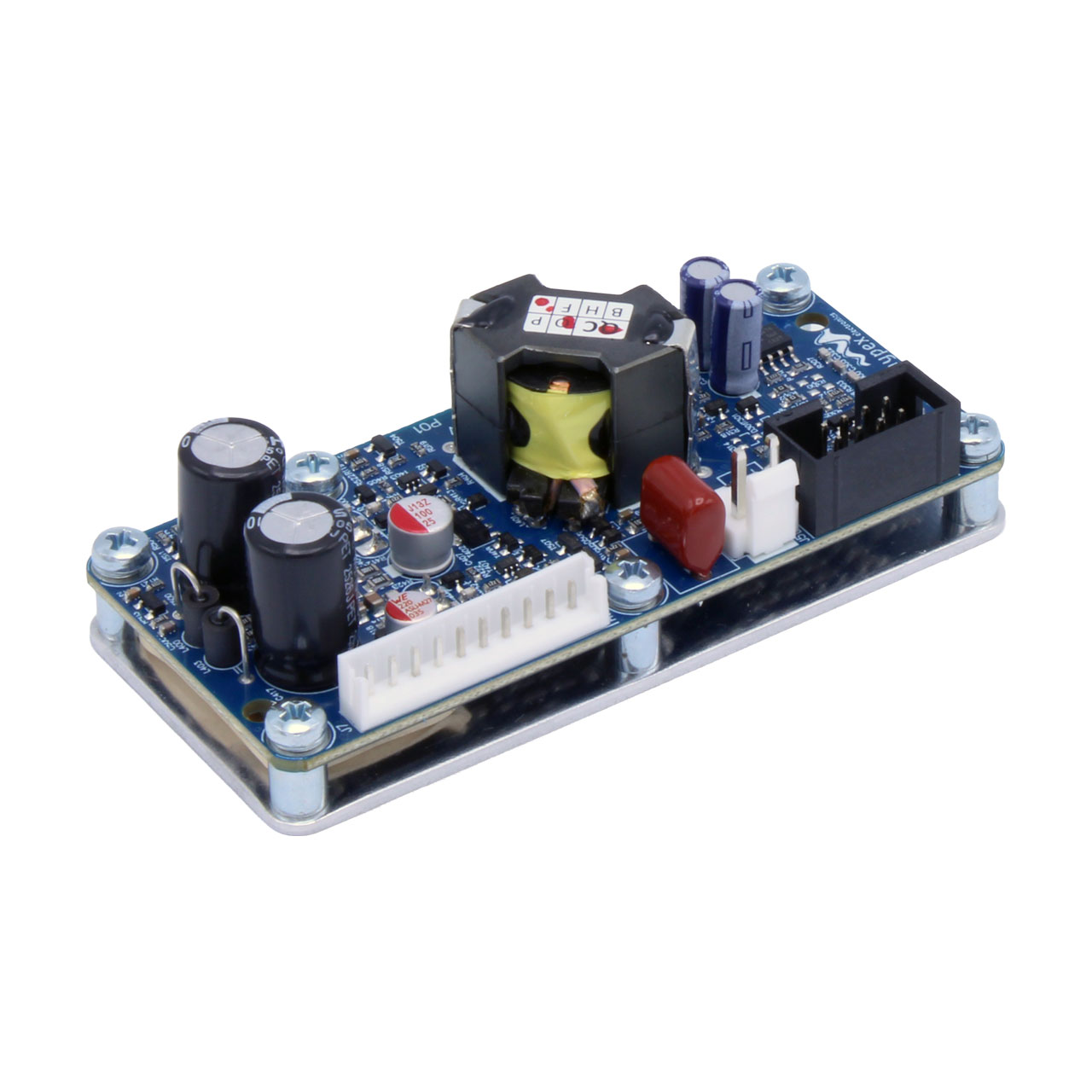

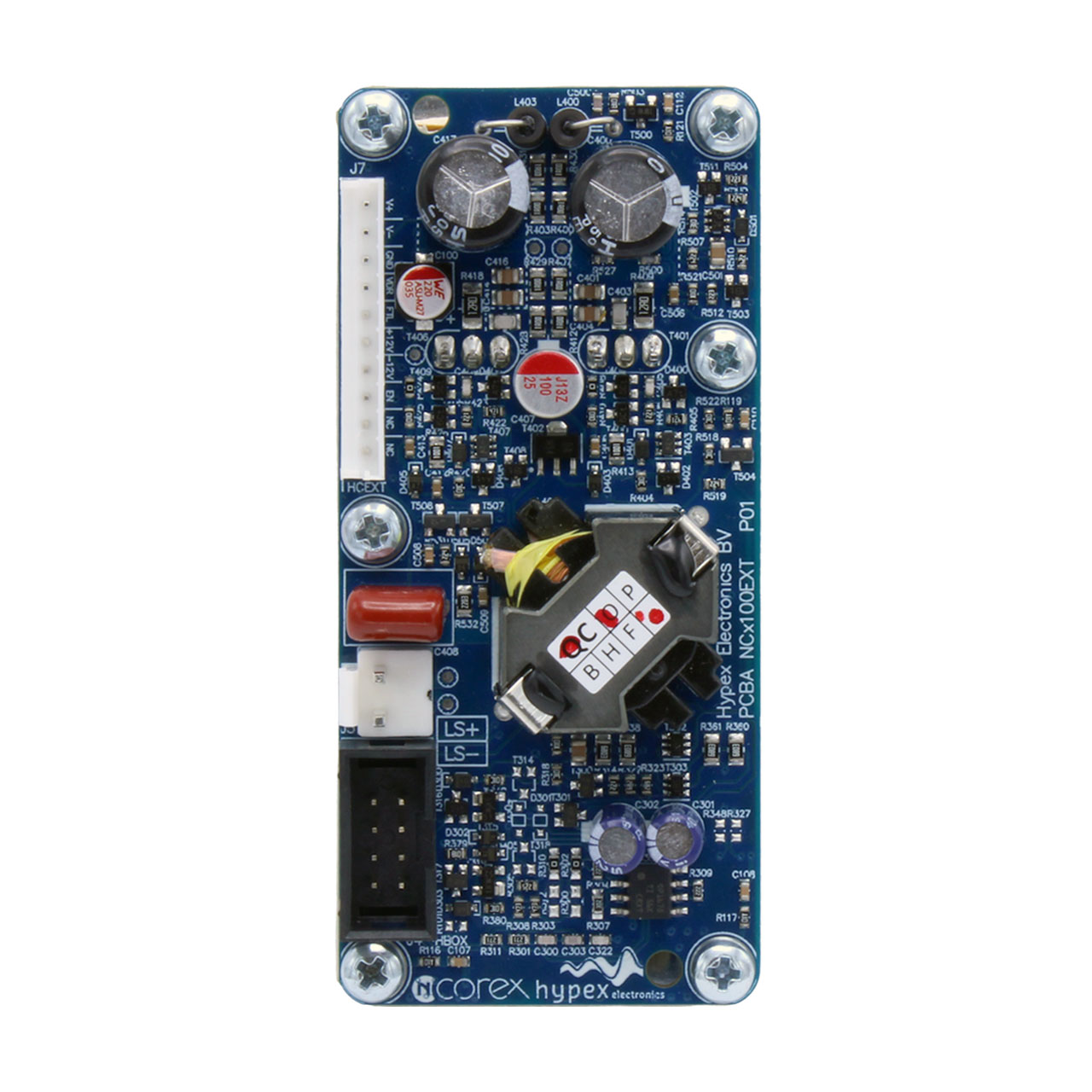

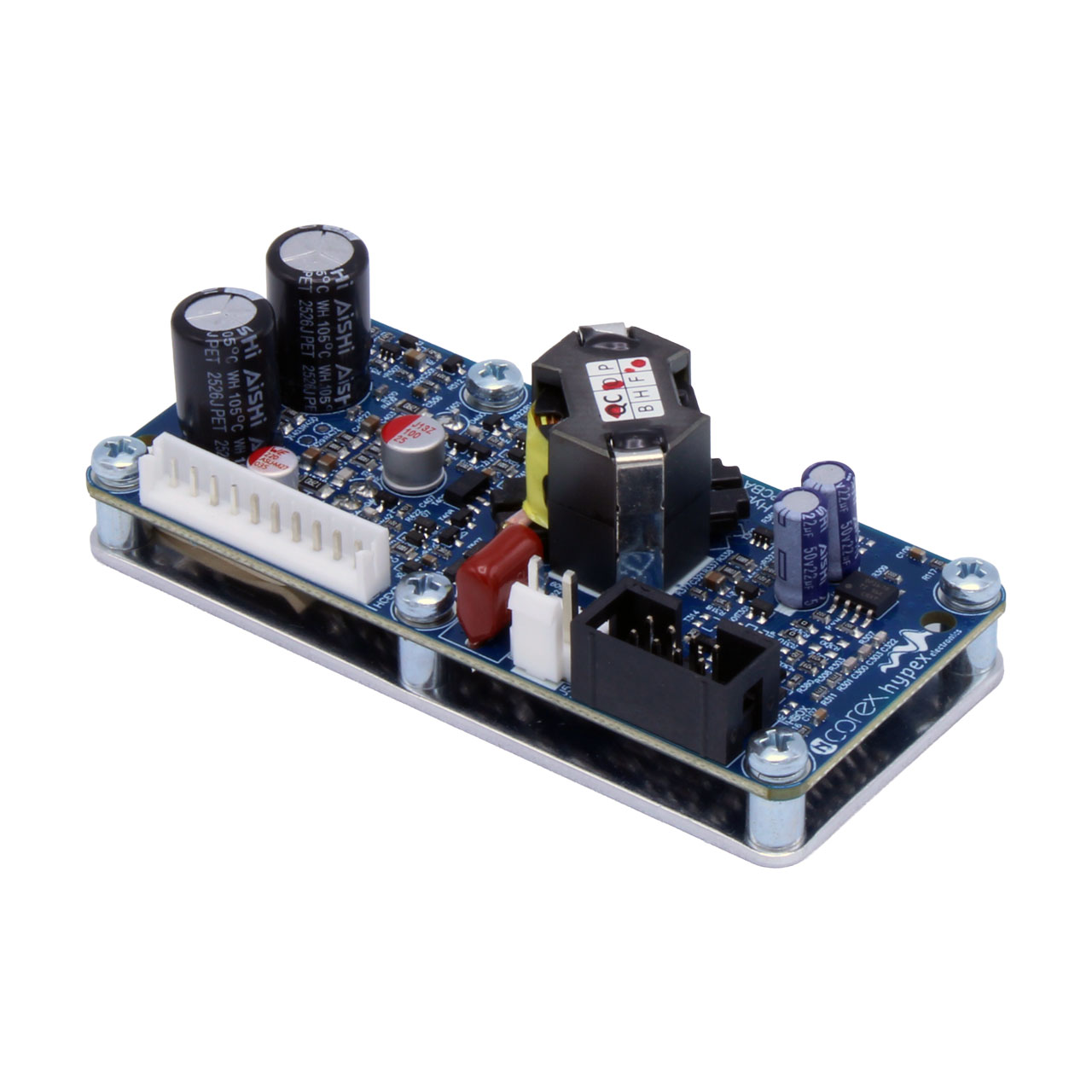

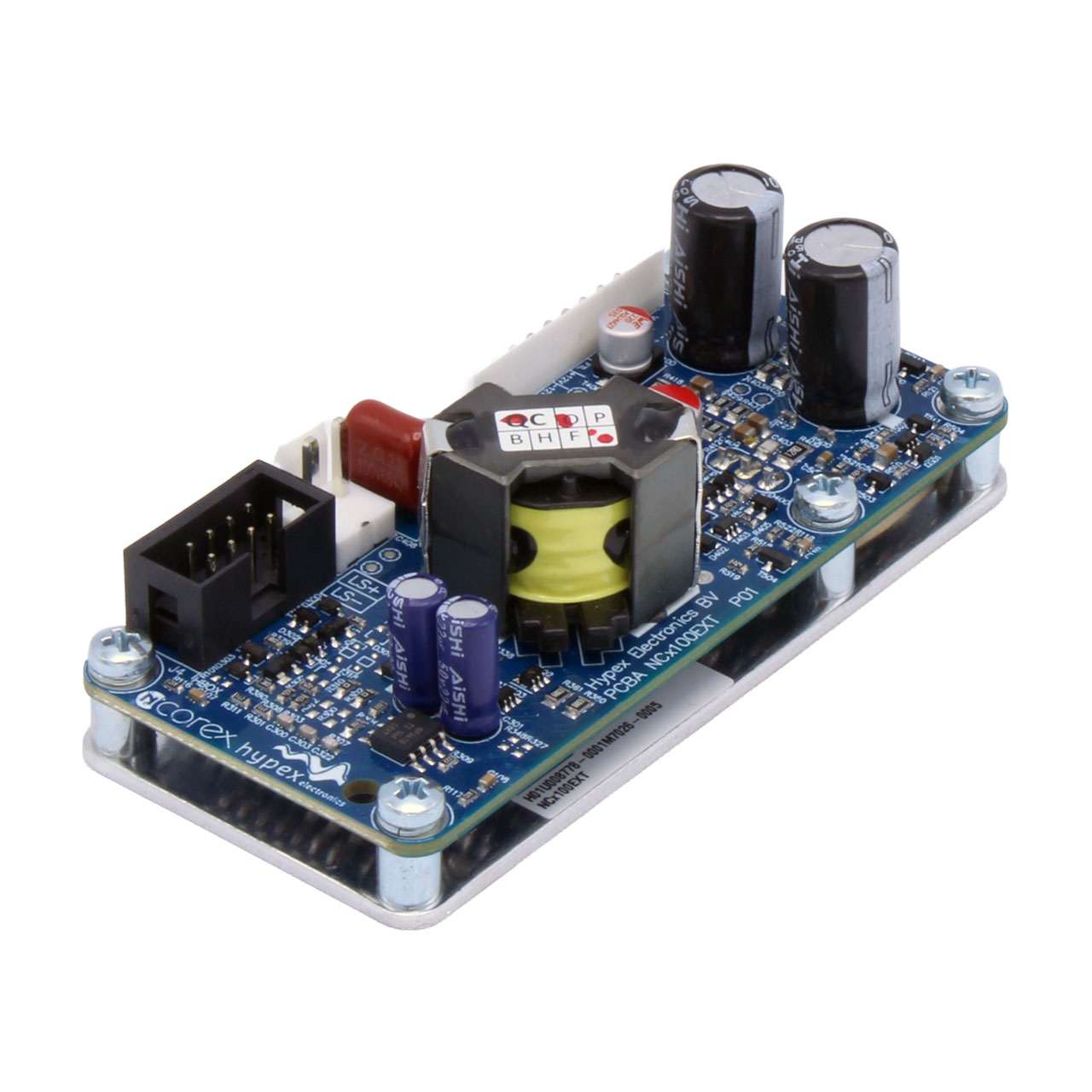

NCx100EXT

Note: The NCx122MP is not for sale yet. However, we expect to ship it in Q3, 2026. Please contact sales@hypex.nl for more information on the NCx122MP. The NCx122MP is a compact dual channel amplifier module based on NCOREx® Class D technology. It is designed for integration in power amplifiers and active loudspeaker systems where compact implementation and predictable electrical performance are required. The module integrates a high efficiency switch mode power supply, a low power standby supply compliant with 2013 ERP Lot 6 requirements and two NCOREx® Class D amplifier channels on a single PCB assembly. Control is based on a phase shift controlled self oscillating loop with feedback taken directly at the loudspeaker output. This architecture supports stable operation across varying load impedances. The NCx122MP includes the Hypex Extension connector, allowing the addition of an auxiliary low power amplifier channel for multi way active loudspeaker designs. Highlights • High efficiency • Universal mains operation • Flat, fully load independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise Features • Extension connector for additional channel(s) • 5W standby SMPS • Advanced protections • Clip indication • Auto-switching (112/230V) • Light weight and compact size Protections • Advanced overcurrent protection • Excessive DC protection • Over temperature protection • Short circuit protection Possible applications • Monitor loudspeakers for studios • Active PA loudspeakers • Active HiFi loudspeakers ABOUT NCOREx® NCOREx® builds on the proven NCORE® architecture with a redesigned loop filter that increases loop gain across the audio band. This results in over 60 dB of error correction, further reducing distortion, improving linearity, and lowering output impedance for even more precise and controlled sound reproduction.

Note: The NCx250MP is not for sale yet. However, we expect to ship it in Q3, 2026. Please contact sales@hypex.nl for more information on the NCx250MP. The NCx250MP is a compact single channel amplifier module based on NCOREx® Class D technology. The module is designed for integration in power amplifiers and active loudspeaker systems where compact implementation and predictable electrical performance are required. The NCx250MP integrates a high efficiency switch mode power supply, a low power standby supply compliant with 2013 ERP Lot 6 requirements and a single NCOREx® Class D amplifier channel on a single PCB assembly. The integrated design supports a compact solution for medium power applications. Control is based on the NCOREx® self oscillating control architecture with feedback taken directly at the loudspeaker output. This topology supports stable operation across varying load impedances. The NCx250MP includes the Hypex Extension connector, allowing the addition of an auxiliary low power amplifier channel. This enables system configurations such as multi way active loudspeakers where an additional high frequency channel is required. Highlights • High efficiency • Universal mains operation • Flat, fully load independent frequency response • Very Low output impedance • Ultra low distortion • Very low noise Features • One channel amplifier • 5W standby SMPS • Advanced over current protection • External controlled operation • Auto-switching (115/230V) • Low weight: 381g • Compact: 140 x 85 x 40mm Possible applications • Monitor loudspeakers for recording studios and mastering studios • Audiophile power amplifiers for professional and consumer use • Public address systems • Active loudspeakers ABOUT NCOREx® NCOREx® builds on the proven NCORE® architecture with a redesigned loop filter that increases loop gain across the audio band. This results in over 60 dB of error correction, further reducing distortion, improving linearity, and lowering output impedance for even more precise and controlled sound reproduction.

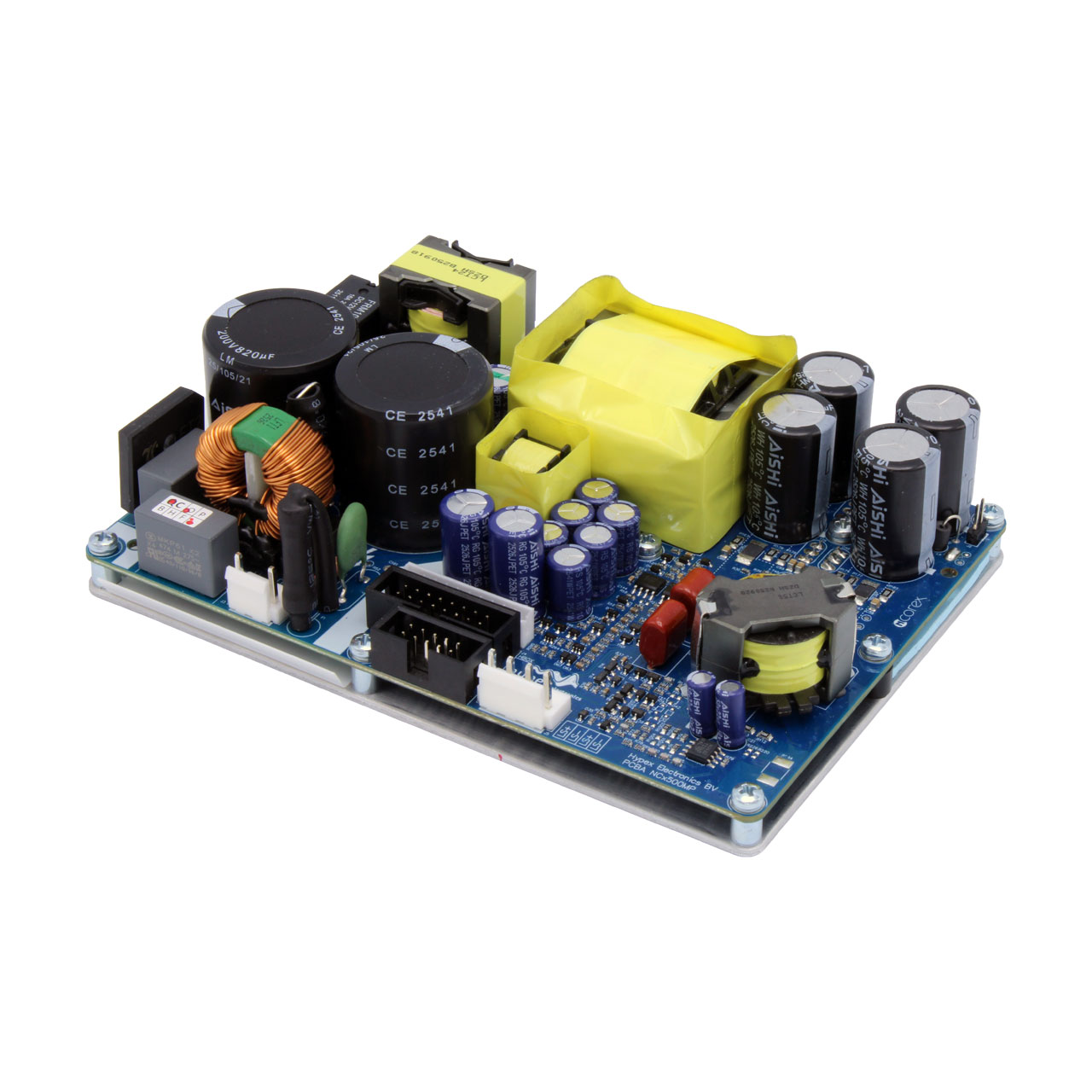

Note: The NCx500MP is not for sale yet. However, we expect to ship it in Q3, 2026. Please contact sales@hypex.nl for more information on the NCx500MP. The NCx500MP is a compact single channel amplifier module based on NCOREx® Class D technology. It is intended for integration in power amplifiers and active loudspeaker systems requiring higher output power while maintaining compact implementation and predictable electrical performance. The module integrates a high efficiency switch mode power supply, a low power standby supply compliant with 2013 ERP Lot 6 requirements and a single high power NCOREx® Class D amplifier channel on a single PCB assembly. The architecture supports high power output within a compact form factor. The amplifier section is based on the NCOREx® control topology with feedback taken directly at the loudspeaker output. This enables stable and controlled operation across a wide range of load impedances. The NCx500MP includes the Hypex Extension connector, allowing the addition of an auxiliary low power amplifier channel. This supports applications such as multi way active loudspeaker systems where an additional dedicated channel is required. Highlights • High efficiency • Universal mains operation • Flat, fully load-independent frequency response • Very low output impedance • Ultra low distortion • Very low noise Features • One channel amplifier • 5W standby SMPS • Advanced over current protection • External controlled operation • Auto-switching (115/230V) • Low weight: 500g • Compact: 146 x 105 x 42mm Possible applications • Monitor loudspeakers for recording studios and mastering studios • Audiophile power amplifiers for professional and consumer use • Public address systems • Active loudspeakers ABOUT NCOREx® NCOREx® builds on the proven NCORE® architecture with a redesigned loop filter that increases loop gain across the audio band. This results in over 60 dB of error correction, further reducing distortion, improving linearity, and lowering output impedance for even more precise and controlled sound reproduction.

The NCx252MP is a compact dual channel amplifier module based on NCOREx® Class D technology. The module is designed for integration in power amplifiers and active loudspeaker systems where compact implementation and predictable electrical performance are required. The NCx252MP integrates a low power standby supply compliant with 2013 ERP Lot 6 requirements for a maximum standby consumption of 0.5 W, a high efficiency switch mode power supply and two NCOREx Class D amplifier channels. The integrated architecture supports compact power delivery within a single PCB assembly. The amplifier section is based on the NCOREx® control architecture and is designed to provide stable operation across varying load impedances. The integrated power supply supports efficient operation under typical audio load conditions. The NCx252MP includes the Hypex Extension connector, allowing the addition of an auxiliary low power amplifier channel. This supports system designs such as multi way active loudspeakers where an additional tweeter amplifier channel is required. Highlights • High efficiency • Universal mains operation • Flat, fully load independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise Features • Extension connector for additional channel(s) • 5W standby SMPS • Advanced protections • Clip indication • Auto-switching (112/230V) • Light weight and compact size Protections • Advanced overcurrent protection • DC protection • Over temperature protection • Short circuit protection Possible applications • Monitor loudspeakers for studios • Active PA loudspeakers • Active HiFi loudspeakers ABOUT NCOREx® NCOREx® builds on the proven NCORE® architecture with a redesigned loop filter that increases loop gain across the audio band. This results in over 60 dB of error correction, further reducing distortion, improving linearity, and lowering output impedance for even more precise and controlled sound reproduction.
