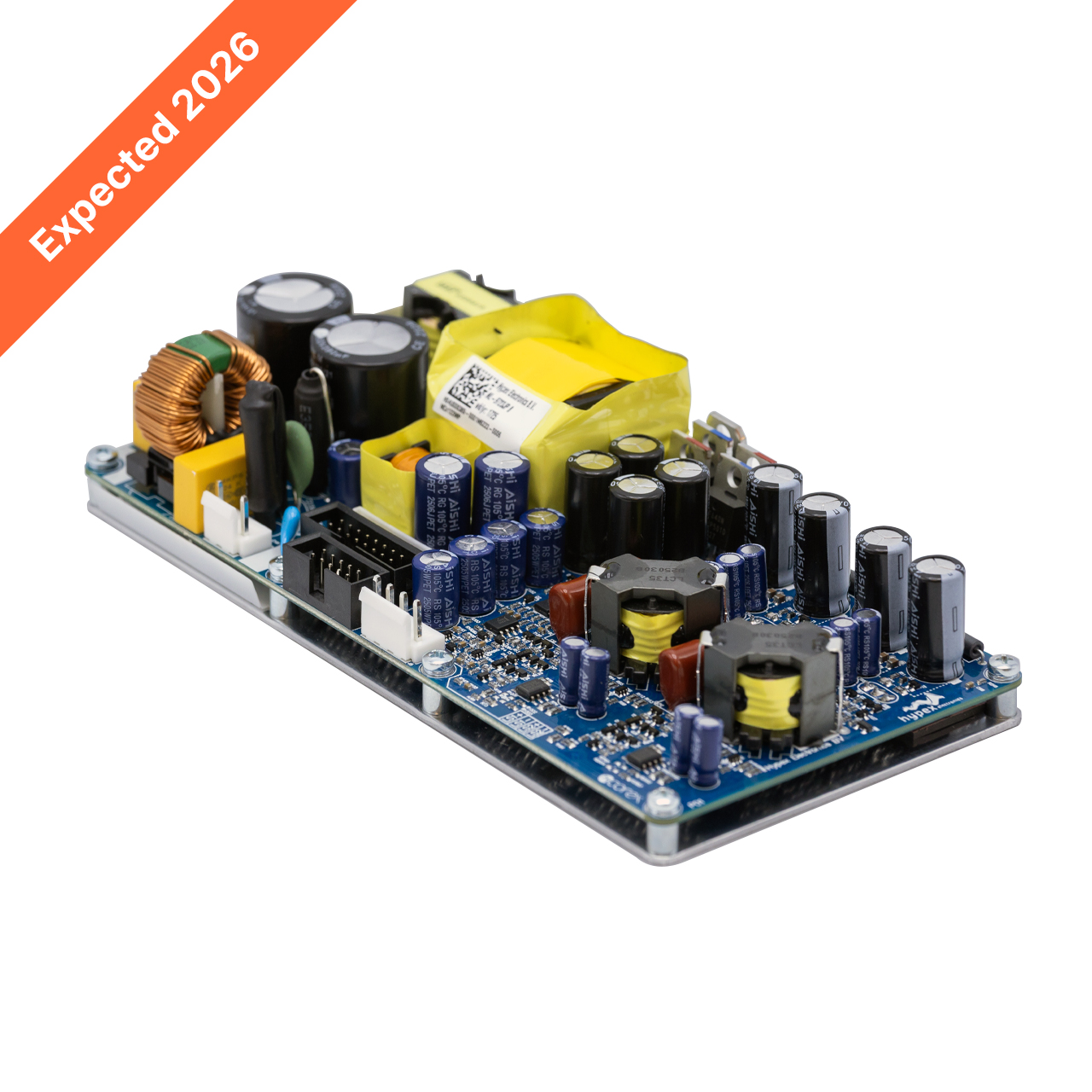

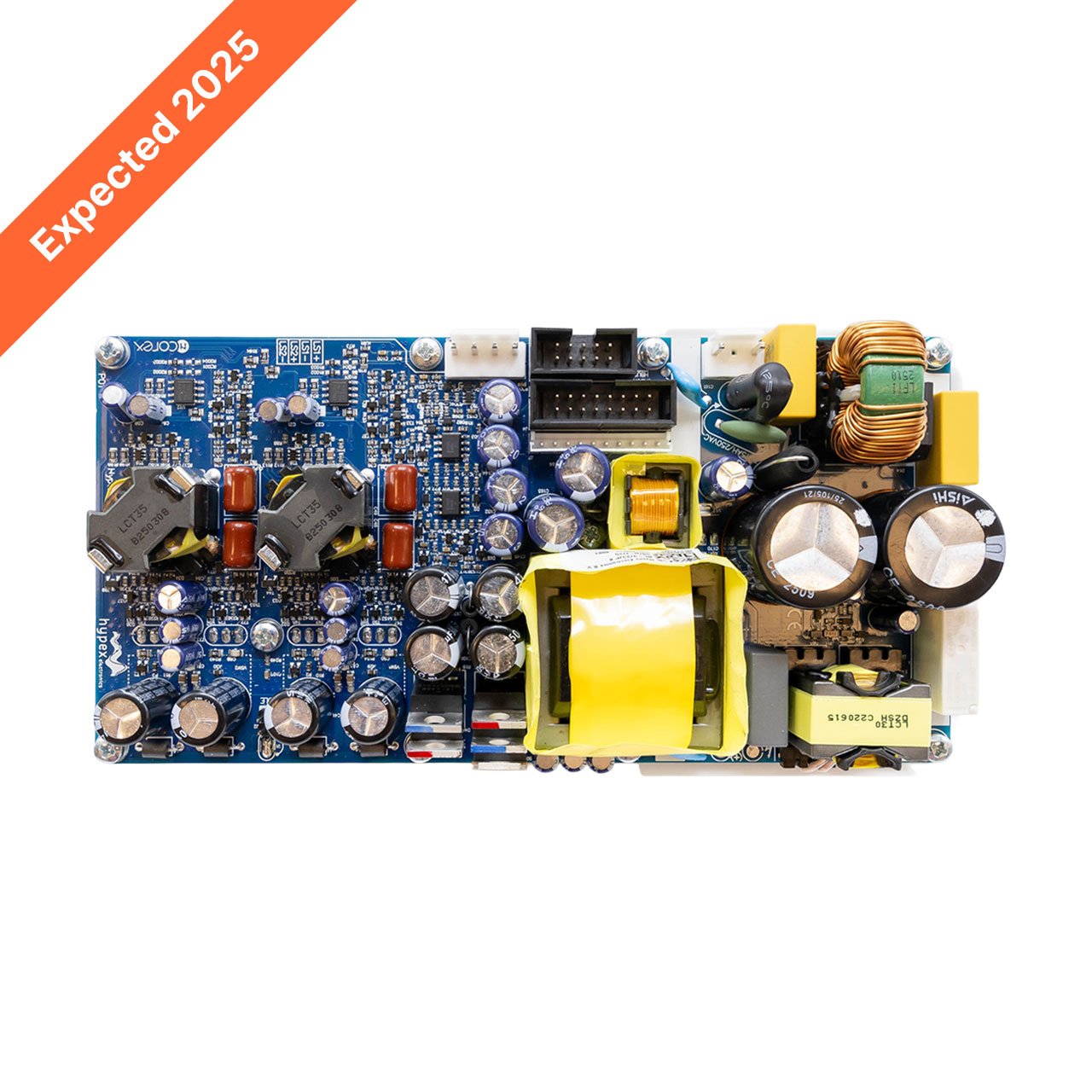

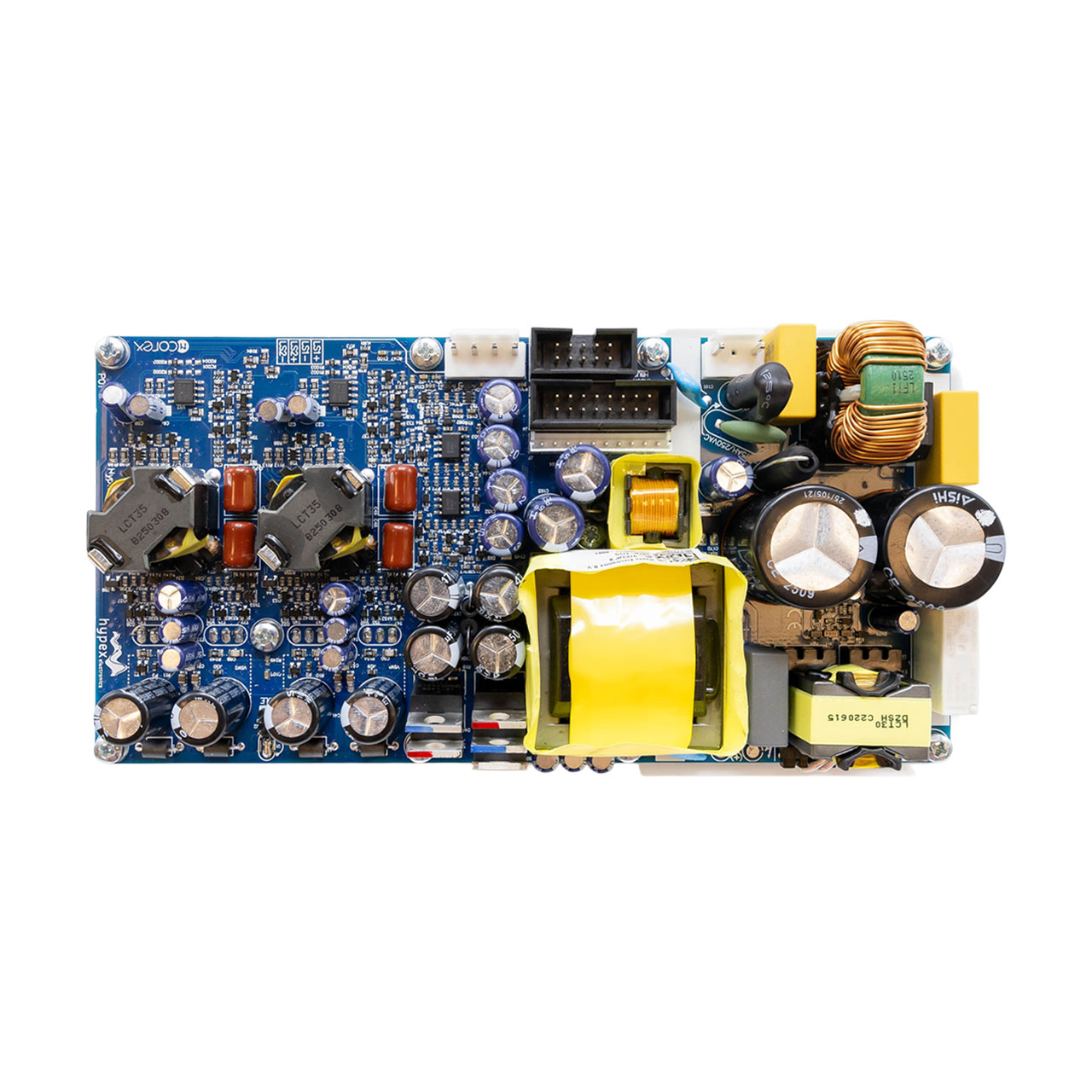

NCx122MP

The Cable set NCxxxMP is a complete cable set to connect the NCxxxMP amplifier to your application. Note: For the connection of the NC100HF please refer to the "Cable set NC100HF". NCore signal cable not included and not needed with the NCxxxMP amplifier range.

This board is specifically designed to make it easy to evaluate the new NCxxxMP series mains powered NCORE modules. Furthermore, the NC100HF can be easily connected. All necessary control IO's and supplies are easily accessible via test pads for evaluation. The evaluation board comes with 10mm nylon spacers which can be used to mount the board using M3 screws. All necessary interface cables are included. The signal, speaker and mains cables are open ended, meaning that you are free to connect it in with your own connectors in your own way. Features • Makes it easy to evaluate the NCxxxMP series with the optional NC100HF • PS Enable switch • Ch 1-2 mute switch (also mutes ch3 by design) • H-Box connector • H-Bus connector • NC100HF half H-Box connector Included • A breakout PCB to quickly evaluate the NCMP series • Z10A25L1 - 25cm 10 pole JST to interface between NC100HF and NCMP • Z10C12L1 - 12cm 10 pole Hypex Bus ribbon cable • Z16C14L1 - 14cm 16 pole Hypex Box ribbon cable • Z8C10L1 - 10cm 8 pole Hypex Half-Box NC100HF ribbon cable • Z2A20L7 - 20cm JST VHR-2N open ended NC100HF speaker cable • Z4A20L7 - 20cm JST VHR-4N open ended NCxxxMP speaker cable • Z4B50L2 - 3x 50cm NCORE Molex Microfit to open end signal cable • Z2A30L1 - 30cm JST VHR-3N open ended mains connection cable

The NCx102EXT is an NCOREx® based Class D amplifier add on module for the NC-MP / NCx-MP series. It is intended for use in active loudspeaker systems as an additional amplifier channel, optimised for mid and high frequency reproduction while supporting full audio bandwidth operation. The module is powered directly from the host NC-MP or NCx-MP module via the Hypex Channel Extension interface. It supports a wide input voltage range compatible with the complete NC-MP / NCx-MP product range and does not require an external power supply. The NCx102EXT incorporates a self contained NCOREx® Class D amplifier. The design provides a flat frequency response independent of load impedance and maintains consistent distortion behaviour across the operating range. Radiated and conducted electromagnetic interference is controlled through circuit topology and PCB layout. Control is based on a phase shift controlled self oscillating loop with feedback taken directly at the loudspeaker output. This architecture supports stable operation and predictable electrical behaviour when integrated into multi channel active loudspeaker systems. The NCx102EXT is designed to expand NC-MP and NCx-MP based designs with additional amplifier channels, supporting two-way, three-way or four-way active loudspeaker configurations where an additional midrange or high-frequency channel is required. Highlights • High efficiency • Flat, fully load-independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise Features • NCOREx® Technology • NCx-MP Add-on • External controlled operation • Specifically designed as channel extension for our Mains Powered NCORE® and NCOREx® modules Protections • Advanced overcurrent protection • Exessive DC protection • Short circuit protection • Over temperature protection Possible applications • Monitor loudspeakers for recording and mastering studios • Public address systems • Active loudspeakers

The DSP3-213 is a mono DSP module based on the Analog Devices ADAU1452. It is intended for use with mains powered NCORE® amplifier power modules and Fusion amplifier platforms. The module supports mono and 3-way active loudspeaker configurations. Signal processing is configured using Hypex Filter Design software and supports both IIR and FIR filters. Multiple presets can be stored for different filter sets, input selections and gain settings. The DSP3-213 supports features such as auto signal detect and configurable standby behaviour. The module can be expanded with optional input boards, such as digital input or subwoofer input modules. Multiple DSP3-213 units can be configured in a master-slave setup for stereo or 2.1 systems. Typical applications include active loudspeakers, studio monitors and integrated amplifier systems where a compact mono DSP solution is required. Highlights • Three channel active filtering • One FIR (4500 taps) or three (1500 taps per channel) per preset • Compatible with NCMP and NCAS series • Three programmable presets Features • Configurable Soft clip limiter • IIR & FIR capable • Programmable with Hypex Filter Design (HFD) • Automatic source selection • Automatic signal detection • Optional IR remote control Possible applications • High-end consumer audio • Active loudspeakers • Subwoofers • PA systems • Studio monitors

The DSP3-224 is a stereo DSP module based on the Analog Devices ADAU1452. It is designed for use with mains powered NCORE® amplifier power modules and supports stereo processing or 4-way active loudspeaker configurations. Filter design and system configuration are handled via Hypex Filter Design software, with support for IIR and FIR filters. Output routing allows flexible assignment, including BTL operation when connected to compatible two channel amplifiers. The DSP3-224 supports optional digital input expansion and includes auto signal detect and adjustable standby functionality. Multiple presets can be stored for different system configurations. The module is suitable for stereo active loudspeakers, multi way active systems and compact DSP controlled power amplifier designs. Highlights • Four channel active filtering • Stereo input XLR & RCA • Stereo input FIR (2048 taps) or four mono output FIR (1024 tabs per channel) • Compatible with NC-MP, NCx-MP and NCAS series • Three programmable presets Features • Configurable Soft clip limiter • IIR & FIR capable • Programmable with Hypex Filter Design (HFD) • Automatic source selection • Automatic signal detection • Optional IR remote control Possible applications • High-end consumer audio • Stereo power and integrated amplifiers • Active loudspeakers • PA systems • Studio monitors
