NCx102EXT

H01U007780
Product information "NCx102EXT"

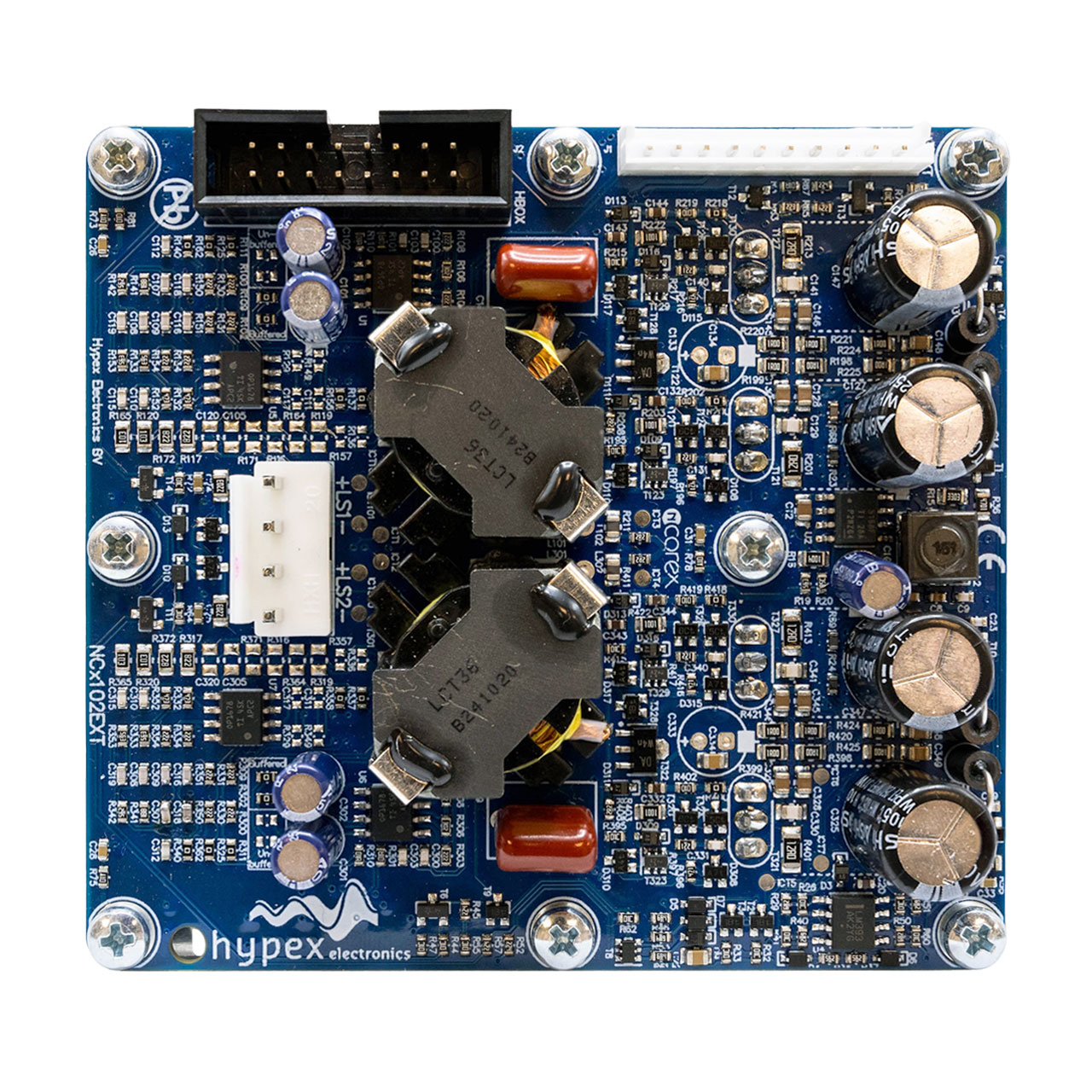

The NCx102EXT is an NCOREx® based high-performance Class D amplifier add-on module for the NCx-MP series. It is designed to be used in active speaker applications as an additional full audio band power amplifier channel, optimised for the higher-frequency audio band.

The NCx102EXT has a wide input voltage range, compatible with our entire NCxxxMP range. It is directly powered from the NCxxxMP module via the Hypex Channel Extension interface.

The amplifier used in the NCx102EXT is a self-contained, high-performance Class D amplifier intended for a wide range of audio applications – from public address systems to ultra high-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response, irrespective of load impedance, nearly frequency-independent distortion behaviour, and very low radiated and conducted EMI.

Control is based on a phase-shift-controlled, self-oscillating loop taking feedback only at the speaker output.

As a vital component of the revolutionary Mains Powered NCORE® amplifier family, the NCx102EXT extends your system’s capabilities, creating additional channels that cater specifically to high and mid-frequency ranges.

Designed as a full range module, the NCx102EXT takes your audio to new heights. Immerse yourself with the full bandwidth capabilities – from mighty lows to superlative highs.

The NCx102EXT effortlessly interfaces with the on-board Switched Mode Power Supply (SMPS) of the Mains Powered NCORE® amplifier family modules. This synergy ensures a harmonious collaboration, so you can easily expand your NCORE®-based system.

Active speaker amplification: unlock the full potential for a combined NCORE® + NCOREx® based system in an instant. Plus, build a sophisticated audio setup with ease, whether an active speaker configuration (up to four-way) or four-channel amplifiers.

Highlights

  • • High efficiency
  • • Flat, fully load-independent frequency response
  • • Low output impedance
  • • Very low, frequency independent THD
  • • Very low noise

Features

  • • NCOREx® Technology
  • • NCx-MP Add-on
  • • External controlled operation
  • • Specifically designed as channel extension for our Mains Powered NCORE® and NCOREx® modules

Protections

  • • Advanced overcurrent protection
  • • Exessive DC protection
  • • Short circuit protection
  • • Over temperature protection

Possible applications

  • • Monitor loudspeakers for recording and mastering studios
  • • Public address systems
  • • Active loudspeakers
Output Power (4Ω): 100W
Output Power (8Ω): 100W
Channels: 2
Power Bandwidth: 20Hz - 35kHz
Freuquency Response: 10Hz - 50kHz +0/-3dB. All loads
