SMPS400A180
H02U004310
Product information "SMPS400A180"

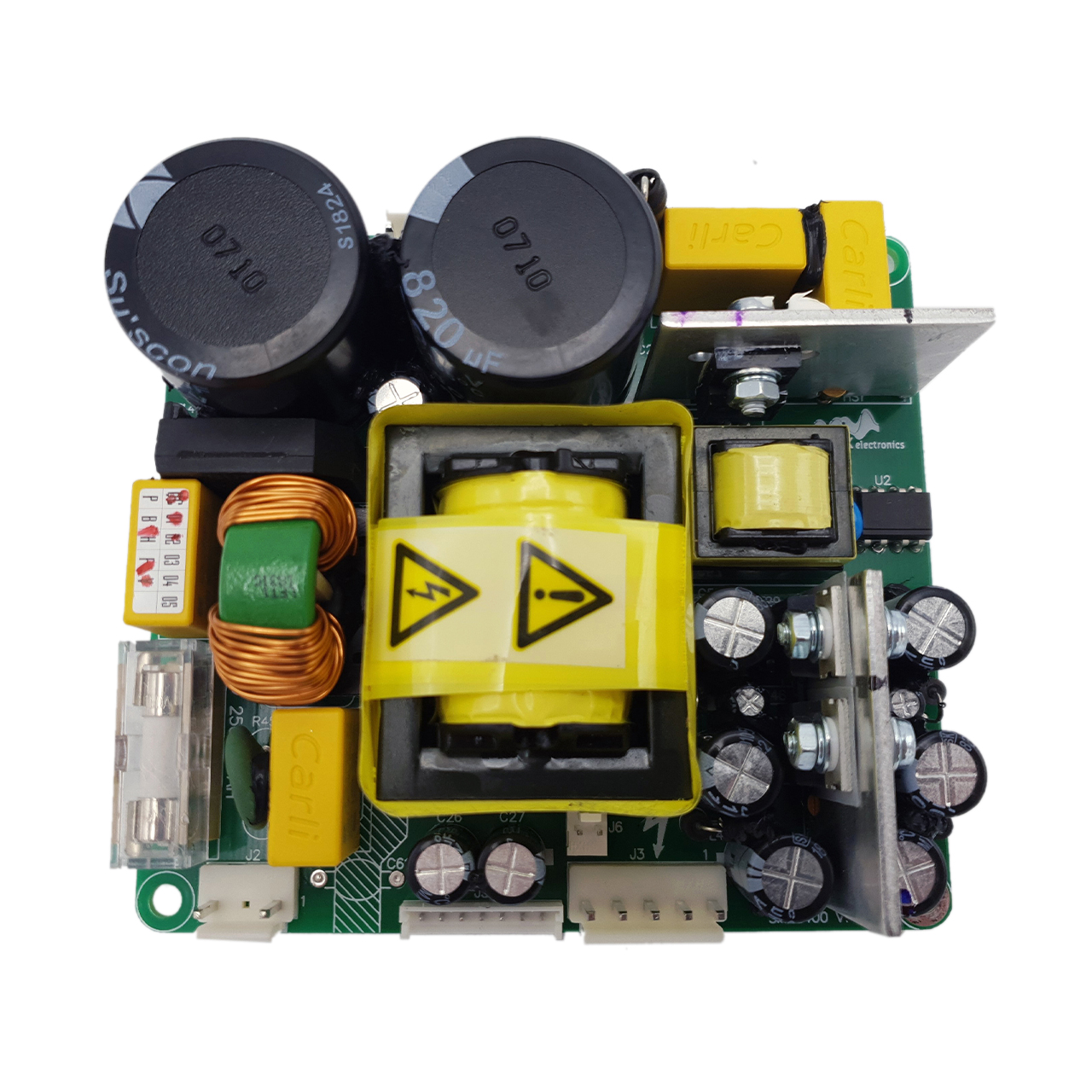

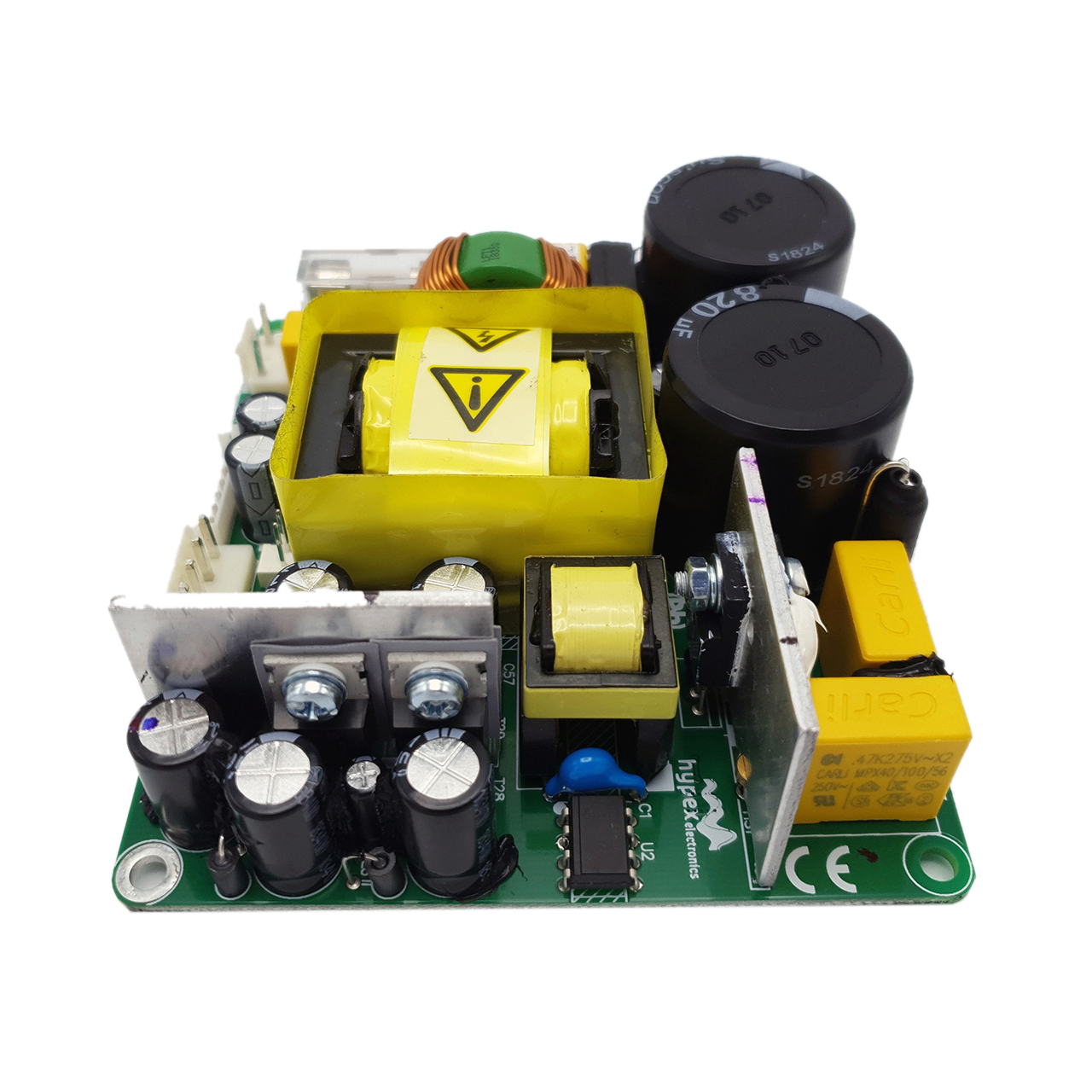

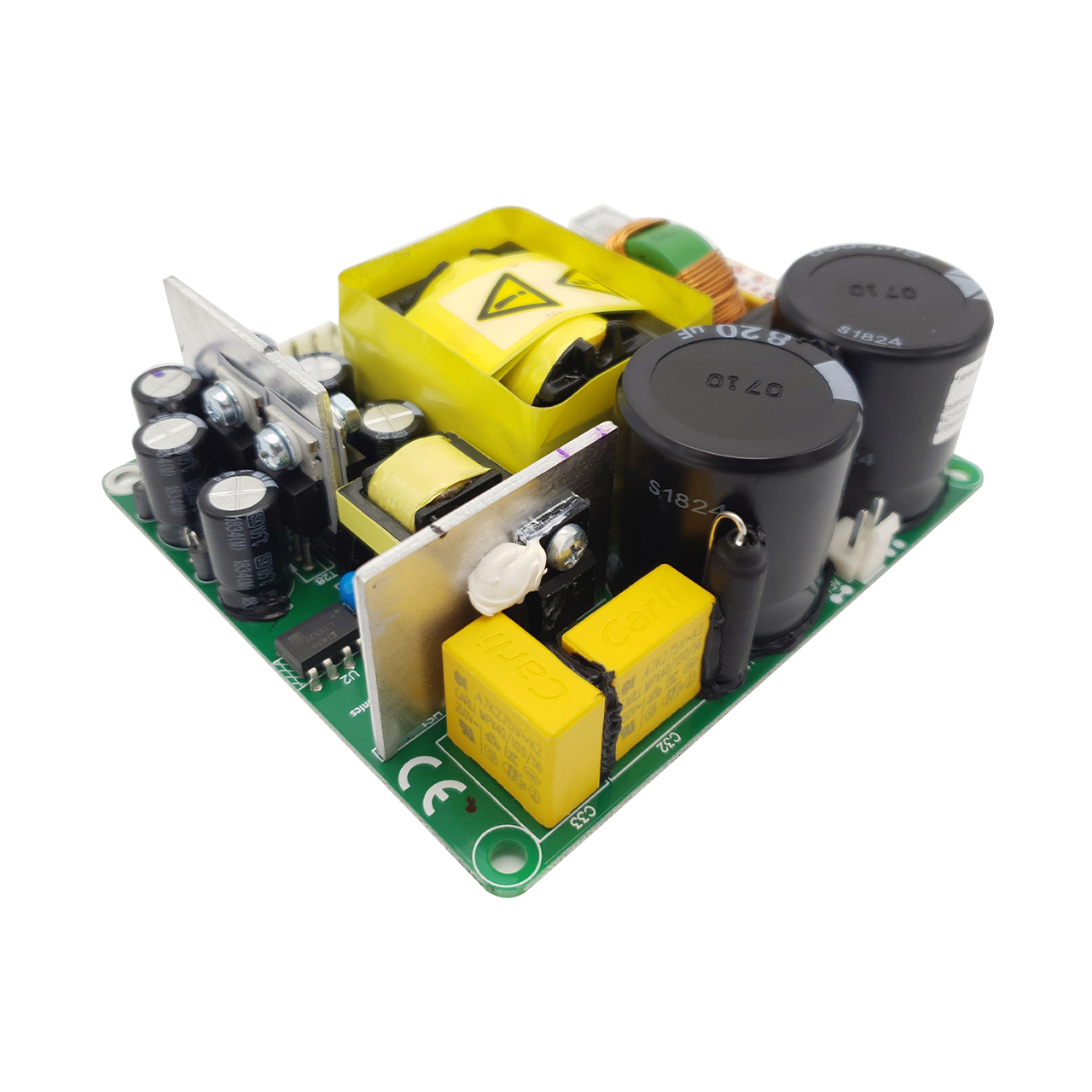

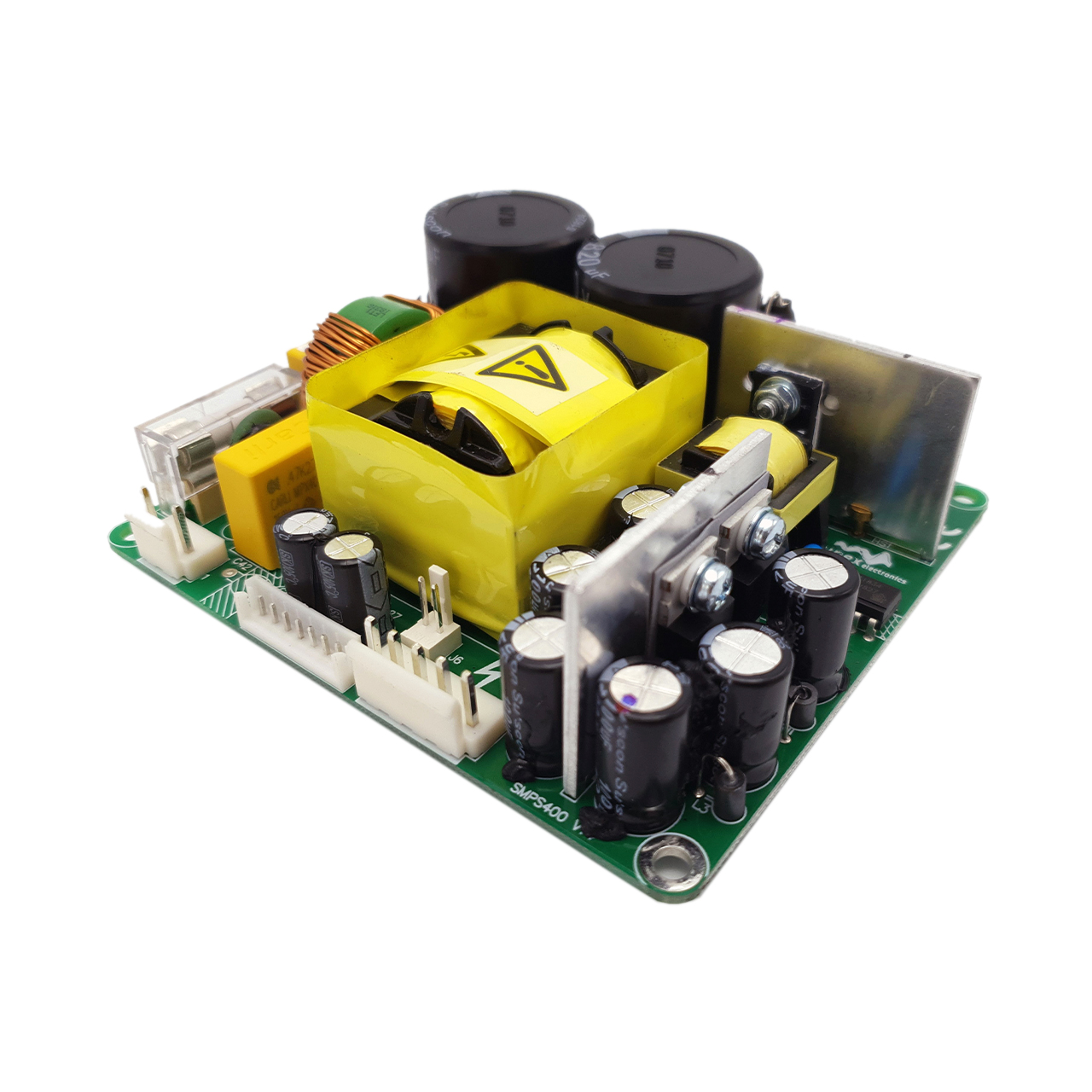

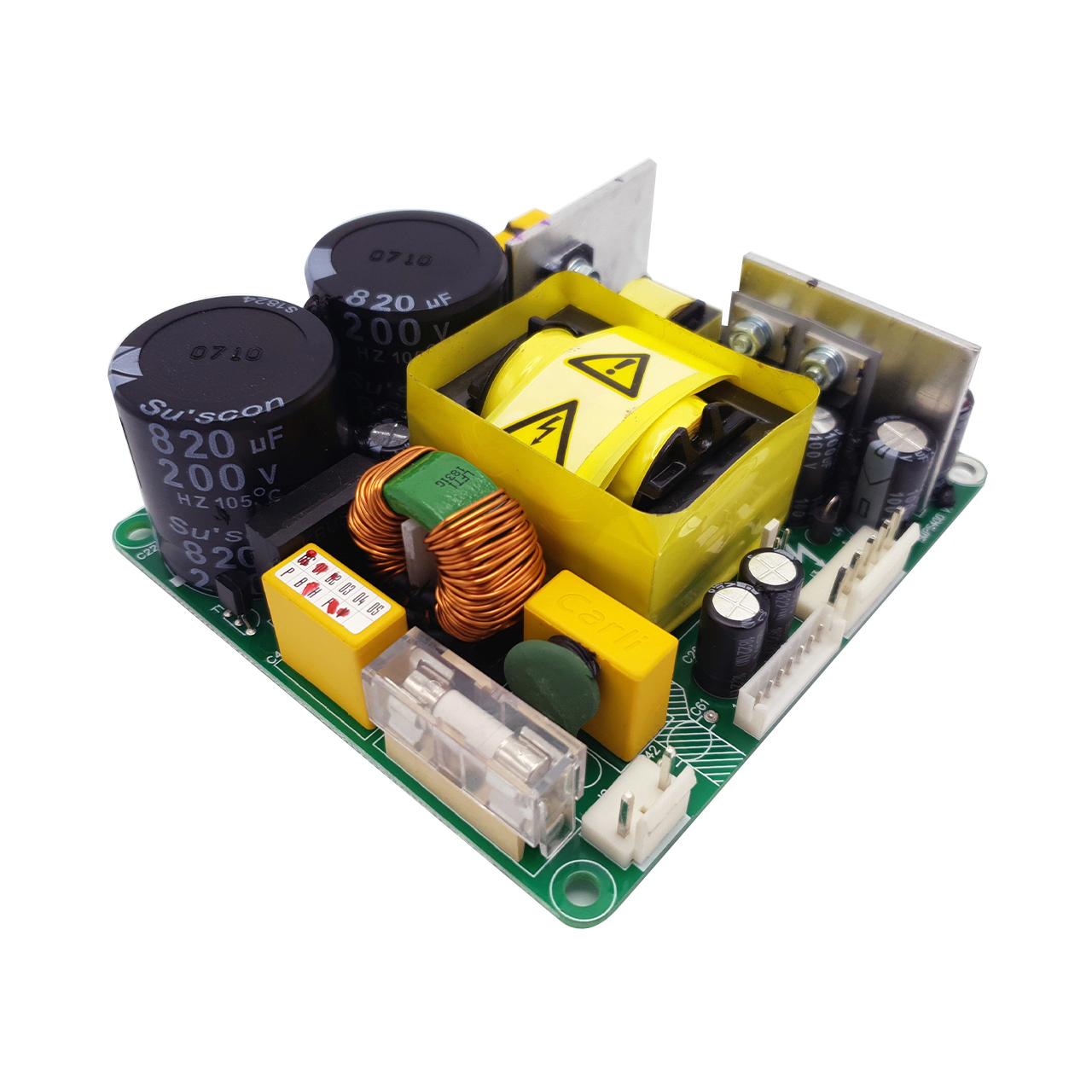

The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.
APPLICATIONS:
- Supply for single or multiple amplifiers of the UcD range
- Active loudspeakers
HIGHLIGHTS:
- High efficiency
- Selectable input voltage range
- Extremely small form factor
- Low EMI
GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Fits in 1HE (additional insulation required)
- Fixed output voltage (3 versions available)
ELECTRICAL FEATURES:
- High Line Input Voltage: 200-240Vac +/-10%
- Low Line Input Voltage: 100-120Vac +/-10%
- Output Voltage: 2x46Vdc
- Max. Output power: 400W @20Hz
- Switching Frequency: 100kHz
CONTENTS OF PACKAGING:
- SMPS400A180
- Manual
| Family: | SMPS Family |
|---|---|
| Automatic input voltage selection: | No, Selectable with jumper |
| Mains voltage input: | 230V / 115V |
| Max Output Power: | 600W |
| Max Output Power @20Hz: | 400W |
| SMPS Voltage +/-: | 2 x 46Vdc |
