The cable set loudspeaker FA 1 way is a complete cable set to connect your 1 way Fusion Amp with your loudspeaker. This is the same loudspeaker cable set as supplied with new Fusion Amps.The length of the cable is 125cm.
The cable set loudspeaker FA 3 way is a complete cable set to connect your 2 or 3 way Fusion Amp with your loudspeaker. This is the same loudspeaker cable set as supplied with new Fusion Amps. The length of the cables is 125cm.
The Cable set NCxxxMP is a complete cable set to connect the NCxxxMP amplifier to your application. Note: For the connection of the NC100HF please refer to the "Cable set NC100HF". NCore signal cable not included and not needed with the NCxxxMP amplifier range.
The Cable set NC100HF is a complete cable set to connect the NC100HF hanger module to your NCxxxMP amplifier module or with the MP-DSP Main.Note: For the connection of the NCxxxMP amplifier module please refer to the "Cable set NCxxxMP".NCore signal cable not included and not needed with the NCxxxMP amplifier range.
The Cable set NC1200 / NC2k is a cable set to connect the NC1200 or NC2k amplifier to our SMPS1200 or SMPS3k power supplies.All needed cables are included.
The cable set SMPS1200 is a complete set of cables to connect the SMPS1200A180, SMPS1200A400 or the SMPS1200A700

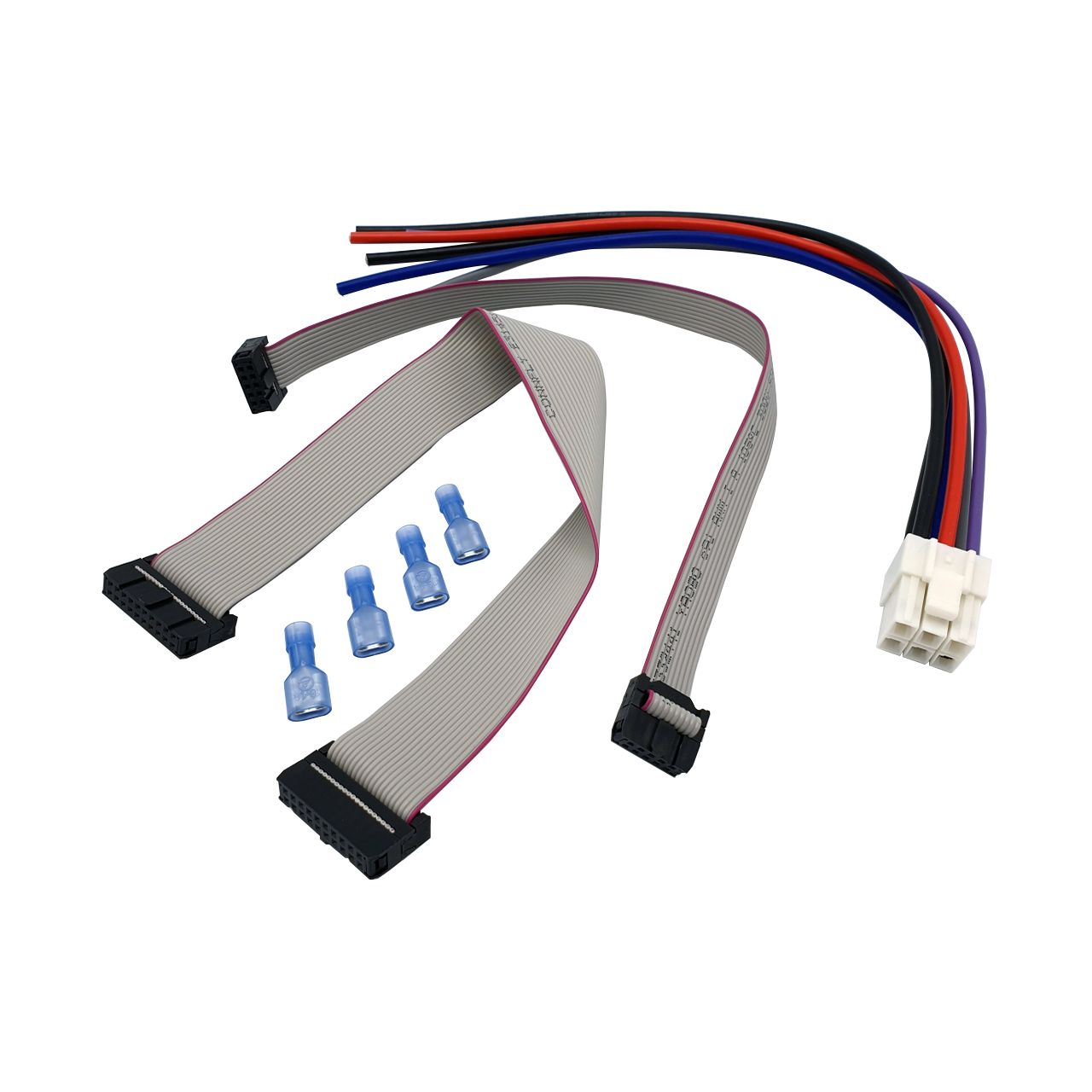

The cable set SMPS3k is a complete set of cables to connect the SMPS3k to one amplifier module. If you want to connect 2 or 3 amplifiers you'll need 2 or 3 cable sets. Cable length: 30cm
The cable set SMPS400 is a complete set of cables to connect the SMPS400A180 or the SMPS400A400.
The evaluation board for the DSA254 is a tool to simplify the testing and development process for users of the DSA254. This comprehensive evaluation platform allows engineers and developers to quickly assess the performance, features, and capabilities of the DSA254 in real-world applications. With a user-friendly design, the evaluation board provides easy access to key inputs and outputs, enabling seamless integration and fast validation of measurement tasks. The DSA254 evaluation board provides a seamless connection to the DSA254. It includes all the necessary connectors to effortlessly test all functions. It is compatible with both the SMPS1200 and the PS1000. Using the DSA254 evaluation board, you can easily test all the functionality of the DSA254, allowing you to seamlessly integrate the DSA254 into your application. Key features: • Provides effortless connection to DSA254 • Easy access to all DSA254 functionality • Supports both SMPS1200 & PS1000 • Supports Hypex HBOX • Makes use of industry standard connectors
The FusionAmp models must be mounted into the speaker cabinet with 8 or 10screws. This set contains 10 self tapping, black, Phillips head screws, 4,3x25mm.
Introducing the Fusion OLED Display – the perfect enhancement for all Fusion Amplifier Family models and the DSP3-213. Elevate your audio experience with this sleek display, designed to provide you with essential information at a glance. Whether it's monitoring volume levels, identifying active inputs, accessing presets, or staying informed about any error messages, the Fusion OLED Display ensures that every detail is effortlessly visible from your preferred listening position. Installing the Fusion OLED Display is a breeze. Designed for external attachment to the speaker cabinet, it comes equipped with double adhesive tape for easy and secure assembly. When integrated into a master-slave configuration, consider placing the display on the master device, especially if you plan to use the Hypex remote (remote not included). Please note that in slave devices, the IR functionality will be disabled while still offering all other benefits. The Fusion OLED Display includes • 1 x Fusion OLED Display • 1 x 5 pin cable 125cm • 1x Quick guide (Refer to the 'Downloads' tab for the complete User Manual) Upgrade your audio setup with the Fusion OLED Display – where information meets elegance.
- Compatible with: DSP3-213
- Compatible with: Fusion Amplifier Family
All models of the FusionAmp range can be extended with this Fusion Remote Kit. This set contains a PCBA with IR receiver and bi-colour LED, a plexiglass front with double adhesive tape, 2 lightpipes, the necessary cable (125cm) and screws. You can mount this kit from the inside or outside of the speaker cabinet. This set must be used in master devices if the Hypex remote is to be used (remote not included). Furthermore, this set can also be added in slave devices, but the IR functionality will be disabled. The green LED acts as on-off indicator, the red LED mirrors the protect indicator. Package contents • Screws • PCBA with IR receiver, bi-colour LED • Plexiglass frontsheet of double adhesive tape • 2pcs light pipes • 5 pin cable 125cm
The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V regulator. APPLICATIONS • Preamplifiers and buffers • RIAA input stages • Playback head amplifiers • Performance upgrade for existing products FEATURES • Ultra-low noice • Wide bandwidth • Excellent ripple rejection • Low, load-independend output impedance • Kelvin sense connections • Size and pin compatible with TO-220 style regulators
- Output impedance: 50mΩ
- Max. input voltage: 60V
- Max. output current: 100mA
The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HPR12 is a 12V regulator. APPLICATIONS • Preamplifiers and buffers • RIAA input stages • Playback head amplifiers • Performance upgrade for existing products FEATURES • Ultra-low noice • Wide bandwidth • Excellent ripple rejection • Low, load-independend output impedance • Kelvin sense connections • Size and pin compatible with TO-220 style regulators
- Output impedance: 50mΩ
- Max. input voltage: 60V
- Max. output current: 100mA
Hypex Filter Design software is a configuration tool for Hypex DSP products. It is used to configure and control Fusion Amplifier products and the DSP3-213 and DSP3-224 DSP modules. The software allows configuration of signal routing, filter structures and system parameters supported by the connected DSP hardware. Both IIR and FIR filter options can be configured where supported by the target platform. Hypex Filter Design provides access to available DSP functions through a graphical user interface intended to support efficient system setup and adjustment. The software is designed to support both initial configuration and subsequent parameter updates during system development and integration. Hypex Filter Design is intended for use in active loudspeaker systems and DSP based audio designs where direct control over filtering and system behaviour is required. Download only The Hypex Filter Designer is free of charge and only available as a download. You can select and download the software and documentation from within the downloads tab or by clicking the button below. Hypex Filter Designer is only available for Windows. DOWNLOAD HYPEX FILTER DESIGN HFD software consists of the following areas • Main Screen • Device settings screen • Filter design graphical screen • Filter design advanced screen Essential functions • Volume Control: Adjust volume levels with precision. • Channel Assignment: Customize channel configurations effortlessly. • Microphone Correction: Apply correction data for accurate sound reproduction. • Filter Sum View: Visualize the combined effect of applied filters. • Filter Inversion: Invert filter functions for creative control. • Delay Control: Fine-tune audio synchronization with delay options. • Graph Smoothing: Enhance visual representation with smoothing capabilities. • Biquad Filter Setups: Explore a wide range of filter setups for diverse audio scenarios. • Phase Response Viewer: Gain insights into phase response for meticulous system tuning. • Compatibility: HFD is designed to seamlessly integrate with DSP3-213 and DSP3-224, ensuring a broad spectrum of compatibility with Hypex DSP products. Use of Hypex Filter Design software assumes basic knowledge of active loudspeaker design and the application of digital filters. This ensures that system parameters are configured correctly and that the available DSP functions are used as intended. The software allows adjustment of system parameters such as volume levels, filter settings and signal routing within the supported DSP products. It is intended as a configuration and tuning tool for DSP based audio systems rather than an automated design environment. Hypex Filter Design is used to support precise control over DSP settings during system development, commissioning and optimisation.
Refine your listening comfort with the Hypex Remote Control - the ideal accessory for your Fusion Amplifier setup, perfectly compatible with the Fusion Remote kit or Fusion OLED Display. You can also find this remote included in the DIY PreAmplifier kit. Designed for effortless control, the Hypex Remote Control allows you to command your entire audio environment from the comfort of your seat. Adjust volume, mute, select inputs, select presets, and power on and off with ease. With a sleek, compact, and ergonomic design, it fits comfortably in your hand, while the simple and intuitive button layout makes it easy to operate - so you can enjoy your music without any hassle. Plus, a battery is included for immediate use.

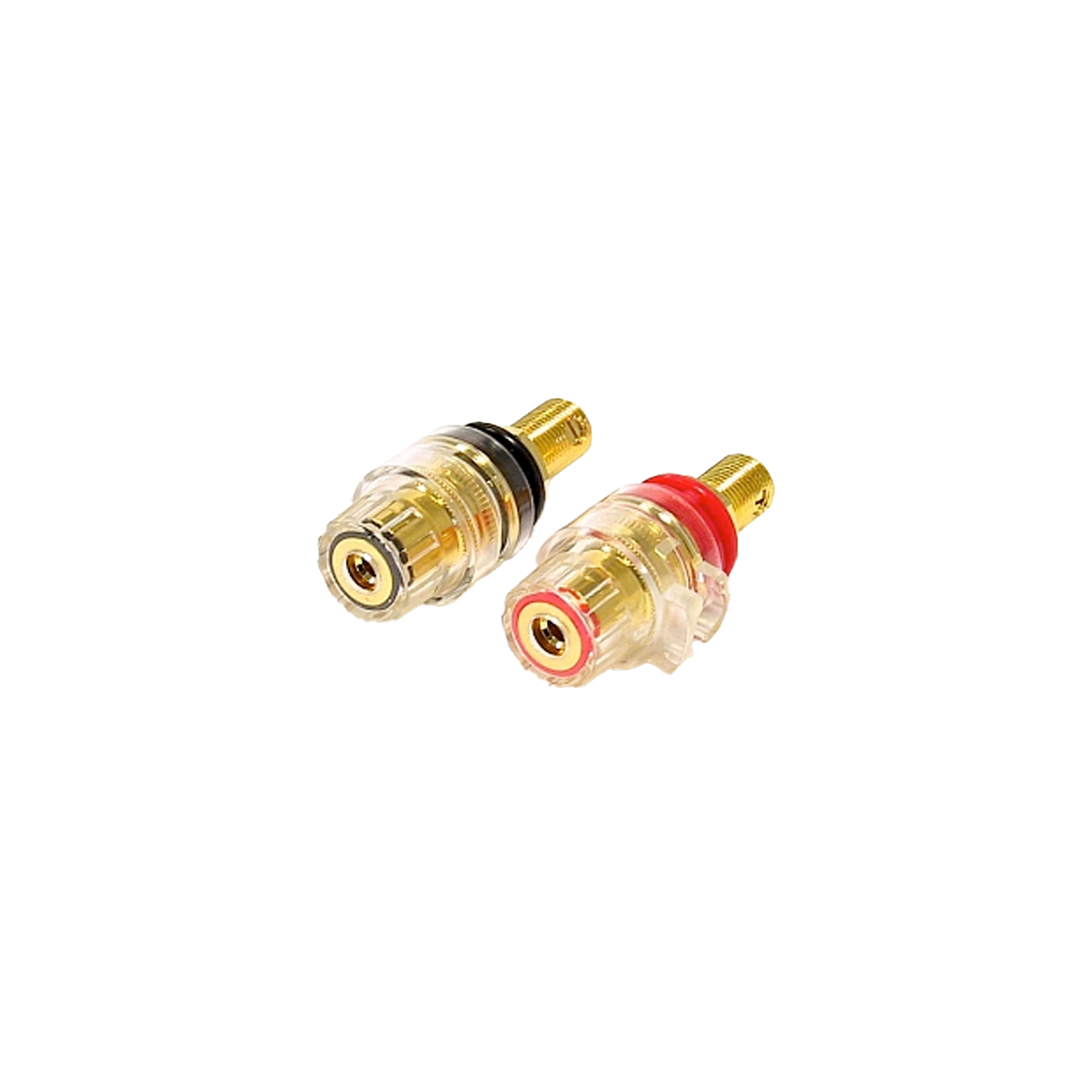

Goldplated binding post to connect your loudspeakers with your amplifier chassis. For banana plug, spade plug and bare wire connections. This binding post can be mounted as a set with the black spacer or as two single connectors.
This board is specifically designed to make it easy to evaluate the new NCxxxMP series mains powered NCORE modules. Furthermore, the NC100HF can be easily connected. All necessary control IO's and supplies are easily accessible via test pads for evaluation. The evaluation board comes with 10mm nylon spacers which can be used to mount the board using M3 screws. All necessary interface cables are included. The signal, speaker and mains cables are open ended, meaning that you are free to connect it in with your own connectors in your own way. Features • Makes it easy to evaluate the NCxxxMP series with the optional NC100HF • PS Enable switch • Ch 1-2 mute switch (also mutes ch3 by design) • H-Box connector • H-Bus connector • NC100HF half H-Box connector Included • A breakout PCB to quickly evaluate the NCMP series • Z10A25L1 - 25cm 10 pole JST to interface between NC100HF and NCMP • Z10C12L1 - 12cm 10 pole Hypex Bus ribbon cable • Z16C14L1 - 14cm 16 pole Hypex Box ribbon cable • Z8C10L1 - 10cm 8 pole Hypex Half-Box NC100HF ribbon cable • Z2A20L7 - 20cm JST VHR-2N open ended NC100HF speaker cable • Z4A20L7 - 20cm JST VHR-4N open ended NCxxxMP speaker cable • Z4B50L2 - 3x 50cm NCORE Molex Microfit to open end signal cable • Z2A30L1 - 30cm JST VHR-3N open ended mains connection cable
This board is specifically designed to allow for easy evaluation of the NC500 OEM NCORE® module. A selectable, on board buffer stage of 14 dB is implemented. Features • Allows for easy evaluation of the NC500 OEM amplifier • On board buffer • On board regulators / HxR-ready
- Channels: 1
- HxR Ready: Yes
Insulation sheet for the NCAS500MP. With this insulation sheet you can install the NCAS500MP in a safe way, the NCAS500MP cannot be mounted on a conductive surface without an insulation sheet applied. APPLICATIONS • For NCAS500MP only. HIGHLIGHTS • Safe installation on conductive surfaces.
50cm balanced signal cable with 4-pin connector also providing the enable signal. Specifications The QuietConduit cable design incorporates several refinements over normal balanced cables. A conductive polymer interface layer between the braid shield and the insulation of the signal conductor short-circuits triboelectric currents where they are generating, virtually eliminating microphonic noise pickup. A secondary benefit of this layer is to improve the electrostatic shielding effectiveness of the braid shield. Another crucial improvement is the elimination of drain wires, which is normally included for ease of termination but which allow shield currents to couple noise asymmetrically into the signal conductors. The geometry of the QuietConduit cable is precisely controlled, insuring that any noise coupling is strictly limited to common mode.
The NCx Evaluation board is designed to make evaluation of the NCx500 OEM amplifier or NCx1000 OEM amplifier easy. The Hypex SMPS1200 or SMPS3K can be easily connected to the evaluation board and used as power supply for an evaluation setup. An H-box connector also allows for easy connection with a Hypex DSP3-213 board.

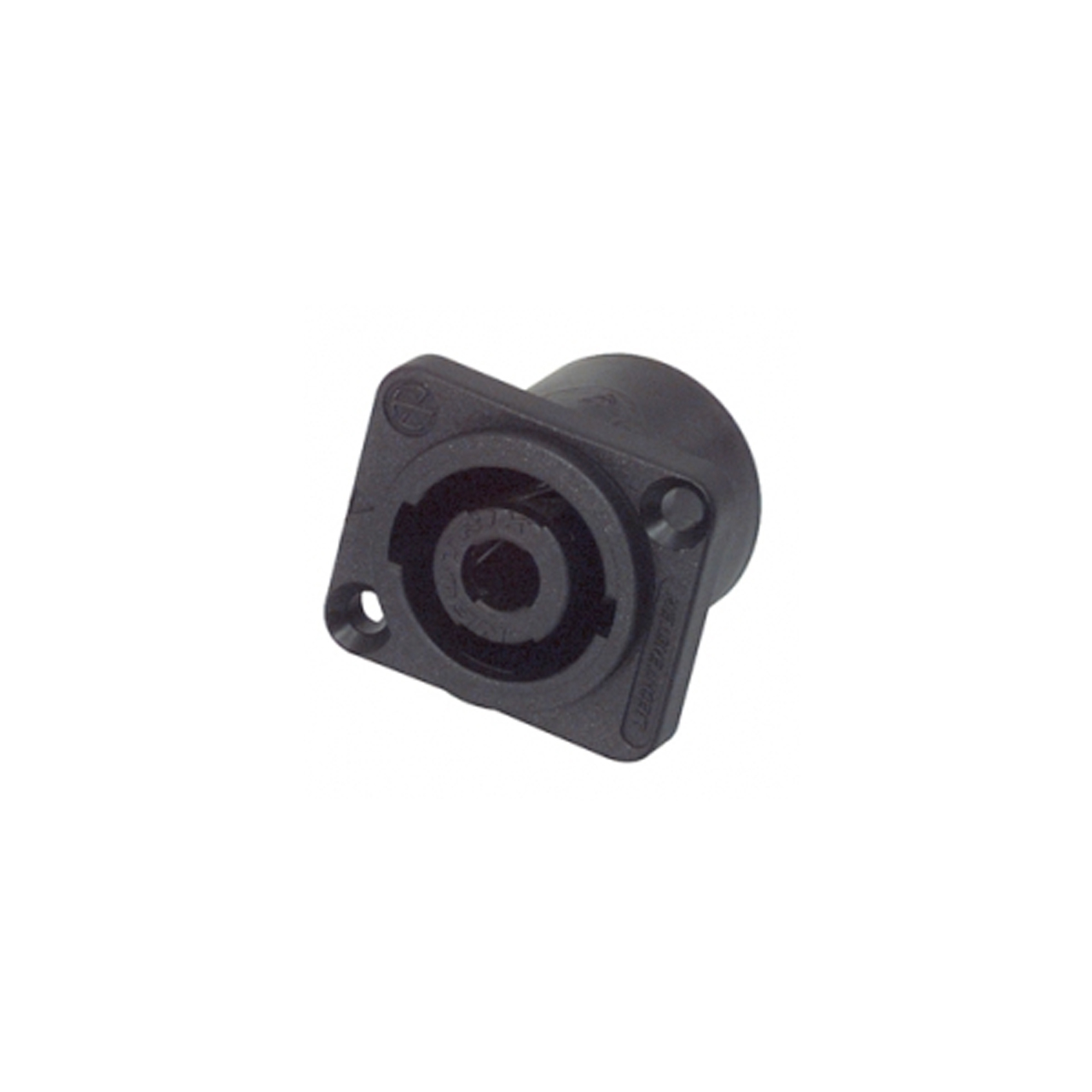

Neutrik Speakon NL4MP to connect your amplifier or other device to your speakers.
3 pole female XLR cable connector from Neutrik with black metal housing and gold plated contacts.

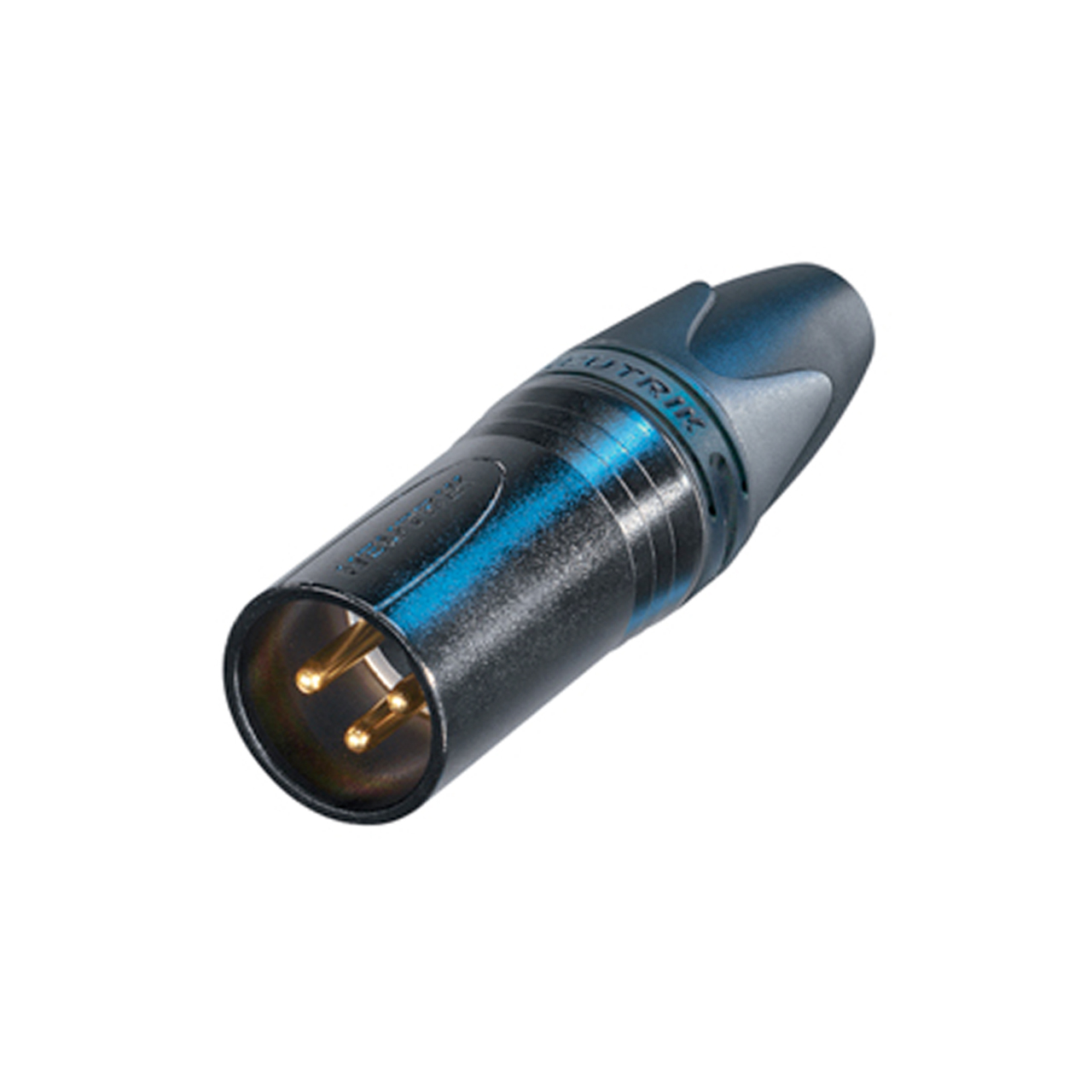

3 pole male XLR cable connector from Neutrik with black metal housing and gold plated contacts.
3 pole male XLR cable chassis plug from Neutrik with black metal housing and gold plated contacts.
Mains power cable to connect your products with IEC 60320 C13 and Euro connection.
Mains power cable to connect your products with USA and IEC 60320 C13 connection.

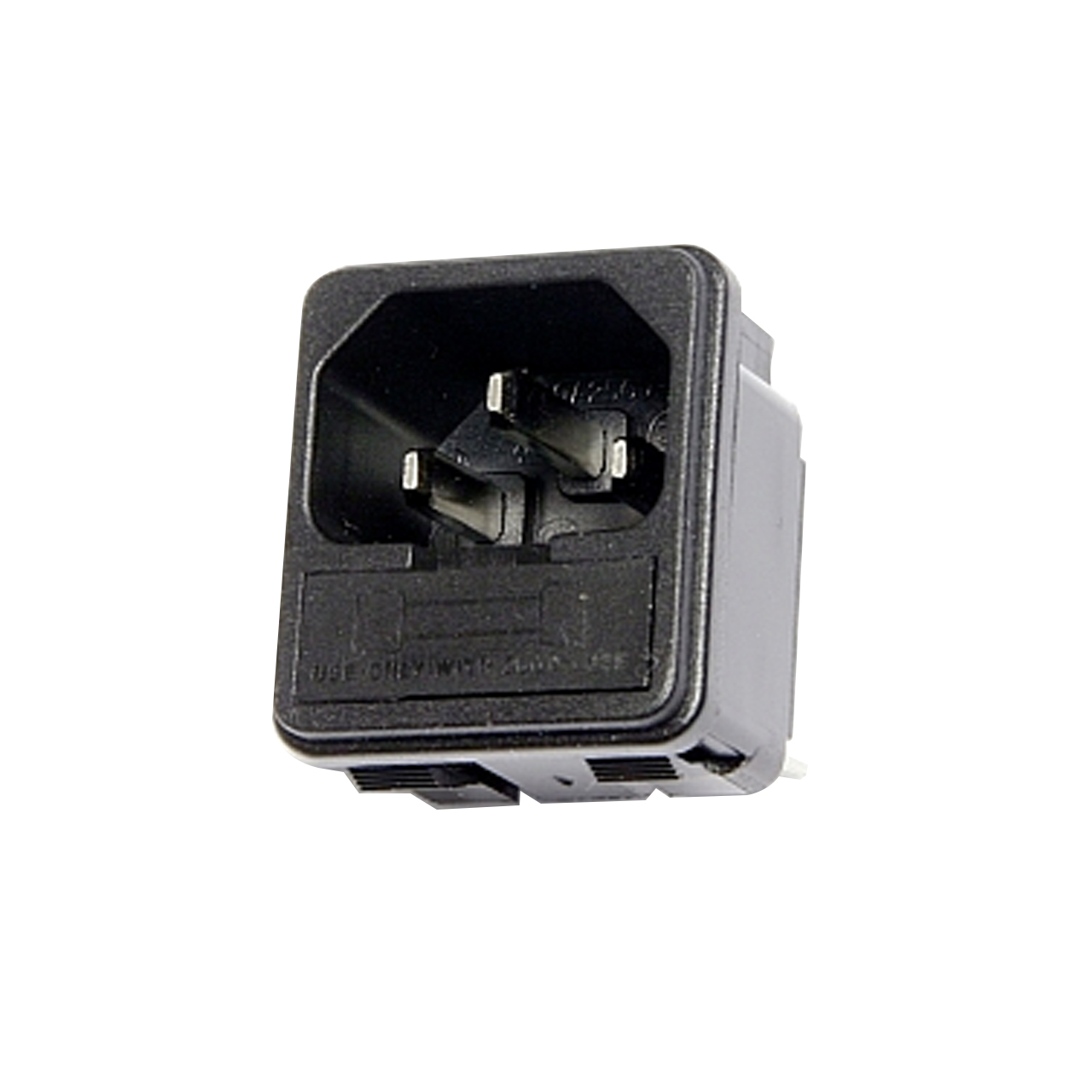

This IEC 60320 C14 power connector with fuse holder can be used in your amplifier housing to connect the mains power to your amplifier supply. This power connector is capable to handle 10A at 230V. At the back are Faston terminals for easy connection. The mounting hole must be 32.5x27mm. Fuse not included.
This cable is suitable for connecting the SMPS1200 or SMPS3K to the following products:NC1200NC2KDSA254 Evaluation Board NC500 Evaluation board NCx Evaluation board Specifications: Length: 230mm Cable: 4x 14AWG Connector: 2x JST VLP-06V Contact pin: 12x SVF-81T JST Cable asm name: Z6A23L1

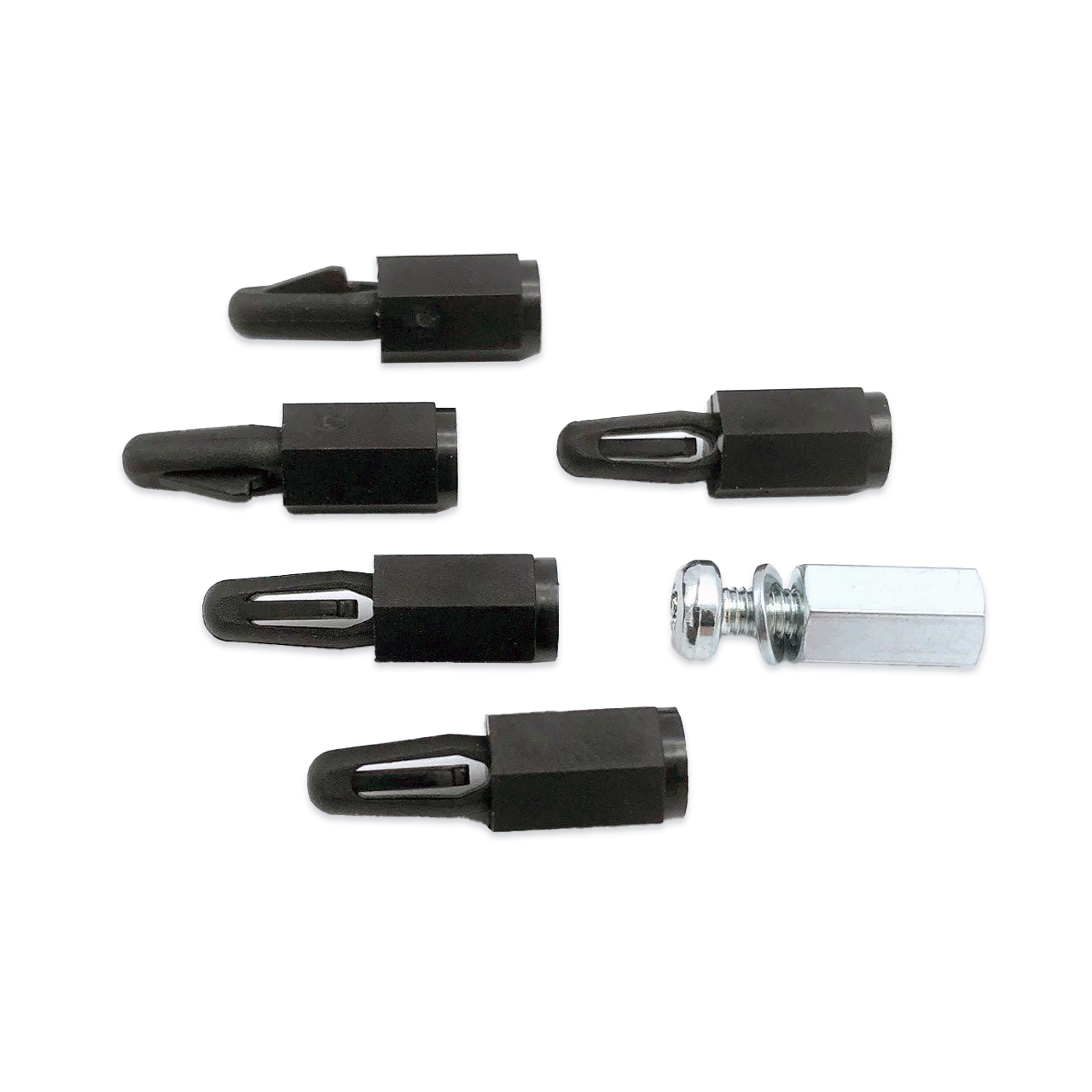

These spacers can be used with the SMPS400 and UcD3xMP's to ensure that the minimum safety clearance requirements are met. APPLICATIONS • Mounting the SMPS400, UcD32MP, UcD34MP, UcD36MP FEATURES • Weight: 2g • Dimensions: 19.5(10)mm x 6mm • thread: M3 • PCB mounting hole: 4mm • packing quantity: 6 pieces • One metal spacer included

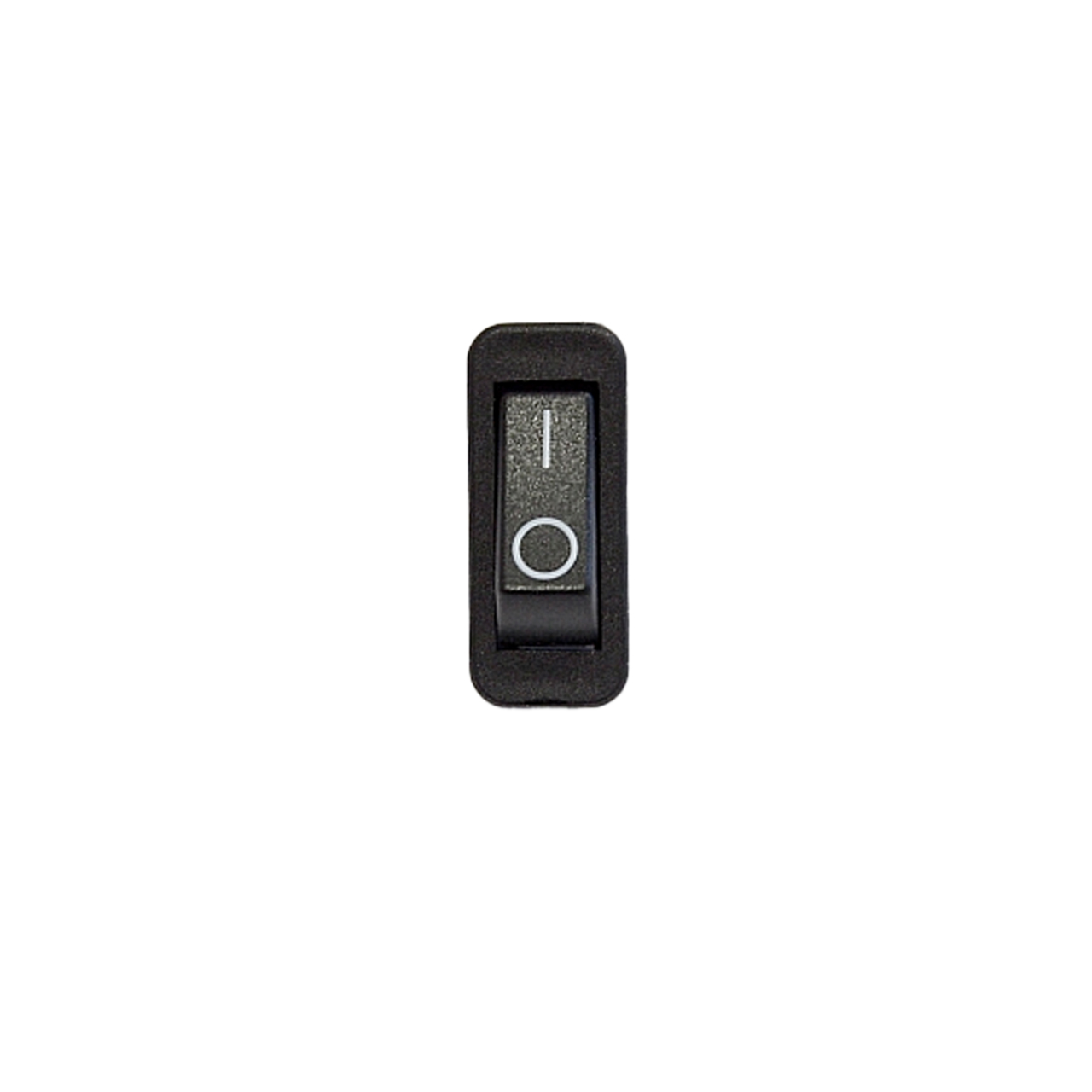

This on-off switch can be used as a main switch for your amplifier cabinet. This snap-in switch can handle 16A at 230V. The mounting hole is 31 x 11mm and ~ 25mm deep including the faston terminals.
50cm balanced signal cable with 4-pin connector also providing the enable signal. Specifications The QuietConduit cable design incorporates several refinements over normal balanced cables. A conductive polymer interface layer between the braid shield and the insulation of the signal conductor short-circuits triboelectric currents where they are generating, virtually eliminating microphonic noise pickup. A secondary benefit of this layer is to improve the electrostatic shielding effectiveness of the braid shield. Another crucial improvement is the elimination of drain wires, which is normally included for ease of termination but which allow shield currents to couple noise asymmetrically into the signal conductors. The geometry of the QuietConduit cable is precisely controlled, insuring that any noise coupling is strictly limited to common mode.
This board allows you to connect the UcD102 OEM with FASTON connectors and our new NCore signal cable. This board is an excellent product for all sample users to make a quick setup for testing.
This board alows you to connect the UcD180 OEM or the UcD400 OEM with FASTON connectors and our signal cable. Also there is a boxheader placed for signals like buffered or non-buffered audio, clip detection and DC error to use all functions of the OEM module. By setting the jumpers you can choose for a buffered or unbuffered input signal. This board is an excelent product for all sample users to make a quick setup for testing.
- Channels: 1
