NC52MP OEM

Product information "NC52MP OEM"

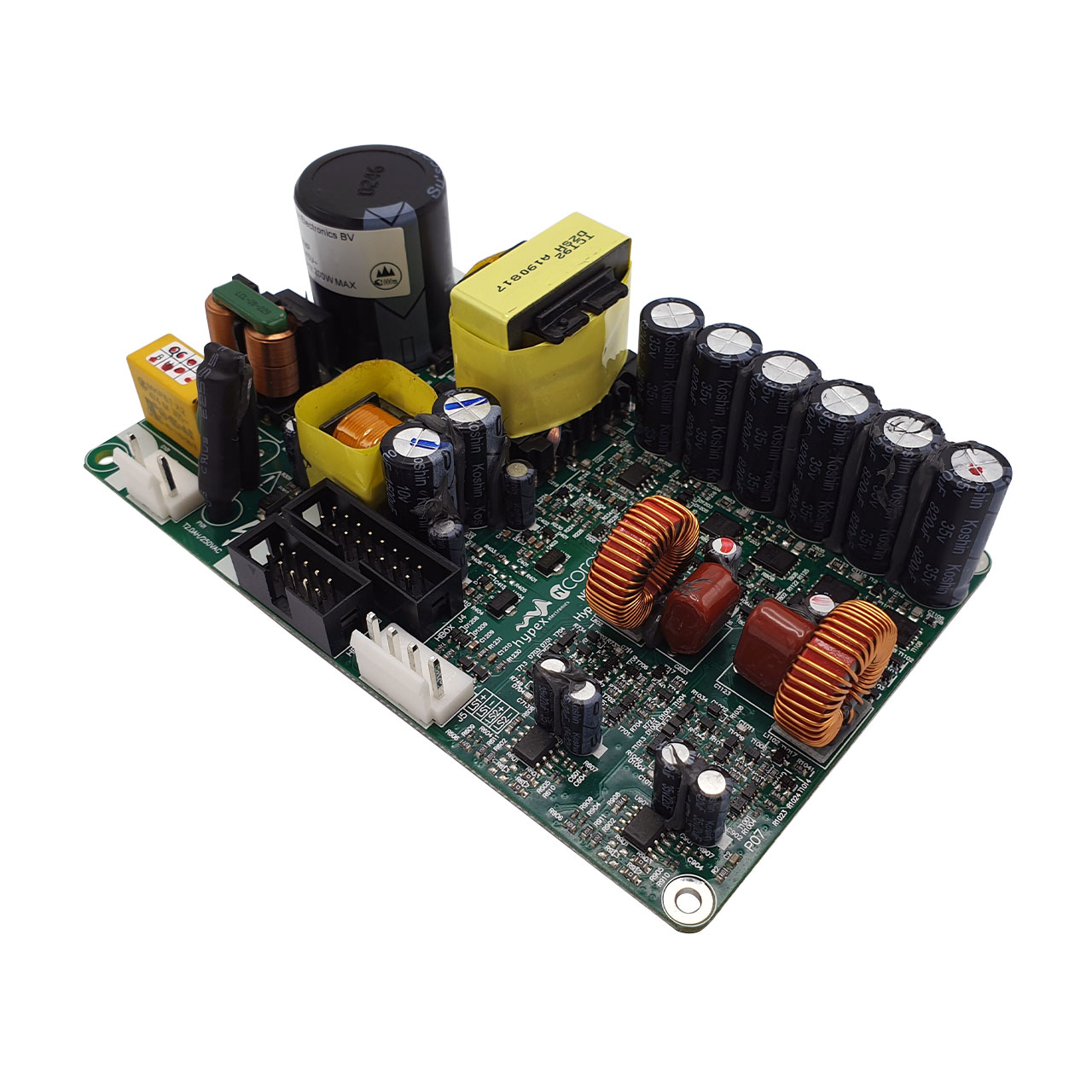

The NC52MP is an extremely compact power dual-amplifier brick. A cutting-edge, easy to integrate, amplifier solution that seamlessly combines advanced technology with an integration-friendly design. This versatile module is equipped with a host of features to elevate your implementation experience, making it an ideal choice for a wide range of audio applications, from high-quality power amplifiers to high-quality active loudspeakers.

The NC52MP stands out with its innovative power supply architecture. Incorporating a low-power standby supply that complies with 2013 ERP Lot 6 0.5W requirements, a highly efficient switch mode power supply (SMPS), and dual high-performance 50W NCORE® Class-D amplifiers, this module redefines compact power delivery. The result is a compact yet powerful brick that is highly compatible with various audio applications.

The Class-D amplifier employed in the NC52MP is a self-contained marvel, crafted for versatility in audio applications ranging from public address systems to ultra high-fidelity replay systems for both studio and home use. Key features that set it apart include a flat frequency response across load impedances, nearly frequency-independent distortion behavior, and minimal radiated and conducted electromagnetic interference (EMI). The control mechanism is based on a phase shift-controlled self-oscillating loop, with feedback sourced exclusively from the speaker output.

Driving the amplifiers is a main SMPS, a compact, high-power, highly efficient, regulated flyback. These exceptional properties make it the perfect technology to power this Class-D audio power amplifier brick, ensuring optimal performance and reliability. This SMPS is designed for universal mains input compatibility, offering flexibility and efficiency in various applications. For situations requiring a standby mode, the NC52MP incorporates a low-power standby SMPS.

Now, redefine your expectations with the NC52MP’s remarkably low heat dissipation. This module has been engineered to deliver superior performance while efficiently managing heat generation, enhancing both longevity and reliability.

HIGHLIGHTS

  • • High efficiency & Universal mains operation
  • • Flat, fully load-independent frequency response
  • • Low output impedance
  • • Very low, frequency independent THD
  • • Very low noise

FEATURES

  • • 5W standby SMPS
  • • Advanced protections
  • • Clip indicator
  • • Universal mains (100/240Vac)
  • • Light weight and compact size

PROTECTIONS

  • • Overcurrent protection
  • • Excessive DC protection
  • • Over temperature protection
  • • Short circuit protection

POSSIBLE APPLICATIONS

  • • Monitor loudspeakers for studios
  • • Active loudspeakers
  • • Public Address systems
  • • Home Theatre systems
  • • Power Amplifiers; for home and professional use
Output Power (2Ω): 2 x 40W, (BTL 2Ω is not supported)
Output Power (4Ω): 2 x 50W (1 x 125W in BTL)
Output Power (8Ω): 2x 25W, (1x 100W in BTL)
Channels: 2
Distortion: 0.002% 20hZ < f < 20kHz. Pout = 1W
Output Noise: 35 µV
Power Bandwidth: 20Hz - 35kHz
Frequency Response: 10Hz - 50kHz +0/-3dB. All loads
Idle Power: 4W
Output impedance: 2mΩ (Max) - f < 1kHz, 4mΩ (Max) - f < 20kHz
Automatic input voltage selection: Yes
Technology: NCORE®
Family: Mains Powered NCORE® Family
