NCxxxMP Evaluation board
H08U002698
Downloads
CAD drawings
documentation
Product information "NCxxxMP Evaluation board"

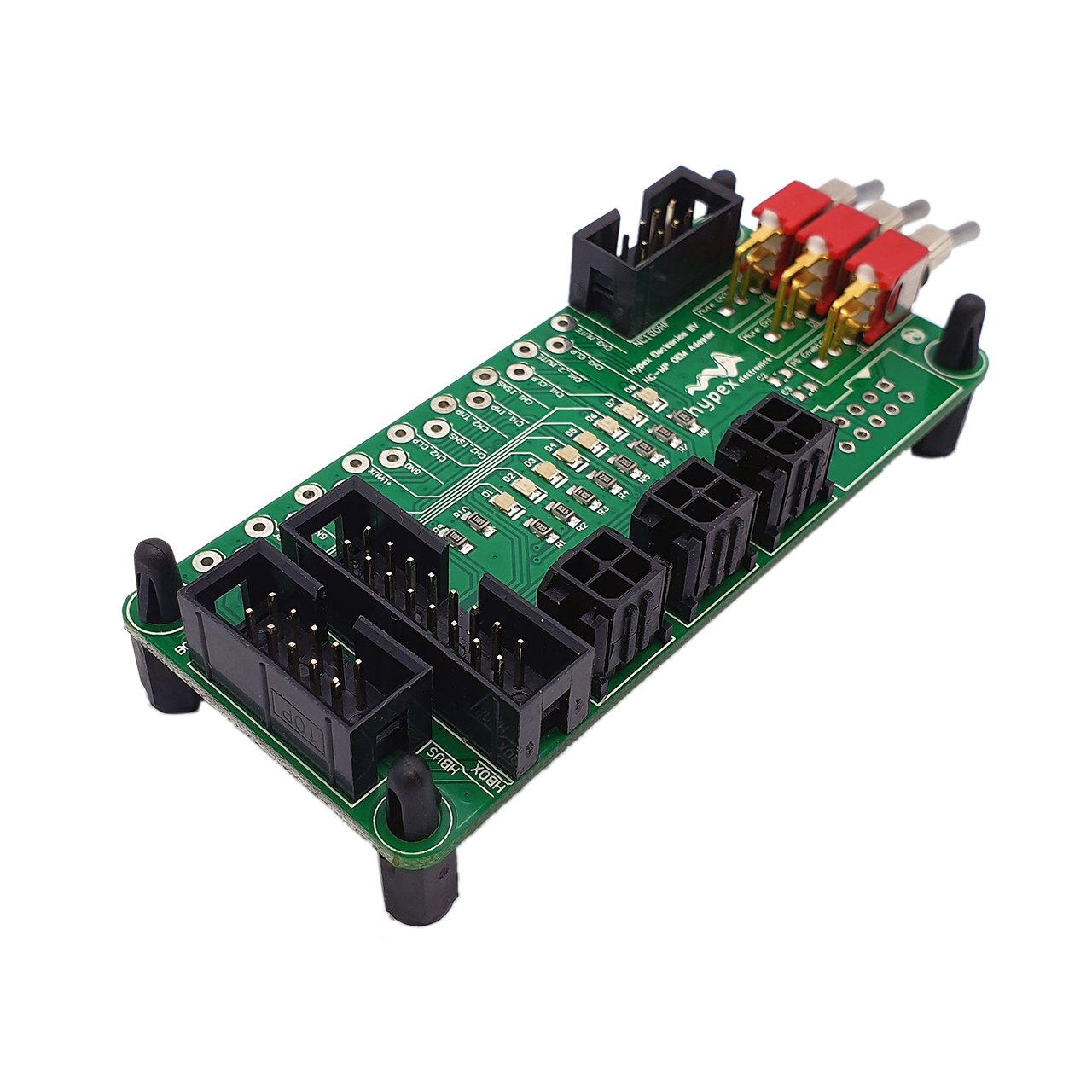

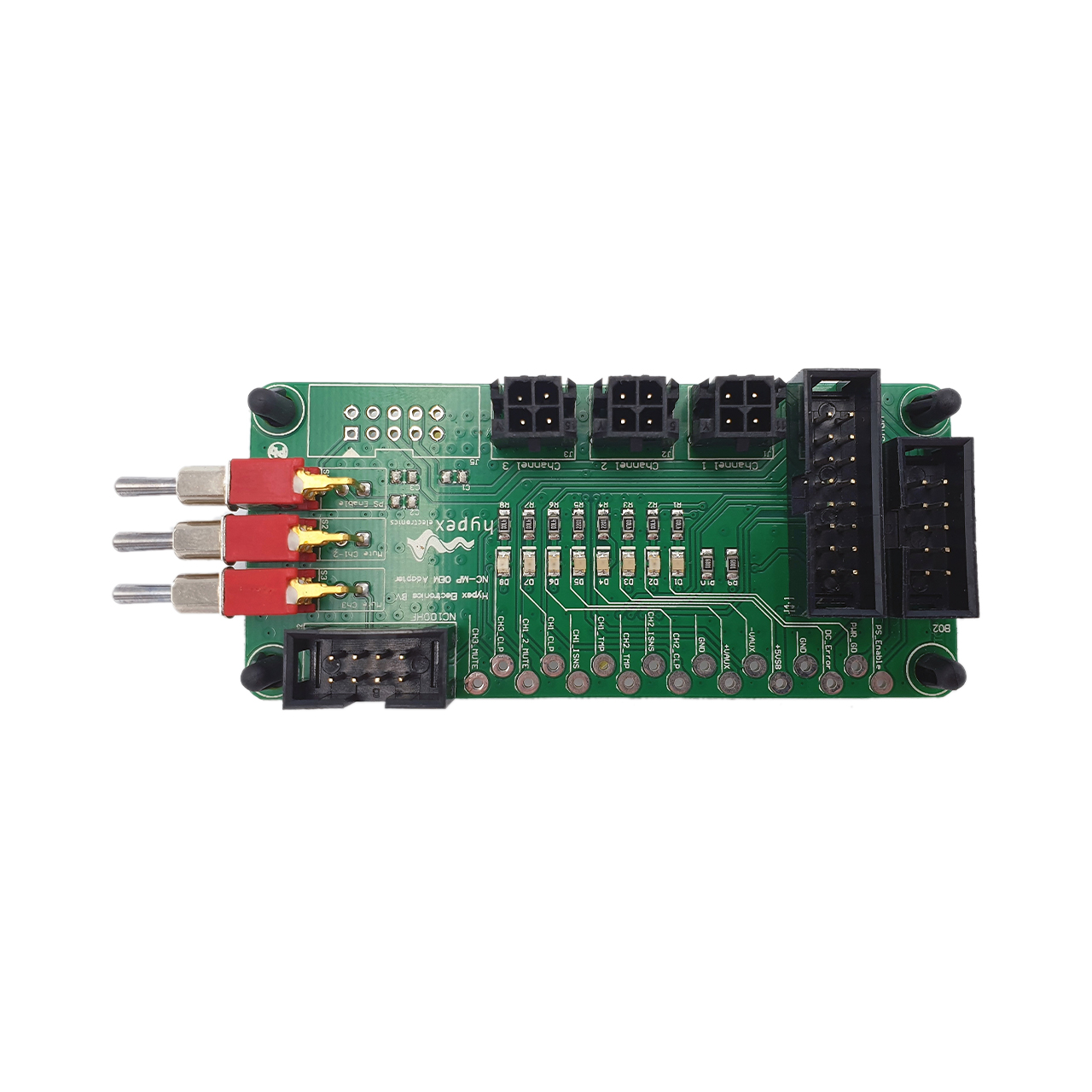

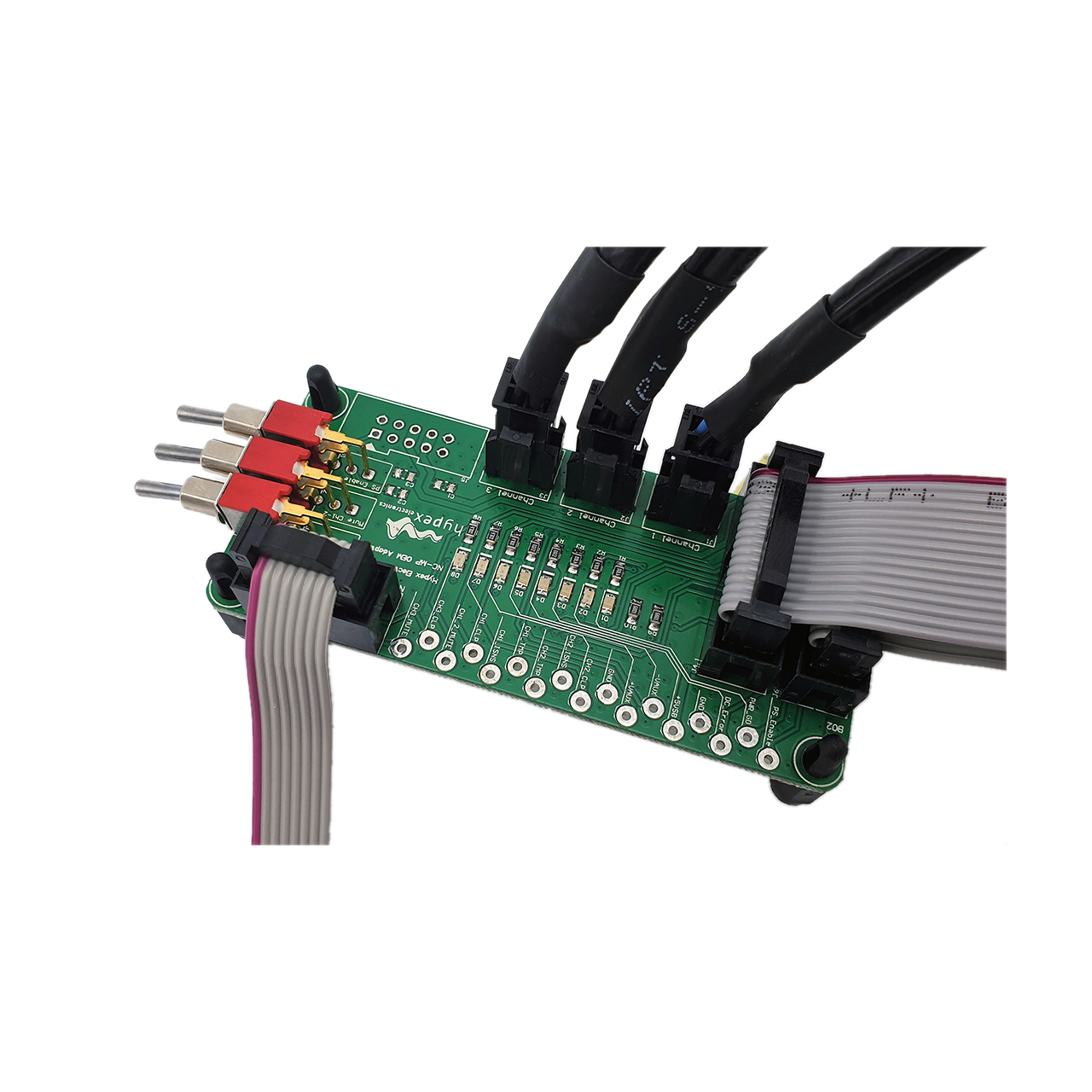

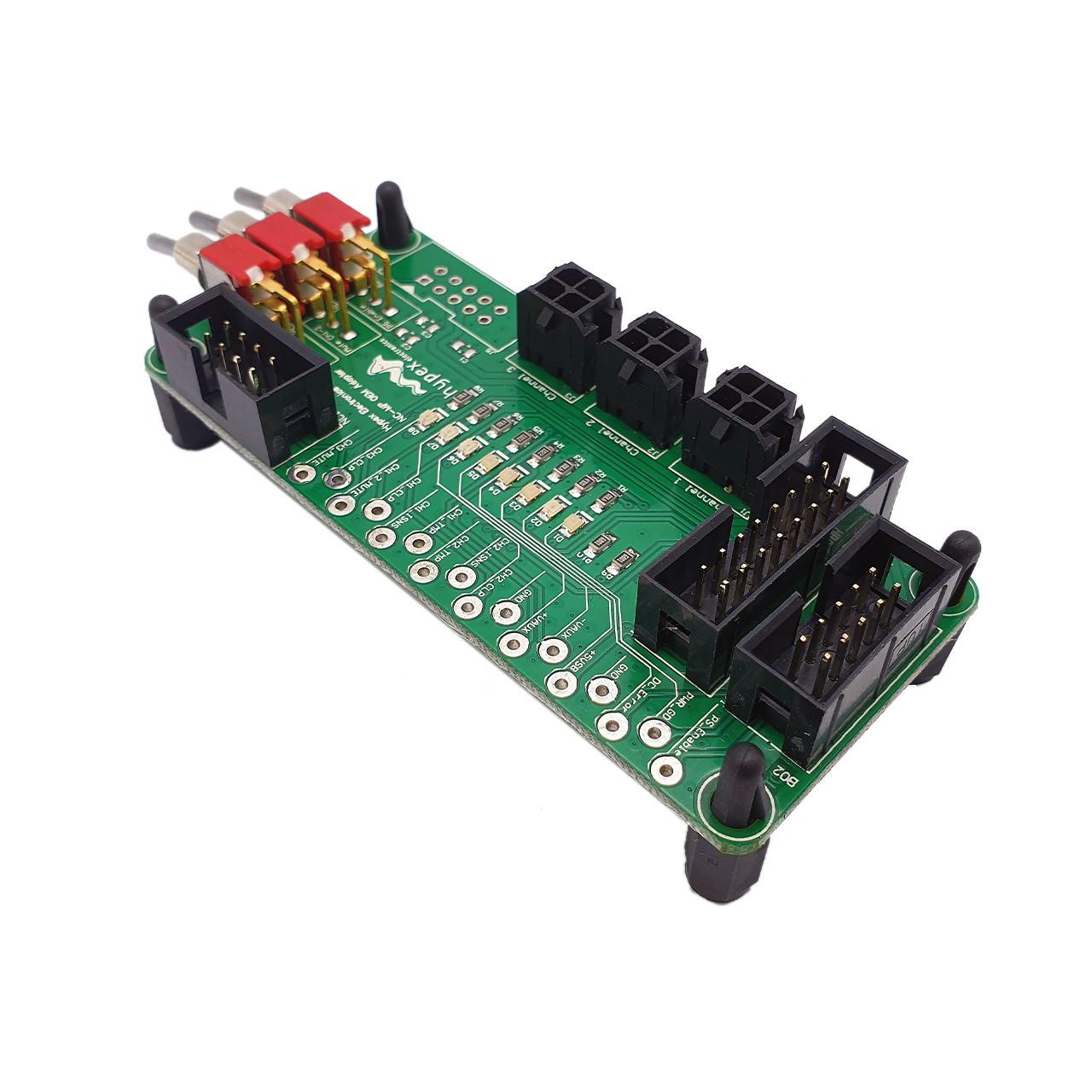

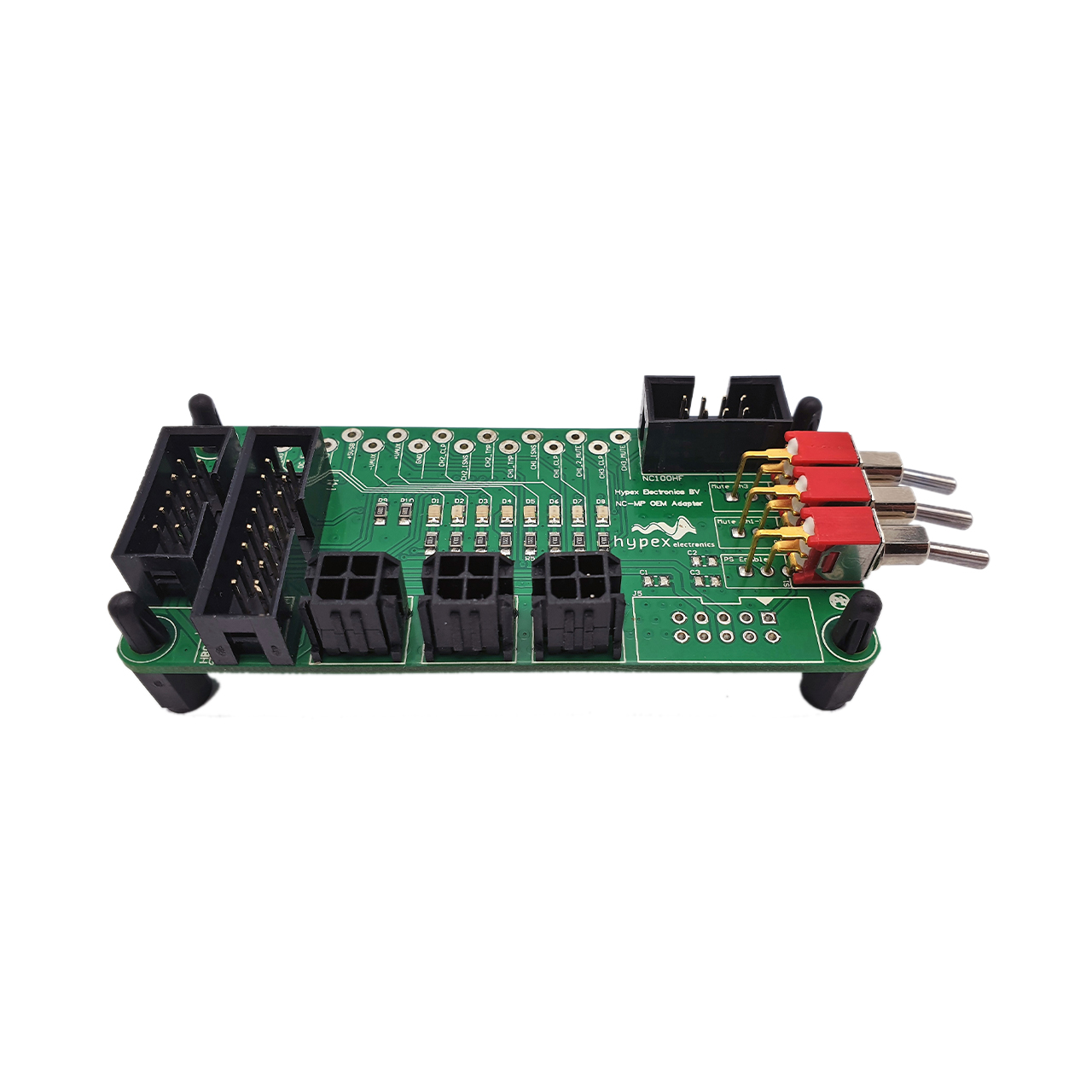

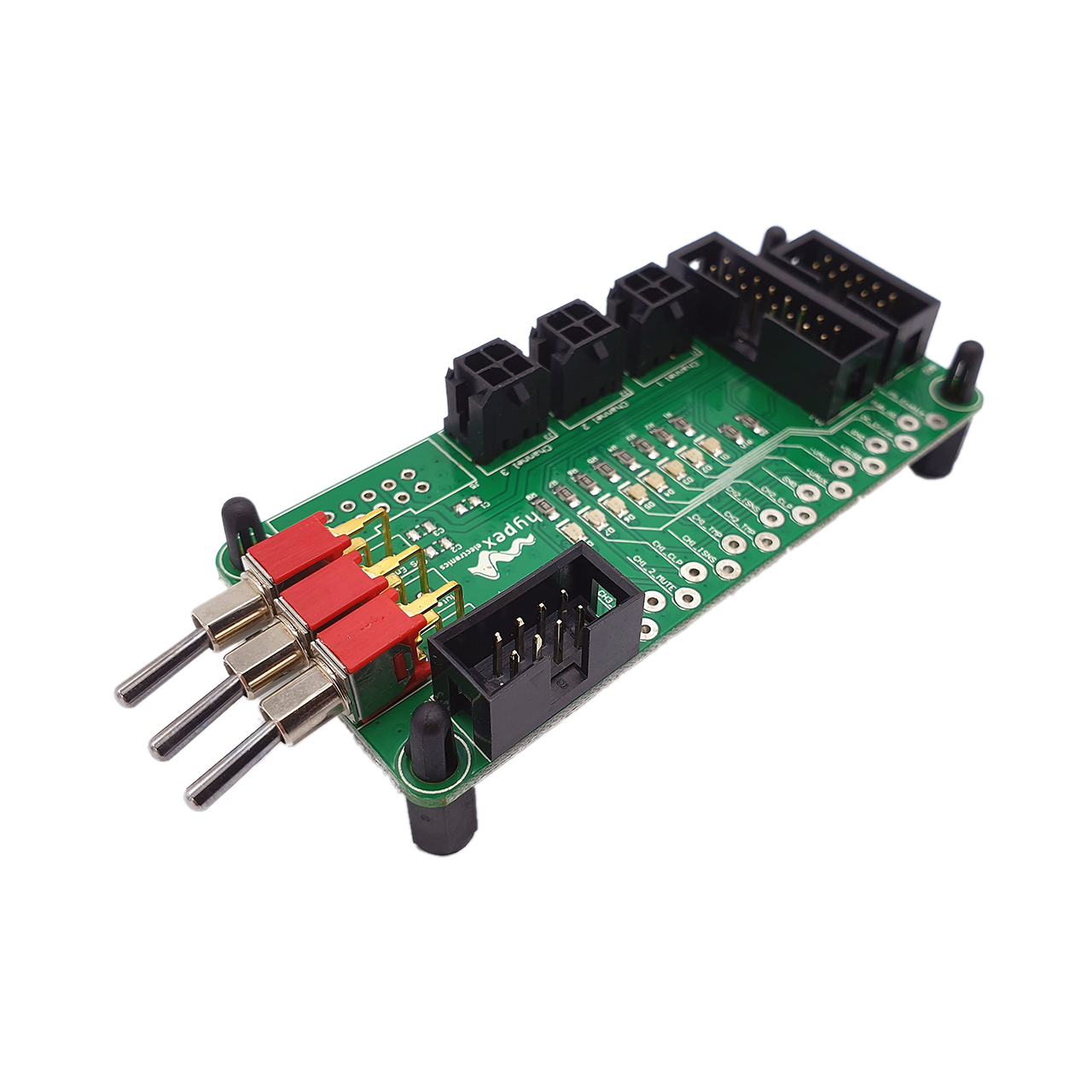

This board is specifically designed to make it easy to evaluate the new NCxxxMP series mains powered NCORE modules. Furthermore, the NC100HF can be easily connected. All necessary control IO's and supplies are easily accessible via test pads for evaluation. The evaluation board comes with 10mm nylon spacers which can be used to mount the board using M3 screws. All necessary interface cables are included. The signal, speaker and mains cables are open ended, meaning that you are free to connect it in with your own connectors in your own way.
Note: the XLR connectors in the picture are for example only and not included.
Note: the XLR connectors in the picture are for example only and not included.
Features:
- Makes it easy to evaluate the NCxxxMP series with the optional NC100HF
- PS Enable switch
- Ch 1-2 mute switch (also mutes ch3 by design)
- H-Box connector
- H-Bus connector
- NC100HF half H-Box connector

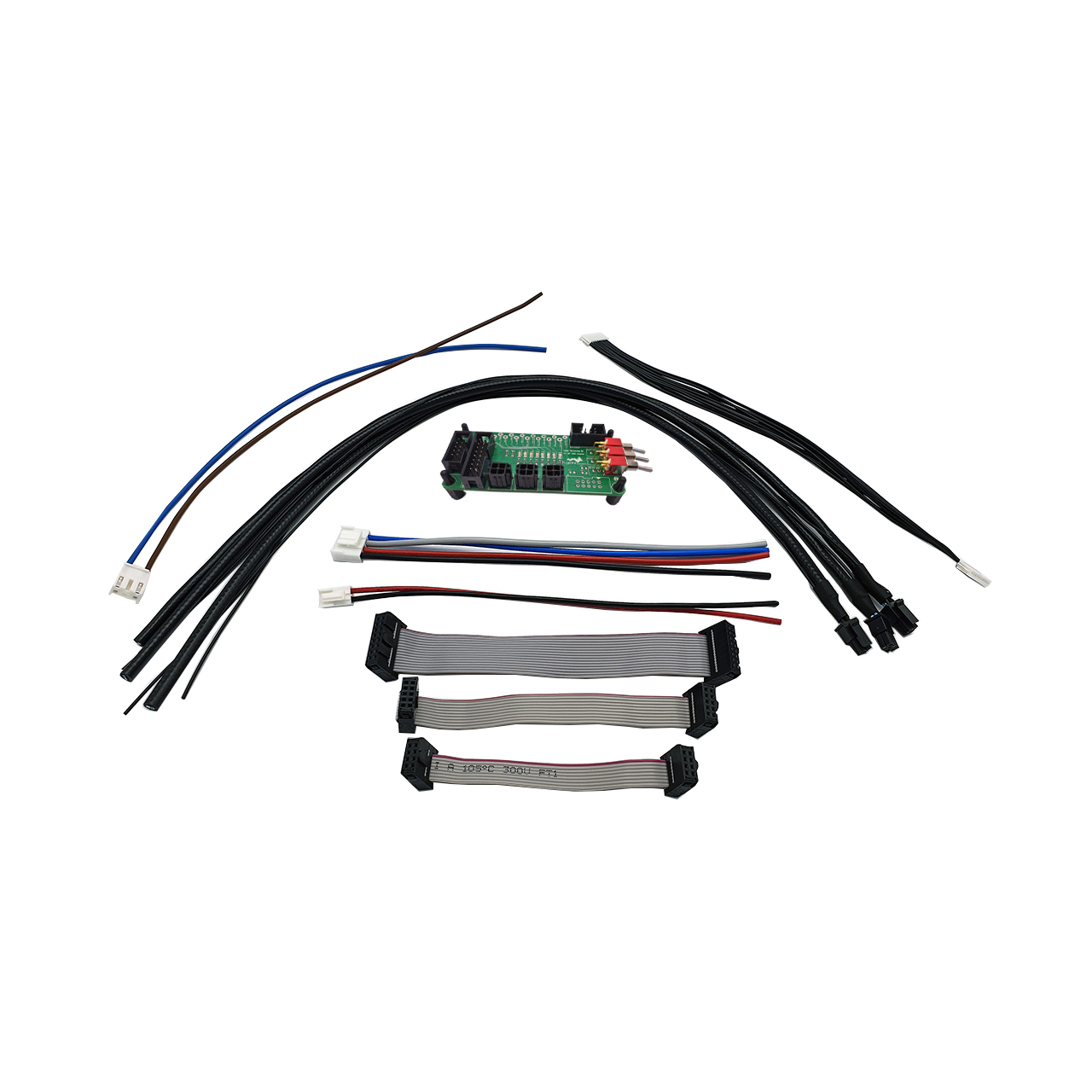

Included:
- A breakout PCB to quickly evaluate the NCMP series
- Z10A25L1 - 25cm 10 pole JST to interface between NC100HF and NCMP
- Z10C12L1 - 12cm 10 pole Hypex Bus ribbon cable
- Z16C14L1 - 14cm 16 pole Hypex Box ribbon cable
- Z8C10L1 - 10cm 8 pole Hypex Half-Box NC100HF ribbon cable
- Z2A20L7 - 20cm JST VHR-2N open ended NC100HF speaker cable
- Z4A20L7 - 20cm JST VHR-4N open ended NCxxxMP speaker cable
- Z4B50L2 - 3x 50cm NCORE Molex Microfit to open end signal cable
- Z2A30L1 - 30cm JST VHR-3N open ended mains connection cable
Recommended additional parts
NC250MP OEM
The NC250MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC250MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseFEATURES:One channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 360g.CompactCONTENTS OF PACKAGING:NC250MP OEMManual
NC122MP OEM
The NC122MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC122MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 415g.Compact: 170 x 85 x 40mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC122MP OEM moduleManual
NC500MP OEM
The NC500MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC500MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doublerThe Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer usePublic address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 500g.Compact: 146x105x42mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC500MP OEM moduleManual
NC252MP OEM
The NC252MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC252MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 575g.Compact: 170x105x42mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC252MP OEM moduleManual
NC502MP OEM
The NC502MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.The amplifier used in the NC502MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product. To achieve universal mains input compatibility this SMPS features an automatic input voltage doubler.The Hypex Channel Extension connector provides for an additional low power tweeter amplifier channel.APPLICATIONS:Monitor loudspeakers for recording and mastering studiosAudiophile power amplifiers for professional and consumer use.Public address systemsActive loudspeakersFEATURES:Two channel amplifier5W standby SMPSAdvanced over current protectionExternal controlled operationAuto-switching (115/230V)Low weight: 1055g.Compact: 230x115x47mmHIGHLIGHTS:High efficiencyUniversal mains operationFlat, fully load-independent frequency responseLow output impedanceVery low, frequency-independent THDVery low noiseCONTENTS OF PACKAGING:NC502MP OEM moduleManual
Now with FIR!
DSP3-213
The DSP3-213 (formerly called MP-DSP Main) is a high grade, three channel DSP board to be used specifically with the Hypex Mains Powered (MP) and NCORE® Active Speaker (NCAS) series amplifiers. It can be expanded with an optional digital input board or high level input board for subwoofers. Multiple DSP boards can be used in master-slave configuration to create a stereo or 2.1 system. Three presets are available to store different filter settings, inputs and volume offsets. If a 2-channel amplifier is connected the outputs can easily be configured for BTL operation.APPLICATIONS:High-end consumer audioActive speakersActive subwoofersPA systemsStudio monitors FEATURES:3 programmable presets Configurable Soft clip limiterAutomatic Source selectionAutomatic signal detectionOptional IR remote controlMaster-slave operation
