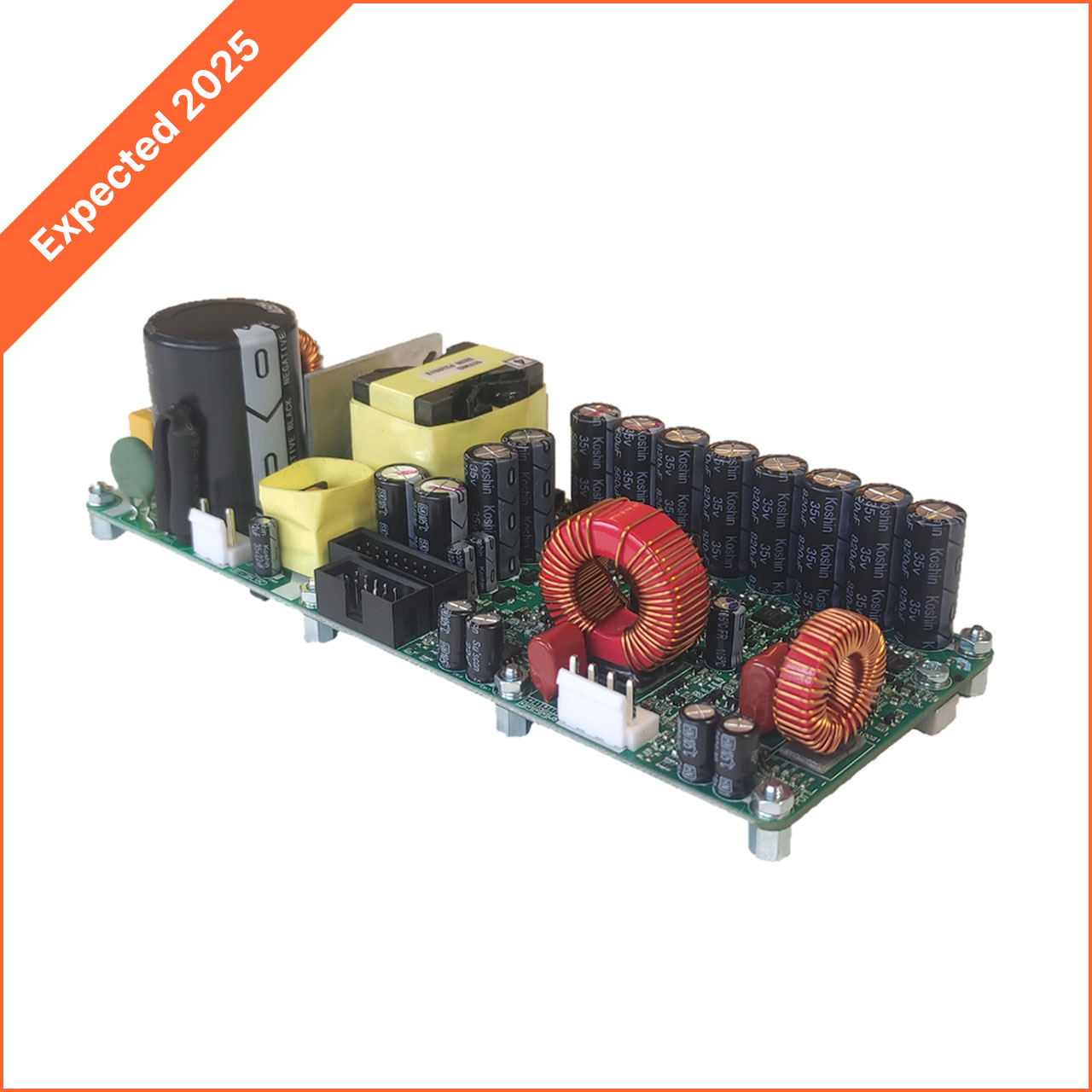

The NCAS250MP is an active speaker amplifier module integrating two NCORE® Class D amplifier channels on a single PCB. The module combines one full bridge high power channel and one half bridge medium power channel, intended for two way active loudspeaker designs. The full bridge channel delivers up to 200 W and is suitable for low frequency drivers. The half bridge channel delivers up to 50 W and is intended for midrange or high frequency drivers. This channel configuration supports efficient power allocation within compact active speaker systems. The module integrates a regulated switch mode power supply designed for Class D amplification and supporting universal mains input operation. A dedicated low power standby supply is included and complies with 2013 ERP Lot 6 requirements for a maximum standby consumption of 0.5 W. The NCAS250MP is intended for use in active loudspeakers such as studio monitors and compact PA systems where integrated amplification, defined channel allocation and predictable electrical behaviour are required. Highlights • High efficiency • Universal mains operation • Flat, fully load independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise Features • 5W standby SMPS • Advanced protections Protections • Advanced overcurrent protection • Excessive DC protection • Over temperature protection • Short circuit protection Possible applications • Monitor loudspeakers for studios • Active PA loudspeakers • Active HiFi loudspeakers
- Output Power (4Ω): 1 x 200W + 1 x 50W
- Output Power (8Ω): 1 x 200W + 1 x 50W
- Distortion: TBD
The NCAS500MP integrates two NCORE® Class D amplifier channels intended for two way active loudspeaker designs. The module combines one full bridge high power channel and one half bridge medium power channel on a single PCB assembly. The full bridge channel delivers up to 400 W and is intended for low frequency drivers. The half bridge channel delivers up to 100 W and is suitable for midrange or high frequency drivers. This channel allocation supports efficient distribution of output power within compact active speaker systems. The module includes an integrated switch mode power supply based on a regulated half bridge topology with synchronous rectification on the main output rails. An automatic input voltage doubler supports operation across a wide range of mains input voltages. A dedicated low power standby switch mode power supply is included and complies with 2013 ERP Lot 6 requirements for a maximum standby consumption of 0.5 W. The NCAS500MP is intended for use in active loudspeakers such as studio monitors and compact PA systems where integrated amplification and defined channel allocation are required. Highlights • High efficiency • Universal mains operation • Flat, fully load independent frequency response • Low output impedance • Very low, frequency independent THD • Very low noise Features • 5W standby SMPS • Advanced protections Protections • Advanced overcurrent protection • Excessive DC protection • Over temperature protection • Short circuit protection Possible applications • Monitor loudspeakers for studios • Active PA loudspeakers • Active HiFi loudspeakers
- Output Power (4Ω): 1 x 440W + 1 x 120W
- Output Power (8Ω): 1 x 400W + 1 x 100W
- Channels: 2
